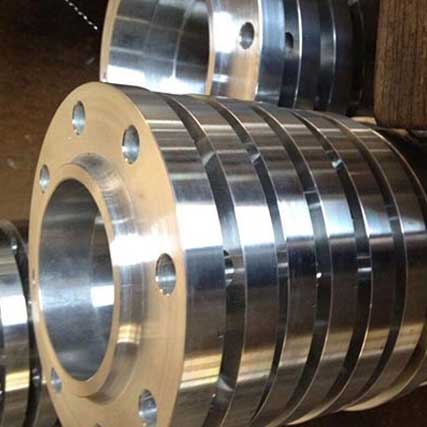

High Nickel Alloy Slip On Flange
- sales@shikharsteel.com
Sizes in Stock
1/2" to 24"
Sizes Can Be
Manufacture
Up to DN1600
UNS Designation
UNS N02200/ N02201
Werkstoff Number
WNR 2.4066/ 2.4068
Test
Hydrostatic Test
Application
Power Generation
Environment
High Temperature
MTC Report
Yes
Table Of Content
Nickel Alloy Flanges Specification
Nickel 200 Flanges Manufacturing Sizes
Pressure Class for Nickel 201 Flanges
Nickel Alloy Forged Flanges Faces
American Standard of Nickel Flanges
Nickel Pipe Flange Manufacturing Process
Thickness for Brushed Nickel Flange
Polished Nickel Flange Process
Threads of High Nickel Alloy Flanges
Nickel Alloy Pipe Flanges Surface Finish
Bolts Hole for Pure Nickel Flange
Nickel Alloy Forged Flange Application
Packaging of Nickel Based Alloy Flanges
Nickel Forging Flange Suitable Environment
Testing & Inspection for Nickel Alloy Weld Neck Flange

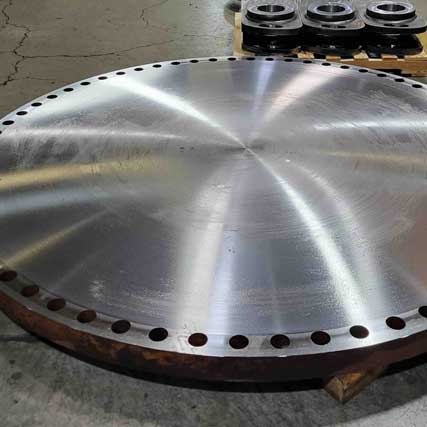

Nickel Alloy Blind Flange Connection
European Standard of Nickel Alloy Slip On Flange
Nickel 200 Flanges Logistics
Origin for Nickel 201 Flanges
Nickel Alloy Forged Flanges German Standard
Japanese Standard of Nickel Flanges

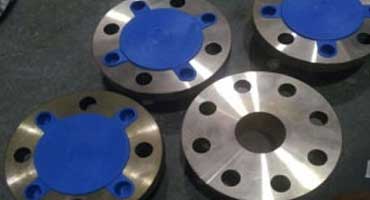

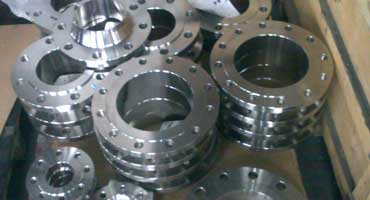

Where We Have Supplied

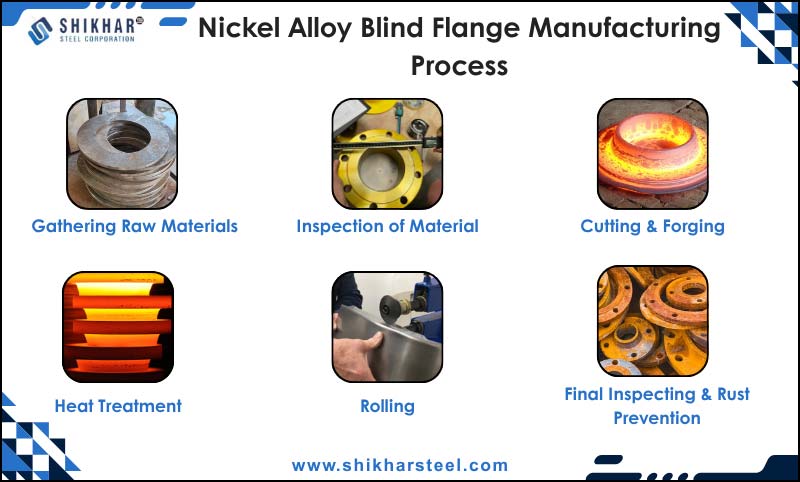

Nickel Alloy Blind Flange Manufacturing Process
High Nickel Alloy Threaded Flanges Dimensions Chart
| Nominal Sizes (Inch) | Outside Dia. (O.D.) of Flange A | Thck. of FlangeC | Length of HubL | Dia. of Raised Face B | Dia. of Hub at BaseJ | Minimum Thread LengthN | Approx. Weight(Lbs.) |
|---|---|---|---|---|---|---|---|
| 24 | 32 | 1 7/8 | 3 1/4 | 27 1/4 | 26 1/8 | 3 1/4 | 210 |
| 22 | 29 1/2 | 1 13/16 | 3 1/8 | 25 1/4 | 24 | 3 1/8 | 159 |
| 20 | 27 1/2 | 1 11/16 | 2 7/8 | 23 | 22 | 2 7/8 | 155 |
| 18 | 25 | 1 9/16 | 2 11/16 | 21 | 19 7/8 | 2 11/16 | 120 |
| 16 | 23 1/2 | 1 7/16 | 2 1/2 | 18 1/2 | 18 | 2 1/2 | 93 |
| 14 | 21 | 1 3/8 | 2 1/4 | 16 1/4 | 15 3/4 | 2 1/4 | 85 |
| 12 | 19 | 1 1/4 | 2 3/16 | 15 | 14 3/8 | 2 3/16 | 64 |
| 10 | 16 | 1 3/16 | 1 15/16 | 12 3/4 | 12 | 1 15/16 | 43 |
| 8 | 13 1/2 | 1 1/8 | 1 3/4 | 10 5/8 | 9 11/16 | 1 3/4 | 30 |
| 6 | 11 | 1 | 1 9/16 | 8 1/2 | 7 9/16 | 1 9/16 | 19 |
| 5 | 10 | 15/16 | 1 7/16 | 7 5/16 | 6 7/16 | 1 7/16 | 15 |
| 4 | 9 | 15/16 | 1 5/16 | 6 3/16 | 5 5/16 | 1 5/16 | 13 |
| 3 1/2 | 8 1/2 | 15/16 | 1 1/4 | 5 1/2 | 4 13/16 | 1 1/4 | 11 |
| 3 | 7 1/2 | 15/16 | 1 3/16 | 5 | 4 1/4 | 1 3/16 | 8 |
| 2 1/2 | 7 | 7/8 | 1 1/8 | 4 1/8 | 3 9/16 | 1 1/8 | 7 |
| 2 | 6 | 3/4 | 1 | 3 5/8 | 3 7/16 | 1 | 5 |
| 1 1/4 | 4 5/8 | 5/8 | 13/16 | 2 1/2 | 2 5/16 | 13/16 | 3 |
| 1 | 4 1/4 | 9/16 | 11/16 | 2 | 1 15/16 | 11/16 | 2 |
| 3/4 | 3 7/8 | 1/2 | 5/8 | 1 11/16 | 1 1/2 | 5/8 | 2 |
| 1/2 | 3 1/2 | 7/16 | 5/8 | 1 3/8 | 1 3/16 | 5/8 | 2 |

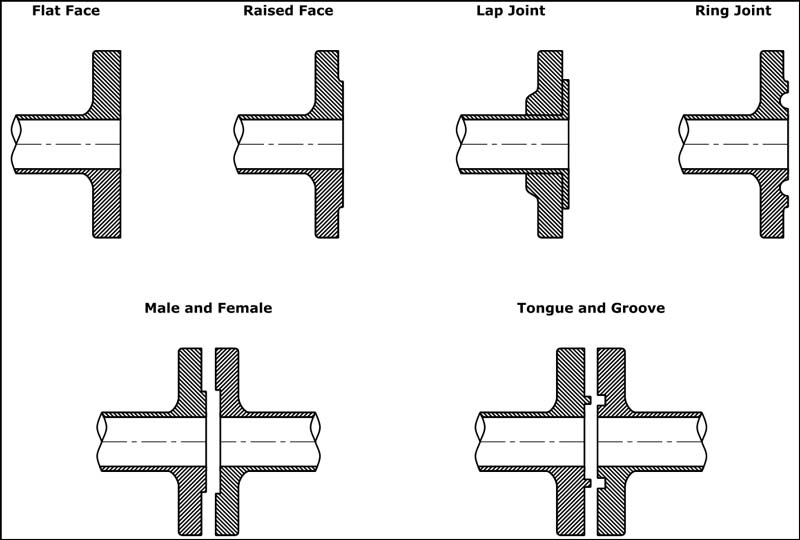

Nickel Alloy Forged Flanges Face Types
Types Of High Nickel Alloy Flanges for Chemical Processing

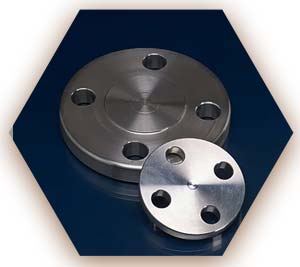

ASTM B564 UNS N02200 Blind Flange

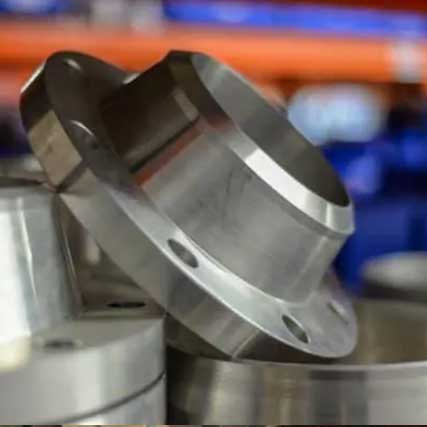

Ni 201 Weld Neck Flange

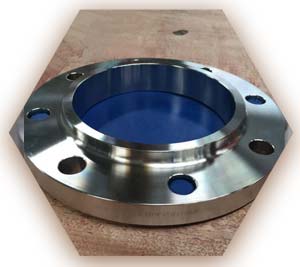

UNS N02201 Slip On Flange

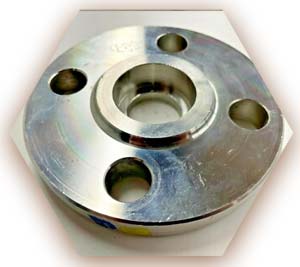

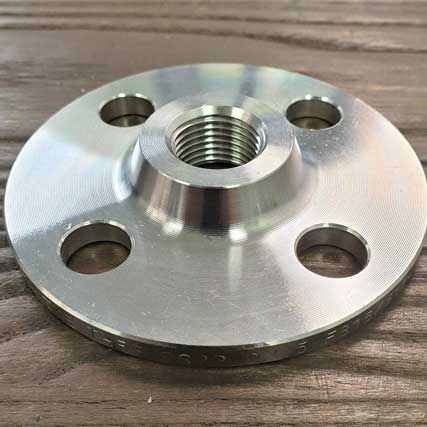

EN 2.4068 Socket Weld Flange

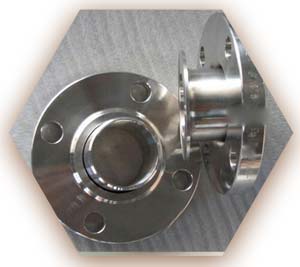

WNR 2.4066 Lap Joint Flange

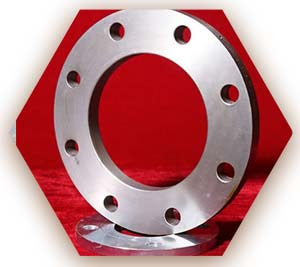

Pure Nickel Plate Flanges

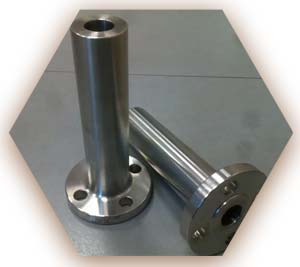

High Performance Nickel Long Neck Flanges

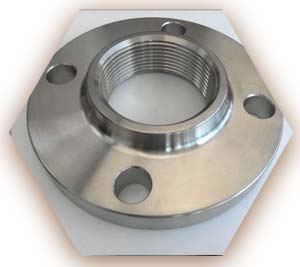

High Nickel Threaded Flange
200 Nickel Orifice Flange
Nickel Based Alloy Spectacle Blind Flanges

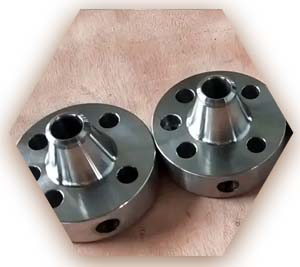

Brushed Nickel Reducing Flange

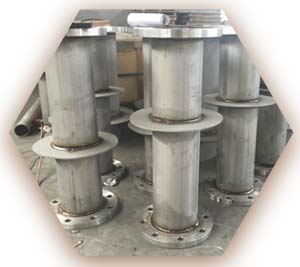

Polished Nickel Puddle Flanges
| Grade | HSN Code |
|---|---|
| Nickel Alloy Flange | 75071200 |
Testing Methods for Brushed Nickel Flange
PMI Test
Mechanical Test
Chemical Analysis
Macro Test
IGC Test
HIC Test
Flaring Test
SSC Cracking Test
Dye Penetrant Test
Can Customize Pure Nickel Flange to Specific Designs ?
Gaskets for Nickel Alloy Weld Neck Flange
| Nominal Sizes (Inch) | Inside Daimeter (I.D.) |
Outside Daimeter (O.D.) | ||||
|---|---|---|---|---|---|---|
| 600 Lb | 400 Lb | 300 Lb | 150 Lb | 900 Lb | ||
| 12 | 12.75 | 18.00 | 16.50 | 16.625 | 16.125 | 19.625 |
| 10 | 10.75 | 15.75 | 14.125 | 14.25 | 13.375 | 17.125 |
| 8 | 8.62 | 12.625 | 12.00 | 12.125 | 11 | 14.125 |
| 6 | 6.62 | 10.50 | 9.75 | 9.875 | 8.75 | 11.375 |
| 5 | 5.56 | 9.50 | 8.375 | 8.50 | 7.75 | 9.75 |
| 4 | 4.50 | 7.625 | 7.00 | 7.125 | 6.875 | 8.125 |
| 3 | 3.50 | 5.875 | 5.875 | 5.875 | 5.375 | 6.625 |
| 2 1/2 | 2.88 | 5.125 | 5.125 | 5.125 | 4.875 | 6.50 |
| 2 | 2.38 | 4.375 | 4.375 | 4.375 | 4.125 | 5.625 |
| 1 1/2 | 1.91 | 3.75 | 3.75 | 3.75 | 3.375 | 3.875 |
| 1 1/4 | 1.66 | 3.25 | 3.25 | 3.25 | 3 | 3.50 |
| 1 | 1.31 | 2.875 | 2.875 | 2.875 | 2.625 | 3.125 |
| 1/2 | 0.84 | 2.125 | 2.125 | 2.125 | 1.875 | 2.50 |
Advantages of Brushed Nickel Flange
Ni
Nickel
9.0 - 11.0% min.
Fe
Iron
1.80%
Cu
Copper
88.60% max
Pb
Lead
0.050% min.
Zn
Zinc
1.0%
Mn
Manganese
1.00% max
Cr
Chromium
0.60% max
Si
Silicon
0.30% max
Polished Nickel Flange Chemical Composition
| Grade | Si | C | Cu | Ni (min.) | Mn | S | Fe |
|---|---|---|---|---|---|---|---|
| 201 | 0.35 | 0.02 | 0.25 | 99.0 | 0.35 | 0.01 | 0.40 |
| 200 | 0.15 |
Nickel Alloy Flanges Mechanical Properties
Nickel Based Alloy Flanges Equivalent
| Grade | UNS | Werkstoff Nr. | BS | AFNOR | JIS | GOST | EN |
|---|---|---|---|---|---|---|---|
| 201 | N02201 | 2.4068 | NA 12 | - | NW 2201 | НП-2 | LC-Ni 99 |
| 200 | N02200 | 2.4066 | NA 11 | N-100M | NW 2200 | НП-2 | Ni 99.2 |
What Are the Main Applications of Nickel Alloy Slip On Flange?
Different Nickel Pipe Flange Classes
| ASME Standards | |||
|---|---|---|---|
| ASME B16.47 | ASME B16.36 | ASME B16.5 | ASME B16.48 |
| Class 2500 | - | 2500# | - |
| Class 1500 | 2500 LB | 1500# | Cl 2500 |
| Class 900 | 1500 LB | 900# | Cl 1500 |
| Class 600 | 900 LB | 600# | Cl 900 |
| Class 300 | 600 LB | 300# | Cl 600 |
| Class 150 | 300 LB | 150# | Cl 300 |
