Stainless Steel Reducer

Table Of Content

Stainless Steel Concentric Reducer Manufacturer in India


Pipe Reducer Specification



Manufacturing Size Range

ASME B16.9 Reducer Manufacturing Sizes

  • Seamless : 1/2" - 24"
  • Welded : 24" - 96"
  • Buttweld : 1/2" - 36"
Thickness

Thickness of Large Diameter Pipe Reducer

  • SCH 10/ 20/ 40/ 60/ 80
  • SCH 90/ 100/ 120/ 140
  • SCH 160/ 180/ SCH XXS
Advantages

Buttweld Reducer Advantages

  • Improved Anti Corrosion
  • Higher Cost
  • Better Corrosive Resistance

Ends Method

Ends Method of Seamless Pipe Reducer

  • Plain Bevel
  • Bevelled
  • Compound Bevel
Application

Welded Reducer Application

  • Pneumatic
  • Gas Fitting
  • Air Braking

Packaging

Packaging of Aluminum Concentric Reducer

  • Wooden Cases
  • Wooden Pallet
  • Carton Box
Logistics

Mild Steel Concentric Reducer Logistics

  • Azerbaijan = 30 - 46 day
  • Kuwait = 11 day
  • Turkey = 22 days
Manufacturing Process

Manufacturing Process of Carbon Steel Reducer

  • CNC Machined
  • Hot forging
  • Cold forging
Standard

ANSI B16.9 Reducer Standard

  • ASME B16.28
  • ASME B16.9
  • DIN/ JIS/ EN/ ISO

Method

Manufacturing Way of Stainless Steel Pipe Reducer

  • Pushing
  • Forged
  • Casting
Process

Reducer Pipe Fitting Process

  • Bending
  • Welding
  • Cutting


Coating

Coating for Concentric And Eccentric Reducer

  • Custom Coating
  • 3PE
  • PE
  • Anti Rust
Method

SS Pipe Reducer Method

  • Buttweld (BW)
  • Seamless (SMLS)
  • Welded (Weld)

Sour Service

Sour Service of Stainless Steel Reducer

  • NACE MR0175
  • NACE TM-0284
  • NACE MR0103
Marking

ASME B16.9 Reducer Marking

  • Size & Schedule
  • Grade & Material
  • Manufacturers Name
  • Standard & Heat No.
Value Added Services

Large Diameter Pipe Reducer Value Added Services

  • Cutting
  • Bending
  • Welding

Where We Have Supplied



Project in Germany
  • 10 Inch, SCH 60, Concentric Reducer
  • BASF
  • Ludwigshafen, Germany
Project in England
  • 25 Inch, ANSI B16.9 Eccentric Reducer
  • Ineos
  • London, England

Before Purchasing Carbon Steel Eccentric Reducer, Check Available Coating and Sizes



Carbon Steel Reducer Coating



Carbon Steel Reducer Coating
  • PTFE
  • Zinc
  • FBE
  • Back Painting
  • PE
  • Anti Rust


Machinery of Stainless Steel Reducer



  • Tee Bevelled
  • Radial Dril
  • Conventional Machinery
  • Oil Fry Heat Treatment Furnace
  • Heat Treatment For Fitting
  • Portable Temp. Indicator
  • Tee Cold Form Machinery
  • CNC Lathing


Stainless Steel Reducer Tolerance



Nominal Sizes 32 - 48 1/2 - 2.1/2 26 - 30 3 - 3.1/2 10 - 18 4 20 - 24 5 - 8
Inner Diameter (I.D.) End + 6.4
- 4.8		 0.8 + 6.4
- 4.8		 1.6 3.2 1.6 4.8 1.6
Outer Diameter (O.D.) Bevel (D) + 6.4
- 4.8		 + 1.6
- 0.8		 + 6.4
- 4.8		 1.6 + 4
- 3.2		 1.6 + 6.4
- 4.8		 + 2.4
- 1.6
Overall Length Of (H) 5 2 5 2 2 2 2 2


Buy Seamless and Buttweld Reducer in CNC Machining and Forging as per DIN 2616 and EN 10253 Standards



Standards of Seamless Pipe Reducer



  • ASME B16.9
  • ISO 5251
  • EN 10253-4
  • EN 10253-4 Type A
  • EN 10253 2 Type B
  • DIN 2616

Stainless Steel Pipe Reducer Applications



Stainless Steel Pipe Reducer Applications


Reputable Supplier of Welded Reducer in Mumbai Offers All Types and SCH 20/ 40/ 80 and 120 Thickness

Most Common Types Of Stainless Steel Reducer



Large Diameter Pipe Reducer

Large Diameter Pipe Reducer

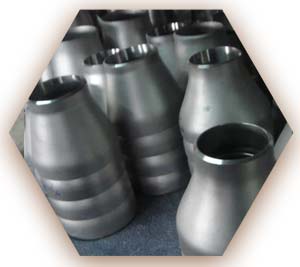

Buttweld Reducer

Buttweld Reducer

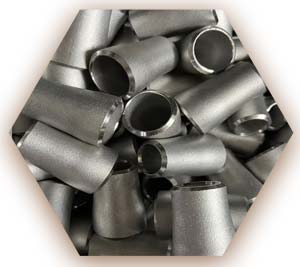

Seamless Pipe Reducer

Seamless Pipe Reducer

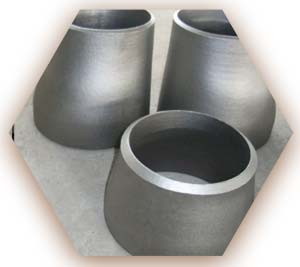

Welded Reducer

Welded Reducer

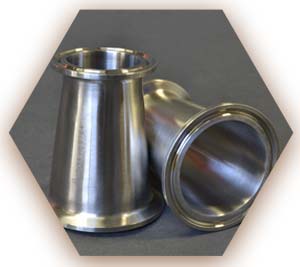

Concentric Reducer

Concentric Reducer

Eccentric Reducer

Eccentric Reducer

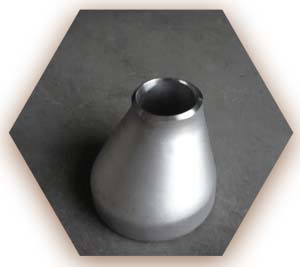

ASME B16.9 Reducer

ASME B16.9 Reducer

ISO 5251 Reducer

ISO 5251 Reducer

EN 10253-4 Reducer

EN 10253-4 Reducer

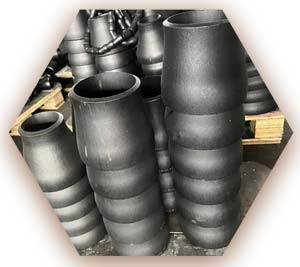

EN 10253-4 Type A Reducer

EN 10253-4 Type A Reducer

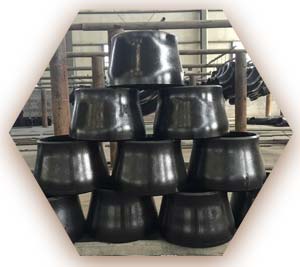

EN 10253 2 Type B Reducer

EN 10253 2 Type B Reducer

DIN 2616 Reducer

DIN 2616 Reducer


Pipe Reducer Wall Thickness Chart



Nominal Sizes Weight In Kg Small Large
Outer Daimeter Thickness Inner Daimeter Inner Daimeter Outer Daimeter Thickness
12 x 4 35.8 4.5 0.237 4.026 11.938 12.75 0.406
14 x 8 68.6 8.62 0.322 7.976 13.124 14 0.438
20 x 16 205 16 0.5 15 18.812 20 0.594
24 x 20 285 20 0.594 18.812 22.624 24 0.688
20 x 10 205 10.75 0.365 10.02 18.812 20 0.594
16 x 6 96.5 6.62 0.28 6.06 15 16 0.5
24 x 10 285 10.75 0.365 10.02 22.624 24 0.688
24 x 14 285 14 0.438 13.124 22.624 24 0.688
12 x 5 35.8 5.56 0.258 5.044 11.938 12.75 0.406
14 x 12 68.6 12.75 0.406 11.938 13.124 14 0.438
12 x 8 35.8 8.62 0.322 7.976 11.938 12.75 0.406
16 x 12 96.5 12.75 0.406 11.938 15 16 0.5
16 x 8 96.5 8.62 0.322 7.976 15 16 0.5
18 x 12 131 12.75 0.406 11.938 16.876 18 0.562
18 x 8 131 8.62 0.322 7.976 16.876 18 0.562
20 x 8 205 8.62 0.322 7.976 18.812 20 0.594
24 x 12 285 12.75 0.406 11.938 22.624 24 0.688
12 x 10 35.8 10.75 0.365 10.02 11.938 12.75 0.406
12 x 6 35.8 6.62 0.28 6.06 11.938 12.75 0.406
14 x 10 68.6 10.75 0.365 10.02 13.124 14 0.438
14 x 6 68.6 6.62 0.28 6.06 13.124 14 0.438
24 x 16 285 16 0.5 15 22.624 24 0.688
16 x 10 96.5 10.75 0.365 10.02 15 16 0.5
16 x 14 96.5 14 0.438 13.124 15 16 0.5
18 x 10 131 10.75 0.365 10.02 16.876 18 0.562
18 x 14 131 14 0.438 13.124 16.876 18 0.562
20 x 12 205 12.75 0.406 11.938 18.812 20 0.594


Testing Methods for ASME B16.9 Reducer



  • Macro Test
  • IGC Test
  • HIC Test
  • Flaring Test
  • SSC Cracking Test
  • Dye Penetrant Test

Check Reducer Pipe Fitting Dimensions and Weight Chart according to ASME B16.9

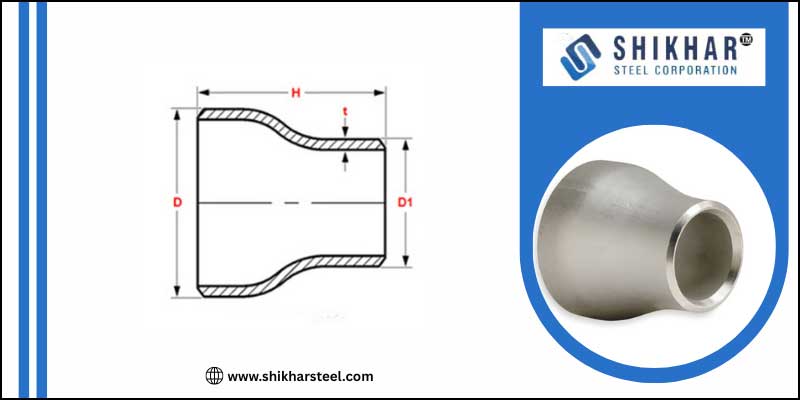

ASME B16.9 Concentric Reducer Dimensions


ASME B16.9 Concentric Reducer Dimensions

Code Of RCD Reiso (SMALL) Ø (BIG) Ø Weight Of Theoretical In Kilogram Hight (H) In Millmeter
Diameter Nominal D ((mm)) (S) Thck. ((mm)) Diameter Nominal (S) Thck. (mm) D (mm)
27 21 1/2 21.3 2.0 3/4 2.3 26.9 0.08 38
114 48 1"1/2 48.3 2.6 4 3.6 114.3 0.85 100
114 60 2 60.3 2.9 0.98
114 76 2"1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
*48 21 1/2 21.3 2.0 1"1/2 2.6 48.3 0.18 64
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1"1/4 42.4 2.6 0.20
33 21 1/2 21.3 2.0 1 2.6 33.7 0.09 50
33 27 3/4 26.9 2.3 0.09
76 33 1 33.7 2.6 2"1/2 2.9 76.1 0.40 90
76 42 1"1/4 42.4 2.6 0.47
76 48 1"1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
42 21 1/2 21.3 2.0 1"1/4 2.6 42.4 0.12 50
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
60 27 3/4 26.9 2.3 2 2.9 60.3 0.30 76
60 33 1 33.7 2.6 0.31
60 42 1"1/4 42.4 2.6 0.32
60 48 1"1/2 48.3 2.6 0.33
89 42 1"1/4 42.4 2.6 3 3.2 88.9 0.55 90
89 48 1"1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2"1/2 76.1 2.9 0.63
139 60 2 60.3 2.9 5 4.0 139.7 1.60 127
139 76 2"1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
219 114 4 114.3 3.6 8 6.3 219.1 5.03 152
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
323 168 6 168.3 4.5 12 7.1 323.9 11.00 203
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20

Benefits of Eccentric Reducer



  • Good Corrosive Resistance
  • Costly Effective
  • Prevent System Damage
  • Connect Difference Size
  • Reduce Clogging
  • Flow & Pressure Control

ASME B16 9 Eccentric Reducer Dimensions


Stainless Steel Pipe Reducer Applications

Code RCD REISO BIG Ø SMALL Ø Theoretical Weight In (KG) Kilogram Hight (H) (mm)
Diameter Nominal Thck. (S) (mm) (D) (mm) Diameter Nominal Thck. (S) (mm) (D) (mm)
89 42 3 3.2 88.9 1″1/4 2.6 42.4 0.55 90
89 48 1″1/2 2.6 48.3 0.61
89 60 2 2.9 60.3 0.62
89 76 2″1/2 2.9 76.1 0.63
323 168 12 7.1 323.9 6 4.5 168.3 11.00 203
323 219 8 6.3 219.1 11.10
323 273 10 6.3 273 11.20
27 21 3/4 2.3 26.9 1/2 2.0 21.3 0.08 38
42 21 1″1/4 2.6 42.4 1/2 2.0 21.3 0.12 50
42 27 3/4 2.3 26.9 0.13
42 33 1 2.6 33.7 0.14
60 27 2 2.9 60.3 3/4 2.3 26.9 0.30 76
60 33 1 2.6 33.7 0.31
60 42 1″1/4 2.6 42.4 0.32
60 48 1″1/2 2.6 48.3 0.33
139 60 5 4.0 139.7 2 2.9 60.3 1.60 127
139 76 2″1/2 2.9 76.1 1.70
139 89 3 3.2 88.9 1.74
139 114 4 3.6 114.3 1.76
219 114 8 6.3 219.1 4 3.6 114.3 5.03 152
219 139 5 4.0 139.7 5.12
219 168 6 4.5 168.3 5.18
33 21 1 2.6 33.7 1/2 2.0 21.3 0.09 50
33 27 3/4 2.3 26.9 0.09
*48 21 1″1/2 2.6 48.3 1/2 2.0 21.3 0.18 64
48 27 3/4 2.3 26.9 0.19
48 33 1 2.6 33.7 0.20
48 42 1″1/4 2.6 42.4 0.20
76 33 2″1/2 2.9 76.1 1 2.6 33.7 0.40 90
76 42 1″1/4 2.6 42.4 0.47
76 48 1″1/2 2.6 48.3 0.48
76 60 2 2.6 60.3 0.49
114 48 4 3.6 114.3 1″1/2 2.6 48.3 0.85 100
114 60 2 2.9 60.3 0.98
114 76 2″1/2 2.9 76.1 1.00
114 89 3 3.2 88.9 1.02
*168 76 6 4.5 168.3 2″1/2 2.9 76.1 2.60 140
168 89 3 3.2 88.9 2.70
168 114 4 3.6 114.3 2.82
168 139 5 4.0 139.7 2.94
*273 114 10 6.3 273.0 4 3.6 114.3 7.00 178
*273 139 5 4.0 139.7 7.20
273 168 6 4.5 168.3 7.40
273 219 8 6.3 219.1 7.55

Eccentric Reducer Weight Chart



Nominal Sizes (Inch) Approx. Weight In (lbs)
3 x 2 2
1 x 3/4 0.36
3/4 x 1/2 0.21
3 x 1-1/4 1.8
1-1/4 x 3/4 0.42
1-1/2 x 1/2 0.56
1-1/2 x 1 0.57
3-1/2 x 1-1/4 2.5
2 x 1/2 0.74
2 x 1 0.81
2 x 1-1/2 0.94
2-1/2 x 1-1/4 1.4
2-1/2 x 2 1.6
3-1/2 x 2 2.6
1 x 1/2 0.36
1-1/4 x 1/2 0.42
1-1/4 x 1 0.48
1-1/2 x 3/4 0.56
1-1/2 x 1-1/4 0.65
2 x 3/4 0.74
2 x 1-1/4 0.88
2-1/2 x 1 1.3
2-1/2 x 1-1/2 1.5
3 x 1 1.7
3 x 1-1/2 1.9
3 x 2-1/2 2.2
3-1/2 x 1-1/2 2.6

Concentric Reducer Weight Chart



Pipe Weight in (lbs) Nominal Size (Inch)
1.6 2-1/2 x 2
0.36 1 x 3/4
0.21 3/4 x 1/2
0.42 1-1/4 x 3/4
0.56 1-1/2 x 1/2
0.57 1-1/2 x 1
0.74 2 x 1/2
0.81 2 x 1
0.94 2 x 1-1/2
1.4 2-1/2 x 1-1/4
1.8 3 x 1-1/4
2 3 x 2
2.5 3-1/2 x 1-1/4
2.6 3-1/2 x 2
0.36 1 x 1/2
0.42 1-1/4 x 1/2
0.48 1-1/4 x 1
0.56 1-1/2 x 3/4
0.65 1-1/2 x 1-1/4
0.74 2 x 3/4
0.88 2 x 1-1/4
1.3 2-1/2 x 1
1.5 2-1/2 x 1-1/2
1.7 3 x 1
1.9 3 x 1-1/2
2.2 3 x 2-1/2
2.6 3-1/2 x 1-1/2

EN 10253-4 Reducer Dimensions



Diameter Nominal D ((mm)) 3D 2D
B(mm) C(mm) F(mm) B(mm) C(mm) F(mm)
500 508,0 1016 1524 762 762 1016 508
450 457,0 914 1372 686 686 914 457
400 406,4 813 1220 610 610 813 406
350 355,6 711 1066 533 533 711 356
300 323,9 619 914 457 467 610 305
250 273,0 518 762 381 391 508 254
200 219,1 414 610 305 313 406 203
150 168,3 313 458 229 237 305 152
125 139,7 260 380 190 197 254 127
100 114,3 209 304 152 159 203 102
80 88,9 159 228 114 121 152 76
65 76,1 133 190 95 102 127 63
50 60,3 106 152 76 81 102 51
40 48,3 81 114 57 62 76 38
32 42,4 69 96 48 53 64 32
25 33,7 55 76 38 42 56 28
20 26,9 43 58 29 39 50 25
15 21,3 38 56 28 36 50 25

Stainless Steel Reducer Manufacturing Process



  • Inspecting Material
  • Cutting
  • Forming
  • Heat Treatment
  • Shot Blasting & Cleaning
  • Beveling


Types

Material

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.

whatsapp chat
