ASTM A182 F9 Flanges

Sizes in Stock

Sizes in Stock

1/2" to 24"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to DN1600

UNS Designation

UNS Designation

UNS K90941

Melting Point

Melting Point

1382°C to 1529°C

Advantages

Advantages

Increase Hardness

Temperature

Temperature

1000°F

Molybdenum Content

Molybdenum Content

1%

Standard

Standard

ASME B16.5 and ASME B16.47

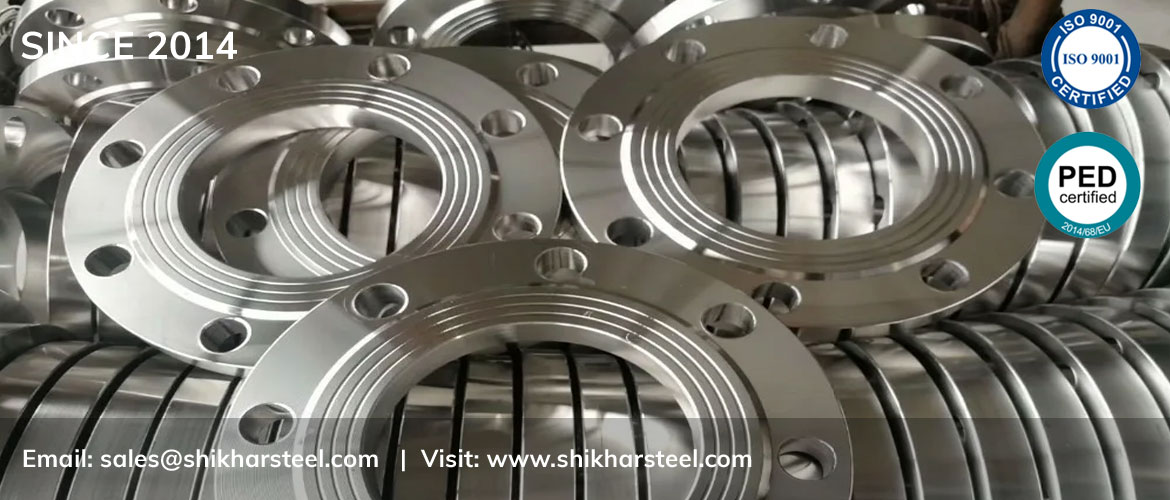

ASTM A182 F9 Flanges Overview

Table Of Content

Manufacturer Of ASME SA182 F9 Slip On Flange in India


ASTM A182 F9 Flanges Specification


Manufacturing Size Range

ASTM A182 GR F9 Flange Manufacturing Sizes

  • ½" to 24"
  • DN15 to DN1500
  • PN 2.5 to PN 400

Pressure Class

Pressure Class for ASME SA182 F9 Pipe Flange

  • Class 125, Class 150
  • Class 300, Class 400
  • Class 600, Class 900
  • Class 1500, Class 2500
Faces

Alloy Steel F9 Flanges Faces

  • Ring Type Joint (RTJ)
  • Flat Face (FF)
  • Raised Face (RF)
  • T&G & M&F Face
American Standard

American Standard of F9 Flange

  • ASME B16.5
  • ASME B16.47
  • ASME B16.36
  • ASME B16.48
Manufacturing Process

A182 F9 Material Manufacturing Process

  • Forging
  • Plate
  • and Cast
Thickness

Thickness for A182 F9 Flange

  • Schedule 10/ 20/ 40
  • Schedule 60/ 80/ 120
  • Schedule 140/ 160/ 180

Process

ASME SA182 F9 Flanges Process

  • Forged and Drilling
  • Stamping and Milling
  • Turning and Rolled

Threads

Threads for A182 F9 Alloy Steel Flanges

  • BSP/ FPT/ NPT
  • BSPT/ MPT (Female)
  • BSPP (Male) & MNPT (Male)
Surface Finish

ASTM A182 F9 Alloy Steel Flanges Surface Finish

  • Stock & Mirror Finish
  • Smooth & Serrated Finish
  • Cold Water Finish
Bolts Hole

Bolts Hole of ASTM A182 Gr F9 Pipe Flange

  • 4 To 8
  • 4 To 24
  • 4 To 48
Application

ASME SA182 F9 Forged Flange Application

  • Sugar Industry
  • Oil & Gas Plants
  • Offshore Services
Packaging

Packaging of A182 Gr F9 Blind Flange

  • Carton Box
  • Wooden Case
  • Plastic Bag (Custom)

Suitable Environment

ASME SA182 F9 Slip On Flange Suitable Environment

  • Sulfuric Acid
  • Phosphoric Acid
  • Seawater
Testing

Testing & Inspection for Alloy Steel F9 Weld Neck Flange

  • Tensile Test
  • Impact Test
  • Material Inspection
Connection

UNS K90941 Plate Flange Connection

  • Welding
  • Threaded

European Standard

European Standard of ASTM A182 GR F9 Flange

  • EN 1092-1
  • EN 1092-2
Logistics

ASME SA182 F9 Pipe Flange Logistics

  • By Sea & Air
  • UAE = 7 day
  • Saudi Arabia = 8 day
  • Qatar = 7 day
Origin

Origin of Alloy Steel F9 Flanges

  • Janpanese
  • American
  • Korean
  • European
German Standard

F9 Flange German Standard

  • DIN 2501/ 2573
  • DIN 2502/ 2576
  • DIN 2543/ 2633

Japanese Standard

Japanese Standard of A182 F9 Material

  • JIS B2311
  • JIS B2312
  • JIS B2220

Where We Have Supplied


Project in Brazil

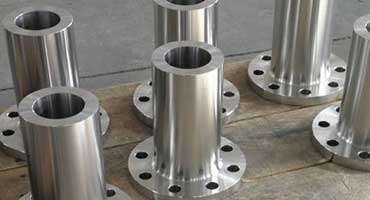

  • A182 F9, 26 Inch, Long Neck Flanges
  • Cosan
  • São Paulo, Brazil
Project in Singapore

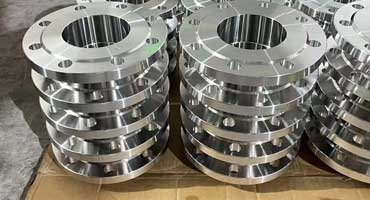

  • A182 Gr F9, 16 Inch, Socket Weld Flange
  • Wilmar International
  • Singapore

Before Ordering, View A182 Gr F9 Blind Flange Temperature Ratings in Class 150 to 2500



Check Temperature Ratings for A182 Grade F9 Plate Flanges


Grade ASTM A182 F9 Flanges
°C °F
Temperature Ratings 675 1250


ASME SA182 F9 Pipe Flange Pressure Rating


Temperature (°F) Pressure Rating (Classes)
1500 600 300 2500 150 400 900
1000 825 330 165 1370 20 220 495
950 1405 560 280 2345 35 375 845
900 2245 900 450 3745 50 600 1350
850 2435 975 485 4060 65 650 1460
800 2540 1015 510 4230 80 675 1525
750 2660 1065 530 4430 95 710 1595
700 2840 1135 570 4730 110 755 1705
650 2940 1175 590 4905 125 785 1765
600 3025 1210 605 5040 140 805 1815
500 3105 1245 620 5180 170 830 1865
400 3200 1280 640 5330 200 855 1920
200 3395 1360 680 5660 260 905 2035
300 3260 1305 655 5435 230 870 1955
-20 to 100 3470 1390 695 5785 265 925 2085

Surface Finishes of A182 F9 Flange



  • Mirrored Finish
  • Smooth
  • Serrated
  • Spiral Serrated
  • Cold Water Finished
  • Concentric Serrated


Check UNS K90941 Plate Flange Heat Treatment as per ASME B16.5


ASME SA182 F9 Flanges Heat Treatment


Grade Solutioning Temp Quenching Cool Below Heat Treatment Cooling Media
F9 Flange 955°C (1750°F) B Anneal, Normalize and Temper Air & Furnace cool

Types Of ASTM A182 F9 Flanges

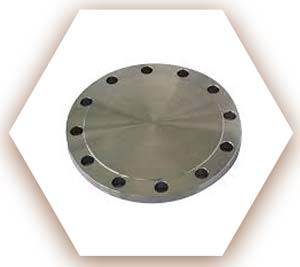

ASTM A182 F9 Blind Flange

ASTM A182 F9 Blind Flange

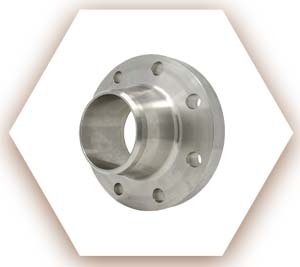

A182 F9 Weld Neck Flange

A182 F9 Weld Neck Flange

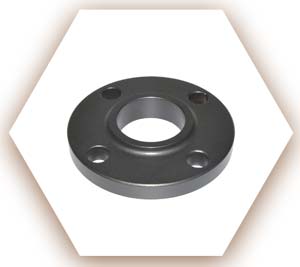

ASTM A182 Gr F9 Slip On Flange

ASTM A182 Gr F9 Slip On Flange

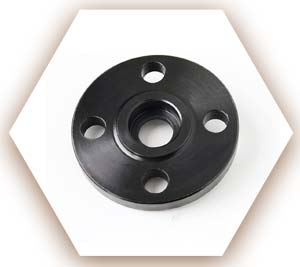

A182 Grade F9 Socket Weld Flange

A182 Grade F9 Socket Weld Flange

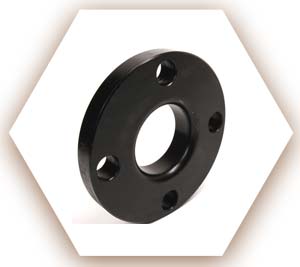

A182 Gr F9 Lap Joint Flange

A182 Gr F9 Lap Joint Flange

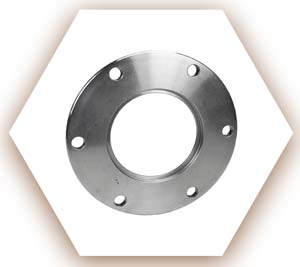

A182 Grade F9 Plate Flanges

A182 Grade F9 Plate Flanges

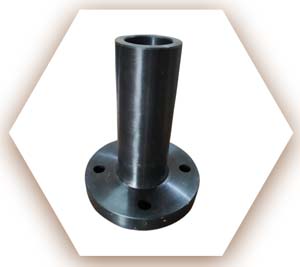

UNS K90941 Long Neck Flanges

UNS K90941 Long Neck Flanges

A182 Gr F9 Threaded Flange

A182 Gr F9 Threaded Flange

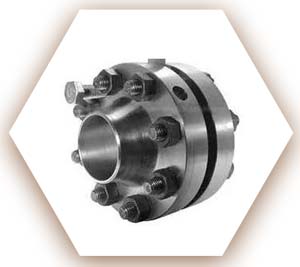

SA 182 Gr F9 Orifice Flange

SA 182 Gr F9 Orifice Flange

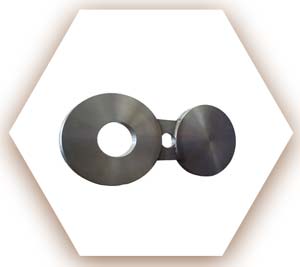

A182 F9 Alloy Steel Spectacle Blind Flanges

A182 F9 Alloy Steel Spectacle Blind Flanges

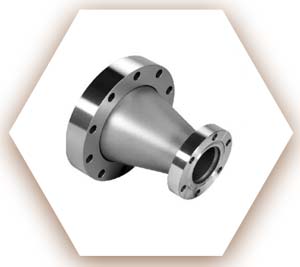

Alloy Steel F9 Reducing Flange

Alloy Steel F9 Reducing Flange

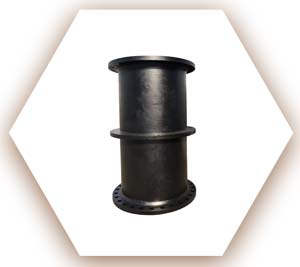

ASME SA182 F9 Puddle Flanges

ASME SA182 F9 Puddle Flanges



Find Alloy Steel F9 Weld Neck Flange Tensile Requirement for High Temperature Applications


Testing Methods for ASTM A182 F9 Alloy Steel Flanges


Testing Methods for ASTM A182 F9 Alloy Steel Flanges
  • Hardness Testing
  • PMI (Positive Material Identification)
  • Pressures Tested
  • Tensile Testing Methods
  • Hydrostatic Test Machine


A182 Gr F9 Blind Flange Applications


A182 Gr F9 Blind Flange Applications


A182 Grade F9 Lap Joint Flange Gasket Chart


Nominal Sizes (Inch) Outside Daimeter (O.D.) Inside Daimeter (I.D.)
900 Lb 400 Lb 150 Lb 600 Lb 300 Lb
12 19.625 16.5 16.125 18 16.625 12.75
10 17.125 14.125 13.375 15.75 14.25 10.75
8 14.125 12 11 12.625 12.125 8.62
6 11.375 9.75 8.75 10.5 9.875 6.62
5 9.75 8.375 7.75 9.5 8.5 5.56
4 8.125 7 6.875 7.625 7.125 4.5
3 6.625 5.875 5.375 5.875 5.875 3.5
2 1/2 6.5 5.125 4.875 5.125 5.125 2.88
2 5.625 4.375 4.125 4.375 4.375 2.38
1 1/4 3.5 3.25 3 3.25 3.25 1.66
1 1/2 3.875 3.75 3.375 3.75 3.75 1.91
1 3.125 2.875 2.625 2.875 2.875 1.31

Also Check ASME SA182 F9 Forged Flange Chemical Composition and Equivalent


ASTM A182 F9 Chemical Composition


C

Carbon

0.15%

Si

Silicon

0.5% - 1%

S

Sulfur

0.03%

Pb

Phosphorus

0.03%

Mn

Manganese

0.3% - 0.6%

Cr

Chromium

8% - 10%

Mo

Molybdenum

0.9% - 1.1%

Si

Silicon

0.30% max



Alloy Steel F9 Flanges Mechanical Properties


Tensile Strength
Tensile Strength
380 Mpa
Yield Strength
Yield Strength
585 Mpa
Elongation
Elongation
20%


Equivalent Material of ASTM A182 Gr F9 Pipe Flange


North American

UNS (North American)

  • K90941

Russia

WNR (Russia)

  • 1.7386


A182 Gr F9 Blind Flange Coating



  • Zinc Plated
  • Anti-rust Paint
  • Yellow Transparent



Material

Types

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
