Stainless Steel Ball Valve

Sizes in Stock

Sizes in Stock

1/2" to 4"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 48 Inch

Uses

Uses

Control The Flow Of Liquids
and Gasses

Ideal For

Ideal For

High Pressure Applications

Ball Valve Also Known as

Ball Valve
Also Known as

Quarter Turn Valve

End Connections

End Connections

Threaded and Flanged

Ball Valve Standard

Ball Valve Standard

API 608 and API 6D

Pressure Ratings

Pressure Ratings

150# to 2500#


lug type butterfly valve

Table Of Content

Quarter Turn Valve Manufacturer in India


Ball Valve Specifications


Manufacturing Size Range

Sizes

  • 2" to 48"
  • DN50 to DN1600
Design

Design

  • BS-5351 and EN-17292
  • Contact stainless steel ball valve manufacturer in India For Above 72"
Valve Body Styles

Valve Body Styles

  • Split Body Ball Valve
  • Top Entry Ball Valve
  • End Entry Ball Valves
Brand

Brand Name

  • L&T, OMB, Valvosider
  • Velan, AMPO
  • Smith Valves, Cameron
  • SACCAP, Bonney Forge
Manufacturing Process

Ball Valve Manufacturing Process

  • CNC Machining
  • Forging
  • Casting
Ball Valve Hole Designs

Ball Valve Hole Designs

  • Full Bore, Reduce Bore
  • V-Shaped and Vented

Body Material

Body Material

  • ASTM A216 Gr WCB
  • Stainless Steel
  • ASTM A351
End Connections

End Connections

  • Flanged
  • Socket Weld
  • Butt Weld
Suitable Environment

Environment

  • Sulfuric Acid
  • Phosphoric Acid
  • Seawater
Testing & Inspection

Testing & Inspection

  • Magnetic Particle Test
  • Liquid Penetrant Test
  • Tensile Testing
Logistics

Logistics

  • By Sea & Air
  • Germany = 21 day
  • France = 28 day
  • Italy = 28 day
Origin

Origin

  • American
  • Janpanese
  • Russian
  • Korean & European

Custom Sizes 3 Way Ball Valves Supplier in Mumbai for Harsh Environments


Quarter Turn Valve Applications


Quarter Turn Valve Applications

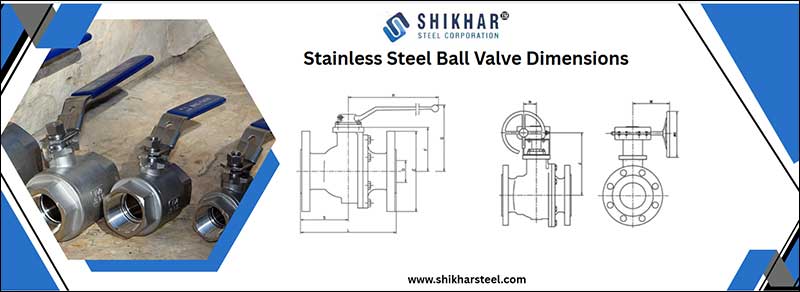

Stainless Steel Ball Valve Dimensions


Stainless Steel Ball Valve Dimensions
NPS S H G F E L D
12” 305 - - 521 483 610 300
10” 270 - - 445 406 533 250
8” 228 750 362 381 343 457 200
6” 165 680 284 318 279 394 150
4” 114 355 220 254 229 229 100
3” 101 355 205 210 191 203 80
2 1/2” 95 300 166 190 178 190 65
2” 92 300 153 165 152 178 50
1 1/2” 77 300 145 156 127 165 40
1” 56 185 113 124 108 127 25
3/4” 52 185 107 118 99 117 20
1/2” 47 185 105 95 89 108 15

Shut Off Valve Size and Pressure Class


  • Floating Reduce Bore Ball Valve
    50 NB to 150 NB
    150# TO 300#
  • Actutor Ball Valve
    15 NB to 200 NB
    150# to 600#
  • 3 Way Ball Valve
    15 NB to 150 NB
    150# to 300#
  • Hydraulic Ball Valve
    15 NB to 50 NB
    300# to 600#
  • Gear Operated Ball Valve
    80 NB to 200 NB
    150# to 600#
  • Trunion Mounted Ball Valve
    150 NB to 200 NB
    150# to 300#

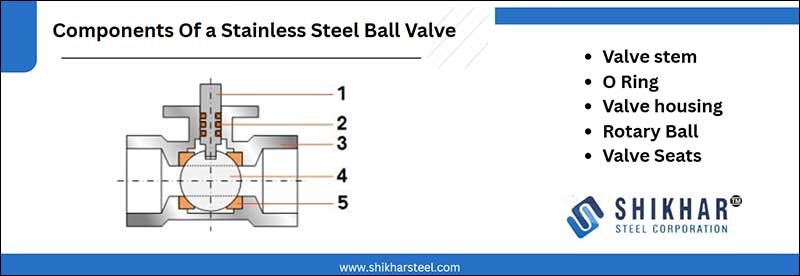

Components Of a Stainless Steel Ball Valve


Components Of a Stainless Steel Ball Valve

Ball Valve Materials


  • Stainless Steel Ball Valve
  • Cast Iron Ball Valve
  • Brass Ball Valve

Connection Types for Ball Valves


Connection Types for Ball Valves

Parts of High Pressure Ball Valve


  • Valve Body
  • Stem & Seats
  • Rotary Ball
  • Power Source
  • Packing
  • Bonnet

Isolation Valve Body Construction



1-Piece Ball Valve


2-Piece Ball Valve


3-Piece Ball Valve

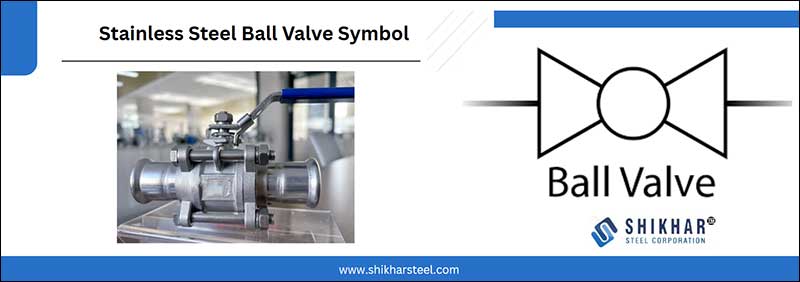

Stainless Steel Ball Valve Symbol


Stainless Steel Ball Valve Symbol

Ball Valve Weight


NPS Class 150 Ball Valve Weight (kg) Class 300 Ball Valve Weight (kg)
12” x 10” 196 -
10” x 8” 124 -
8” x 6” 80 118
6” x 4” 46 75
4” x 3” 25 39
3” x 2” 17 25
2” x 1 1/2” 9 12
1 1/2” x 1” 5,5 9
1” x 3/4” 3,5 4,8
3/4” x 1/2” 2,5 3,6
1/2” x 1/4” 2 2,5

Types of Stainless Steel Ball Valve

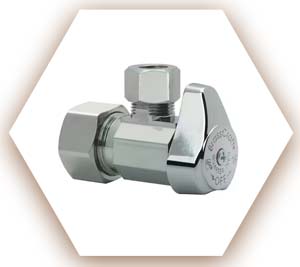

Quarter Turn Valve

Quarter Turn Valve

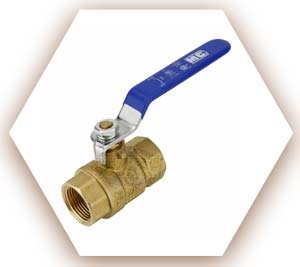

Shut Off Valve

Shut Off Valve

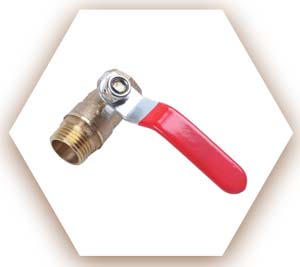

Isolation Valve

Isolation Valve


Rotary Valve

Rotary Valve

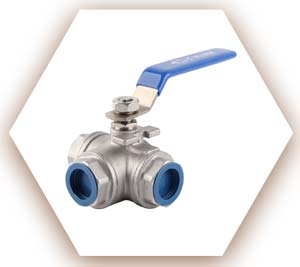

3 Way Ball Valve

3 Way Ball Valve

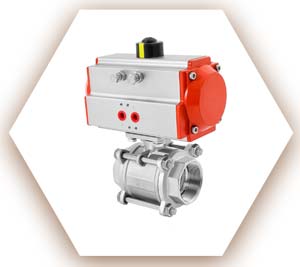

Pneumatic Ball Valve

Pneumatic Ball Valve

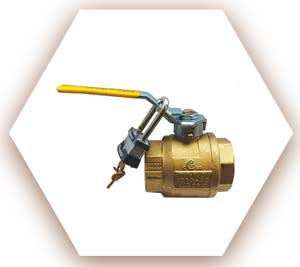

Lockable Ball Valve

Lockable Ball Valve

Locking Ball Valve

Locking Ball Valve

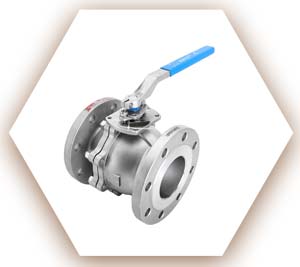

Flanged Ball Valve

Flanged Ball Valve




Types

Material
