EN 1092-1 Flange

Sizes in Stock

Sizes in Stock

1/2" to 80"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to DN2000

Pressure Class

Pressure Class

PN6, PN10, PN16, PN25, PN40, PN63, PN100

Coating

Coating

Electric Zinc Coated

Gasket

Gasket

RF, FF and RTJ

Use For

Use For

Power Generation Plant

Manufacturing Technique

Manufacturing Technique

Forged

European Standard

European Standard

EN 1092-1
EN 1092-2

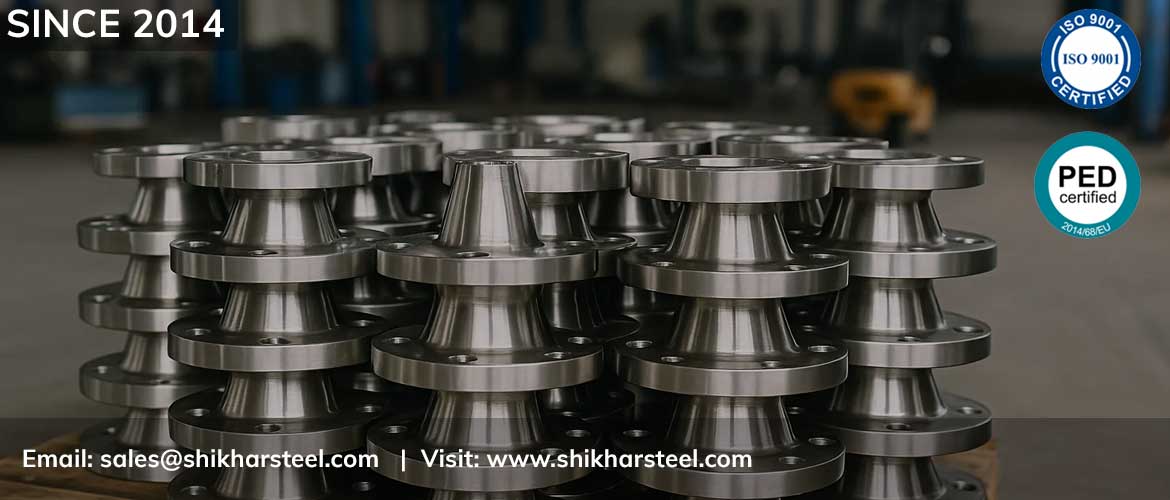

EN 1092-1 Flange Summary

Table Of Content

Top EN 1092 1 Type 11 PN16 Flange Manufacturer in India


EN 1092-1 Flange Specification



Manufacturing Size Range

EN 1092 1 Type 11 Flange Manufacturing Sizes

  • ½" to 24"
  • DN15 to DN1500
  • PN 2.5 to PN 400
  • Contact EN 1092-1 Flange Manufacturer in India For Above 48"
Pressure Class

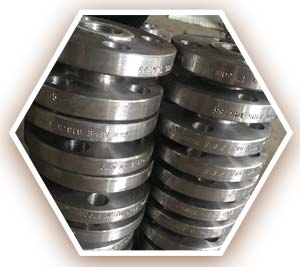

EN 1092 1 Blind Flange Pressure Class

  • Class 125, Class 150
  • Class 300, Class 400
  • Class 600, Class 900
  • Class 1500, Class 2500

Faces

EN 1092 1 Slip On Flange Faces

  • Ring Type Joint (RTJ)
  • Flat Face (FF)
  • Raised Face (RF)
  • T&G & M&F Face

American Standard

American Standard of EN 1092 1 Type 01 Flange

  • ASME B16.5
  • ASME B16.47
  • ASME B16.36
  • ASME B16.48
Manufacturing Process

EN 1092 1 Type 02 Flange Manufacturing Process

  • Forging
  • Plate
  • and Cast
Thickness

EN 1092 1 Type 05 Flange Thickness

  • Schedule 10/ 20/ 40
  • Schedule 60/ 80/ 120
  • Schedule 140/ 160/ 180

Process

EN 1092 1 Type 32 Flange Process

  • Forged and Drilling
  • Stamping and Milling
  • Turning and Rolled
Threads

EN 1092 1 Type 33 Flange Threads

  • BSP/ FPT/ NPT
  • BSPT/ MPT (Female)
  • BSPP (Male) & MNPT (Male)
Surface Finish

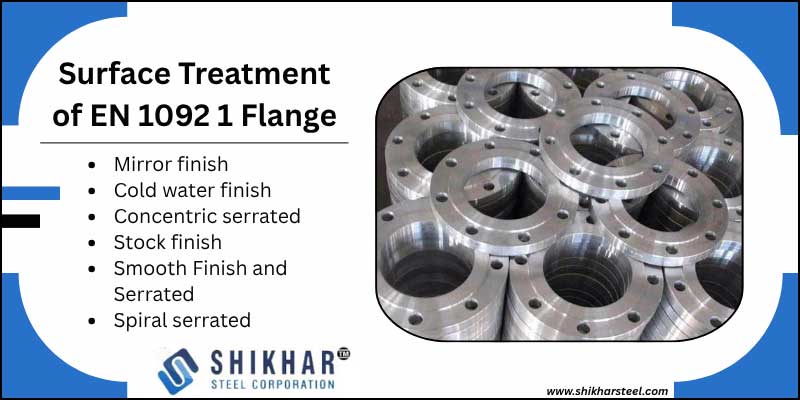

EN 1092 1 Type 35 Flange Surface Finish

  • Stock & Mirror Finish
  • Smooth & Serrated Finish
  • Cold Water Finish
Bolts Hole

EN 1092 1 Type 37 Flange Bolts Hole

  • 4 To 8
  • 4 To 24
  • 4 To 48

Application

EN 1092 1 PN40 Flange Application

  • Petrochemical
  • Power Generation
  • Oil & Gas Plants
Packaging

EN 1092 1 PN16 Flange Packaging

  • Carton Box
  • Wooden Case
  • Plastic Bag (Or Custom)
Suitable Environment

EN 1092 1 Weld Neck Flange Suitable Environment

  • Sulfuric Acid
  • Phosphoric Acid
  • Seawater
Testing

EN 1092-1 PN16 Rfwn Flange Testing & Inspection

  • Tensile Test
  • Impact Test
  • Material Inspection
Connection

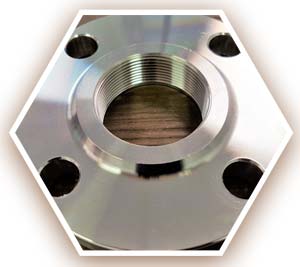

EN 1092 1 Threaded Flange Connection

  • Welding
  • Threaded
European Standard

European Standard of EN 1092 1 Lap Joint Flange

  • EN 1092-1
  • EN 1092-2
Logistics

EN 1092 1 Loose Flange Logistics

  • Indonesia: 9 Days
  • Oman: 5 Days
  • Bahrain: 9 Days
  • Kuwait: 10 Days

Origin

Lapped Flange Din EN 1092 1 Flange Origin

  • Janpanese
  • American
  • Korean
  • European
German Standard

German Standard

  • DIN 2501/ 2573
  • DIN 2502/ 2576
  • DIN 2543/ 2633

Japanese Standard

Japanese Standard of Welding Neck Flange EN 1092 1 Type 11 Flange

  • JIS B2311
  • JIS B2312
  • JIS B2220

Producing a Wide Range of EN 1092-1 Blind Flange in Various Sizes At Lowest Price


Lapped Flange Din EN 1092 1 Flange Size Chart



DN Size (Inch)
65 2 1/2
80 3
25 1
32 1 1/4
15 1/2
20 3/4
100 4
40 1 1/2
50 2

EN 1092 1 Lap Joint Flange Processing



  • Material selection
  • Cutting
  • Shaping
  • Surface finish
  • Heat treatment
  • Forging
  • Machining
  • Forming
  • Packaging

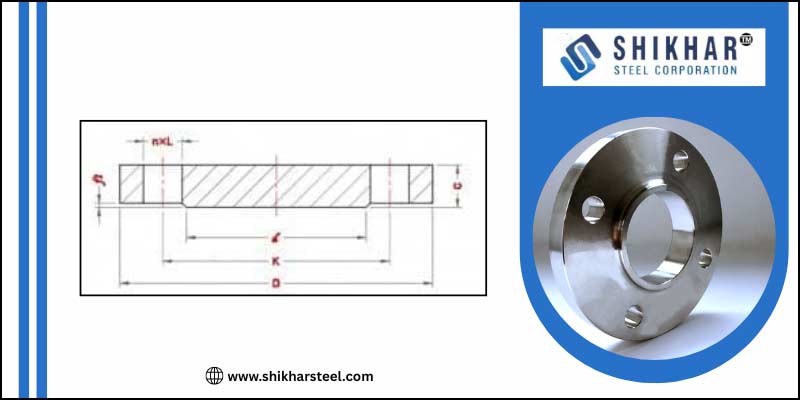

EN 1092 1 Weld Neck Flange Dimensions



EN 1092 1 Weld Neck Flange Dimensions

Size (DN) Raised Face Diameter Of (D) Raised Face Height (F1) Outside Diameter (D) W.T(C) Bolt Circle Diameter (K) Bolt Hole Diameter (L)
600 670 5 755 30 705 26
500 570 4 645 24 600 22
450 520 4 595 24 550 22
400 455 4 540 22 495 22
350 415 4 490 22 445 22
250 312 3 375 22 335 18
200 258 3 320 20 280 18
150 202 3 265 18 225 18
125 178 3 240 18 200 18
100 148 3 210 16 170 18
80 128 3 190 16 150 18
65 110 3 160 14 130 14
50 90 3 140 14 110 14
40 80 3 130 14 100 14
25 60 2 100 14 75 11
32 70 2 120 14 90 14
10 35 2 75 12 50 11
15 40 2 80 12 55 11
20 50 2 90 14 65 11

Dimensions of EN 1092-1 PN16 Flange



Size (DN) W.T Raised Face Diameter (D) O.D Raised Face Height (F1) Bolt Circle Diameter (K) Bolt Hole Diameter (L)
500 44 610 715 4 650 33
600 54 725 840 5 770 36
100 20 158 220 3 180 18
300 28 378 460 4 410 26
20 18 58 105 2 75 14
15 16 45 95 2 65 14
32 18 78 140 2 100 18
25 18 68 115 2 85 14
350 30 438 520 4 470 26
125 22 188 250 3 210 18
150 22 212 285 3 240 22
450 40 550 640 4 585 30
200 24 268 340 3 295 22
250 26 320 405 3 355 26
65 18 122 185 3 145 18
10 16 40 90 2 60 14
40 18 88 150 3 110 18
50 18 102 165 3 125 18
80 20 138 200 3 160 18
400 32 490 580 4 525 30

Dimensions of BS EN 1092-1 PN25 Flange



Size (DN) Raised Face Height Of (F1) Raised Face Diameter (D) Outside Diameter (D) Bolt Circle Diameter (K) Bolt Hole Diameter (L) W.T
25 2 68 115 85 14 18
80 3 138 200 160 18 24
500 4 615 730 660 36 51
15 2 45 95 65 14 16
200 3 278 360 310 26 30
250 3 335 435 370 30 32
125 3 188 270 220 26 26
100 3 162 235 190 22 24
400 4 505 620 550 36 40
350 4 450 555 490 33 38
20 2 58 105 75 14 18
32 2 78 140 100 18 18
150 3 218 300 250 26 28
300 4 395 485 430 30 34
40 3 88 150 110 18 18
50 3 102 165 125 18 20
65 3 122 185 145 18 22
600 5 720 845 770 39 66
10 2 40 90 60 14 16
450 4 555 670 600 36 50

Exporting and Supplying European Origin EN 1092-1 Slip On Flange For Marine Environments


EN 1092 1 PN16 Flange Application

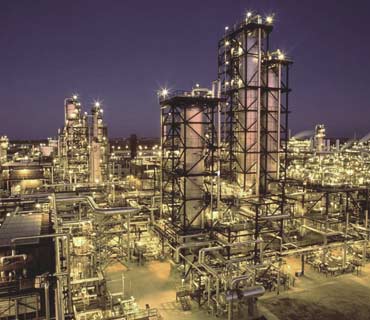

Bitumen upgraders

Bitumen upgraders

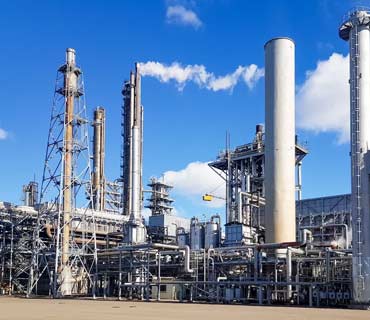

Heavy oil refineries

Heavy oil refineries

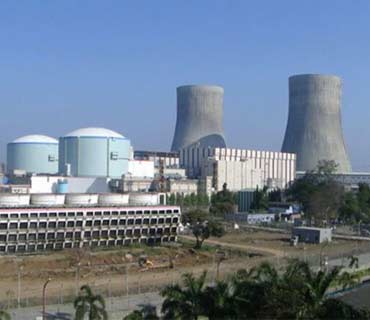

Nuclear power

Nuclear power

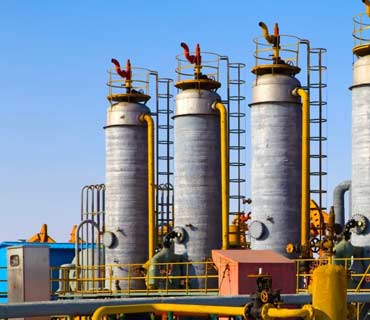

Petrochemical

Petrochemical

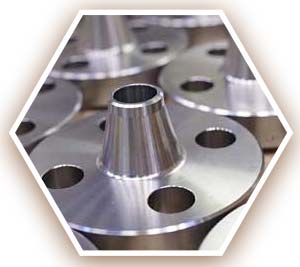

Dimensions of EN 1092-1 PN16 Rfwn Flange



O.D (D) DN Size Raised Face Height (F1) Raised Face Diameter (D) Bolt Circle Diameter Of (K) Diameter of Bolt Hole (L) Wall Thickness Of Flange, (C)
90 10 2 40 60 14 16
95 15 2 45 65 14 16
105 20 2 58 75 14 18
115 25 2 68 85 14 18
140 32 2 78 100 18 18
150 40 3 88 110 18 18
165 50 3 102 125 18 20
185 65 3 122 145 18 22
200 80 3 138 160 18 24
235 100 3 162 190 22 24
270 125 3 188 220 26 26
300 150 3 218 250 26 28
360 200 3 278 310 26 30
435 250 3 335 370 30 32
485 300 4 395 430 30 34
555 350 4 450 490 33 38
620 400 4 505 550 36 40
670 450 4 555 600 36 50
730 500 4 615 660 36 51
845 600 5 720 770 39 66

Lapped Flange Din EN 1092 1 Flange Advantages



  • Cost-effective
  • Availability And Compatibility
  • Ease Of Installation

Gasket For EN 1092-1 Flanges



NPS (Inch) O.D (I.D.) Gasket
Class 900#/ LB Class 600#/ LB Class 400#/ LB Class 300#/ LB Class 150#/ LB
10 17.125 15.75 14.125 14.25 13.375 10.75
3 6.625 5.875 5.875 5.875 5.375 3.50
4 8.125 7.625 7.00 7.125 6.875 4.50
12 19.625 18.00 16.50 16.625 16.125 12.75
6 11.375 10.50 9.75 9.875 8.75 6.62
8 14.125 12.625 12.00 12.125 11 8.62
1/2 2.50 2.125 2.125 2.125 1.875 0.84
1 1/2 3.875 3.75 3.75 3.75 3.375 1.91
2 5.625 4.375 4.375 4.375 4.125 2.38
3/4 2.75 2.625 2.625 2.625 2.25 1.06
1 3.125 2.875 2.875 2.875 2.625 1.31
1 1/4 3.50 3.25 3.25 3.25 3 1.66
2 1/2 6.50 5.125 5.125 5.125 4.875 2.88
5 9.75 9.50 8.375 8.50 7.75 5.56

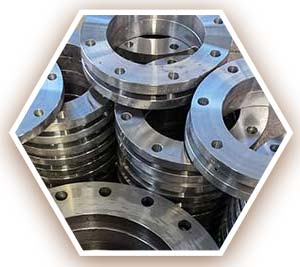

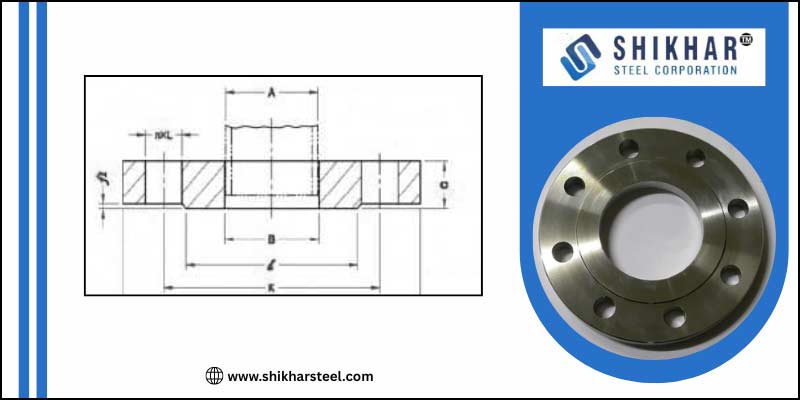

Dimensions of EN 1092-1 Type 01 PN 10 Plate Flange



Dimensions of EN 1092-1 Type 01 PN 10 Plate Flange

Size (DN) W.T (C) O.D(D) Bolt Circle Diameter (K) Bolt Hole Diameter (L) Raised Face Diameter (D) Pipe O.D. Of (A)
Series Ⅰ Series Ⅱ
10 14 90 60 14 40 17.2 14
15 14 95 65 14 45 21.3 18
20 16 105 75 14 58 26.9 25
25 16 115 85 14 68 33.7 32
32 18 140 100 18 78 42.4 38
40 18 150 110 18 88 48.3 45
50 20 165 125 18 102 60.3 57
65 20 185 145 18 122 76.1 79
80 20 200 160 18 138 88.9 89
100 22 220 180 18 158 114.3 108
125 22 250 210 18 188 139.7 133
150 24 285 240 22 212 168.3 159
200 24 340 295 22 268 219.1 219
250 26 395 350 22 320 273 273
300 26 445 400 22 370 323.9 325
350 30 505 460 22 430 355.6 377
400 32 565 515 26 482 406.4 426
450 36 615 565 26 532 457 480
500 38 670 620 26 585 508 530
600 42 780 725 30 685 610 630
700 50 895 840 30 800 711 720
800 56 1015 950 33 905 813 820
900 62 1115 1050 33 1005 914 920
1000 70 1230 1160 36 1110 1016 1020
1200 83 1455 1380 39 1330 1219 1220
1400 90 1675 1590 42 1535 1422 1420
1600 100 1915 1820 48 1760 1626 1620
1800 110 2115 2020 48 1960 1829 1820
2000 120 2325 2230 48 2170 2032 2020

Length of EN 1092 1 Threaded Flange



Class 600
Class 150		 Class 300
Studs And Bolts Diameter of Studs And Bolts Length of Stud NPS Studs And Bolts Diameter of Studs And Bolts Length of Stud Studs And Bolts Diameter of Studs And Bolts Length of Stud
RTJ - - 1/4 RF - - - 1/16 RF RTJ - - 1/16 RF
3 4 0.50 3 1/2 4 0.50 2-1/4 - 4 0.50 2-1/2
3-1/2 4 0.63 3-1/2 3/4 4 0.50 2-1/2 - 4 0.63 3
3-1/2 4 0.63 3-1/2 1 4 0.50 2-1/2 3 4 0.63 3
3-3/4 4 0.63 3-3/4 1-1/4 4 0.50 2-3/4 3-1/4 4 0.63 3-1/4
4 4 0.75 4-1/4 1-1/2 4 0.50 2-3/4 3-1/4 4 0.75 3-1/2
4 8 0.63 4-1/4 2 4 0.63 3-1/4 3-3/4 8 0.63 3-1/2
4-1/2 8 0.75 4-3/4 2-1/2 4 0.63 3-1/2 4 8 0.75 4
4-3/4 8 0.75 5 3 4 0.63 3-1/2 4 8 0.75 4-1/4
5 8 0.88 5-1/2 3-1/2 8 0.63 3-1/2 4 8 0.75 4-1/4
5 8 0.88 5-3/4 4 8 0.63 3-1/2 4 8 0.75 4-1/2
5-1/4 8 1.00 6-1/2 5 8 0.75 3-3/4 4-1/4 8 0.75 4-3/4
5-1/2 12 1.00 6-3/4 6 8 0.75 4 4-1/2 12 0.75 4-3/4
6 12 1.13 7-1/2 8 8 0.75 4-1/4 4-3/4 12 0.88 5-1/2
6-3/4 16 1.25 8-1/2 10 12 0.88 4-1/2 5 16 1.00 6-1/4
7-1/4 20 1.25 8-3/4 12 12 0.88 4-3/4 5-1/4 16 1.13 6-3/4
7-1/2 20 1.38 9-1/4 14 12 1.00 5-1/4 5-3/4 20 1.13 7
8 20 1.50 10 16 16 1.00 5-1/4 5-3/4 20 1.25 7-1/2
8-1/4 20 1.63 10-3/4 18 16 1.13 5-3/4 6-1/4 24 1.25 7-3/4
8-3/4 24 1.63 11-1/4 20 20 1.13 6-1/4 6-3/4 24 1.25 8
10 24 1.88 13 24 20 1.25 6-3/4 7-1/4 24 1.50 9

Offer CNC Machined and Forged EN 1092 1 Type 11 Welding Neck Flange With Custom Packaging

EN 1092 1 Loose Flange Packaging



EN 1092 1 Loose Flange Packaging
  • Carton Box
  • Wooden Pallet
  • Wooden Cases


Weight of EN 1092-1 Flange



Normal Size Of Steel Pipe Weight (kg) Dimensions (mm)
Size (Inch) Size (mm) (EN 1092-1 Blind Flanges) (EN 1092-1 Socket Weld Flanges) (EN 1092-1 Weld Neck Flanges) 150# Flanges W.T (D) Inch EN 1092-1 Flanges O.D (mm)
1/2 15 0.4 0.4 0.5 11.2 88.9
3/4 20 0.6 0.6 0.7 12.7 98.6
1 25 0.9 0.8 1 14.2 108
1 1/4 32 1.2 1 1.3 15.7 117.3
1 1/2 40 1.5 1.3 1.7 17.5 127
2 50 2.4 2.1 2.6 19.1 152.4
2 1/2 65 3.9 3.3 4.1 22.4 177.8
3 80 4.9 3.9 4.9 23.9 190.5
3 1/2 90 6.2 4.8 6.1 23.9 215.9
4 100 7.0 5.3 6.8 23.9 228.6
5 125 8.6 6.1 8.6 23.9 254
6 150 11.3 7.5 10.6 25.4 279.4
8 200 19.6 12.1 17.6 28.4 342.9
10 250 28.6 16.5 24 30.2 406.4
12 300 43.2 26.2 36.5 31.8 482.6
14 350 58.1 34.6 48.4 35.1 533.4
16 400 76.1 44.8 60.6 36.6 596.9
18 450 93.7 48.9 68.3 39.6 635
20 500 122.0 61.9 84.5 42.9 698.5

Dimensions of EN 1092-1 Type 11 PN 16 Weld Neck Flange



W.T (S) DN Size O.D Diameter of Raised Face, (D) Wall Thickness Flange, (C) Outside Diameter Pipe (A) Flange Length, (H)
Series Ⅰ Series Ⅱ
8.0 500 715 610 36 508 530 84
8.0 350 520 438 30 355.6 377 82
2.3 20 105 58 18 26.9 25 40
10.0 600 840 725 40 610 630 88
8.0 400 580 490 32 406.4 426 85
8.0 450 640 550 34 457 480 83
7.1 300 460 378 28 323.9 325 78
2.6 25 115 68 18 33.7 32 40
6.3 200 340 268 24 219.1 219 62
2.6 32 140 78 18 42.4 38 42
2.6 40 150 88 18 48.3 45 45
6.3 250 405 320 26 273 273 70
3.2 80 200 138 20 88.9 89 50
3.6 100 220 158 20 114.3 108 52
2.9 50 165 102 18 60.3 57 45
2.9 65 185 122 18 76.1 79 45
6.3 200 340 268 24 219.1 219 62
6.3 250 405 320 26 273 273 70
2.0 10 90 40 16 17.2 14 35
2.0 15 95 45 16 21.3 18 38

Wall Thickness of EN 1092 Slip On Flange



NPS SO Length (SL) Diameter of Hub(HT) Outer Diameter (O.D) W.T Inner Diameter (WB) Diameter Hub Base (HB)
2 0.94 2.38 6.00 0.69 2.07 3.06
11/4 0.75 1.66 4.62 0.56 1.38 2.31
6 1.50 6.63 11.00 0.94 6.07 7.56
8 1.69 8.63 13.50 1.06 7.98 9.69
11/2 0.81 1.90 5.00 0.62 1.61 2.56
3/4 0.56 1.05 3.88 0.44 0.82 1.50
1 0.62 1.32 4.25 0.50 1.05 1.94
16 2.44 16.00 23.50 1.38 15.25 18.00
22 3.07 22.00 29.50 1.75 21.25 24.25
10 1.88 10.75 16.00 1.12 10.02 12.00
5 1.38 5.56 10.00 0.88 5.05 6.44
20 2.81 20.00 27.50 1.62 19.25 22.00
1/2 0.56 0.84 3.50 0.38 0.62 1.19
18 2.62 18.00 25.00 1.50 17.25 19.88
14 2.19 14.00 21.00 1.31 13.25 15.75
24 3.19 24.00 32.00 1.81 23.25 26.12
12 2.12 12.75 19.00 1.19 12.00 14.38
21/2 1.06 2.88 7.00 0.81 2.47 3.56
3 1.12 3.50 7.50 0.88 3.07 4.25
31/2 1.19 4.00 8.50 0.88 3.55 4.81
4 1.25 4.50 9.00 0.88 4.03 5.31

Bolt Holes Number of EN 1092 1 Loose Flange



NPS (in inch) Dia. of Bolt Holes (in inch) Dia. of Bolts (in inch) Bolts Circle (B.C) (in inch) Dia. of Flange ( in inch) No. of Bolts
1/4 0.62 1/2 2-1/4 3-3/8 4
1/2 0.62 1/2 2-3/8 3-1/2 4
3/4 0.62 1/2 2-3/4 3-7/8 4
1 0.62 1/2 3-1/8 4-1/4 4
1-1/4 0.62 1/2 3-1/2 4-5/8 4
1-1/2 0.62 1/2 3-7/8 5 4
2 0.75 5/8 4-3/4 6 4
2-1/2 0.75 5/8 5-1/2 7 4
3 0.75 5/8 6 7-1/2 4
3-1/2 0.75 5/8 7 8-1/2 8
4 0.75 5/8 7-1/2 9 8
5 0.88 3/4 8-1/2 10 8
6 0.88 3/4 9-1/2 11 8
8 0.88 3/4 11-3/4 13-1/2 8
10 1 7/8 14-1/4 16 12
12 1 7/8 17 19 12
14 1.12 1 18-3/4 21 12
16 1.12 1 21-1/4 23-1/2 16
18 1.25 1-1/8 22-3/4 25 16
20 1.25 1-1/8 25 27-1/2 20
24 1.38 1-1/4 29-1/2 32 20

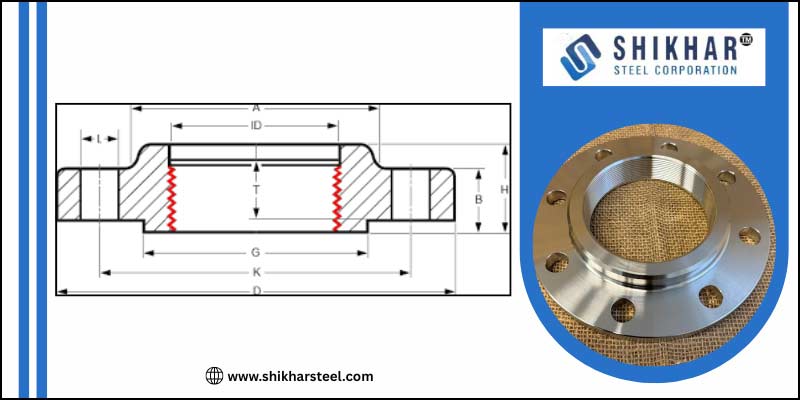

Dimensions of EN 1092-1 Type 13 PN 16 Threaded Flange



Dimensions of EN 1092-1 Type 13 PN 16 Threaded Flange

W.T (C) DN (Size) Diameter Neck (N) Corners Radius (R) OD Of Pipe, (A) Raised Face Height Of (F1) Flange Length H
16 15 35 4 21.3 2 22
18 50 84 6 60.3 3 28
20 80 118 6 88.9 3 34
22 150 195 10 168.3 3 44
18 32 60 6 42.4 2 30
30 350 400 12 355.6 4 67
24 200 246 10 219.1 3 44
18 40 70 6 48.3 3 32
16 10 30 4 17.2 2 22
18 65 104 6 76.1 3 32
34 450 502 12 457 4 68
28 300 350 12 323.9 4 46
26 250 398 12 273 3 46
20 100 140 8 114.3 3 40
22 125 168 8 139.7 3 44
32 400 456 12 406.4 4 63
18 20 45 4 26.9 2 26
18 25 52 4 33.7 2 28

Temperature of EN 1092-2 Malleable Iron Flanges



  • ISO 1083
  • EN 545 grade 420-5

Pressure 300 °C 150 °C 200 °C
PN40 24 36 32
PN25 15 22.5 20
PN16 9.6 14.4 12,8
PN10 6 9 8
PN6 3.6 5.4 4,8
PN2.5 1.5 2.3 2

Find EN 1092-1 PN10 Flange Dimensions and Pressure Rating in Class 150 to 2500

Pressure Class of EN 1092 1 Blind Flange



  •  PN10 & PN16
  •  PN25 & PN40
  •  PN63 & PN100
  •  PN160 & PN250
  •  PN320
  • PN400

Manufacturing Types of EN 1092 1 Lap Joint Flange



Form Type Flange
With a raised face EN 1092-1 Type B Plate flange
For welding EN 1092-1 Type J Loose plate flange
- EN 1092-1 Type C Hubbed slip-on flange
For welding EN 1092-1 Type H Hubbed threaded flange
- EN 1092-1 Type D Hubbed threaded flange
For welding EN 1092-1 Type F Hubbed slip-on flange
- EN 1092-1 Type E Weld-neck flange
Integral flange EN 1092-1 Type I Integral flange

EN 1092 1 Type 11 Flange Design



Form Type Flange
With weld-neck collar EN 1092-2 Type 37 Loose plate flange
With weld-neck collar EN 1092-2 Type 43 Loose plate collar
- EN 1092-2 Type 11 Weld neck (WN) flange
With bayonet EN 1092-2 Type 44 Loose plate collar
- EN 1092-2 Type 21 Slip on (SO) flange
With weld-on plate collar EN 1092-2 Type 32 Loose plate flange
With weld-on plate collar EN 1092-2 Type 36 Loose plate flange
With bayonet EN 1092-2 Type 38 Loose plate flange
With weld-neck collar EN 1092-2 Type 33 Loose plate flange
With bayonet EN 1092-2 Type 34 Loose plate flange

Temperature Rating of EN 1092-2 Iron Flanges



Pressure PN40 PN10 PN25 PN16
300 °C 28 7 17.5 11.2
150°C 38 9.5 23.8 15.2
200 °C 36 9 22.5 14.4

EN 1092-2 Grey Iron Flanges Pressure in Bar



Pressure 200 °C 300 °C 150 °C
PN40 32 24 36
PN6 4,8 3.6 5.4
PN2.5 2 1.5 2.3
PN25 20 15 22.5
PN16 12,8 9.6 14.4
PN10 8 6 9

Surface Treatment of EN 1092 1 Flange



Surface Treatment of EN 1092 1 Flange

EN 1092 1 Type 33 Flange Testing



Macro Test

Macro Test

IGC Test

IGC Test

HIC Test

HIC Test

Flaring Test

Flaring Test

SSC Cracking Test

SSC Cracking Test

Dye Penetrant Test

Dye Penetrant Test


Temperatures of EN 1092 1 Lap Joint Flange



Pressure 350 °C 150 °C 250 °C
PN40 28 38.8 34.8
PN25 17.5 24.3 21.8
PN16 11.2 15.5 13.9
PN10 7 9.7 8.7
PN6 4.2 5.8 5.2

Types Of EN 1092-1 Flange



EN 1092 1 Blind Flange

EN 1092 1 Blind Flange

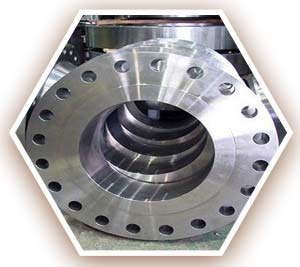

EN 1092-1 Slip On Flange

EN 1092-1 Slip On Flange

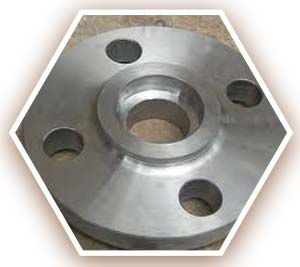

EN 1092 1 Socket Weld Flange

EN 1092 1 Socket Weld Flange

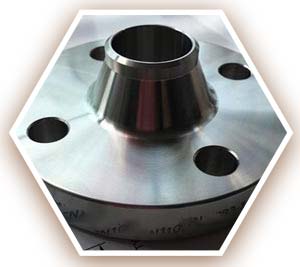

EN 1092 1 Weld Neck Flange

EN 1092 1 Weld Neck Flange

DIN EN 1092 1 Plate Flanges

DIN EN 1092 1 Plate Flanges

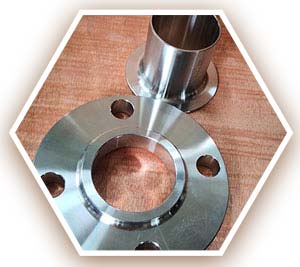

PN16 RFWN Lap Joint Flange

PN16 RFWN Lap Joint Flange

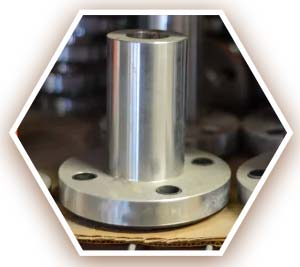

EN 1092 1 Type 11 Long Neck Flanges

EN 1092 1 Type 11 Long Neck Flanges

EN 1092 1 Threaded Flange

EN 1092 1 Threaded Flange

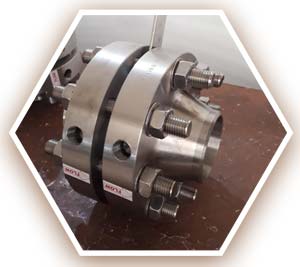

EN 1092 1 Orifice Flange

EN 1092 1 Orifice Flange

EN 1092 1 Spectacle Blind Flanges

EN 1092 1 Spectacle Blind Flanges

PN16 RFWN Reducing Flange

PN16 RFWN Reducing Flange

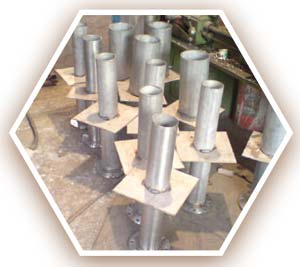

DIN EN 1092 1 Puddle Flanges

DIN EN 1092 1 Puddle Flanges








Types

Material

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.

whatsapp chat
