Hastelloy Blind Flange
- sales@shikharsteel.com
Sizes in Stock
1/2" to 24"
Sizes Can Be
Manufacture
Up to DN1600
Grade
Hastelloy C276, B2, B3, C22, Hastelloy X
Environments
Sulfuric & Hydrochloric Acid
Steel Types
Nickel Molybdenum Chromium Alloy
Designed To
High Temperature Applications
UNS Designation
UNS N10276, N06022, N10665
Characteristics
High Temperature Stability
Table Of Content
Highly skilled Hastelloy flanges manufacturer in India, Buy online Hastelloy slip on flange available in various sizes and pressure class 150 to 2500. We provide a large selection of Hastelloy pipe flanges available in C276, C22, B2, B3 in best quality. ASTM B564 UNS N10276 flanges are designed to harsh environments ideal marine and chemical applications.
Top 6 Reasons for Suppliers in Netherland and Spain to Procure Hastelloy C276 Flanges from Shikhar Steel
Which Testing are Required for Importing Hastelloy C276 Flanges in USA and Qatar from India?
Shikhar steel corporation is a national award winner Hastelloy flanges manufacturer. Hastelloy C276 flanges offer exceptional resistance to reducing media, such a hydrochloric, sulfuric acid, chlorine compounds and seawater. Hastelloy blind flange designed to withstand high temperature applications.
Hastelloy Flanges Specifications
Size In Ready Stock
Hastelloy C276 Flanges Pressure Class
C276 Flanges Faces Types
Standard of ASTM B564 N10276
Hastelloy Pipe Flange Manufacturing Process
ASTM B564 N10276 Thickness
Hastelloy B2 Flanges Process
Hastelloy Threaded Flanges Threads
Hastelloy C22 Flanges Surface Finish
Hastelloy B3 Flanges Bolts Hole
Uses of Hastelloy C Flange
ASTM B564 UNS N10276 Flanges Packaging
ASTM B564 UNS N10276 Suitable Environment
N10276 Flange Testing Method
End Connection of Hastelloy Blind Flange
Hastelloy Slip On Flange European Standard
Hastelloy Forged Flange Logistics
Hastelloy Steel Flanges Origin
German Standard of C276 Flange
Japanese Standard of C276 Flanges
High quality Hastelloy flanges manufacturer in India, Since 2014, Experts in manufacturing Hastelloy C276 blind flange for chemical processing. We keep bulk stock of DIN, AWWA, EN, ASME, BS, JIS, MSS C276 hastelloy flanges for quick delivery to our clients.
Available Hastelloy Pipe Flange Grade
Hastelloy C276 Slip On Flange Price List
1/2", SCH 40, RF, 150#
$10.96US $7.85 each
3/4", RF, 150#, SCH 40
$12.75US $9.19 each
1", 150#, SCH 40, RF
$15.56US $11.74 each
1 1/4”, SCH 40, RF, 150#
$18.39US $15.16 each
1 1/2", RF, 150#, SCH 40
$21.86US $17.68 each
2", RF, SCH 40, 150#
$26.83US $21.98 each
2 1/2", 150#, SCH 40, RF
$34.83US $29.10 each
3", RF, 150#, SCH 40
$41.83US $35.22 each
4", SCH 40, RF, 150#
$56.83US $48.84 eachFor Final Hastelloy flanges price list Please Drop an Email to sales@shikharsteel.com

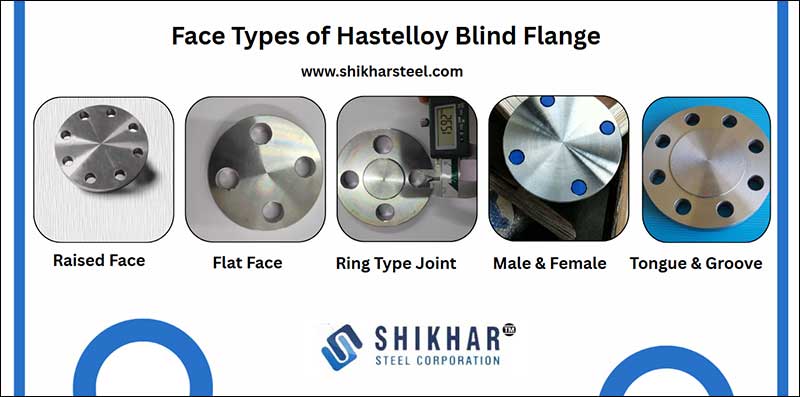

Face Types of Hastelloy Blind Flange
12 Years of skilled work as an Hastelloy flanges manufacturer in India. Hastelloy C276 weld neck flanges suitability for pharmaceuticals, chemical processing, oil and gas. These ASTM B564 UNS N10276 flanges provide leak free connections in corrosive environments.
Hastelloy C276 Flange Pressure Ratings
| Temperature | Class 150 Hastelloy Flange (psig) | Class 300 Hastelloy Steel Flange (psig) | Temperature | 150# Hastelloy Pipe Flange (bar) | Class 300 150# Hastelloy Forged Flange (bar) |
|---|---|---|---|---|---|
| 1250°F | - | 165 | 650°C | - | 14.1 |
| 1200°F | - | 205 | 600°C | - | 21.6 |
| 1100°F | - | 325 | 550°C | - | 25.0 |
| 1000°F | 20 | 365 | 500°C | 2.8 | 28.2 |
| 900°F | 50 | 450 | 450°C | 4.6 | 33.7 |
| 800°F | 80 | 510 | 400°C | 6.5 | 36.5 |
| 700°F | 110 | 570 | 350°C | 8.4 | 40.3 |
| 600°F | 145 | 605 | 300°C | 10.2 | 42.9 |
| 500°F | 170 | 665 | 250°C | 12.1 | 46.3 |
| 400°F | 200 | 700 | 200°C | 13.8 | 48.3 |
| 300°F | 230 | 730 | 150°C | 15.8 | 50.3 |
| 200°F | 260 | 750 | 100°C | 17.7 | 51.5 |
| -20~100°F | 290 | 750 | 50°C | 19.5 | 51.7 |
DIN Standard for Hastelloy Forged Flange
Hastelloy Steel Flanges Working Temperature
| Grade | Operating Temperature (Maximum) | Applications |
|---|---|---|
| Hastelloy G30 Flange | 1000°F | Fertilizer industries |
| Hastelloy X Flanges | 2200°F | Power Generation |
| Hastelloy B3 Flanges | 800°F | Petrochemical |
| Hastelloy C22 Flanges | 677°C | Chemical Processing |
| Hastelloy C276 Flanges | 1250°F | Marine Environments |
ADNOC certified hastelloy flanges manufacturer in India, Buy from the supplier of Hastelloy flanges to save up to 20%. Shikhar steel corporation provides Hastelloy blind flange made of a high performance nickel based alloy.
Types of Hastelloy Flanges for Chemical Processing

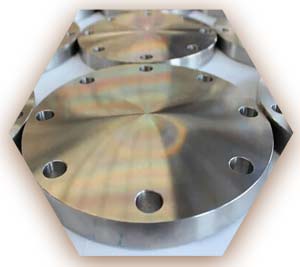

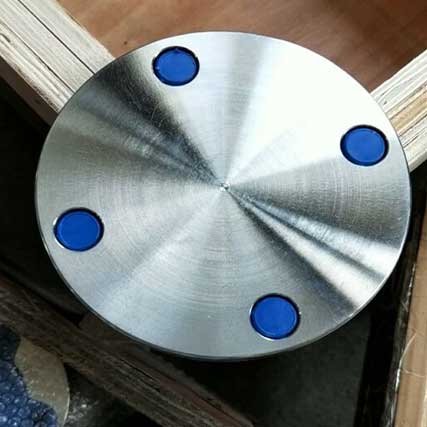

Hastelloy Blind Flange

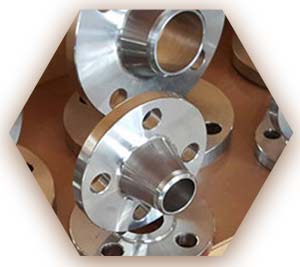

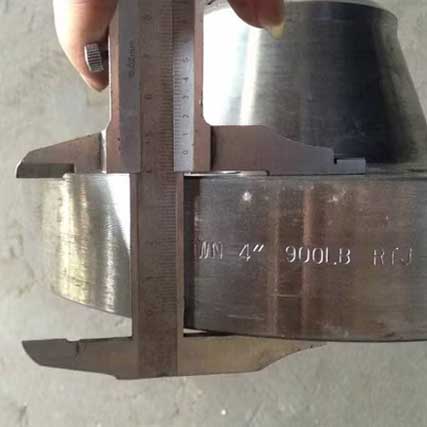

Hastelloy C276 Weld Neck Flange

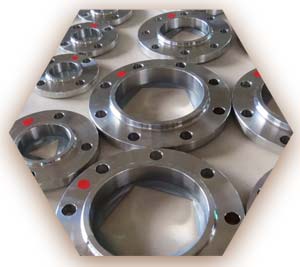

Alloy C22 Slip On Flange

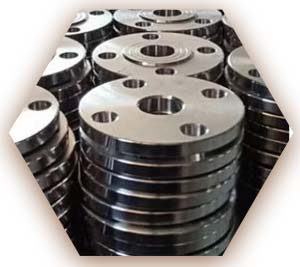

Nickel C276 Socket Weld Flange

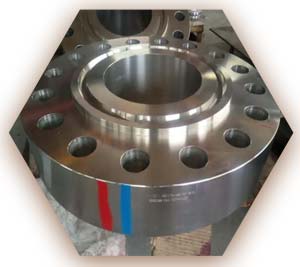

Nickel Alloy C276 Lap Joint Flange

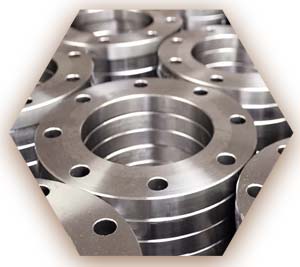

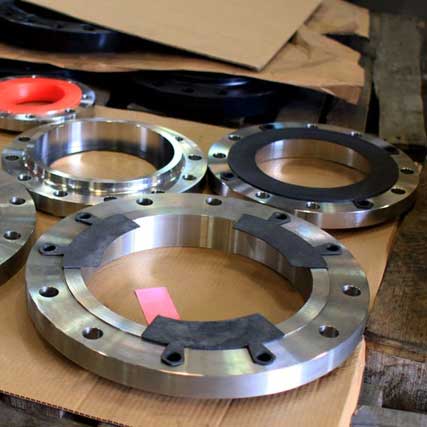

C276 Hastelloy Plate Flanges

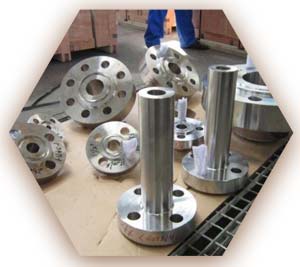

ASTM B564 N10276 Long Neck Flanges
SB564 N10276 Threaded Flange

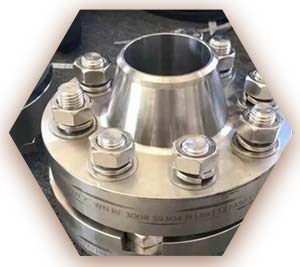

Hastelloy C Orifice Flange
Hastelloy B3 Spectacle Blind Flanges
C276 Reducing Flange

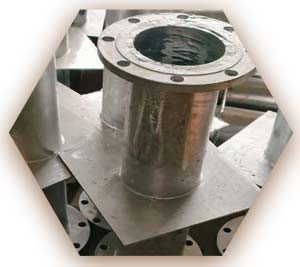

ASME SB 564 N10276 Puddle Flanges
Gaskets For C276 Flange
Common Uses of Hastelloy Alloy Flange
| Type | Features |
|---|---|
| Hastelloy Weld Neck Flange | High temperature systems |
| Hastelloy Slip On Flange | Low pressure applications |
| Hastelloy Blind Flange | Ideal for inspection |
| Hastelloy Socket Weld Flange | Suitable for high pressure pipelines |
| Hastelloy Lap Joint Flange | Works with stub ends |
Hastelloy Slip On Flange Weight Chart
| NPS | Hastelloy Slip On Flange (KG) |
|---|---|
| DN600 | 86.9 |
| DN500 | 61.9 |
| DN450 | 48.9 |
| DN400 | 44.8 |
| DN350 | 34.6 |
| DN300 | 26.2 |
| DN250 | 16.5 |
| DN200 | 12.1 |
| DN150 | 7.5 |
| DN100 | 5.3 |
| DN90 | 4.8 |
| DN80 | 3.9 |
| DN65 | 3.3 |
| DN50 | 2.1 |
| DN40 | 1.3 |
| DN32 | 1 |
| DN25 | 0.8 |
| DN20 | 0.6 |
| DN15 | 0.4 |

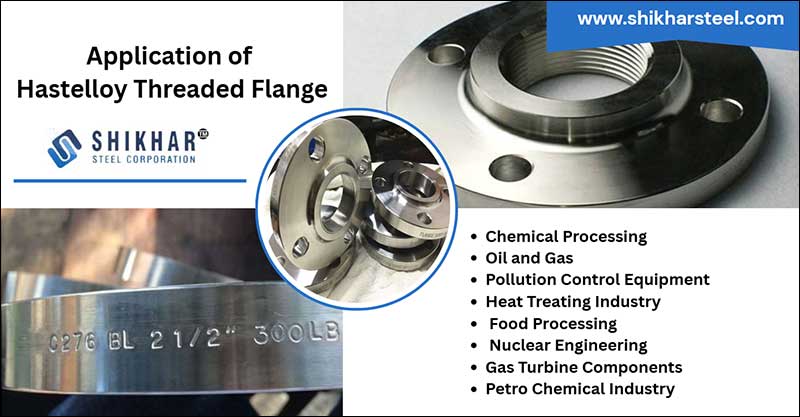

Application of Hastelloy Threaded Flange
Shikhar steel corporation, based in Mumbai, India, is a leading Hastelloy flanges manufacturer in India. Since 2014. Hastelloy threaded flange have excellent corrosion resistance in oxidizing and reducing media.
Hastelloy C22 Flanges Suitable Environment

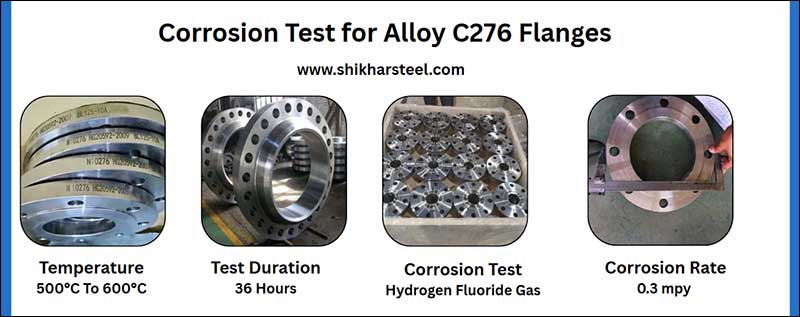

Corrosion Test for Alloy C276 Flanges
Hastelloy Flanges Equivalents
UNS (North America)
JIS (Japan)
EN (Europe)
WNR (Russia)
GOST (Russia)
Hastelloy Pipe Flange Chemical Composition
C
Carbon
C276 = 0.010
C22 = 0.010
B2 = 0.02
S
Sulphur
C276 = 0.03
C22 = 0.02
B2 = 0.03
Ni
Nickel
C276 = 50.99
C22 = 50.00
B2 = Bal
Si
Silicon
C276 = 0.08
C22 = 0.08
B2 = 0.1
Mn
Manganese
C276 = 1.00
C22 = 0.50
B2 = 1.00
Fe
Iron
C276 = 4.00 to 7.00
C22 = 2.00 to 6.00
B2 = 2.0
Cr
Chromium
C276 = 14.50 to 16.50
C22 = 20.00 to 22.50
B2 = 1.0
Mo
Molybdenum
C276 = 15.00 to 17.00
C22 = 12.50 to 14.50
B2 = 26 to 30
Hastelloy Forged Flange Mechanical Properties
| Property | Hastelloy B3 Flanges | Hastelloy B2 Flanges | Hastelloy C2000 Flanges | Hastelloy C22 Flanges | Hastelloy C276 Flanges |
|---|---|---|---|---|---|
| Hardness | 90 HRB | 85 HRB | 95 HRB | 90 HRB | 85 HRB |
| Tensile Strength | 760 MPa | 690 MPa | 690 MPa | 690 MPa | 760 MPa |
| Yield Strength | 415 MPa | 310 MPa | 310 MPa | 310 MPa | 355 MPa |
| Elongation | 40% | 40% | 45% | 45% | 40% |
Hastelloy Steel Flanges Physical Properties
| Property | ASTM B564 UNS N10665 | ASTM B564 UNS N06022 | ASTM B564 UNS N10276 |
|---|---|---|---|
| Melting Point | 1330 to 1380°C | 1350 to 1400°C | 1325 to 1370°C |
| Density | 9.24 g/cm³ | 8.69 g/cm³ | 8.89 g/cm³ |
| Electrical Resistivity | 1.3 µΩ·m | 1.23 µΩ·m | 1.2 µΩ·m |
| Thermal Conductivity | 8.9 W/m·K | 9.5 W/m·K | 10.2 W/m·K |
Corrosion Resistant of C276 Hastelloy Flanges
| Grade | Corrosion-Resistant |
|---|---|
| Alloy B3 Flange | Hydrochloric Acid |
| Alloy C22 Flange | Oxidizing Corrosives |
| Alloy C276 Flange | Very Good Resistance to Reducing |
| Alloy C2000 Flange | Excellent Resistance to Uniform Corrosion |

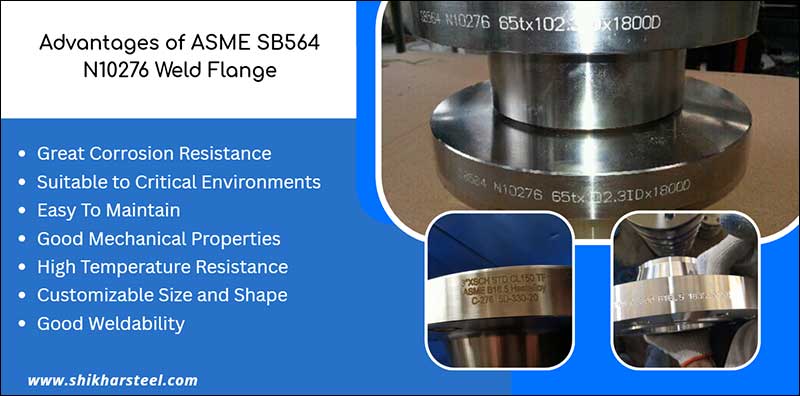

Advantages of ASME Sb564 N10276 Weld Flange
