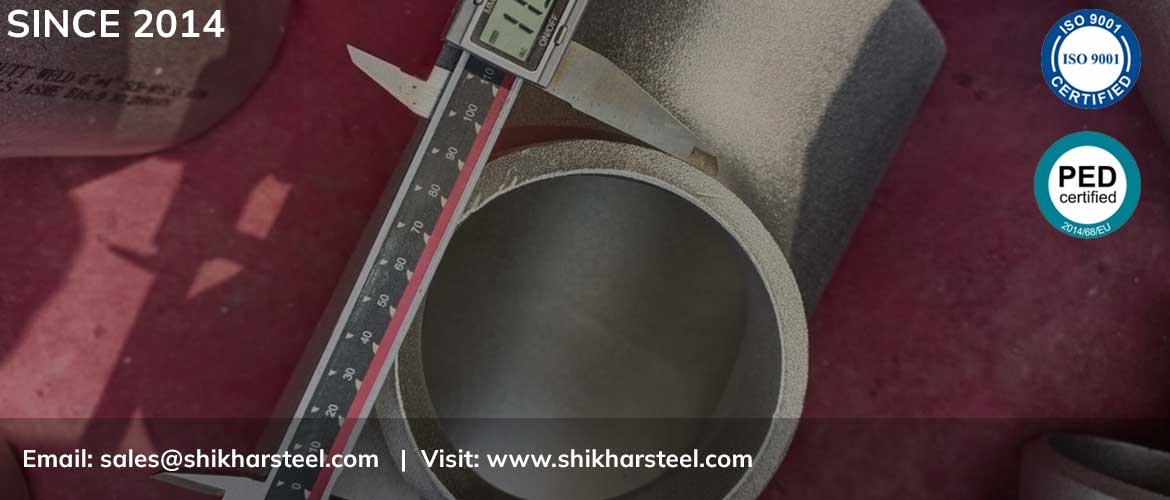

Stainless Steel Tee

Sizes in Stock

Sizes in Stock

1/2" to 48"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 60"

Shapes

Shapes

T Shape and Y Shape

Advantage

Advantage

High Strength and Durability

Types

Types

Lateral, Barred, Barred,
Equal, Reducing Tee

Process

Process

Cutting and Forming

Production Technique

Production Technique

Machined & Forged

Standard

Standard

ASME B16.9


Stainless Steel Tee

Table Of Content

Pipe Tee Manufacturer in India


ASME B16.9 Tee Specification



Manufacturing Size Range

Reducing Tee Manufacturing Sizes

  • Seamless : 1/2" - 24"
  • Welded : 24" - 96"
  • Buttweld : 1/2" - 36"
  • Contact Pipe Tee Manufacturer in India For Above 48"
Thickness

Mechanical Tee Thickness

  • SCH 10/ 20/ 40/ 60/ 80
  • SCH 90/ 100/ 120/ 140
  • SCH 160/ 180/ SCH XXS


Advantages

Swept Tee Advantages

  • Flow control
  • Reduced resistance
  • Branching
Ends Method

3 Way Tee Ends Method

  • Plain Bevel
  • Bevelled
  • Compound Bevel
Application

Barred Tee Application

  • Chemical Equipment
  • Sea Water Equipment
  • Pharmaceutical Equipment
Packaging

Lateral Tee Packaging

  • Wooden Cases
  • Wooden Pallet
  • Carton Box
Logistics

Unequal Tee Logistics

  • Norway = 45 day
  • Kuwait = 11 day
  • Finland = 45 days
Manufacturing Process

Saddle Tee Manufacturing Process

  • CNC Machined
  • Hot forging
  • Cold forging
Standard

Reducing Tee Fitting Standard

  • ASME B16.28
  • ASME B16.9
  • DIN/ JIS/ EN/ ISO
Surface Treatment

Slip Tee Surface Treatment

  • Rolling
  • Blasting

Process

Schedule 80 Tee Process

  • Bending
  • Welding
  • Cutting
Types

Types of Schedule 40 Tee Types

  • Lateral Tee
  • Barred Tee
  • Unequal Tee
Method

Stainless Steel Tee Method

  • Buttweld (BW)
  • Seamless (SMLS)
  • Welded (Weld)
Sour Service

Sour Service of Carbon Steel Tee

  • NACE MR0175
  • NACE TM-0284
  • NACE MR0103
Marking

Aluminum Tee Marking

  • Size & Schedule
  • Grade & Material
  • Manufacturers Name
  • Standard & Heat No.
Origin

Aluminum Pipe Tee Fitting Origin

  • Janpanese
  • American
  • Korean
  • European
Value Added Services

Stainless Steel Reducing Tee Value Added Services

  • Cutting
  • Bending
  • Welding
Machinery List

Galvanized Tee Machinery List

  • Beveling
  • Hot and Cold Forming
  • Hydraulic Press 150 Tons Capacity


Shipping Time and Location

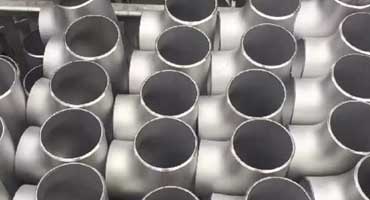

Empresa Nacional del Petróleo
  • 10 Inch, Sch 40 Equal Tee
  • Empresa Nacional del Petróleo
  • Condes, Chile

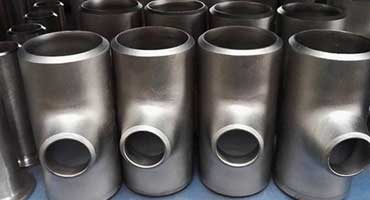

Ecopetrol
  • 8 Inch, Sch 80 Unequal Tee
  • Ecopetrol
  • Bogotá, Colombia

Buy SS Reducing Tee at Best Price, Providing Various Dimensions as per ASME B16.9


Equal Tee Price List



Size (Inch) SCH Price In USD Price in AED
8 80 12.20 44.80
6 80 11.46 42.09
4 80 9.60 35.26
2 40 5.80 21.30
3/4 40 2.54 9.33
1/2 40 2.11 7.75

For Final Pipe Tee Price List Please Drop an Email to sales@shikharsteel.com.

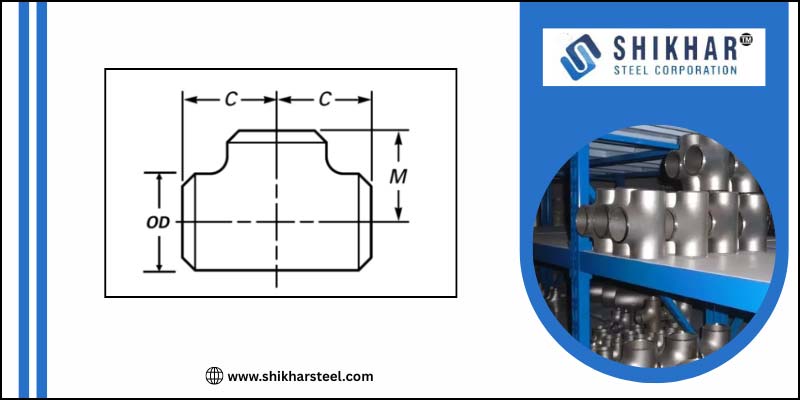

Equal Tee Dimensions



Equal Tee Dimensions

O.D NPS Length Center to End
mm Inch. M C
762 30 559 559
711 28 521 521
660 26 495 495
610 24 432 432
559 22 419 419
508 20 381 381
457.2 18 343 343
406.4 16 305 305
355.6 14 279 279
323.9 12 254 254
273.1 10 216 216
219.1 8 178 178
168.3 6 143 143
141.3 5 124 124
114.3 4 105 105
88.9 3 86 86
60.3 2 64 64
33.4 1 38 38
21.3 1/2 25 25

Dimensions of Reducing Tee



Dimensions of Reducing Tee

NPS (Inch) Center to End O.D
- M C P D
24 * 10 359 419 273.1 559
22 * 12 371 419 323.9 559
10 * 4 184 216 114.3 273.1
12 * 10 241 254 273.1 323.9
14 * 6 238 279 168.3 355.6
18 * 8 298 343 219.1 457
20 * 18 368 381 457 508
1/2 * 3/8 25 25 17.1 21.3
1 * 3/4 38 38 26.7 33.4
2 * 1 1/2 60 64 48.2 60.3
4 * 1 1/2 86 105 48.3 114.3
5 * 4 117 124 114.3 141.3
6 * 2 1/2 121 143 73 168.3
2 * 1 51 64 33.4 60.3
2 * 3/4 44 64 26.7 60.3
2 1/2 * 1 57 76 33.4 73
3 * 2 76 86 60.3 88.9
3 1/2 * 2 83 95 60.3 101.6
3 1/2 * 1 1/2 79 95 48.3 101.6
8 * 6 168 178 168.3 219.1

Pipe Tee Dimensions Tolerance as per ASME B16.9



NPS O.D. at Bevel (1), (2) Tee (Center Of End)
32 - 48 0.25 -0.19 0.19
½ - 2½ 0.06 -0.03 0.06
20 - 24 0.25 -0.19 0.09
26 - 30 0.25 -0.19 0.12
3 - 3 ½ 0.06 0.06
10 - 18 0.16 -0.12 0.09
4 0.06 0.06
5 - 8 0.09 -0.06 0.06

Top 6 Advantages of Reducing Tee



  • High Flexibility
  • Adaptability to Varying Flow Rates
  • Flow Control
  • Noise and Vibration Reduction
  • Reduced Pipeline Resistance
  • Space Efficiency

Purchase Carbon Steel Equal Tee Made by CNC Machining in Different Material


Seamless Tee Functions



  • Branch Pipeline Addition
  • Cost Reduction
  • Pipeline Redirection
  • Flow Rate Adjustment
  • Pipe Connection
  • Facilitating Fluid Redirection

Angularity Tolerances of Stainless Steel Tee



NPS Angularity Tolerances (Off Angle Q)
44 - 48 0.18
32 - 42 0.19
26 - 30 0.19
18 - 24 0.12
14 - 16 0.09
10 - 12 0.09
5 - 8 0.06
½ - 4 0.03

Pipe Tee Cutting Formula



Pipe Tee Cutting Formula

Stainless Steel Tee Manufacturing Process



  • Hydraulic Bulge Method
  • Monaka Method
  • Hot Extrusion Method

DIN 2615 Tee Dimensions



Din 2615 Tee Dimensions

DN1 DN2
d1 s1 d2 s2
100 114,34 100 114,3 3,6
80 88,9 3,2
65 76,1 2,9
50 60,3 2,9
40 48,3 2,6
15 21,32,0 15 21,3 2,0
10 17,2 1,8
125 139,74,0 125 139,7 4,0
100 114,3 3,6
80 88,9 3,2
65 76,1 2,9
50 60,3 2,9
25 33,72,6 25 33,7 2,6
20 26,9 2,3
15 21,3 2,0
32 42,42,6 32 42,4 2,6
25 33,7 2,6
20 26,9 2,3
15 21,3 2,0
20 26,92,3 20 26,9 2,3
15 21,3 2,0
10 17,2 1,8
150 168,34,5 150 168,3 4,5
125 139,7 4,0
100 114,3 3,6
80 88,9 3,2
65 76,1 2,9
40 48,32,6 40 48,3 2,6
32 42,4 2,6
25 33,7 2,6
20 26,9 2,3
50 60,32,9 50 60,3 2,9
40 48,3 2,6
32 42,4 2,6
25 33,7 2,6
20 26,9 2,3
65 76,12,9 65 76,1 2,9
50 60,3 2,9
40 48,3 2,6
32 42,4 2,6
25 33,7 2,6
80 88,93,2 80 88,9 3,2
65 76,1 2,9
50 60,3 2,9
40 48,3 2,6
32 42,4 2,6

SCH 40 and SCH 80 Lateral Tee Supplier in Mumbai as per European and German Standards

Stainless Steel Tee Standards



Stainless Steel Tee Standards
  • JIS B2313 Tee
  • EN 10253-2 Tee
  • MSS SP-75 Tee
  • BS 4825 Tee
  • EN 10253-4 Tee
  • JIS B2312 Tee

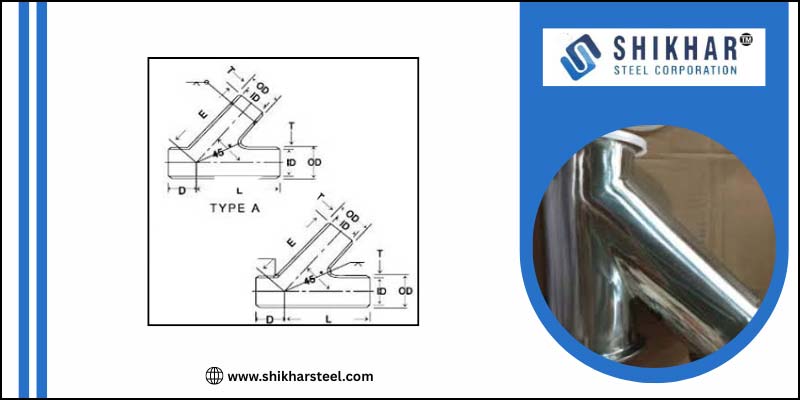

Dimensions of Lateral Tee



Dimensions of Lateral Tee

NPS 24 20 18 5 10 12 14 16 6 8
O.D. 24 20 18 5.0562 10.075 12.075 14 16 6.0625 8.0625
X - S T 0.05 0.05 0.05 0.0375 0.05 0.05 0.05 0.05 0.0432 0.05
L & E 47.05 40.05 37.05 **013.50 20.05 27.05 31 34.05 *014.50 **017.50
ID 23 19 17 4.0813 9.075 11.075 13 15 5.0761 7.0625
D 10 8.05 8 3.5 5 6 6.05 7.05 *03.50 **04.00

Carbon Steel Equal Tee Weight Chart



NPS Weight (Kg) Weight (LBS)
30 480.81 1060
26 349.27 770
24 239.5 528
22 187.79 414
20 155.13 342
18 112.94 249
16 88.45 195
14 74.84 165
12 54.43 120
10 38.56 85
8 24.95 55
6 15.42 34
5 9.53 21
4 5.44 12
3 3.18 7
2 1.59 3.5
1 0.34 0.75
1/2 0.16 0.35

Uses of Saddle Tee



  • Drain Pipe
  • Vacuum Application
  • Radical High Purity System

PMI Tested Seamless and Buttweld Tee Best for Oil and Gas Transmissions, Aso View Available Types

Lateral Tee Testing



Hydrostatic Test

Hydrostatic Test

Flattening Test

Flattening Test

Radiography Test

Radiography Test


Stainless Steel Tee Application



Refineries

Refineries

Food Processing & Dairy

Food Processing & Dairy

Off-Shore Oil Drilling

Off-Shore Oil Drilling

Power Generation

Power Generation

Weight Chart of Lateral Tee



NPS Weight (LBS) Weight (Kg)
20 342 155.13
18 249 112.94
16 195 88.45
14 165 74.84
12 120 54.43
10 85 38.56
8 55 24.95
6 34 15.42
4 12 5.44
5 21 9.53
3 7 3.18
2 3.5 1.59
1 0.75 0.34

Types of Pipe Tee

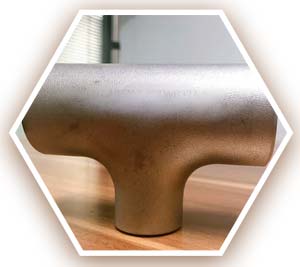

Reducing Tee

Reducing Tee

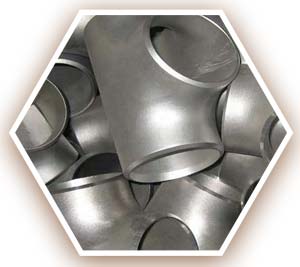

Mechanical Tee

Mechanical Tee

Swept Tee

Swept Tee

Equal Tee

Equal Tee

3 Way Tee

3 Way Tee

Barred Tee

Barred Tee

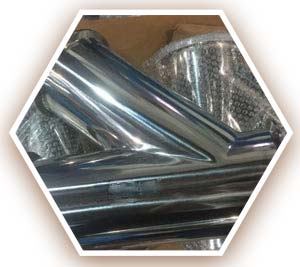

Lateral Tee

Lateral Tee

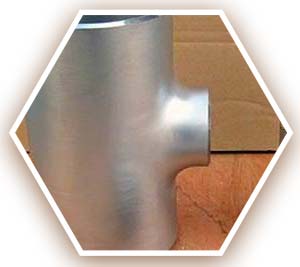

Unequal Tee

Unequal Tee

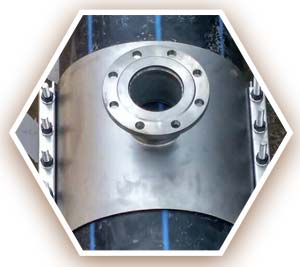

Saddle Tee

Saddle Tee

Slip Tee

Slip Tee

Straight Tee

Straight Tee

Barred Tee

Barred Tee





Types

Material

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
