Stainless Steel Threaded Flange

Sizes in Stock

Sizes in Stock

1/2" to 24"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to DN1600

Thread Types

Thread Types

FNPT, NPT, BSPT, MNPT

German Standard

German Standard

DIN 2566/B

Testing Requirement

Testing Requirement

PMI Testing

Advantages

Advantages

No Welding Is Required

Benefits

Benefits

Better for Small Pipe Size

Meaning Of TH & THRF

Meaning Of TH & THRF

TH : Threaded Flange
THRF : Threaded Raised Face Flange


Threaded Flanges Overview

Table Of Content

Since 2014, Screwed Flange Manufacturer Supply With NPT and BSP Threads


Threaded Flange Specification



Manufacturing Size Range

Screwed Flange Manufacturing Sizes

  • ½" to 24"
  • DN15 to DN1500
  • PN 2.5 to PN 400
  • Contact Threaded Flange Manufacturer in India For Above 48"
Pressure Class

Threaded Floor Flange Pressure Class

  • Class 125, Class 150
  • Class 300, Class 400
  • Class 600, Class 900
  • Class 1500, Class 2500

Faces

Stainless Steel Threaded Flange Faces

  • Ring Type Joint (RTJ)
  • Flat Face (FF)
  • Raised Face (RF)
  • T&G & M&F Face
American Standard

American Standard of Threaded Reducing Flange

  • ASME B16.5
  • ASME B16.47
  • ASME B16.36
  • ASME B16.48
Manufacturing Process

Stainless Steel Threaded Pipe Flange Manufacturing Process

  • Forging
  • Plate
  • and Cast
Thickness

Flat Face Threaded Flange Thickness

  • Schedule 10/ 20/ 40
  • Schedule 60/ 80/ 120
  • Schedule 140/ 160/ 180

Process

Bsp Threaded Flange Process

  • Forged and Drilling
  • Stamping and Milling
  • Turning and Rolled
Threads

Npt Threaded Flange Threads

  • BSP/ FPT/ NPT
  • BSPT/ MPT (Female)
  • BSPP (Male) & MNPT (Male)
Surface Finish

Carbon Steel Threaded Flange Surface Finish

  • Stock & Mirror Finish
  • Smooth & Serrated Finish
  • Cold Water Finish
Bolts Hole

Cast Iron Threaded Flange Bolts Hole

  • 4 To 8
  • 4 To 24
  • 4 To 48

Application

Ductile Iron Threaded Flange Application

  • Petrochemical
  • Power Generation
  • Oil & Gas Plants
Packaging

Female Threaded Flange Packaging

  • Carton Box
  • Wooden Case
  • Plastic Bag (Or Custom)

Suitable Environment

Male Threaded Flange Suitable Environment

  • Sulfuric Acid
  • Phosphoric Acid
  • Seawater
Testing

Galvanized Threaded Flange Testing & Inspection

  • Tensile Test
  • Impact Test
  • Material Inspection
Connection

Hubbed Threaded Flange Connection

  • Welding
  • Threaded
European Standard

European Standard of Ms Threaded Flange

  • EN 1092-1
  • EN 1092-2
Logistics

Raised Face Threaded Flange Logistics

  • Uk: 30 Days
  • France: 30 Days
  • Italy: 30 Days
  • Malaysia: 10 Days
Origin

Sae Threaded Flange Origin

  • Janpanese
  • American
  • Korean
  • European

German Standard

German Standard

  • DIN 2501/ 2573
  • DIN 2502/ 2576
  • DIN 2543/ 2633

Japanese Standard

Japanese Standard of Ss Threaded Flange

  • JIS B2311
  • JIS B2312
  • JIS B2220

Shipping Time and Location

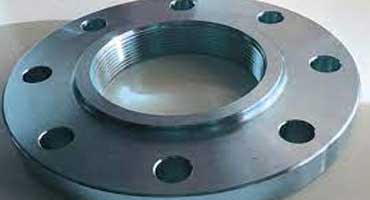

NNPC
  • 4 Inch, Class 300 Threaded Flange
  • NNPC
  • Abuja, FCT, Nigeria
Aker BP
  • 6 Inch, Class 400 Threaded Flange
  • Aker BP
  • Fornebu, Norway

Threaded Floor Flange Supplier for Water and Gas Lines in India


Threaded Floor Flange Application



Power Generation

Power Generation

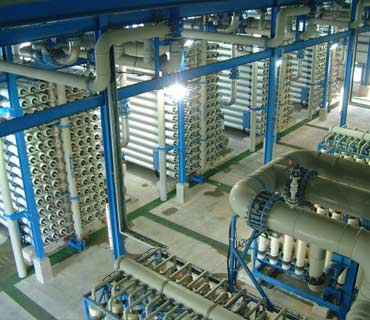

Sea Water Equipment

Sea Water Equipment

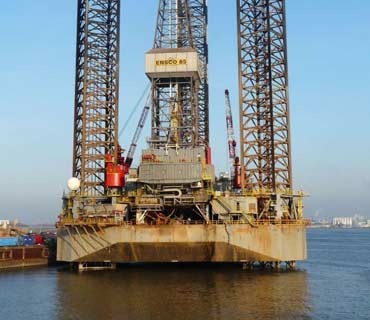

Off-Shore Oil Drilling Companies

Off-Shore Oil Drilling Companies

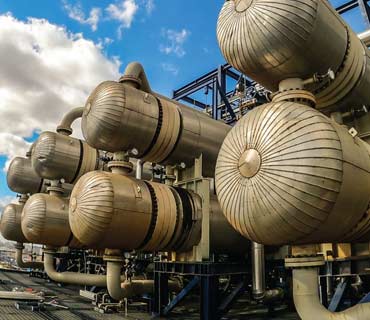

Heat Exchangers

Heat Exchangers

Galvanized Threaded Flange Surface Treatment



  • Cold Water
  • Spiral serrated
  • Stock finish
  • Serrated finish
  • Smooth Finish
  • Mirror Finish

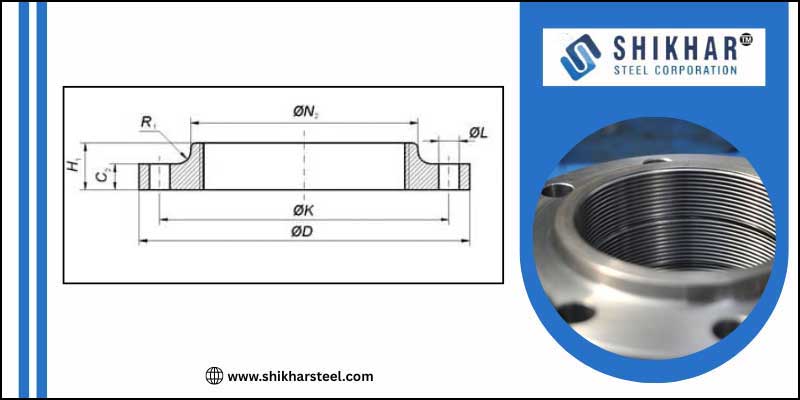

Dimensions of EN 1092-1 Type 13 Threaded Flange



Dimensions of EN 1092-1 Type 13 Threaded Flange

Diameter Neck (RF) Raised face Flanges
(d3) (d4) (f) (d1) (Thread) (k) (D) (b) (h1)
100 140,0 158,0 3,0 114,3 R 4" 180 220 20 40
15 35,0 45,0 2,0 21,3 R 1/2" 65 95 16 22
125 168,0 188,0 3,0 139,7 R 5" 210 250 22 44
40 70,0 88,0 3,0 48,3 R 1-1/2" 110 150 18 32
150 195,0 212,0 3,0 168,3 R 6" 240 285 22 44
20 45,0 58,0 2,0 26,9 R 3/4" 75 105 18 26
80 118,0 138,0 3,0 88,9 R 3" 160 200 20 34
25 52,0 68,0 2,0 33,7 R 1" 85 115 18 28
32 60,0 78,0 2,0 42,4 R 1-1/4" 100 140 18 30
50 84,0 102,0 3,0 60,3 R 2" 125 165 18 28
65 104,0 122,0 3,0 76,1 R 2-1/2" 145 185 18 32

Thickness Chart of Flat Face Threaded Flange



Thickness (inch) Sizes (Inch)
0.50 1/2
2.25 12
0.75 1
2.00 10
1.00 2
1.75 8
1.50 6
1.25 4

HS Code of Stainless Steel Threaded Flange



Properties Values
HS Code 73181500

Buy 100% Tested Material Threaded Reducing Flange in Male and Female Connection


Carbon Steel Threaded Flange Testing



Macro Test

Macro Test

IGC Test

IGC Test

HIC Test

HIC Test

Flaring Test

Flaring Test

SSC Cracking Test

SSC Cracking Test

Dye Penetrant Test

Dye Penetrant Test


Female Threaded Flange Wall Thickness



Size (mm) W.T
15 11.2
32 15.7
40 17.5
20 12.7
25 14.2
400 36.6
65 22.4
80 23.9
90 23.9
50 19.1
300 31.8
125 23.9
150 25.4
200 28.4
350 35.1
100 23.9
250 30.2
450 39.6
500 42.9

Bolts Chart of Male Threaded Flange



RF Stud Length Size in Inch No of Bolts
70 1 1/2 4
90 3 1/2 8
85 2 4
90 2 1/2 4
70 1 1/4 4
90 3 4
65 3/4 4
170 24 20
135 16 16
145 18 16
90 4 8
55 1/2 4
160 20 20
65 1 4
100 6 8
110 8 8
115 10 12
120 12 12
135 14 12
95 5 8

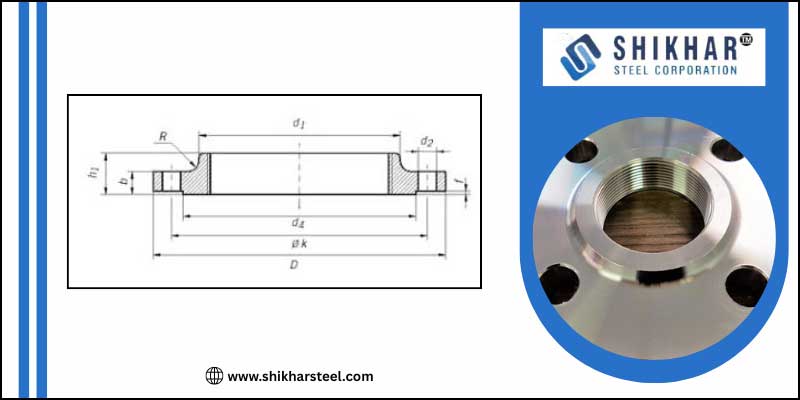

Class 150 Threaded Flange Dimensions



Class 150 Threaded Flange Dimensions

Size (mm) Weight in kg Size (Inch) Flange Thick O.D
600 100 24 46.1 815
500 75 20 41.3 700
15 0.8 1/2 9.6 90
20 0.9 3/4 11.2 100
300 29 12 30.2 485
25 0.9 1 12.7 110
32 1.4 1 1/4 14.3 115
80 3.7 3 22.3 190
350 41 14 33.4 535
400 54 16 35 595
250 19.5 10 28.6 405
65 3.2 2 1/2 20.7 180
450 59 18 38.1 635
90 5 3 1/2 22.3 215
100 5.9 4 22.3 230
200 13.7 8 27 345
125 6.8 5 22.3 255
50 2.3 2 17.5 150
150 8.6 6 23.9 280
40 1.4 1 1/2 15.9 125

Welding Methods of Class 150 Threaded Flange



  • Plasma Arc Welding
  • TIG Welding
  • Gas Metal Arc Welding

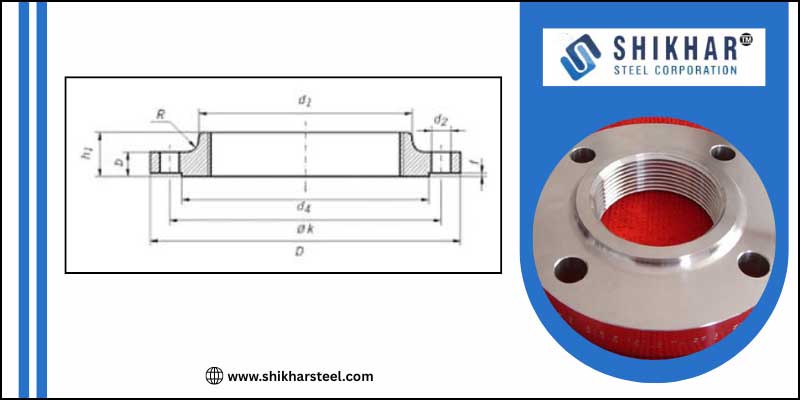

Class 300 Threaded Flange Dimensions



Class 300 Threaded Flange Dimensions

Size (Inch) O.D Flange Thickness RF Stud Length Size (mm) Hub OD
6 355 47.7 170 150 222
12 560 66.7 220 300 400
3/4 115 15.9 90 20 48
3 210 31.8 125 80 117
1/2 95 14.3 75 15 38
5 330 44.5 165 125 189
4 275 38.1 145 100 152
8 420 55.6 190 200 273
10 510 63.5 215 250 343
18 745 82.6 275 450 546
2 1/2 190 28.6 120 65 100
14 605 69.9 235 350 432
2 165 25.4 110 50 84
24 940 101.6 330 600 718
1 125 17.5 90 25 54
16 685 76.2 255 400 495
1 1/2 155 22.3 110 40 70
20 815 88.9 285 500 610

What are the Top 6 Documents that Shikhar Steel Provide with Threaded Flange



  • MTC as Per EN 10204 3.1 and 3.2
  • Material Traceability Records
  • Raw Material Test Reports
  • Heat Treatment Charts
  • NACE MR0103, NACE MR0175
  • Quality Assurance Plan (QAP)

Compare Our Price and Dimensions With Other Flat Face Threaded Flange Manufacturer

Stainless Steel Threaded Flanges Price



  • Grade = ASTM A182 F316
  • Type = SS Threaded Flange
Sizes (Imch) Price (USD) Price (AED)
3 $ 105.10 AED 386.03
2 $ 68.50 AED 251.60
4.5 $ 128.08 AED 470.44
1 $ 41.76 AED 153.38
6 $ 246 AED 903.56

Carbon Steel Threaded Flange Price



  • Class = 150
  • Type = Carbon Steel Threaded Flange
  • SCH = 40
  • Grade = ASTM A105 Carbon Steel
Sizes (Imch) Price (USD) Price (AED)
3 $ 28.71 AED 105.45
2 $ 23.65 AED 86.87
1.5 $ 34.08 AED 125.18
4 $ 39.60 AED 145.45
1 $ 30.32 AED 111.37
2-1/2 $ 39.21 AED 144.02

For Final Threaded Flange Price List Please Drop an Email to sales@shikharsteel.com.

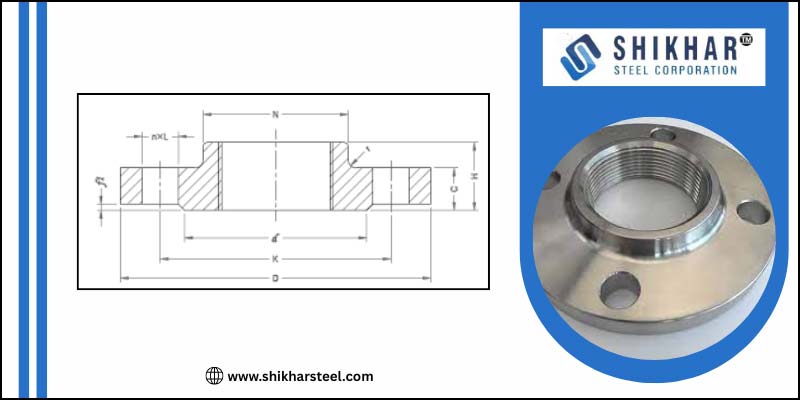

Threaded Flange Dimensions



Threaded Flange Dimensions

CLass CLass 2500 CLass 1500 CLass 600 CLass 900
Length in mm 120 110 75 110
Diameter (A) 43 38 38 38
Height (H) 40 32 22 32
46.4 38.4 28.4 38.4
Diameter (L) 22.2 22.2 15.9 22.2
Diameter (D) 135 120 95 120
Diameter (G) 35.1 35.1 35.1 35.1
Diameter (K) 88.9 82.6 66.7 82.6
Thickness (B) 30.2 22.3 14.3 22.3
36.6 28.7 20.7 28.7
Diameter (in) 3/4 3/4 1/2 3/4

Dimensions of DIN 2565 PN6 Threaded Flange



Weight (Kg)
 RF Diameter   Flanges Neck
(Kilogram) (d4) (f) D1 D2 (Thread) (D) (b) (k) (h1) (d3)
4,47 178 3 125 139,7 R 5 240 18 200 40 160
5,3 202 3 150 165,1 R 6 265 18 225 44 185
0,373 40 2 15 21,3 R 1/2 80 12 55 20 30
0,59 50 2 20 26,9 R 3/4 90 14 65 24 40
1,37 90 3 50 60,3 R 2 140 14 110 28 80
1,92 110 3 65 76,1 R 2 1/2 160 14 130 32 100
0,743 60 2 25 33,7 R 1 100 14 75 24 50
1,05 70 2 32 42,4 R 1 1/4 120 14 90 26 60
1,2 80 3 40 48,3 R 1 1/2 130 14 100 26 70
2,82 128 3 80 88,9 R 3 190 16 150 34 110
3,19 148 3 100 114,3 R 4 210 16 170 38 130

Check Carbon Steel THRF Flange Pressure Class 150 to 2500 and Weight as per ASME B16.5

Ductile Iron Threaded Flange Weight Chart



NPS (Inches) Weight (kg) O.D (mm)
16 76.1 596.9
3/4 0.6 98.6
20 122.0 698.5
1 0.9 108
1 1/4 1.2 117.3
1/2 0.4 88.9
6 11.3 279.4
8 19.6 342.9
3 1/2 6.2 215.9
3 4.9 190.5
18 93.7 635
2 1/2 3.9 177.8
10 28.6 406.4
12 43.2 482.6
4 7.0 228.6
2 2.4 152.4
14 58.1 533.4
5 8.6 254
1 1/2 1.5 127

Face Types of BSP Threaded Flange



  • Tongue And Groove
  • Flat Face
  • Raised Face
  • Lap Joint
  • Ring Joint
  • Male And Female

Pressure Rating of THRF Flange



Service Temp (°F) 300 150
SS Flange SS Flange
300 560 215
950 385 35
600 450 140
650 445 125
1000 365 20
100 720 275
200 620 240
750 425 95
800 415 80
400 515 195
500 480 170
700 430 110
850 405 65
900 395 50

Threads Types of ASME B16.5 Threaded Flange



  • Male threads
  • NPT threads
  • BSP threads
  • BSPT threads
  • Plain threads
  • Female threads

DIN Standard of Carbon Steel Threaded Flange



Standards
  • DIN 2569 PN100
  • DIN 2568 PN64
  • DIN 2561 PN10
  • DIN 2567 PN40
  • DIN 2566 PN16
  • DIN 2566 PN10
  • DIN 2565 PN6


Types Of Threaded Flange

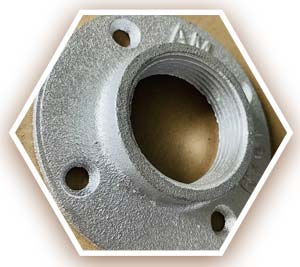

Threaded Floor Flange

Threaded Floor Flange

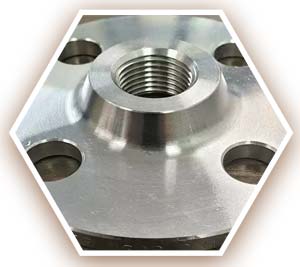

Threaded Reducing Flange

Threaded Reducing Flange

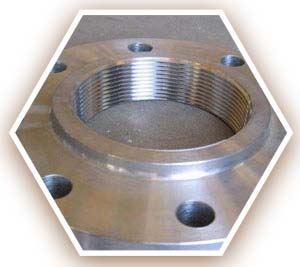

Flat Face Threaded Flange

Flat Face Threaded Flange

Bsp Threaded Flange

Bsp Threaded Flange

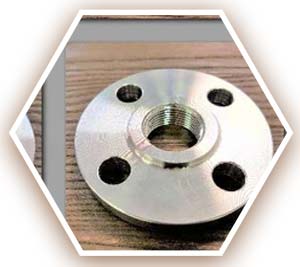

Npt Threaded Flange

Npt Threaded Flange

Female Threaded Flange

Female Threaded Flange

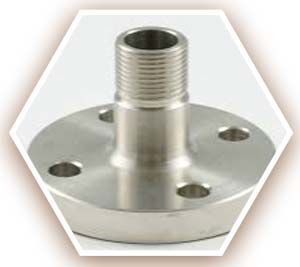

Male Threaded Flange

Male Threaded Flange

Raised Face Threaded Flange

Raised Face Threaded Flange

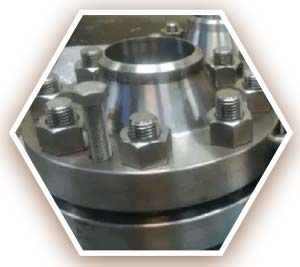

Threaded Orifice Flange

Threaded Orifice Flange








Types

Material

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.

whatsapp chat
