Alu Threaded Flange Manufacturer in India at Unbelievable Prices


Aluminium Flanges Specification



Manufacturing Size Range

Aluminum Pipe Flange Manufacturing Sizes

  • ½" to 24"
  • DN15 to DN1500
  • PN 2.5 to PN 400
  • Contact Aluminium Flanges Manufacturer in India For Above 9"
Pressure Class

Aluminum Floor Flange Pressure Class

  • Class 125, Class 150
  • Class 300, Class 400
  • Class 600, Class 900
  • Class 1500, Class 2500

Faces

Aluminum Threaded Flange Faces

  • Ring Type Joint (RTJ)
  • Flat Face (FF)
  • Raised Face (RF)
  • T&G & M&F Face

American Standard

American Standard of Aluminum Tube Flange

  • ASME B16.5
  • ASME B16.47
  • ASME B16.36
  • ASME B16.48
Manufacturing Process

Aluminum Weld Flange Manufacturing Process

  • Forging
  • Plate
  • Cast
Thickness

Aluminium Joint Flange Thickness

  • Schedule 10/ 20/ 40
  • Schedule 60/ 80/ 120
  • Schedule 140/ 160/ 180

Process

Aluminium Weld on Flange Process

  • Forged and Drilling
  • Stamping and Milling
  • Turning and Rolled
Threads

Aluminium Wall Flange Threads

  • BSP/ FPT/ NPT
  • BSPT/ MPT (Female)
  • BSPP (Male) & MNPT (Male)
Surface Finish

Aluminium Exhaust Flange Surface Finish

  • Stock & Mirror Finish
  • Smooth & Serrated Finish
  • Cold Water Finish
Bolts Hole

Aluminium Slip on Flange Bolts Hole

  • 4 To 8
  • 4 To 24
  • 4 To 48

Application

Aluminium Square Flange Application

  • Petrochemical
  • Oil & Gas Plants
  • Power Generation
Packaging

Aluminium Blind Flange Packaging

  • Carton Box
  • Wooden Case
  • Plastic Bag (Or Custom)

Suitable Environment

Aluminium Flanges Asme B16 5 Suitable Environment

  • Sulfuric Acid
  • Seawater
  • Phosphoric Acid
Testing

Aluminum Blind Flange Testing & Inspection

  • Tensile Test
  • Material Inspection
  • Impact Test
Connection

Aluminium 6061-T6 Weld Neck Flange Connection

  • Welding
  • Threaded
European Standard

European Standard of Alu Slip On Flange

  • EN 1092-1
  • EN 1092-2
Logistics

Aluminium 6063-T5 Socket Weld Flange Logistics

  • By Sea & Air
  • Nepal = 7 day
  • Vietnam = 10 day
  • Cambodia = 9 day
Origin

Al Lap Joint Flange Origin

  • Janpanese
  • American
  • Korean
  • European

German Standard

Aluminium 7075-T6 Plate Flanges German Standard

  • DIN 2501/ 2573
  • DIN 2502/ 2576
  • DIN 2543/ 2633
Japanese Standard

Japanese Standard of Aluminum Long Neck Flanges

  • JIS B2311
  • JIS B2312
  • JIS B2220

Export Location



Ultrapar

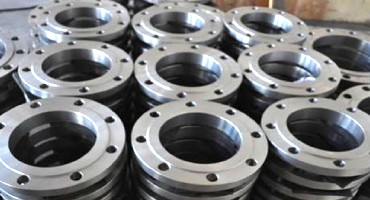

  • 4",Class 200, Plate Flange
  • Ultrapar
  • São Paulo, Brazil
Project in Qatar

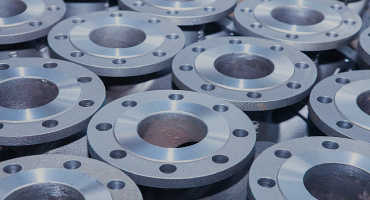

  • 5", Class 300, Slip on Flange
  • Brunei Energy Services & Trading
  • Brunei Darussalam

Buy Aluminum Weld Flange Online Used in High Temperatures and High Pressure in Mumbai


Applications of Aluminum Pipe Flange



  • Piping in HVAC
  • Marine Applications
  • Automotive Exhaust Systems
  • Refrigeration Systems
  • Construction
  • Chemical Processing

Offering Aluminium Blind Flange With Good Thermal Conductivity as per ASME B16.5


Aluminum Floor Flange Benefits



  • Resistance
  • Rigidity
  • Lightness
  • Watertightness
  • Maintenance
  • Ecology

Get Free Quote From Aluminium Slip On Flange Supplier in Many Materials & Grades

Typical Aluminum Threaded Flange Material Grades



Grade
6061-T6 5083-H111
6063-T5/T6 7075-T6

Find Aluminum Floor Flange Maximum Operating Pressure and Dimensions Here

Aluminum Tube Flange Maximum Operating Pressure



Pipe Size Flange O.D No of Bolt Holes Max Operating Pressure
1 in 4-1/4 in 4 125 psi
1-1/4 in 4-5/8 in 4 125 psi
1-1/2 in 5 in 4 125 psi
1/2 in 3-1/2 in 4 125 psi
2-1/2 in 7 in 4 125 psi
2 in 6 in 4 125 psi
3 in 7-1/2 in 4 125 psi
4 in 9 in 8 125 psi
3/4 in 3-7/8 in 4 125 psi

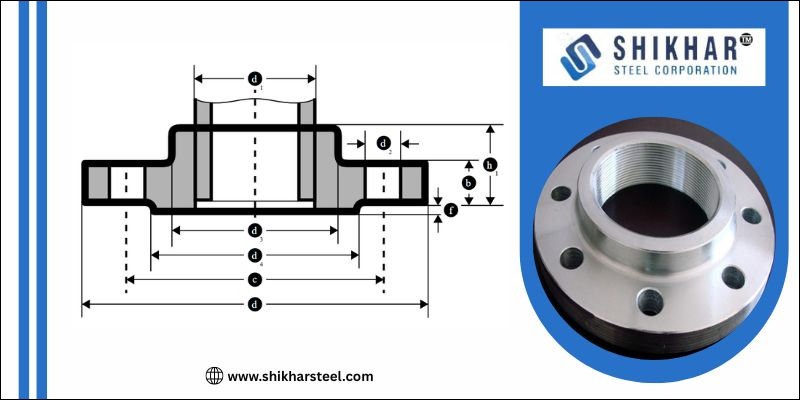

Dimensions of Aluminium Threded Flange



Dimensions of Aluminium Threded Flange
DN BSP (inw.) d in mm
 c in mm b in mm h1 in mm d4 in mm d3 in mm f inmm No of bolt holes
x d2 in mm
10 ⅜'' 90 60 14 20 40 30 2 4 x 14
20 ¾'' 105 75 16 24 58 45 2 4 x 14
15 ½'' 95 65 14 20 45 35 2 4 x 14
25 1'' 115 85 16 24 68 52 2 4 x 14
40 1½'' 150 110 16 26 88 70 3 4 x 18
32 1¼'' 140 100 16 26 78 60 2 4 x 18
50 2'' 165 125 18 28 102 85 3 4 x 18
80 3'' 200 160 20 34 138 118 3 8 x 18
65 2½'' 185 145 18 32 122 105 3 4 x 18
100 4'' 220 180 20 38 158 140 3 8 x 18

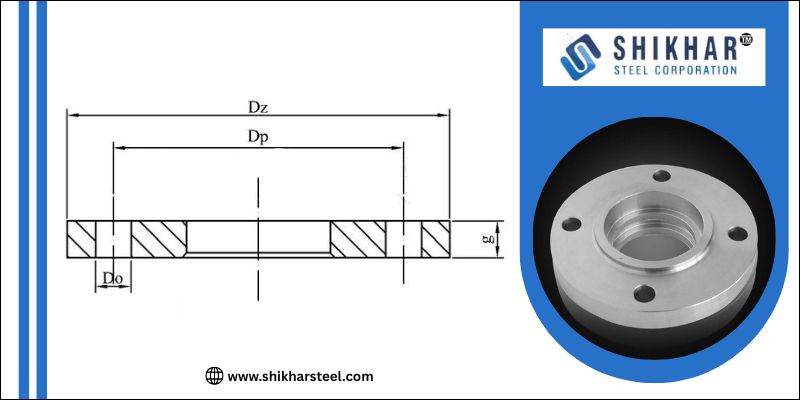

Aluminium Loose Flange Dimensions



Aluminium Loose Flange Dimensions
DN Bore diameter Flange Bolts Weight [kg]
Type C Type A Dp Dz g Thread Number Do
10 19 19 60 90 12 M12 4 14 0,17
20 30 30 75 105 12 M12 4 14 0,23
15 24 24 65 95 12 M12 4 14 0,18
25 36 34 85 115 12 M12 4 14 0,26
40 54 48 110 150 16 M16 4 18 0,6
32 46 40 100 140 16 M12 4 18 0,52
50 65 58 125 165 16 M16 4 18 0,72
80 94 90 160 200 18 M16 8 18 1,1
65 81 73 145 185 16 M16 4 18 0,85
100 119 110 180 220 18 M16 8 18 1,15
150 173 160 240 285 18 M20 8 22 1,9
125 144 135 210 250 18 M16 8 18 1,5
200 225 212 295 340 20 M20 8 22 2,7
300 329 312 400 445 22 M20 12 22 4,3
250 279 262 350 395 22 M20 12 22 3,7
350 362 362 460 505 22 M20 16 22 5,8
450 468 466 565 615 25 M24 20 25 7,8
400 413 413 515 565 25 M24 16 25 6,9
500 517 517 620 670 28 M24 20 25 9,6

Aluminum Welding Flange Price List



Pipe Thread Diameter Height Price in Dollars ($)
1/8 1-1/2 7/16 9.75
3/8 1-7/8 5/8 $11.60
1/4 1-3/4 5/8 $10.85
3/4-16 2-1/4 13/16 $15.60
1/2 2 3/4 $11.95

Quantity:15


Why Choose Shikhar Steel For Buying Aluminium Pipe Flanges in Australia?



  • Diverse Product Range
  • Short Lead Times
  • On Time Delivery
  • Quality Assurance & Certifications
  • Customization Capabilities
  • High Quality Products


Testing of Aluminium Joint Flange



Micro Test

Micro Test

Pitting Resistance Test

Pitting Resistance Test

Hardness Test

Hardness Test

Flaring Test

Flaring Test

Dye Penetrant Test

Dye Penetrant Test

SSC Cracking Test

SSC Cracking Test


Aluminium Wall Flange Mechanical Properties



Tensile Strength
Tensile Strength
170 N/mm2
Tensile Strength
Yield Strength
90 N/mm2
Elongation
Elongation
2%

Hardness of Aluminium Weld on Flange



Property Value
Hardness 55 Brinell (HB)

Aluminium Flange HSN Code



Grade HSN Code
Aluminium Flanges 76169990

Types of Aluminium Flanges

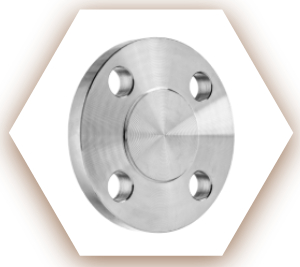

Aluminum Blind Flange

Aluminum Blind Flange

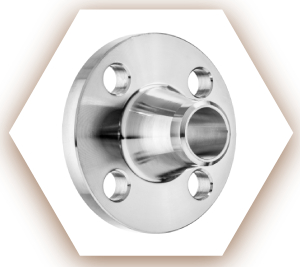

Aluminium 6061-T6 Weld Neck Flange

Aluminium 6061-T6 Weld Neck Flange

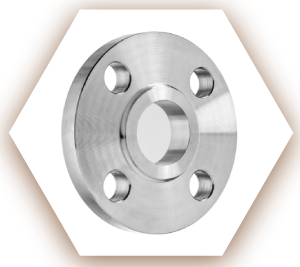

Alu Slip On Flange

Alu Slip On Flange

Aluminium 6063-T5 Socket Weld Flange

Aluminium 6063-T5 Socket Weld Flange

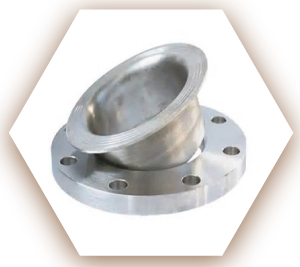

Al Lap Joint Flange

Al Lap Joint Flange

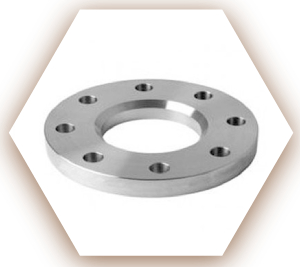

Aluminium 7075-T6 Plate Flanges

Aluminium 7075-T6 Plate Flanges

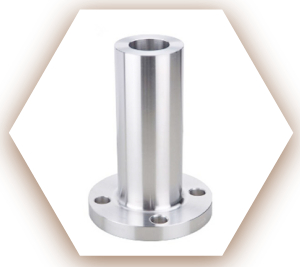

Aluminum Long Neck Flanges

Aluminum Long Neck Flanges

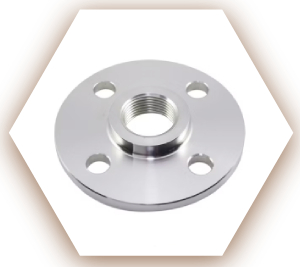

Aluminium 6061-T6 Threaded Flange

Aluminium 6061-T6 Threaded Flange

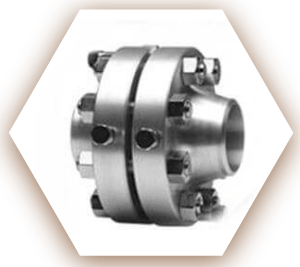

Alu Orifice Flange

Alu Orifice Flange

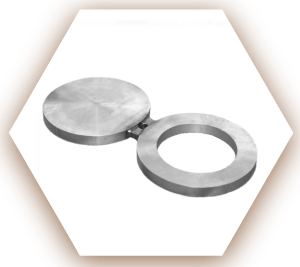

Aluminium 6063-T5 Spectacle Blind Flanges

Aluminium 6063-T5 Spectacle Blind Flanges

Al Reducing Flange

Al Reducing Flange

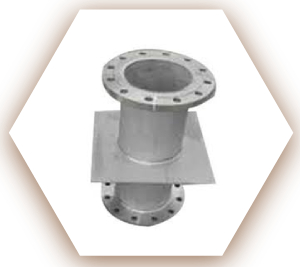

Aluminium 7075-T6 Puddle Flanges

Aluminium 7075-T6 Puddle Flanges

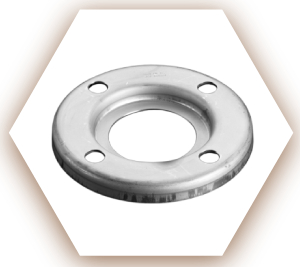

Aluminum Loose Plate Flanges

Aluminum Loose Plate Flanges

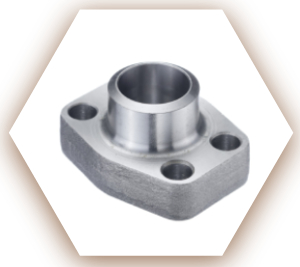

Aluminum Butt-weld Flanges

Aluminum Butt-weld Flanges

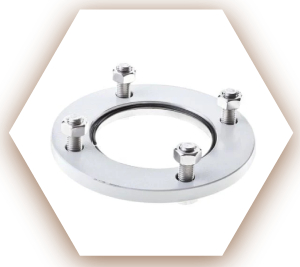

Aluminum Collar Flanges

Aluminum Collar Flanges

Aluminum Floor Flange

Aluminum Floor Flange

Aluminium Wall Flange

Aluminium Wall Flange

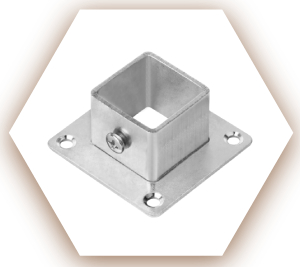

Aluminium Square Flange

Aluminium Square Flange






Material

Types

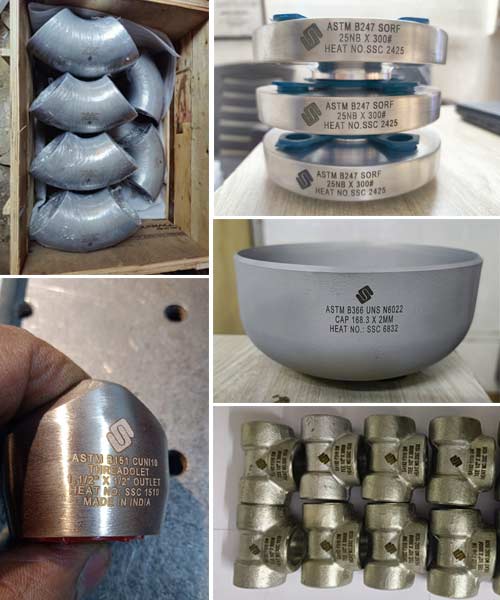

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
