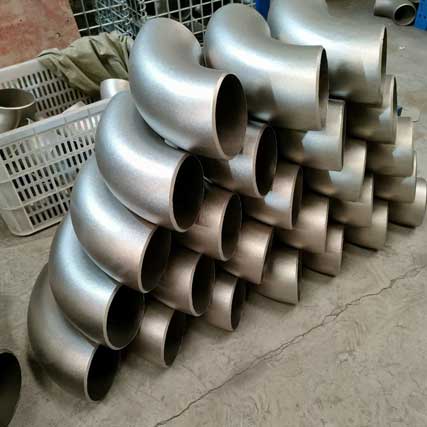

Inconel Elbow
- sales@shikharsteel.com
Sizes in Stock
1/2" to 24"
Sizes Can Be
Manufacture
Up to 48"
Grade
Inconel 600, 601 and 718
Steel Type
Austenitic Nickel Chromium
Advantages
Excellent Mechanical Properties
UNS Designation
UNS N06600, N06601
N07718
Werkstoff No.
WNR 2.4816, 2.4851
2.4668
Temperatures
Above 2000°F
Table Of Content
Shikhar steel corporation is a Indian Oil Corporation award winner Inconel pipe fittings manufacturer in India. Get a variety of Inconel 600 elbow in specific thickness and sizes to meet your projects. Inconel 600 pipe fittings ideal for high temperature and high pressure applications.
Why Choose Shikhar Steel for Inconel Pipe Fittings?
Inconel pipe fittings manufacturer offers hardness, material inspection and PMI testing. Inconel fittings nickel chromium molybdenum niobium alloy that is highly resistant to corrosion. Buy Inconel elbow for your high strength project requirement needs. Contact us today.
Inconel Pipe Fittings Specification
Manufacturing Size Range
Inconel Fittings Thickness
Advantages of Inconel 600 Fittings
Inconel Elbow Ends Method
Inconel 601 Pipe Fittings Application
Inconel Welded Fittings Packaging
Inconel Weld Fittings Logistics
Inconel Tee Manufacturing Process
Inconel Seamless Fittings Standard
Inconel Buttweld Fittings Testings
Inconel Reducer Process
Inconel Pipe Fittings Types
ASTM B366 UNS N06600 Elbow Method
ASTM B366 UNS N06600 Tee Sour Service
Marking on Inconel 600 Elbow
Bending Methods of Inconel Pipe Bend
Inconel Elbow Radius
UNS N06600 Pipe Fittings Origin
Alloy 600 Fittings Value Added Services
Machinery of Inconel 600 Buttweld Fittings
Highly experienced Inconel pipe fittings manufacturer, save costs by buying from inconel 718 tee supplier and avoid unnecessary expenses. Inconel 718 pipe fittings have good resistance to corrosion and making them suitable for harsh environments.
Inconel Fittings Grade
Inconel 600 Elbow Price List
¾", SCH 40, LR (90 Deg), SMLS
$20.96US $16.70 each
1", SCH 40, LR (90 Deg), SMLS
$28.75US $23.23 each
1.1/4", SCH 40, LR (90 Deg), SMLS
$38.56US $26.77 each
1.1/2”, SCH 40, LR (90 Deg), SMLS
$43.39US $35.49 each
2", SCH 40, LR (90 Deg), SMLS
$57.86US $42.29 each
2.1/2", SCH 40, LR (90 Deg), SMLS
$67.83US $52.64 each
3", SCH 40, LR (90 Deg), SMLS
$78.83US $64.17 each
4", SCH 40, LR (90 Deg), SMLS
$86.83US $78.14 each
6", SCH 40, LR (90 Deg), SMLS
$147.83US $120.14 eachFor Final Inconel 600 Elbow Price List Please Drop an Email to sales@shikharsteel.com
Standard for Inconel 600 Fittings
Why are Inconel Elbow More Expensive than Stainless Steel?
| Factor | Stainless Steel Pipe Fittings | Inconel Pipe Fittings |
|---|---|---|
| Application | Food processing | Aerospace |
| Composition | Low Nickel | High Nickel |
| Manufacturing Cost | Low | High |
| Corrosion Resistance | Good | Excellent |
| Temperature Resistance | Up to 871°C | up to 1,093°C |
We are a well established as Inconel pipe fittings manufacturer. check Inconel reducer in available testing as per ASME B16.9. Inconel 600 fittings can handle strongly acidic, corrosive gases and fluids.
What are the Testing Requirements for Inconel 601 Tee?
Is ASTM B366 UNS N06600 Reducer Magnetic?
No, Inconel reducer is commonly non magnetic in annealed condition.
Applications of Inconel 600 Pipe Fittings

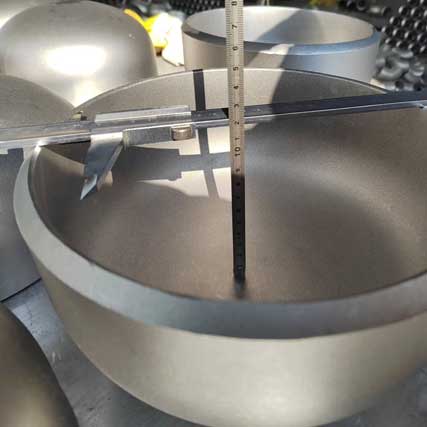

Nickel Alloy 600 End Cap Weight Chart
| NPS | SCH 160 Weight (KG) | SCH XS Weight (KG) | SCH STD Weight (KG) |
|---|---|---|---|
| 24 | - | 58 | 44 |
| 22 | - | 50 | 39 |
| 20 | - | 41 | 31 |
| 18 | - | 33 | 25 |
| 16 | 75 | 25 | 19 |
| 14 | 59 | 20 | 15 |
| 12 | 43 | 16 | 12 |
| 10 | 26 | 11.3 | 8.2 |
| 8 | 14 | 6.8 | 5.4 |
| 6 | 6.8 | 4.2 | 3.3 |
| 5 | 4.5 | 2.6 | 2.0 |
| 4 | 2.7 | 1.6 | 1.4 |
| 3 1/2 | - | 1.3 | 1.0 |
| 3 | 1.3 | 0.91 | 0.64 |
| 2 1/2 | 0.8 | 0.45 | 0.41 |
| 2 | 0.6 | 0.36 | 0.27 |
| 1 1/2 | 0.3 | 0.23 | 0.18 |
| 1 1/4 | 0.2 | 0.18 | 0.14 |
| 1 | 0.2 | 0.09 | 0.09 |
| 3/4 | - | 0.05 | 0.05 |
| 1/2 | - | 0.05 | 0.05 |
12 years in the industry as a Inconel pipe fittings manufacturer in India. Inconel end cap work well in service temperatures in the range of 2000°F. ASTM B366 Inconel buttweld fittings is a nickel chromium alloy with high-temperature oxidation resistance.

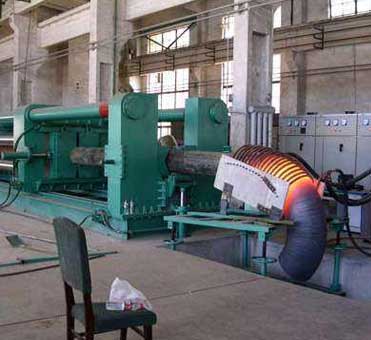

ASTM B366 UNS N06600 Elbow Manufacturing Process
Inconel Buttweld Fittings Key Properties
Buy online Inconel 600 elbow available in all sizes and wall thickness, directly contact Inconel pipe fittings manufacturer, check heat treatment as per ASME B16.9.
Inconel Seamless Fittings Heat Treatment
| Temperature | 260°C to 370°C |
|---|---|
| Cooling | Air |
| Time | 0.5 to 1hr |
| Type | Stress Relieve |
| Condition | Annealed |
Does Inconel Pipe Fittings in Water?
No, Inconel buttweld fittings does not rust in water, acidic and saltwater environments.
Inconel Fittings Chemical Composition
C
Carbon
600 = 0.15
601 = 0.10
718 = 0.08
S
Sulphur
600 = 0.015
601 = 0.015
718 = 0.015
Ni
Nickel
600 = 72.0
601 = 58.0 to 63.0
718 = 50 to 55
Si
Silicon
600 = 0.50
601 = 0.50
718 = 0.35
Mn
Manganese
600 = 1.0
601 = 1.0
718 = 0.35
Cu
Copper
600 = 0.5
601 = 1.0
718 = 0.3
Fe
Iron
600 = 6.0 to 10.0
601 = Balance
Cr
Chromium
600 = 14.0 - 17.0
601 = 21.0 – 25.0
718 = 17 - 21
Mo
Molybdenum
601 = 8.0-10.0
718 = 2.8 - 3.3
Al
Aluminum
601 = 1.0 – 1.7
Co
Cobalt
718 = 1.0 max
Inconel Welded Fittings Tensile Strength
| Element | Tensile Strength |
|---|---|
| Inconel 600 Pipe Fittings | 95,000 Psi |
| Inconel 601 Pipe Fittings | 80,000 Psi |
| Inconel 718 Pipe Fittings | 1,35,000 Psi |
Inconel Seamless Fittings Equivalent
UNS (North America)
JIS (Japan)
EN (Europe)
AFNOR (France)
BS (England)
WNR (Russia)
Melting Point for Inconel Buttweld Fittings
| Element | Melting Point |
|---|---|
| ASTM B366 UNS N06600 Fittings | 2580°F |
| ASTM B366 UNS N06601 Fittings | 2571°F |
| ASTM B366 UNS N07718 Fittings | 2460°F |
Inconel Pipe Fittings Yield Strength
| Element | Yield Strength |
|---|---|
| Inconel 600 Fittings | 310 MPa |
| Inconel 601 Fittings | 205 MPa |
| Inconel 718 Fittings | 482 MPa |
Density for Inconel Fittings
Types of Inconel Elbow
Inconel 15 Deg Elbow

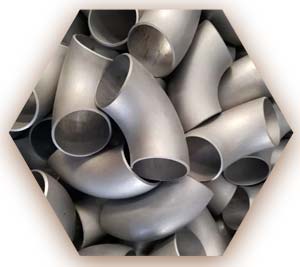

Inconel Alloy 30 Deg Elbow
Inconel 600 45 Deg Elbow
Inconel 601 60 Deg Elbow
Inconel 718 90 Deg Elbow

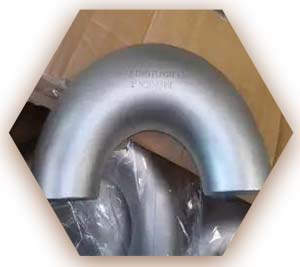

Alloy 600 180 Deg Elbow

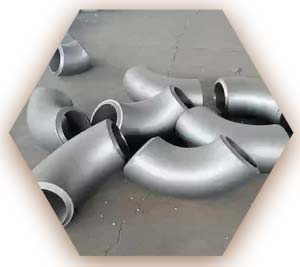

Nickel Alloy 600 Long Radius Elbow

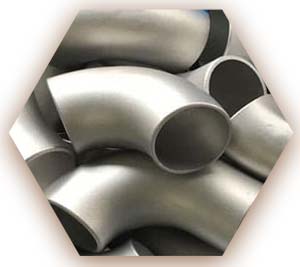

EN 2.4851 Short Radius Elbow
Inconel Alloy 601 Reducing Elbow

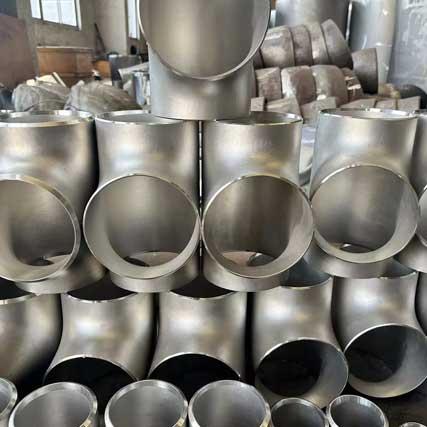

Types of Inconel Pipe Tee
DIN 2.4816 Equal Tee

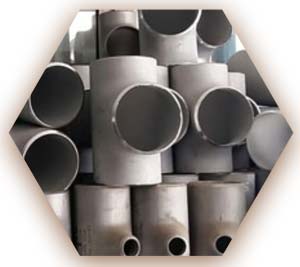

ASTM B366 Inconel Unequal Tee
UNS N06600 Reducing Tee

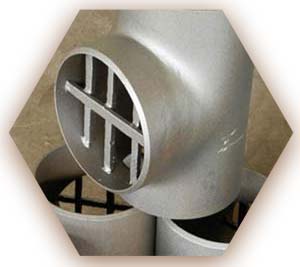

Nickel 600 Barred Tee

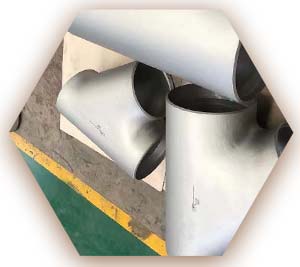

ASME SB 366 UNS N06600 Y Type Tee

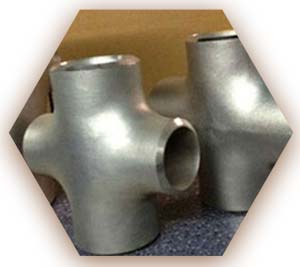

Grade 718 Inconel Cross Tee
Types of Inconel Buttweld Reducer

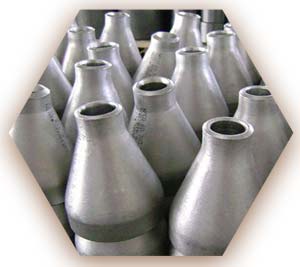

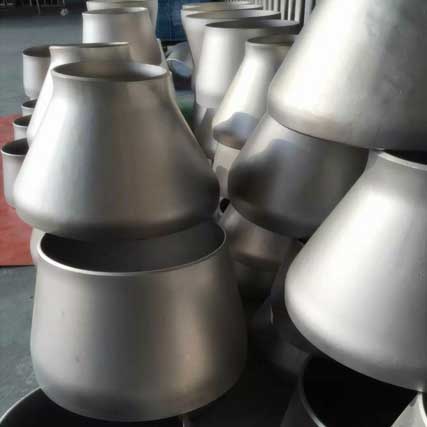

Inconel 600 Concentric Reducer

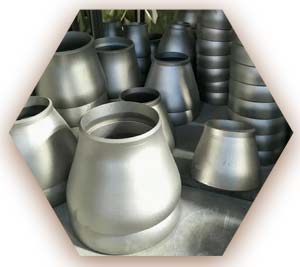

Inconel 718 Eccentric Reducer

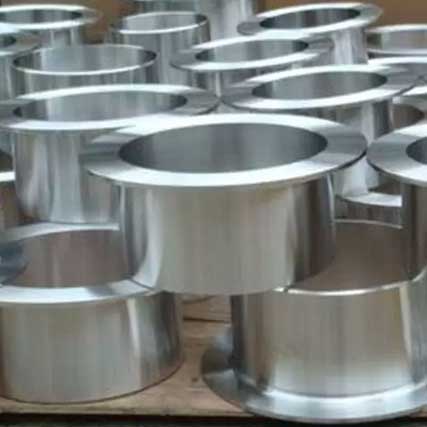

Types of Inconel Seamless Stub End

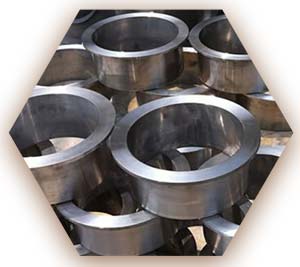

UNS N06601 Inconel Long Stub End

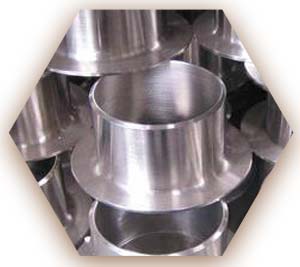

UNS N07718 Short Stub End

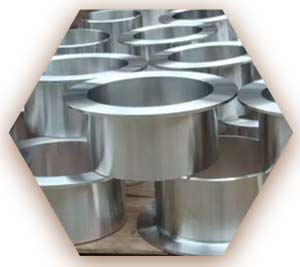

Inconel Lap Joint Stub End
Types of Inconel Welded Pipe Bend

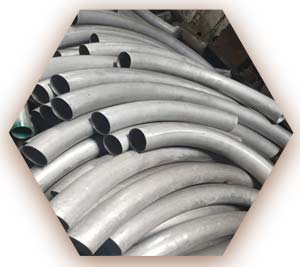

ASTM B366 Inconel 600 2.5D Bend

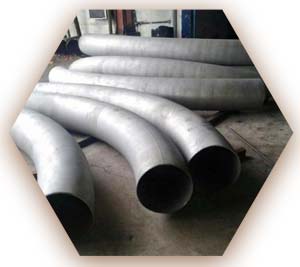

Inconel 600 3D Bend

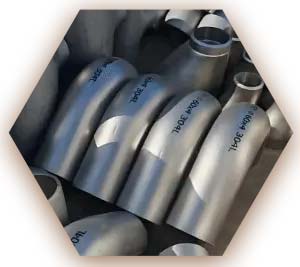

Inconel 601 45 Deg Pipe Bend

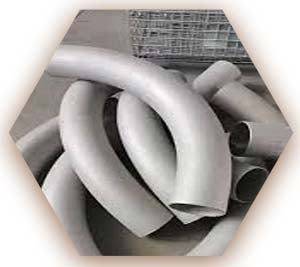

Inconel 718 90 Deg Pipe Bend

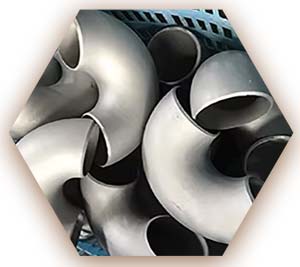

ASTM B366 Inconel 180 Deg Pipe Bend

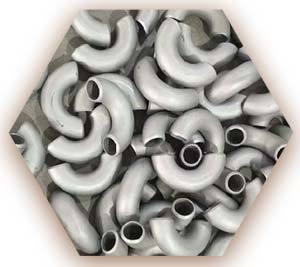

Inconel N06601 U Bend
