Stainless Steel Slip On Flange

Sizes in Stock

Sizes in Stock

1/2" to 24"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to DN1600

EN Standard

EN Standard

EN 1092-1

Services

Services

Casting and Rolling

Applications

Applications

Water Lines

SOUR Service

SOUR Service

NACE MR 01-75

Limitations

Limitations

Low Mechanical Strength

Welding Temperature Range

Welding Temperature Range

20°F – 100°F


Slip On Flange Details

Table Of Content

Carbon Steel Slip On Flange Manufacturer in India at Lowest Price


Slip On Flange Specification



Manufacturing Size Range

ASME B16.5 Slip on Flange Manufacturing Sizes

  • DN15 to DN1500
  • PN 2.5 to PN 400
  • ½" to 24"
  • Contact Slip On Flange Manufacturer in India For Above 48"
Pressure Class

Raised Face Slip on Flange Pressure Class

  • Class 125, Class 150
  • Class 300, Class 400
  • Class 600, Class 900
  • Class 1500, Class 2500

Faces

SORF Flange Faces

  • Ring Type Joint (RTJ)
  • Flat Face (FF)
  • Raised Face (RF)
  • T&G & M&F Face

American Standard

American Standard of Stainless Steel Slip on Flange

  • ASME B16.5
  • ASME B16.47


Manufacturing Process

Slip on Pipe Flange Manufacturing Process

  • Forging
  • Plate
  • and Cast
Thickness

Flange Slip on Class 150 Thickness

  • Schedule 10/ 20/ 40
  • Schedule 60/ 80/ 120
  • Schedule 140/ 160/ 180

Process

Reducing Slip on Flange Process

  • Forged and Drilling
  • Stamping and Milling
  • Turning and Rolled
Threads

Flat Face Slip on Flange Threads

  • BSP/ FPT/ NPT
  • BSPT/ MPT (Female)
  • BSPP (Male) & MNPT (Male)
Surface Finish

Carbon Steel Slip on Flange Surface Finish

  • Stock & Mirror Finish
  • Smooth & Serrated Finish
  • Cold Water Finish
Bolts Hole

Double Welded Slip on Flange Bolts Hole

  • 4 To 8
  • 4 To 24
  • 4 To 48
Application

Hubbed Slip on Flange Application

  • Petrochemical
  • Power Generation
  • Oil & Gas Plants
Packaging

PN10 Slip on Flange Packaging

  • Carton Box
  • Wooden Case
  • Plastic Bag (Or Custom)
Suitable Environment

PN16 Slip on Flange Suitable Environment

  • Sulfuric Acid
  • Phosphoric Acid
  • Seawater
Testing

PN25 Slip on Flange Testing & Inspection

  • Tensile Test
  • Impact Test
  • Material Inspection
Connection

Slip on Forged Steel Flange Connection

  • Welding
  • Threaded
European Standard

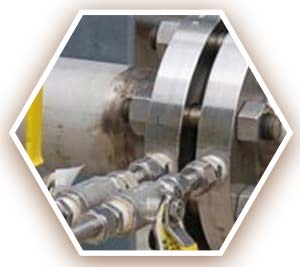

European Standard of Slip on Orifice Flange

  • EN 1092-1
  • EN 1092-2
Logistics

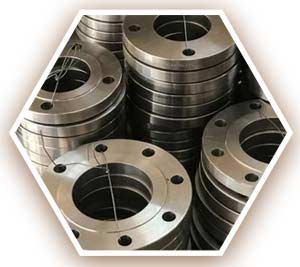

Slip on Plate Flange Logistics

  • Bangladesh: 14 Days
  • Cambodia: 9 Days
  • Mayanmar: 25 Days
  • Taiwan: 15 Days
Origin

Slip on Weld Flange Origin

  • Janpanese
  • American
  • Korean
  • European
German Standard

German Standard

  • DIN 2501/ 2573
  • DIN 2502/ 2576
  • DIN 2543/ 2633

Japanese Standard

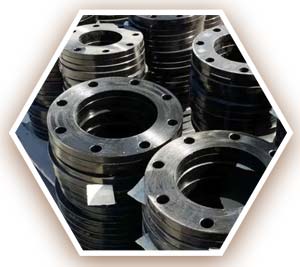

Japanese Standard of Slip on Backing Flange

  • JIS B2311
  • JIS B2312
  • JIS B2220

Shipping Time and Location



Saras S.p.A.
  • 12 Inch, Class 150 Slip On Flange
  • Saras S.p.A.
  • Milan, Italy

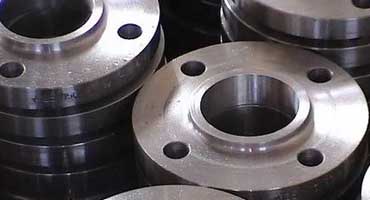

Cosmo Oil Company
  • 8 Inch, Class 900 Slip On Flange
  • Cosmo Oil Company
  • Tokyo, Japan

Buy Raised Face Slip On Flange in Most Popular Welding Method and Dimensions as per ASME B16.5


Size Chart of Slip on Pipe Flange



O.D Size (mm)
485 300
405 250
115 32
255 125
215 90
180 65
110 25
150 50
230 100
190 80
125 40
345 200
90 15
100 20
280 150

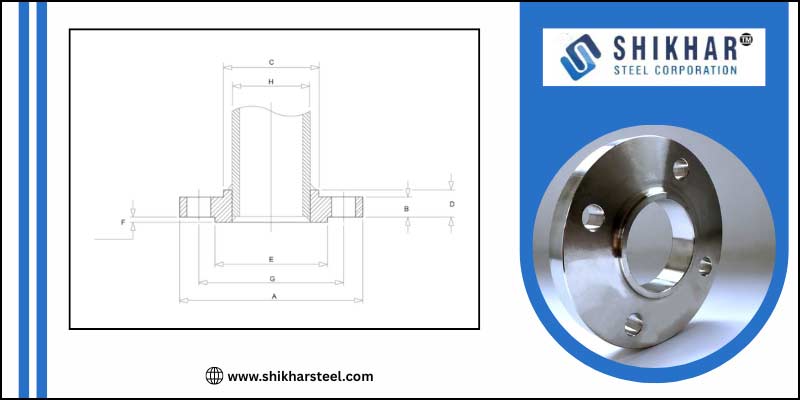

Class 150 Slip On Flange Dimensions



Slip on Flange Dimensions

Size (mm) Weight in kg Flange Thick O.D Size (Inch) Hub OD ISO Stud Size Flange Length RF Dia Socket Bore Hole Size
600 100 46.1 815 24 663 M33 81 692.2 616 1 3/8
500 75 41.3 700 20 559 M30 71 584.2 513.1 1 1/4
15 0.8 9.6 90 1/2 30 M14 14 34.9 22.2 5/8
20 0.9 11.2 100 3/4 38 M14 14 42.9 27.7 5/8
25 0.9 12.7 110 1 49 M14 16 50.8 34.5 5/8
32 1.4 14.3 115 1 1/4 59 M14 19 63.5 43.2 5/8
80 3.7 22.3 190 3 108 M16 29 127 90.7 3/4
50 2.3 17.5 150 2 78 M16 24 92.1 61.9 3/4
150 8.6 23.9 280 6 192 M20 38 215.9 170.7 7/8
200 13.7 27 345 8 246 M20 43 269.9 221.5 7/8
250 19.5 28.6 405 10 305 M24 48 323.8 276.2 1
65 3.2 20.7 180 2 1/2 90 M16 27 104.8 74.6 3/4
450 59 38.1 635 18 505 M30 67 533.4 461.8 1 1/4
90 5 22.3 215 3 1/2 122 M16 30 139.7 103.4 3/4
100 5.9 22.3 230 4 135 M16 32 157.2 116.1 3/4
125 6.8 22.3 255 5 164 M20 35 185.7 143.8 7/8
40 1.4 15.9 125 1 1/2 65 M14 21 73 49.5 5/8
300 29 30.2 485 12 365 M24 54 381 327 1
350 41 33.4 535 14 400 M27 56 412.8 359.2 1 1/8
400 54 35 595 16 457 M27 62 469.9 410.5 1 1/8

Class 300 Slip On Flange Dimensions



Size (mm) Weight in kg Size(Inch) O.D PCD Socket Bore RF Height Hub OD RF Dia Flange Thick
B 1.2 A C - H E G D
40 3.2 1 1/2 155 114.3 49.5 2 70 73 19.1
90 10 3 1/2 230 184.2 103.4 2 133 139.7 28.6
400 113 16 650 571.5 411.2 2 483 469.9 55.6
50 4.6 2 165 127 61.9 2 84 92.1 20.7
600 105 24 915 812.8 616 2 702 692.2 68.3
32 2.7 1 1/4 135 98.4 43.2 2 64 63.5 17.5
25 1.8 1 125 88.9 34.5 2 54 50.8 15.9
350 86 14 585 514.4 360.2 2 425 412.8 52.4
500 216 20 775 685.8 514.4 2 587 584.2 62
200 36 8 380 330.2 222.2 2 260 269.9 39.7
100 12.7 4 255 200 116.8 2 146 157.2 30.2
250 52 10 445 387.4 277.4 2 321 323.8 46.1
300 75 12 520 450.8 328.2 2 375 381 49.3
125 17.7 5 280 235 144.4 2 178 185.7 33.4
15 1.4 1/2 95 66.7 22.2 2 38 34.9 12.7
150 26 6 320 269.9 171.4 2 206 215.9 35
65 5.9 2 1/2 190 149.2 74.6 2 100 104.8 23.9
80 7.7 3 210 168.3 90.7 2 117 127 27
20 1.4 3/4 115 82.6 27.7 2 48 42.9 14.3
450 143 18 710 628.6 462.3 2 533 533.4 58.8

Class 600 Slip On Flange Dimensions



Size (Inch) RF Stud Length Size (mm) Hub OD Outer Dia Flange Thickness Weight in kg Flange Length Socket Bore
4 145 100 152 275 38.1 16.8 54 116.1
12 220 300 400 560 66.7 91 92 327
2 110 50 84 165 25.4 4.1 37 61.9
24 330 600 718 940 101.6 332 140 616
6 170 150 222 355 47.7 36 67 170.7
18 275 450 546 745 82.6 182 117 461.8
1 1/2 110 40 70 155 22.3 3.2 32 49.5
1 90 25 54 125 17.5 1.8 27 34.5
16 255 400 495 685 76.2 150 106 410.5
8 190 200 273 420 55.6 52 76 221.5
10 215 250 343 510 63.5 77 86 276.2
20 285 500 610 815 88.9 232 127 513.1
3/4 90 20 48 115 15.9 1.4 25 27.7
2 1/2 120 65 100 190 28.6 5.9 41 74.6
3 125 80 117 210 31.8 7.3 46 90.7
1/2 75 15 38 95 14.3 1.3 22 22.2
5 165 125 189 330 44.5 29 60 143.8
14 235 350 432 605 69.9 105 94 359.2

Class 1500 Slip On Flange Dimensions



Size (Inch) Size (mm) Hub O.D O.D Flange Thickness Socket Bore Flange Length No of Bolts Weight in kg PCD
A B E C D F - - -
10 250 368 545 69.9 276.2 108 16 112 469.9
3/4 20 44 130 25.4 27.7 35 4 2.3 88.9
8 200 298 470 63.5 221.5 102 12 78 393.7
1 25 52 150 28.6 34.5 41 4 3.6 101.6
1 1/4 32 64 160 28.6 43.2 41 4 4.1 111.1
4 100 159 290 44.5 116.1 70 8 24 235
12 300 419 610 79.4 327 117 20 148 533.4
1 1/2 40 70 180 31.8 49.5 44 4 5.5 123.8
1/2 15 38 120 22.3 22.2 32 4 1.8 82.6
6 150 235 380 55.6 170.7 86 12 50 317.5
5 125 190 350 50.8 143.8 79 8 38 279.4
2 50 105 215 38.1 61.9 57 8 11.5 165.1
2 1/2 65 124 245 41.3 74.6 64 8 16.5 190.5
3 80 127 240 38.1 90.7 54 8 12 190.5
14 350 451 640 85.8 359.2 130 20 182 558.

Check Ready Stock of SORF Flange Suitable for Water Treatment


Carbon Steel Slip on Flange Applications

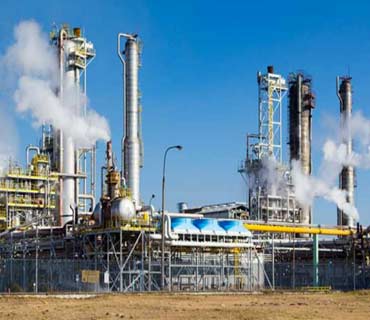

Chemical Industries

Chemical Industries

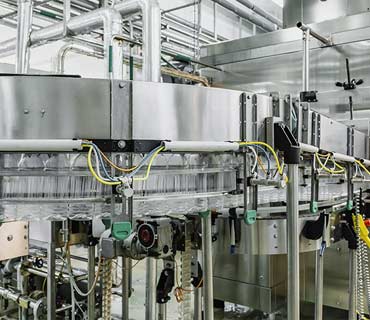

Food and Beverage Industry

Food and Beverage Industry

HVAC Systems

HVAC Systems

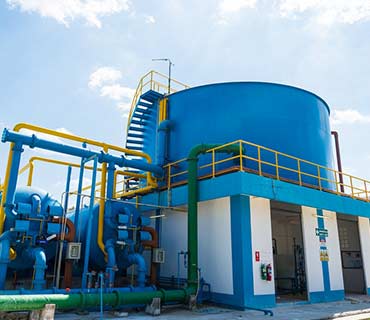

Water Treatment Plants

Water Treatment Plants

Class 2500 Slip On Flange Dimensions



Size (mm) Size (Inch) O.D RF Height Thickness No of Bolts Weight in kg Hub OD Flange Length Socket Bore
- - A F B - - C D H
15 1/2 120 7 22.3 4 1.8 38 32 22.2
20 3/4 130 7 25.4 4 2.3 44 35 27.7
25 1 150 7 28.6 4 3.7 52 41 34.5
32 1 1/4 160 7 28.6 4 4.1 64 41 43.2
40 1 1/2 180 7 31.8 4 5.5 70 44 49.5
50 2 215 7 38.1 8 9.8 105 57 61.9
65 2 1/2 245 7 41.3 8 16.4 124 64 74.6

SS Slip On Flanges Price List



  • Grade = ASTM A182 F304
  • SCH 40
  • Class 150

Size (Inch) Price (USD) Price (AED)
0.5 $ 61.55 AED 226.04
1 $ 79.36 AED 291.45
1.5 $ 100.67 AED 369.71
2 $ 126.66 AED 465.16
3 $ 201.25 AED 739.09
4 $ 276.96 AED 1017.14
5 $ 359.77 AED 1321.26
6 $ 418.95 AED 1538.59
8  $ 790.55 AED 2903.29

For Final Slip On Flange Price List Please Drop an Email to sales@shikharsteel.com.


Tolerance Chart of SORF Flange



Condition G D B K
Tolerance 2 mm RF 7 mm RF D ≤ 24" D > 24" NPS ≤ 10 NPS ≥ 12 NPS ≤ 24
±1.0 ±0.5 ±1.5 ±3.0 1 0 1.5 0 ±1.5

Hubbed Slip On Flange Manufacturing Process



Hubbed Slip On Flange, Manufacturing Process

Reducing Slip on Flange Gasket Sizes



Normal Pipe Size Gasket I.D.
5 5.56
10 10.75
12 12.75
3 3.50
2 1/2 2.88
2 2.38
1 1.31
1/2 0.84
4 4.50
6 6.62
8 8.62

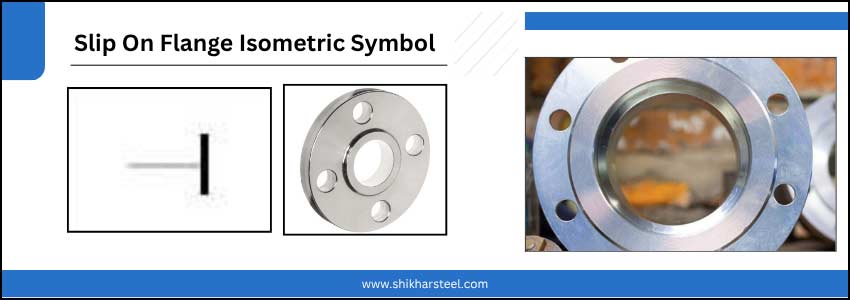

Slip On Flange Isometric Symbol



Slip On Flange Isometric Symbol

Stainless Steel Slip on Flange Testing



Hydrostatic Test

Hydrostatic Test

Flattening Test

Flattening Test

Radiography Test

Radiography Test

Flaring Test

Flaring Test

SSC Cracking Test

SSC Cracking Test

Dye Penetrant Test

Dye Penetrant Test


Bolt Size of Double Welded Slip on Flange



Size (Inch) ISO Stud Size Hole Size Length No of Bolts Bolt Size (UNC)
1 1/4 M24 1 41 4 7/8
1/2 M20 7/8 32 4 3/4
2 M24 1 57 8 7/8
3/4 M20 7/8 35 4 3/4
1 M24 1 41 4 7/8
1 1/2 M27 1 1/8 44 4 1

Buy 100% Tested Flat Face Slip On Flange by Hydrostatic Pressure, Check Common Welding

Flange Slip on Class 150 Weldings



  • Tack Weld
  • Inside Welding
  • TIG Welding

SORF Flanges DIN Standard



  • DIN 2576
  • DIN 2576 PN10
  • DIN 2576 PN16
  • DIN 2576 PN40
  • DIN 86029 PN10 (Hubbed Slip On flanges)
  • DIN 2633

BS Standards of Slip on Flange



  • BS 3293 Class 300 Slip On flange
  • BS 3293 Class 400 Slip On flange
  • BS 3293 Class 150 Slip On flange

View Hubbed Slip On Flange Weight Chart and Pressure Rating in Class 150 to 2500

Weight Chart of PN16 Slip On Flang



Sizes (DN) Weight (Kg)
20 0.94
25 1.11
65 2.99
80 3.61
400 30.20
150 6.55
250 12.76
32 1.62
40 1.85
100 3.99
450 41.67
500 52.87
175 8.42
200 8.97
125 5.41
350 24.08
300 16.60
15 0.67
10 0.60
600 77.58
50 2.46

Slip on Flange JIS Standards



JIS Standards
KS B1522 KS B1543
KS1503 JIS B2311
JIS B2220 JIS B2312
JIS B2313 KS B1541

Weight Chart of PN10 Slip On Flange



NPS (DN) Weight (Kg)
25 1.23
65 3.65
40 2.09
20 1.01
500 96.4
50 2.88
32 1.81
450 71.74
15 0.71
80 4.61
100 5.65
300 30.73
125 8.13
200 16.48
250 23.99
150 10.44
175 8.42
600 145.6
350 42.56
400 60.68

Flat Face Slip on Flange Pressure Rating



Normal Pipe Size 900 # 600 # 150 # 300 # 400 #
4 8.125 7.625 6.875 7.125 7.00
10 17.125 15.75 13.375 14.25 14.125
6 11.375 10.50 8.75 9.875 9.75
1/2 2.50 2.125 1.875 2.125 2.125
2 1/2 6.50 5.125 4.875 5.125 5.125
3/4 2.75 2.625 2.25 2.625 2.625
2 5.625 4.375 4.125 4.375 4.375
5 9.75 9.50 7.75 8.50 8.375
8 14.125 12.625 11 12.125 12.00
12 19.625 18.00 16.125 16.625 16.50
1 3.125 2.875 2.625 2.875 2.875
3 6.625 5.875 5.375 5.875 5.875

Slip On Flange Facing Types



  • Flat Face
  • Raised Face
  • Lap Joint
  • Ring Joint
  • Male And Female
  • Tongue And Groove

Types Of Slip On Flange

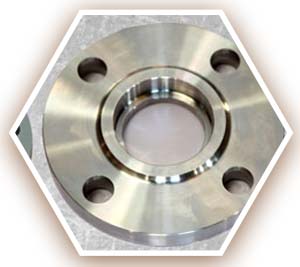

Raised Face Slip On Flange

Raised Face Slip On Flange

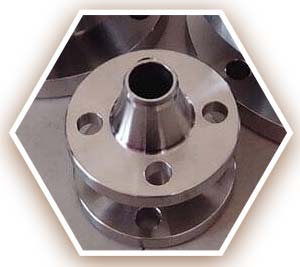

Reducing Slip On Flange

Reducing Slip On Flange

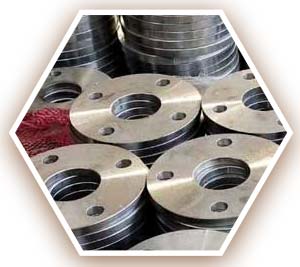

Flat Face Slip On Flange

Flat Face Slip On Flange

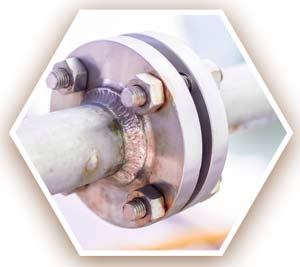

Double Welded Slip On Flange

Double Welded Slip On Flange

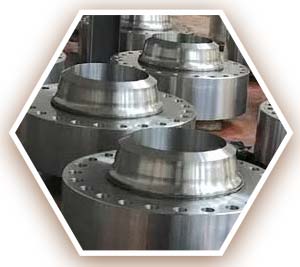

Hubbed Slip On Flange

Hubbed Slip On Flange

Slip On Orifice Flange

Slip On Orifice Flange

Slip On Plate Flange

Slip On Plate Flange

Slip On Backing Flange

Slip On Backing Flange

SORF Flange With Hub

SORF Flange With Hub

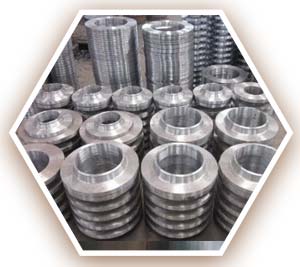

Easy Fit Flange

Easy Fit Flange

Quick Flange

Quick Flange

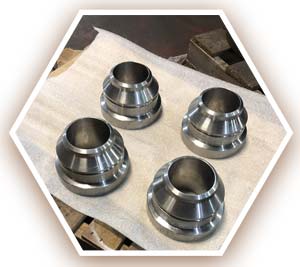

Swivel Ring Flange

Swivel Ring Flange








Types

Material

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.

whatsapp chat
