Copper Flanges

Sizes in Stock

Sizes in Stock

1/2" to 24"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to DN1600

Working Pressure

Working Pressure

1400 kPa

Temperature Range

Temperature Range

-10°C - +110°C (T/E)

Bolts Hole

Bolts Hole

4 To 48

Application

Application

Petrochemical

Custom Packaging

Custom Packaging

Yes

MTC Report

MTC Report

Yes

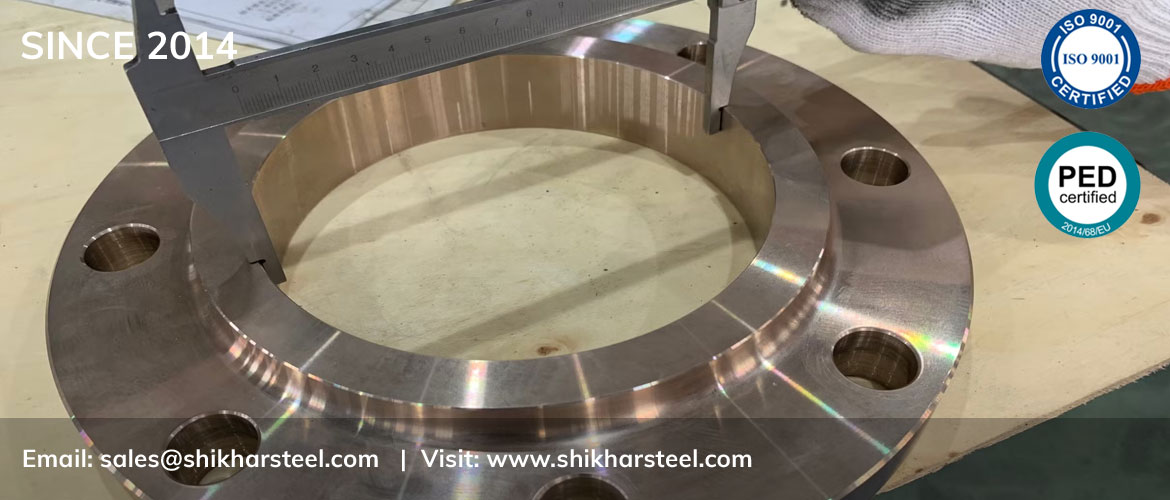

Copper Flanges Overview

Table Of Content


IBR Certified CU Floor Flange Manufacturer in India


Copper Flanges Specification


Manufacturing Size Range

Copper Pipe Flange Manufacturing Sizes

  • ½" to 24"
  • DN15 to DN1500
  • PN 2.5 to PN 400

Pressure Class

Pressure Class for Copper Companion Flange

  • Class 125, Class 150
  • Class 300, Class 400
  • Class 600, Class 900
  • Class 1500, Class 2500
Faces

Copper Wall Flange Faces

  • Ring Type Joint (RTJ)
  • Flat Face (FF)
  • Raised Face (RF)
  • T&G & M&F Face

American Standard

American Standard of Copper Sweat Flange

  • ASME B16.5
  • ASME B16.47
  • ASME B16.36
  • ASME B16.48
Manufacturing Process

Copper Floor Flange Manufacturing Process

  • Forging
  • Plate
  • and Cast
Thickness

Thickness for Copper Blind Flange

  • Schedule 10/ 20/ 40
  • Schedule 60/ 80/ 120
  • Schedule 140/ 160/ 180
Process

Copper Tube Flange Process

  • Forged and Drilling
  • Stamping and Milling
  • Turning and Rolled
Threads

Threads for Copper Slip On Flange

  • BSP/ FPT/ NPT
  • BSPT/ MPT (Female)
  • BSPP (Male) & MNPT (Male)
Surface Finish

Copper Weld Neck Flange Surface Finish

  • Stock & Mirror Finish
  • Smooth & Serrated Finish
  • Cold Water Finish
Bolts Hole

Bolts Hole of Copper Socket Flange

  • 4 To 8
  • 4 To 24
  • 4 To 48

Application

Copper Threaded Flange Application

  • Construction
  • Oil & Gas Plants
  • Metallurgy

Packaging

Packaging for Copper Lap Joint Flange

  • Carton Box
  • Wooden Case
  • Plastic Bag (Custom)
Suitable Environment

Copper Reducing Flange Suitable Environment

  • Sulfuric Acid
  • Phosphoric Acid
  • Seawater
Testing

Testing & Inspection of Copper Puddle Flange

  • Tensile Test
  • Impact Test
  • Material Inspection
Connection

Copper Welding Flange Connection

  • Welding
  • Threaded
European Standard

European Standard of Copper Slip Joint Flange

  • EN 1092-1
  • EN 1092-2
Logistics

Copper Water Pipe Flange Logistics

  • By Sea & Air
  • UAE = 7 day
  • Saudi Arabia = 8 day
  • Qatar = 7 day
Origin

Origin for Copper Exhaust Flange

  • Janpanese
  • American
  • Korean
  • European
German Standard

Copper Stub End Flange German Standard

  • DIN 2501/ 2573
  • DIN 2502/ 2576
  • DIN 2543/ 2633
Japanese Standard

Japanese Standard of Copper Pipe End Flange

  • JIS B2311
  • JIS B2312
  • JIS B2220

Delivery Location and Time


Project in China
  • 14 Inch, Copper Wall Flange
  • Sinopec
  • Beijing, China

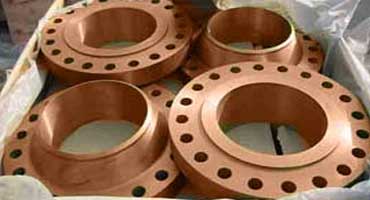

Project in US
  • 22 Inch, Copper Weld Neck Flange
  • Marathon Petroleum
  • Ohio, US

Buy Copper Blind Flange With 1-1/2" to 6" as per ASME 16.22 Standard


Copper Flange Dimensions


Copper Flange Dimensions

Nominal Sizes (Inch) Outside Diameter (O.D.) Cu Flange (L) (min.) Inside Diameter (I.D.) (O) (min.) Length (K) Female End (F) Depth (G)
 Thickness (T)
Min Max Min Min Min
6" 8.40 5.72 4.31 6.13 6.12 3.09 .124
5" 7.30 4.70 3.87 5.13 5.12 2.66 .111
4" 6.20 3.84 2.81 4.13 4.12 2.16 .096
3" 5.00 2.89 2.35 3.13 3.12 1.66 .075
2-1/2" 4.20 2.42 2.02 2.63 2.62 1.47 .067
1-1/2" 3.10 1.47 1.60 1.63 1.62 1.09 .051

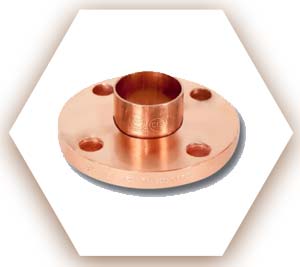

Benefits of Copper Sweat Flange


  • Excellence Thermal Conductivity
  • Durable
  • Versatile Metal
  • Perfect Product for Higher Heat Application
  • Highly Resistance to CDorrosive & Rust
  • Can be Used in the Plumbing Sectors


Get Ex.Stock of Copper Slip On Flange Suitable for Water, Gas, Steam


Copper Stub End Flange Applications


Copper Stub End Flange Applications


Wall Thickness Chart for Copper Slip Joint Flange


Nominal Sizes (Inch) Wall Thck.
6" .866
5" .748
4" .709
3" .63
2-1/2" .63
2" .63
1-1/2" .63


Supplier of Copper Weld Neck Flange in Various Sizes and Types in India

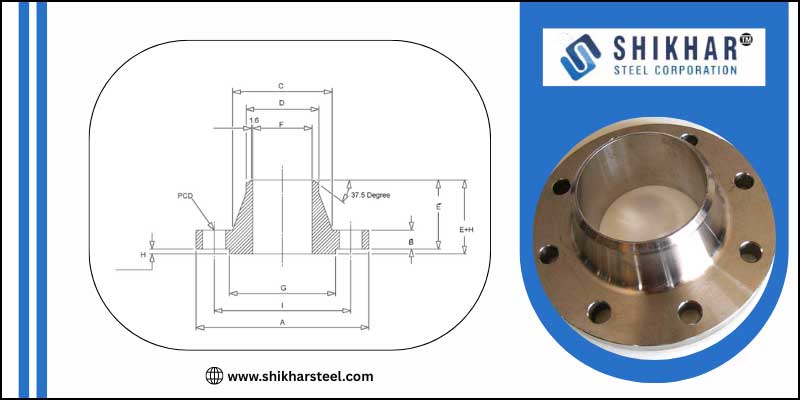

Copper Weld Neck Flange Check Available Sizes


Copper Weld Neck Flange Check Available Sizes

Nominal Sizes Outer Diameter (O.D.) Weld Neck Outside Diameter Flange Thck. RF Diameter Outside Diameter Hub Welding Neck Length PCD
mm Inch A D B G C E I
25 1 110 33.4 12.7 50.8 49 54 79.4
15 1/2 90 21.3 9.6 34.9 30 46 60.3
40 1 1/2 125 48.3 15.9 73 65 60 98.4
65 2 1/2 180 73 20.7 104.8 90 68 139.7
90 3 1/2 215 101.6 22.3 139.7 122 70 177.8
125 5 255 141.3 22.3 185.7 164 87 215.9
200 8 345 219.1 27 269.9 246 100 298.5
300 12 485 323.8 30.2 381 365 113 431.8
400 16 595 406.4 35 469.9 457 125 539.8
500 20 700 508 41.3 584.2 559 143 635
20 3/4 100 26.7 11.2 42.9 38 51 69.9
32 1 1/4 115 42.2 14.3 63.5 59 56 88.9
50 2 150 60.3 17.5 92.1 78 62 120.7
80 3 190 88.9 22.3 127 108 68 152.4
100 4 230 114.3 22.3 157.2 135 75 190.5
150 6 280 168.3 23.9 215.9 192 87 241.3
250 10 405 273 28.6 323.8 305 100 362
350 14 535 355.6 33.4 412.8 400 125 476.3
450 18 635 457.2 38.1 533.4 505 138 577.9
600 24 815 610 46.1 692.2 663 151 749.3


Most Common Types Of Copper Flanges

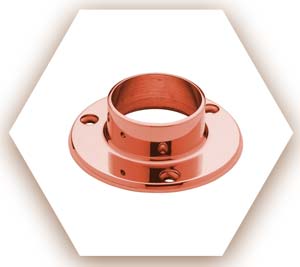

Copper Wall Flange

Copper Wall Flange

Copper Sweat Flange

Copper Sweat Flange

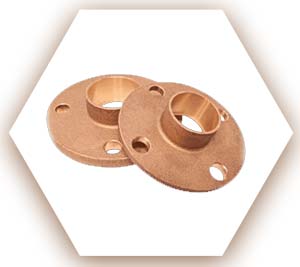

Copper Floor Flange

Copper Floor Flange

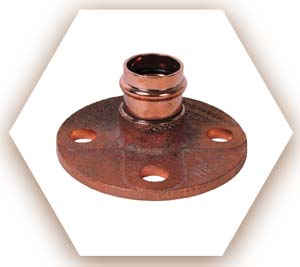

Copper Tube Flange

Copper Tube Flange

Copper Stub End Flange

Copper Stub End Flange

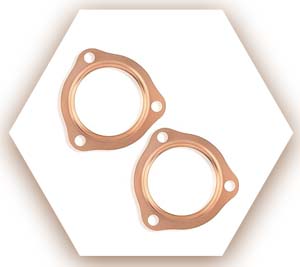

Copper Exhaust Flange

Copper Exhaust Flange



Check Copper Wall Flange Working Pressure and Custom Dimensions


Copper Slip On Flange Working Pressure


Nominal Sizes (Inch) Code Working Pressure (Psi)
6" CC006 450
1-1/2" CC015
4" CC004
2-1/2" CC025
2" CC002
3" CC003
5" CC005

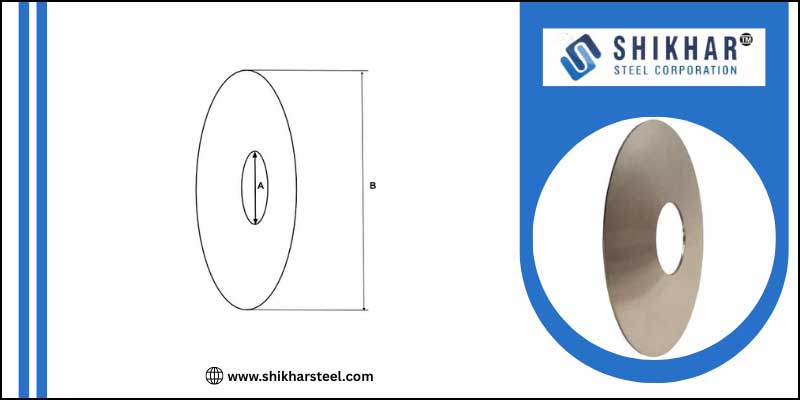

Dimensions Chart for Copper Reducing Flange


Dimensions Chart for Copper Reducing Flange

Nominal Outside Diameter (O.D.) (Inch) Dimensions
B A
4" 7 4
3" 6 3
2" 5 2
1-1/2" 5 1.500
1" 5 1


Copper Tube Flange Testing


PMI Test

PMI Test

Mechanical Test

Mechanical Test

Chemical Analysis

Chemical Analysis

Macro Test

Macro Test

IGC Test

IGC Test

HIC Test

HIC Test


Pressure Rating of Copper Slip Joint Flange


Temp., °C Working Pressures by Class
400 300 150 600 2500 1500 900
150 66.8 50.3 15.8 100.3 418.2 250.8 150.6
-29 ~ 38 68.9 51.7 20.0 103.4 430.9 258.6 155.1
50 68.9 51.7 19.5 103.4 430.9 258.6 155.1
250 61.7 46.30 12.1 92.7 386.2 231.8 139.0
350 53.6 40.3 8.4 80.4 335.3 201.1 120.7
425 46.5 35.2 5.5 70.0 291.6 175.1 105.1
475 42.3 31.7 3.7 63.4 263.9 158.2 95.1
500 37.6 28.2 2.8 56.5 235.0 140.9 84.7
100 68.7 51.5 17.7 103.0 429.4 257.6 154.6
200 64.8 48.6 13.8 97.2 405.4 243.4 145.8
300 57.0 42.9 10.2 85.7 357.1 214.4 128.6
325 55.0 41.4 9.3 82.6 344.3 206.6 124.0
375 51.6 38.9 7.4 77.6 323.2 194.1 116.5
450 45.1 33.7 4.6 67.7 281.8 169.0 101.4
400 48.9 36.5 6.5 73.3 304.9 183.1 109.8
