Stainless Steel Threaded Elbow

Sizes in Stock

Sizes in Stock

DN8 to DN100

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 12"

Pressure Class

Pressure Class

2000 PSI to 9000 PSI

Wall Thickness

Wall Thickness

Schedule 10 to SCH XXS

Threads

Threads

BSP, BSPT, NPT

Angel

Angel

45 and 90 Degree

End Connection

End Connection

Socket Welding and Threaded

Standard

Standard

ASME B16.11 and DIN 2617


Threaded Elbow

Table Of Content

Socket Weld Elbow Manufacturer in India in Various Pressure Class


Stainless Steel Threaded Elbow Specification



Manufacturing Size Range

Most Selling Size

  • 1/2" To 4"
  • 8mm to 100mm
  • Contact Threaded Elbow Manufacturer in India For Above 6"
Pressure Level

Female Elbow Pressure Level

  • Class 2000
  • Class 3000
  • Class 6000
  • Class 9000
Thickness

Elbow Male Thread Thickness

  • Schedule 80
  • Schedule 160
  • Schedule XS
  • Schedule XXS
Standard

Elbow With Thread Standard

  • ASME B16.11
  • MSS SP 79
  • MSS SP 83
  • MSS SP 97
Manufacturing Process

Male To Female Elbow Manufacturing Process

  • CNC Machined
  • Forging
Connection

Threaded 90 Degree Elbow Connection

  • Threaded
  • Socket Welding
Certification

45 Degree Threaded Elbow Certification

  • EN 10204 3.1
  • EN 10204 3.2
  • MTC Reports
Threads

Long Radius Socket Weld Elbow Threads

  • NPT, BSPP, NPTF
  • UNF, UN, BSPT
  • Metric Parallel & Tapered
Forging Method

Socket Elbow Forging Method

  • Open Die Forging
  • Closed Die Forging
Welding Technique

90 Degree Elbow Male Female Welding Technique

  • FCAW & SMAW Welding
  • GMAW & TIG Welding
Application

Stainless Steel Threaded Elbow Application

  • Fire Protection Systems
  • Oil and Gas
  • Shipbuilding
Packaging

Threaded Elbow Fitting Packaging

  • Carton Box
  • Wooden Case
  • Plastic Bag (Or Custom)

Advantage

Threaded Reducing Elbow Advantage

  • Affordability
  • Higher Strength
  • Environmentally Friendly
Testing

Threaded Street Elbow Testing

  • Visual inspection
  • Tensile Test
  • Hardness Test
NPT Tapered

NPT Tapered of NPT Elbow

  • Male Thread
  • Female Thread
Applicable Fluids

Applicable Fluids of Stainless Steel Threaded 90 Degree Elbow

  • Oil & Gas
  • Air, Steam & Water
Logistics

BSPP Elbow Logistics

  • Jordan: 21 Days
  • Cyprus: 45 Days
  • Algeria: 45 Days
  • Norway: 45 Days
Origin

BSPT Elbow Origin

  • American
  • Korean
  • Janpanese
  • European
Value Added Services

Value Added Services of Long Radius Threaded Elbow

  • Metal Stampings & Cutting
  • MTR's Available
  • Polishing & Coating
Marking

Marking On Threaded Elbow Class 3000 Elbow

  • Standard & Size
  • Pressure Class & Material
  • Heat Number & Origin Country

Supplier Of Carbon Steel Threaded Elbow in Male to Female Connection in Mumbai


Threaded Street Elbow Maximum Operating Temperature



Properties Temperature
Maximum Operating Temperature -29°C to 149°C (20°F to 300°F)

Threaded 90 Degree Elbow Advantages



  • High Durability
  • Highly Versatile
  • Ease Installation
  • Leak Proof
  • Thermal Resistance
  • Cost-effective

NPT Elbow End Connections



Threaded End Connection
Internal Threads On One End Female Threaded
External Threads On One End Male Threaded

Buy Vast Range of Threaded 90 Degree Elbow in NPT, BSPP and BSPT Threads At Affordable Price


Thread Types of Threaded 90 Degree Elbow



Thread Types of Threaded 90 Degree Elbow
  • BSPT
  • NPT
  • PT
  • BSPP
  • Metric Parallel
  • PF
  • UN
  • Tapered


Sizes of 45 Degree Threaded Elbow



Size (Inch) Weight (Kg)
4 2.95
2-1/2 1.29
2 0.91
3 1.81
1/2 0.09
1-1/2 0.66
3/4 0.20
1 0.34
1-1/4 0.50

90 Degree Elbow Male Female Sizes



Size Weight (Kg)
4 3.58
3 2.11
2 0.99
1/2 0.13
1-1/2 0.70
3/4 0.25
1-1/4 0.56
1 0.40

Value Added Services of Threaded Elbow Fitting



  • Cutting
  • Sheering
  • Beveling End
  • Coating/Polishing
  • MTR's Available
  • Metal stampings

Offer Socket Weld 45 Degree Elbow For Extreme High Temperature Applications

Socket Weld 45 Degree Elbow Applications

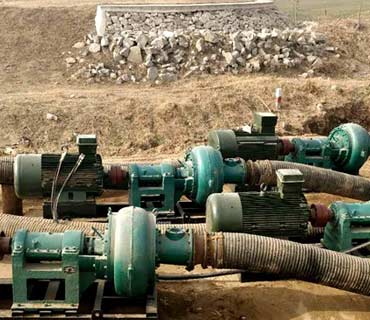

Mining slurry

Mining slurry

Medical Equipment

Medical Equipment

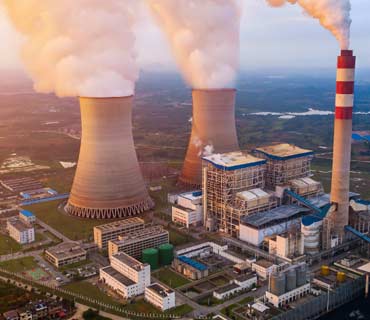

Power stations

Power stations

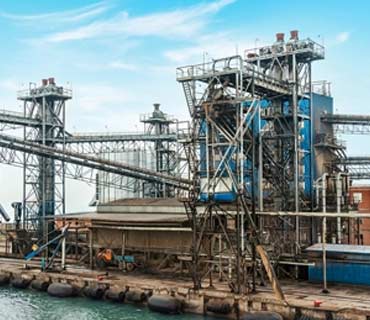

Oil and Gas

Oil and Gas

Pressure Classes of Stainless Steel Threaded Elbow



NPS (Inch) Class 6000 LBS Class 2000 LBS Class 3000 LBS
4 52.24 26.45 37.47
2-1/2 20.63 6.41 11.86
3 37.69 10.56 18.80
2 13.58 3.54 7.38
1-1/2 7.87 2.18 5.35
1-1/4 6.01 1.63 2.77
1/8 0.41 0.20 0.30
1 3.57 1.08 2.31
1-1/4 6.01 1.63 2.77
1/4 0.66 0.22 0.35
3/8 1.05 0.30 0.70
1/2 1.65 0.52 0.97
3/4 2.66 0.70 1.49

Check ASME B16.11 Elbow Testing



Micro Test

Micro Test

Hardness Test

Hardness Test

Pitting Resistance Test

Pitting Resistance Test

Hydrostatic Test

Hydrostatic Test

Flattening Test

Flattening Test

Radiography Test

Radiography Test


Properties of Threaded Reducing Elbow



  • High strength
  • Good corrosion resistance
  • Good durability

Check Stainless Steel Threaded Elbow Dimensions and Weight in Class 3000 to 9000

Stainless Steel Threaded Elbow Dimensions



Stainless Steel Threaded Elbow Dimensions

Normal Pipe Sizes Socket Depth In mm (J) Bore Of Socket In m (B) Body W.T (G) Bore Diameter (D) Socket W.T (C)
4 19 115.80
115.45		 8.55 103.8
100.7		 10.70
9.35
3 16 90.15
89.80		 7.60 79.5
46.4		 9.50
8.30
2.1/2 16 74.20
73.80		 7.00 64.2
61.2		 8.75
7.65
2 16 61.35
61.10		 5.55 53.5
51.7		 6.95
6.05
1.1/2 13 48.90
48.65		 5.10 41.7
40.1		 6.35
5.55
1.1/4 13 42.80
42.55		 4.85 35.8
34.3		 6.05
5.30
1 13 34.05
33.80		 4.55 27.4
25.9		 5.70
5.00
1/2 10 21.95
21.70		 3.75 16.6
15		 4.65
4.10
3/4 13 27.30
27.05		 3.90 21.7
20.2		 4.90
4.25

Weight Chart of 45 Degree Threaded Elbow



DN Weight (Kg)
50 2.19
40 1.37
32 1.11
25 0.603
20 0.403
15 0.267
10 0.204
8 0.09
6 0.099

Conditions of Elbow With Thread



Conditions Temperature In
Air quench 1650°F
2000/2200°F
1700/1900°F

Types Of Stainless Steel Threaded Elbow



Threaded Elbow

Threaded Elbow

Socket Weld Elbow

Socket Weld Elbow

Threaded Street Elbow

Threaded Street Elbow

Threaded Reducing Elbow

Threaded Reducing Elbow

90 Degree Elbow

90 Degree Elbow

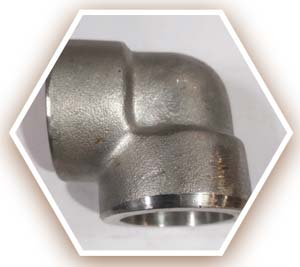

Socket Weld Reducing Elbows

Socket Weld Reducing Elbows

Female Threaded Elbows

Female Threaded Elbows

Male Threaded Elbows

Male Threaded Elbows

Socket Weld 45 Degree Elbows

Socket Weld 45 Degree Elbows








Types

Material

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
