Stainless Steel Pipe Elbow

Sizes in Stock

Sizes in Stock

1/2" to 48"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 60"

Welding Temperature

Welding Temperature

200℃ Max

Radius

Radius

Long and Short Radius

Pipe Elbow Types

Pipe Elbow Types

45 Deg, 90 Deg and 180 Deg

Elbow Method

Elbow Method

Buttweld, Seamless and
Welded

Production Technique

Production Technique

Machined & Forged

Standard

Standard

ASME B16.9

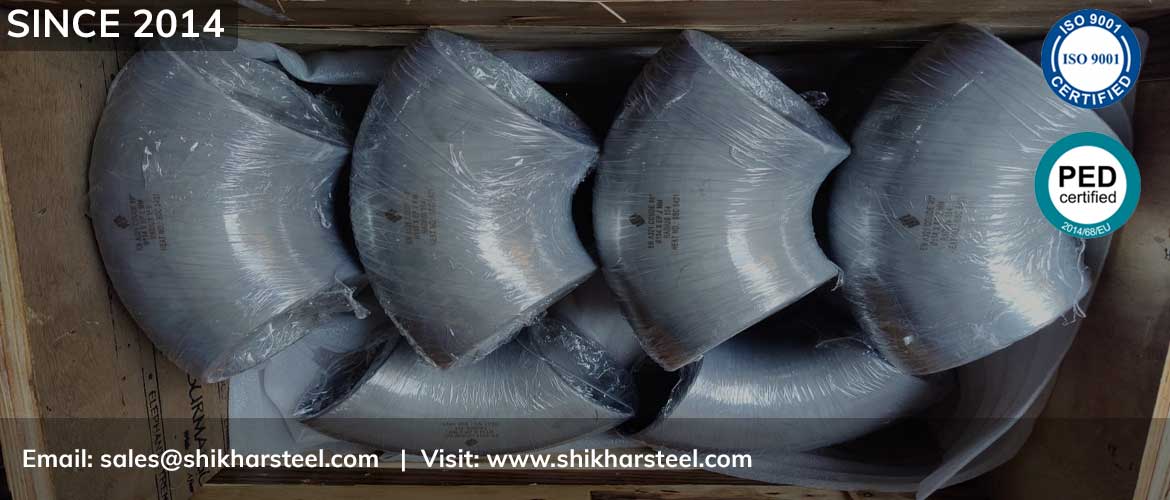

Stainless Steel Pipe Elbow

Table Of Content

ISO Approved 90 Degree Elbow Manufacturer in India


ASME B16.9 Elbow Specification



Manufacturing Size Range

Pipe Elbow Manufacturing Sizes

  • Seamless : 1/2" - 24"
  • Welded : 24" - 96"
  • Buttweld : 1/2" - 36"
  • Contact Pipe Elbow Manufacturer in India For Above 48"
Thickness

Welded Pipe Elbow Thickness

  • SCH 10/ 20/ 40/ 60/ 80
  • SCH 90/ 100/ 120/ 140
  • SCH 160/ 180/ SCH XXS


Advantages

45 Degree Elbow Advantages

  • Flow efficiency
  • Reduced stress
  • Space management
Ends Method

90 Degree Elbow Ends Method

  • Plain Bevel
  • Bevelled
  • Compound Bevel
Application

Stainless Steel 90 Degree Elbow Application

  • Gas Processing
  • Condensers
  • Chemical Equipment
Packaging

Weld Elbows Packaging

  • Wooden Cases
  • Wooden Pallet
  • Carton Box

Logistics

Steel Elbows Logistics

  • Malaysia = 10 day
  • Vietnam = 14 day
  • Cambodia = 9 days

Manufacturing Process

Long Radius Elbow Manufacturing Process

  • CNC Machined
  • Hot forging
  • Cold forging
Standard

Reducing Elbow Standard

  • ASME B16.28
  • ASME B16.9
  • DIN/ JIS/ EN/ ISO
Length

Butt Weld Elbow Length

  • Short Elbow
  • Long elbow

Process

Short Radius Elbow Process

  • Bending
  • Welding
  • Cutting
Types

Types of Weld on Elbows

  • Weld Elbows
  • Seamless Elbows
  • Reducing Elbow
Method

ASME B16.9 Elbow Method

  • Buttweld (BW)
  • Seamless (SMLS)
  • Welded (Weld)
Sour Service

Sour Service of ANSI B16.9 Elbow

  • NACE MR0175
  • NACE TM-0284
  • NACE MR0103
Marking

Schedule 40 Pipe Elbow Marking

  • Size & Schedule
  • Grade & Material
  • Manufacturers Name
  • Standard & Heat No.
Bending Methods

Bending Methods of Schedule 80 Pipe Elbow

  • Rotary draw bending
  • Hot induction bending
  • Ram type bending
Radius

90 degree Buttweld Elbow Radius

  • 3D/ 4D/ 5D
  • 6D/ 8D/ 10D
  • 12D/ 22D

Origin

Seamless Pipe Elbow Origin

  • Janpanese
  • American
  • Korean
  • European
Value Added Services

Welded Pipe Elbow Value Added Services

  • Cutting
  • Bending
  • Welding
Machinery List

180 Degrees Elbow Machinery List

  • Beveling
  • Hot and Cold Forming
  • Hydraulic Press 150 Tons Capacity


Shipping Time and Location

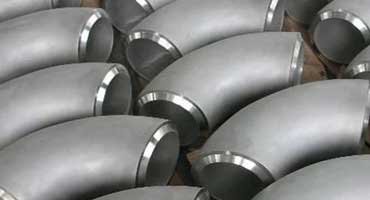

Tourmaline Oil
  • 12 Inch,Schedule 40 Pipe Elbow
  • Tourmaline Oil
  • Alberta, Canada

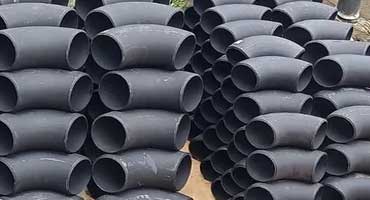

TC Energy
  • 10 Inch, Schedule 80 Pipe Elbow
  • TC Energy
  • Alberta, Canada

Before Ordering, Check Pipe Elbow Price List and Available Machinery


SCH 10 90 Degree Elbow Price List



Size (Inch) Price (USD) Price (AED)
12 US $49.90 AED 183.26
10 US $33.83 AED 124.24
8 US $21.71 AED 79.73
5 US $9.88 AED 36.28
6 US $13.02 AED 47.82

For Final Pipe Elbow Price List Please Drop an Email to sales@shikharsteel.com.


Stainless Steel Pipe Elbow Machineries



  • CNC Lath
  • Radial Driling Machine
  • Hydraulic Press 300 Tons Capacity
  • Elbows Beveling Machine
  • Conventional Machine
  • Oil Fired Heat Treatment Furnace
  • Tee Cold Forming Machines
  • Hydraulic Press 150 Tons Capacity
  • Heat Treatment For Forged Fittings
  • Elbows Cold Forming Machines
  • Tee Beveling Machine
  • Portable Temperature Indicator

Cold Forming of Long Radius Elbow



  • Receiving inspection
  • Cutting
  • Forming
  • Heat Treatment
  • Beveling
  • Cleaning

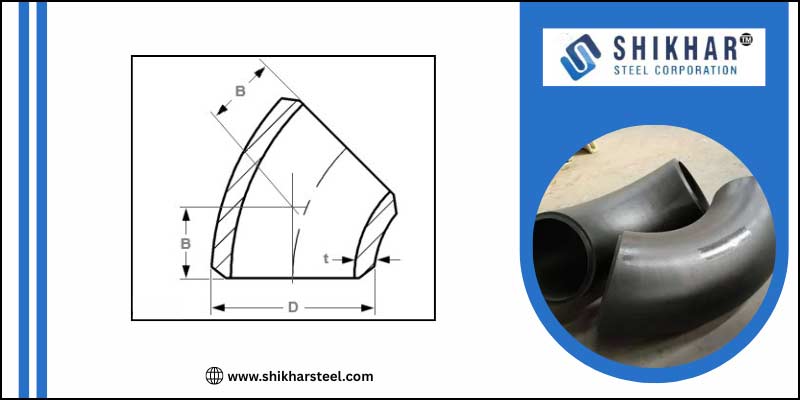

Dimensions of 45 Degree Elbow



Dimensions of 45 Degree Elbow

NPS Outer Daimeter Of (D) 45 deg Center-End
46 1168 727
48 1219 759
44 1118 695
42 1067 660
40 1016 632
30 762 470
38 965 600
36 914 565
34 864 533
32 813 502
28 711 438
26 660 406
24 610 381
22 559 343
20 508 318
18 457 286
16 406.4 254
14 355.6 222
12 323.8 190
10 273 159
8 219.1 127
6 168.3 95
4 114.3 64
5 141.3 79
3 88.9 51
2 60.3 35
1½ 48.3 29
1/2 21.3 16

60 Degree Elbow Dimensions



60 Degree Elbow Dimensions

NPS O.D. (D) 60 deg Center-to-End (A)
20 508 762
18 457 686
16 406.4 610
14 355.6 533
12 323.8 457
10 273 381
8 219.1 305
6 168.3 229
5 141.3 190
3 88.9 114
4 114.3 152
2 60.3 76
1 33.4 38
1/2 21.3 38

Buy Long and Short Radius Elbow in All Sizes and SCH 20 to SCH 180 With PMI Test Reports as per DIN 2605

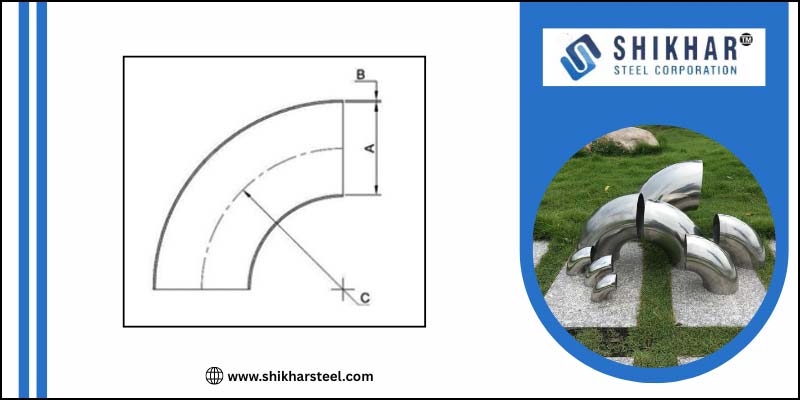

Schedule 20 90 Degree Elbow Dimensions



Schedule 20 90 Degree Elbow Dimensions

Size In Inch (D) Center-end (B) ND Back-face (K) Size (Millmeter) Center-center (O) Radius Types (A)
1/2 15,87 15 47,62 21,34 76,20 38,10
3/4 11,11 20 42,86 26,67 57,15 28,57
1 22,22 25 55,56 33,40 76,20 38,10
1 1/4 25,40 32 69,85 42,16 95,25 47,60
1 1/2 28,57 40 82,55 48,26 114,30 57,15
2 34,92 50 106,40 60,32 152,40 76,20
2 1/2 44,45 65 131,80 73,02 190,50 95,25
3 50,80 80 158,75 88,90 228,60 114,30
3 1/2 57,15 90 184,15 101,60 266,70 133,35
4 63,50 100 209,55 114,30 304,80 152,40
5 79,38 125 261,90 141,30 381,00 190,50
6 95,25 150 312,70 168,27 457,20 228,60
8 127,00 200 414,30 219,07 609,60 304,80
10 158,75 250 517,50 273,05 762,00 381,00
12 190,50 300 619,10 323,85 914,40 457,20
14 222,25 350 711,20 355,60 1066,80 533,40
16 254,00 400 812,80 406,40 1219,20 609,60
18 285,74 450 914,40 457,20 1371,60 685,80
20 317,50 500 1016,00 508,00 1524,00 762,00

Weight Chart of 45 Degree Elbow



NPS Weigth (Kg) Weigth (LBS)
36 240.86 531
30 166.47 367
26 124.74 275
24 107.95 238
22 89.36 197
20 72.57 160
18 57.15 126
16 45.36 100
14 36.29 80
12 28.12 62
10 19.5 43
8 10.43 23
6 5.44 12
5 3.4 7.5
4 2.04 4.5
3 1.19 2.63
2 0.37 0.81
1 0.11 0.25
1/2 0.04 0.09

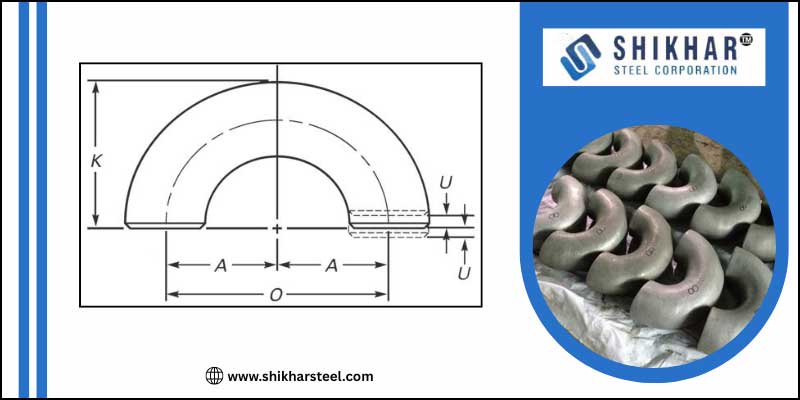

180 Degree Elbow Dimensions



180 Degree Elbow Dimensions

NPS Outside Daimeter D 180° Center to End A
16 406.4 610
14 355.6 533
12 323.8 457
10 273 381
8 219.1 305
6 168.3 229
5 141.3 190
4 114.3 152
2 60.3 76
3 88.9 114
1 33.4 38
1/2 21.3 38
3/4 26.7 38

Weight Chart of ASME B16.9 Elbow



Sizes Approx. Weight (Kilogram)
DN O.D E Degree
inch mm mm mm 45 90
20 500 508 210 28.10 56.20
16 400 419 166 16.40 32.80
5 125 133 52 0.90 1.80
7 175 194 75 1.90 3.80
8 200 219 87 3.00 6.00
18 450 457 189 20.45 40.90
12 300 324 126 8.55 17.10
14 350 368 146 11.30 22.60
3 80 89 34 0.32 0.64
4 100 108 41 0.58 1.16
1 25 30 12 0.03 0.05
2 50 57 22 0.10 0.20
6 150 159 62 1.30 2.60
10 250 267 106 4.44 8.88

EN 10253 Elbow Schedules



Size Of Pipe Wall Thickness Radius
DN O.D t A
inch mm mm mm m
10 250 267 3 255
8 200 219 3 210
7 175 194 3 180
6 150 159 2.5 150
5 125 133 2.5 125
1 25 30 1.5 30
2 50 57 1.5 52.5
3 80 89 2 82.5
4 100 108 2.5 100

Purchase 180 and 45 Degree Elbow at a Discounted Price of 15% to 20%, and Refer Manufacturing Process

Stainless Steel Pipe Elbow Manufacturing Process



  • Receiving inspection
  • Cutting
  • Forming
  • Sizing
  • Heat treatment
  • Shot blasting
  • Cleaning
  • Beveling
  • Coating

Short Radius Elbow Advantages



  • Smooth Internal Flow
  • Erosion Resistance
  • Space Efficiency

Check Butt Weld Elbow Dimensions and Welded Elbow Weight of according to ASME B16.9

Weight Chart of Welded Elbow



NPS Weight (kg) Weight (LBS)
36 240.86 531
30 166.47 367
26 124.74 275
24 107.95 238
22 89.36 197
20 72.57 160
18 57.15 126
16 45.36 100
14 36.29 80
10 19.5 43
12 28.12 62

Stainless Steel Pipe Elbow Application

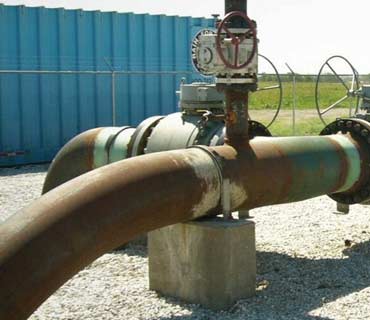

Connecting pipelines

Connecting pipelines

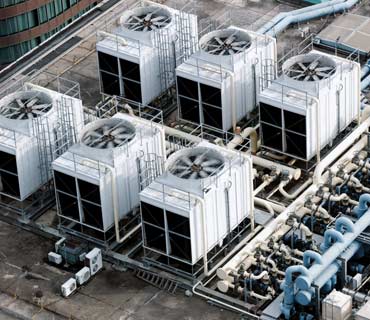

High-performance Systems

High-performance Systems

Industrial piping

Industrial piping

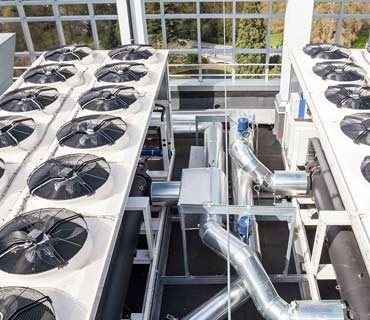

HVAC Systems

HVAC Systems

Reducing Elbow Testing



Flaring Test

Flaring Test

SSC Cracking Test

SSC Cracking Test

Dye Penetrant Test

Dye Penetrant Test


Steel Elbows Standards



Standards
  • MSS SP-75
  • EN 10253-2
  • EN 10253-2 Type A
  • EN 10253-4
  • JIS B2312
  • EN 10253-2 Type B
  • BS 4825


Types of Stainless Steel Pipe Elbow

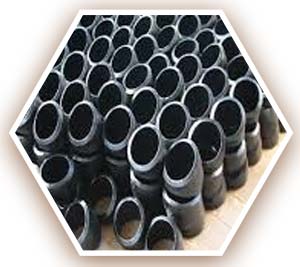

22 Degree Elbow

22 Degree Elbow

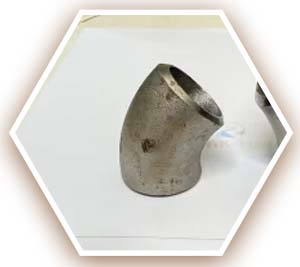

30 Degree Elbow

30 Degree Elbow

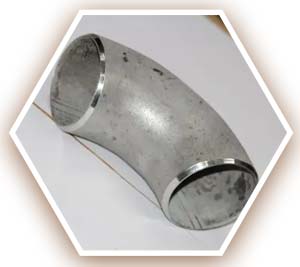

45 Degree Elbow

45 Degree Elbow

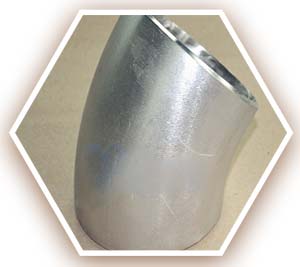

60 Degree Elbow

60 Degree Elbow

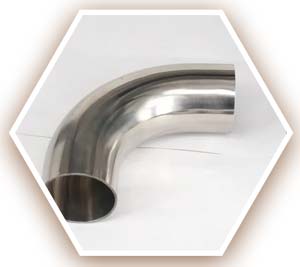

90 Degree Elbow

90 Degree Elbow

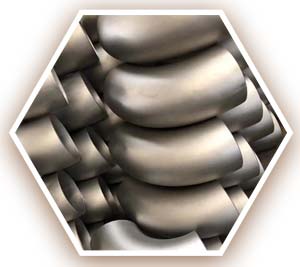

120 Degree Elbow

120 Degree Elbow

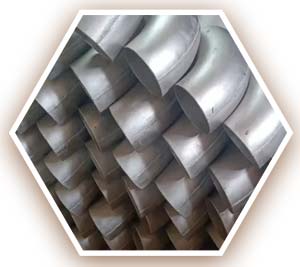

160 Degree Elbow

160 Degree Elbow

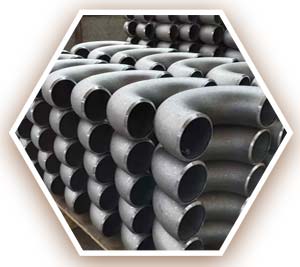

180 Degree Elbow

180 Degree Elbow

Long Radius Elbow

Long Radius Elbow

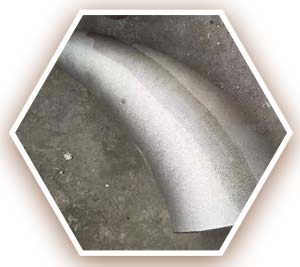

Reducing Elbow

Reducing Elbow

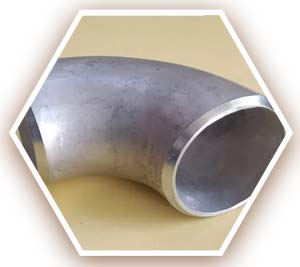

Short Radius Elbow

Short Radius Elbow

Butt Weld Elbow

Butt Weld Elbow

Seamless Elbow

Seamless Elbow

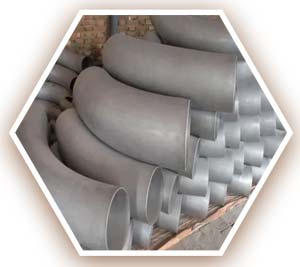

Welded Elbow

Welded Elbow

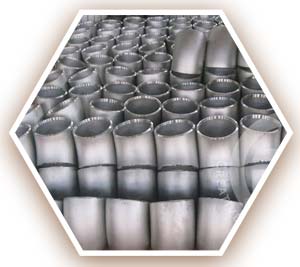

45 Degree Long Radius Elbow

45 Degree Long Radius Elbow

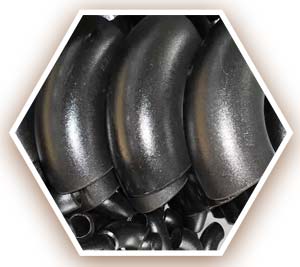

90 Degree Short Radius Elbow

90 Degree Short Radius Elbow

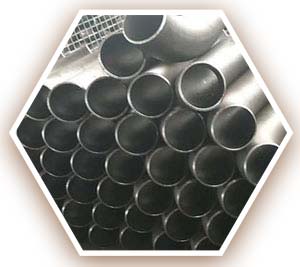

90 Degree Long Radius Elbow

90 Degree Long Radius Elbow

90 Degree Short Radius Elbow

90 Degree Short Radius Elbow

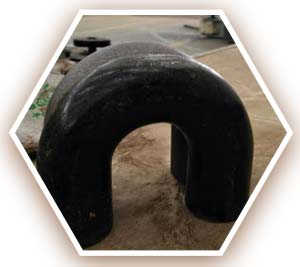

180 Degree Long Radius Elbow

180 Degree Long Radius Elbow

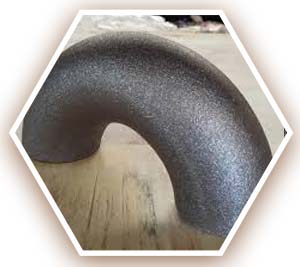

180 Degree Short Radius Elbow

180 Degree Short Radius Elbow

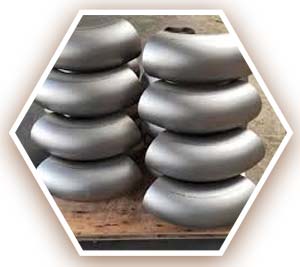

1.5D Elbow

1.5D Elbow

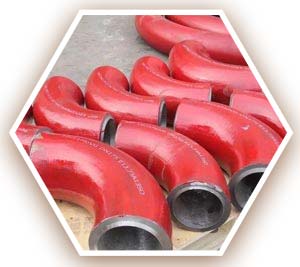

2D Elbow
