WPHY 70 Fittings

Sizes in Stock

Sizes in Stock

1/2" to 48"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 60"

Material

Material

WPHY 70

Surface Coating

Surface Coating

Epoxy Coated

Use

Use

Chemical Processing

Feature

Feature

Excellent Toughness

Material Life

Material Life

4 Years

Standard

Standard

MSS-SP-75

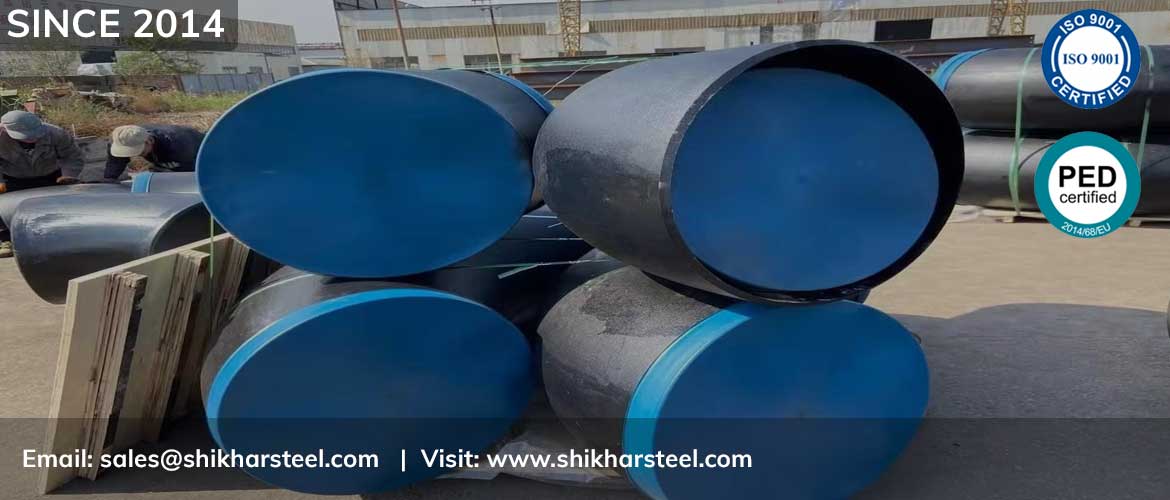

WPHY 70 fittings Overview

Table Of Content

ASTM A860 WPHY 70 Elbow Manufacturer in Custom Sizes


WPHY 70 Fittings Specification



Manufacturing Size Range

WPHY 70 Pipe Fittings Manufacturing Sizes

  • Seamless : 1/2" - 24"
  • Welded : 24" - 96"
  • Buttweld : 1/2" - 36"
  • Contact WPHY 70 Fittings Manufacturer in India For Above 50"
Thickness

ASTM A860 WPHY 70 Fittings Thickness

  • SCH 10/ 20/ 40/ 60/ 80
  • SCH 160/ 180/ SCH XXS
  • SCH 90/ 100/ 120/ 140


Advantages

MSS SP 75 WPHY 70 Buttweld Fittings Advantages

  • Low carbon content
  • Used in corrosive environments
  • Improved anti-corrosion
Ends Method

WPHY 70 Welded Fittings Ends Method

  • Plain Bevel
  • Compound Bevel
  • Bevelled
Application

ASTM A860 Gr WPHY 70 Fittings Application

  • Pharmaceuticals
  • Chemical Equipment
  • Petrochemicals
Packaging

API 5L X70 Seamless Fittings Packaging

  • Wooden Cases
  • Wooden Pallet
  • Carton Box
Logistics

WPHY 70 MSS SP75 Butt Weld Fittings Logistics

  • Azerbaijan = 30 - 46 day
  • Turkey = 22 days
  • Kuwait = 11 day
Manufacturing Process

ASTM A860 WPHY 70 Buttweld Pipe Fittings Manufacturing Process

  • CNC Machined
  • Cold forging
  • Hot forging
Standard

WPHY 70 Elbow Standard

  • ASME B16.9
  • MSS SP-75
  • DIN/ JIS/ EN/ ISO

Heat Treatment

ASTM A860 WPHY 70 Elbow Heat Treatment

  • Quenching
  • Tempering
  • Stress Relieving
Process

MSS SP-75 (WPHY 70) Reducer Process

  • Bending
  • Cutting
  • Welding
Types

Types of A860 WPHY 70 Fittings

  • End Cap/ Stub End
  • Elbow/ Tee/ Reducer
  • Pipe Bend/ Pipe Cross

Method

ASTM A860 WPHY 70 Elbow Method

  • Buttweld (BW)
  • Welded (Weld)
  • Seamless (SMLS)

Sour Service

Sour Service of A860 Garde WPHY 70 Tee

  • NACE TM-0284
  • NACE MR0175
  • NACE MR0103
Marking

MSS SP 75 WPHY 70 Elbow Marking

  • Grade & Material
  • Size & Schedule
  • Standard & Heat No.
  • Manufacturers Name
Bending Methods

Bending Methods of Carbon Steel WPHY 70 Seamless Pipe Bend

  • Rotary draw bending
  • Ram type bending
  • Hot induction bending
Radius

A860 WPHY 70 Elbow Radius

  • 3D/ 4D/ 5D
  • 12D/ 22D
  • 6D/ 8D/ 10D


Origin

A860 Grade WPHY 70 Buttweld Reducer Origin

  • American
  • Janpanese
  • European
  • Korean
Value Added Services

API 5L X70 End Cap Value Added Services

  • Cutting
  • Welding
  • Bending
Machinery List

WPHY 70 Pipe Fittings Machinery List

  • Beveling
  • Hydraulic Press 150 Tons Capacity
  • Hot and Cold Forming


Supplied in August 10, 2024



Project in Zimbabwe

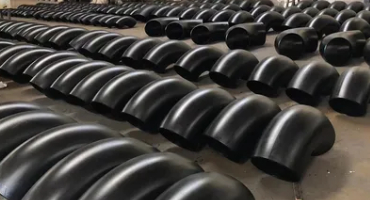

  • 4 1/2, SCH 50, 60 Deg Elbow
  • Woodside Energy
  • Mia Yellagonga Perth, Western Australia

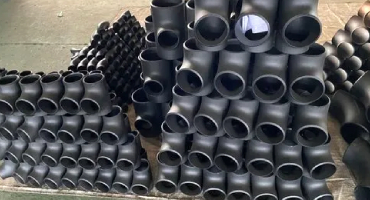

Project in Qatar
  • 3 1/2, SCH 40, Tee
  • OMV
  • Vienna, Austria

Buy 100% Tested MSS SP 75 WPHY 70 Tee for High Temperature Applications


ASTM A860 WPHY 70 Fittings Applications



  • Oil and Gas
  • Pharmaceuticals
  • Chemical Equipment
  • Power Generation
  • Sea Water Equipment
  • Heat Exchangers

Supplier of High Yield WPHY 70 Buttweld Reducer From Japanese Sourced Raw Material in India

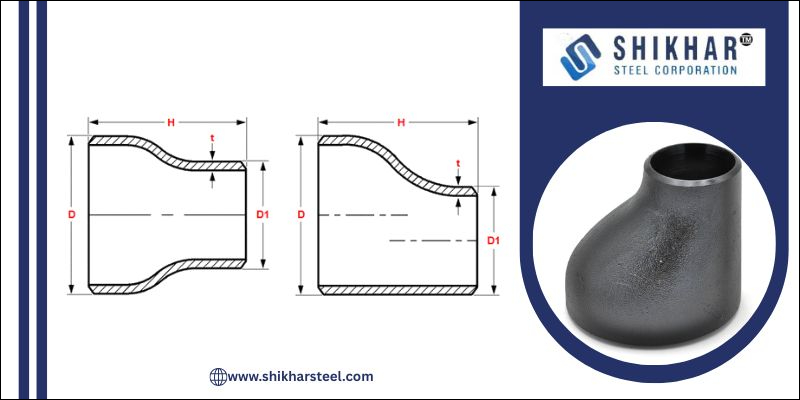

Dimension of Carbon Steel X70 Butt Weld Reducers


Dimension of Carbon Steel X70 Butt Weld Reducers

NPS O.D.
D		 Length
H		 O.D.
D1
3/4 - 1/2 26.7 38 21.3
1 - 3/4 33.4 51 26.7
2 - 3/4 60.3 76 26.7
2.1/2 - 2 73 89 60.3
3 - 1.1/4 88.9 89 42.2
3.1/2 - 3 101.6 102 88.9
4 - 1.1/2 114.3 102 48.3
5 - 2 141.3 127 60.3
6 - 2.1/2 168.3 140 73
6 - 5 168.3 140 141.3
8 - 6 219.1 152 168.3
10 - 4 273 178 114.3
12 - 5 323.9 203 141.3
12 - 10 323.9 203 273
14 - 8 355.6 330 219.1
16 - 8 406.4 356 219
16 - 12 406.4 356 323.9
18 - 10 457 381 273
18 - 12 457 381 323.9
20 - 14 508 508 355.6
22 - 14 559 508 355.6
24 - 16 610 508 406.4
26 - 18 660 610 457
28 - 18 711 610 457
30 - 20 762 610 508
32 - 24 813 610 610
32 - 30 813 610 762
34 - 30 864 610 762
34 - 32 864 610 813
36 - 30 914 610 762
38 - 28 965 610 711
40 - 38 1016 610 965

Refer Tensile and Chemical Requirements of API 5L X70 Seamless Pipe Bend as per ASME B16.9

WPHY 70 Elbow Chemical Composition



C

Carbon

0.20

Mn

Manganese

1.00 - 1.45

P

Phosphorus

0.03

Si

Silicon

0.15 - 0.40

Ni

Nickel

0.50

Cr

Chromium

0.30

Mo

Molybdenum

1.80%

Cu

Copper

0.35

Ti

Titanium

0.05

V

Vanadium

0.10

Cb

Niobium

0.10

Al

Aluminum

0.06



Check Updated WPHY 70 Carbon Steel Pipe End Cap Weight With Custom Packaging

Weight Chart of WPHY 70 Welded Fittings



NPS Weight(kg)
Sch STD Sch160 SchXS SchXXS
1/2 .05 - .05 -
3/4 .05 - .05 -
1 .09 0.2 .09 0.45
1 1/4 .14 0.2 .18 0.68
1 1/2 .18 0.3 .23 1.1
2 .27 0.6 .36 1.4
2 1/2 .41 0.8 .45 1.8
3 .64 1.3 .91 2.7
3 1/2 1.0 - 1.3 3.4
4 1.4 2.7 1.6 4.1
5 2.0 4.5 2.6 5.1

A860 WPHY 70 End Cap Mechanical Properties



Tensile Strength
Tensile Strength
550-725 MPa
Tensile Strength
Yield Strength
485 MPa (Min)

Temperature of MSS SP-75 (WPHY 70) Reducer



Temperature Allowable Stresses
-50~100°F 27.3 ksi
300°F 27.3 ksi
200°F 27.3 ksi
500°F -
400°F 27.3 ksi

ASTM A860 WPHY 70 Elbow Surface Coatings



  • Fusion-Bonded Epoxy (FBE)
  • PE/PTFE
  • Antirust Paint
  • Three-Layer Polyethylene (3LPE)
  • Zinc Plating
  • Oil Black Paint

Temperature Limit Of MSS SP 75 WPHY 70 Elbow



High Temperature Limit -50°F and 500°F

A860 WPHY 70 Tee Testing



Hydrostatic Test

Hydrostatic Test

Flattening Test

Flattening Test

Radiography Test

Radiography Test


Impact Test Temperature of API 5L X70 End Cap



Test Temperature
Impact Test - 46°C

WPHY 70 Pipe Fittings Characteristics



  • High Strength
  • Corrosion Resistance
  • High Pressure
  • Suitable for Harsh Environments
  • High Temperature

  • Excellent Toughness


Types of ASTM A860 WPHY 70 Elbow

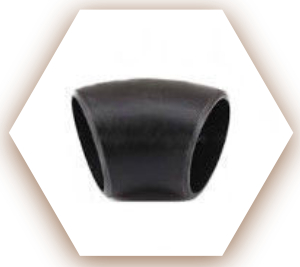

ASTM A860 WPHY 70 15 Deg

ASTM A860 WPHY 70 15 Deg

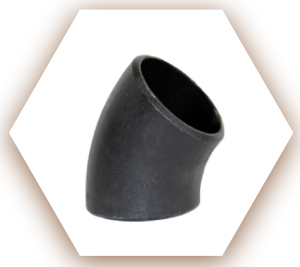

WPHY 70 30 Deg

WPHY 70 30 Deg

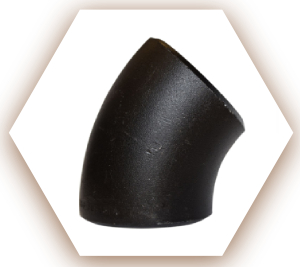

MSS SP 75 WPHY 70 45 Deg

MSS SP 75 WPHY 70 45 Deg

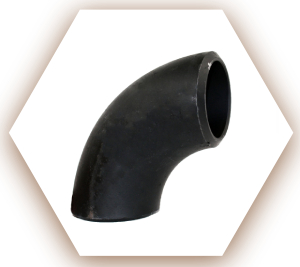

WPHY 70 Carbon Steel 60 Deg

WPHY 70 Carbon Steel 60 Deg

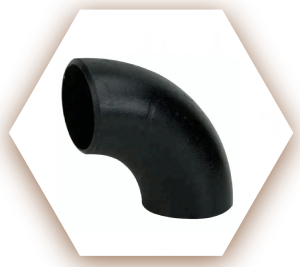

A860 WPHY 70 90 Deg

A860 WPHY 70 90 Deg

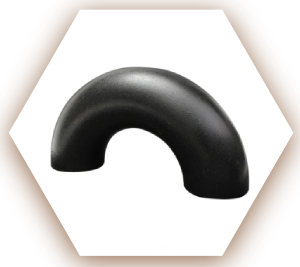

ASTM A860 Gr WPHY 70 180 Deg

ASTM A860 Gr WPHY 70 180 Deg

API 5L X70 Long Radius Elbow

API 5L X70 Long Radius Elbow

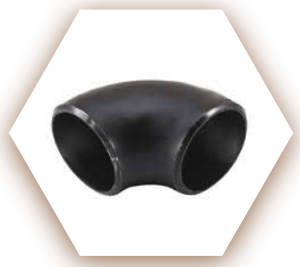

Carbon Steel X70 Short Radius Elbow

Carbon Steel X70 Short Radius Elbow

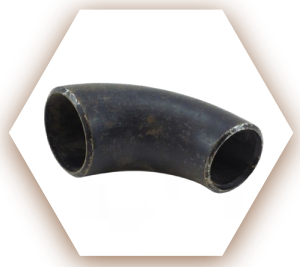

WPHY 70 MSS SP75 Reducing Elbow

WPHY 70 MSS SP75 Reducing Elbow


Types of WPHY 70 Tee

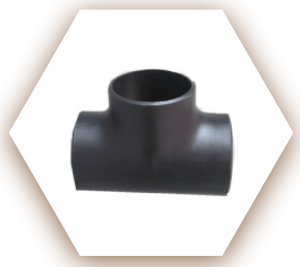

Carbon Steel 70000 PSI Equal Tee

Carbon Steel 70000 PSI Equal Tee

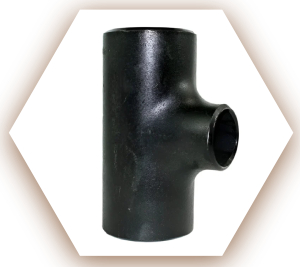

A860 WPHY 70 Unequal Tee

A860 WPHY 70 Unequal Tee

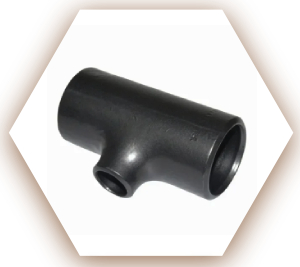

High Yield WPHY 70 Reducing Tee

High Yield WPHY 70 Reducing Tee

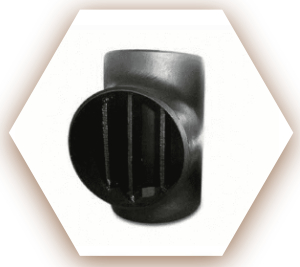

A860 Gr WPHY 70 Barred Tee

A860 Gr WPHY 70 Barred Tee

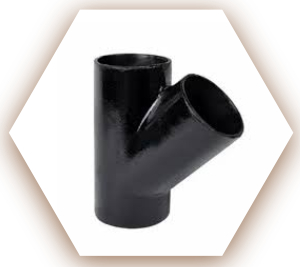

MSS SP-75 (WPHY 70) Y Type Tee

MSS SP-75 (WPHY 70) Y Type Tee

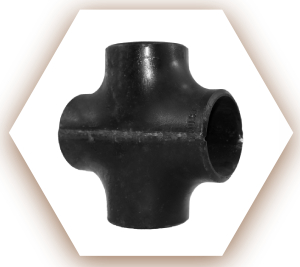

A860-WPHY 70 Cross Tee

A860-WPHY 70 Cross Tee


Types of A860 WPHY 70 Reducer



ASTM A860 WPHY 70 Concentric Reducer

ASTM A860 WPHY 70 Concentric Reducer

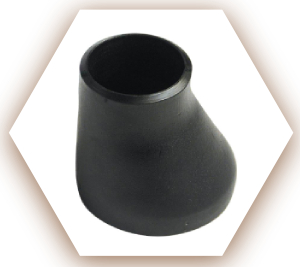

WPHY 70 Eccentric Reducer

WPHY 70 Eccentric Reducer


Types of WPHY 70 Carbon Steel Bend



MSS SP 75 WPHY 70 1D Bend

MSS SP 75 WPHY 70 1D Bend

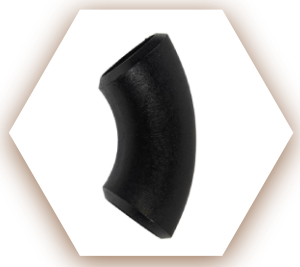

WPHY 70 Carbon Steel 1.5D Bend

WPHY 70 Carbon Steel 1.5D Bend

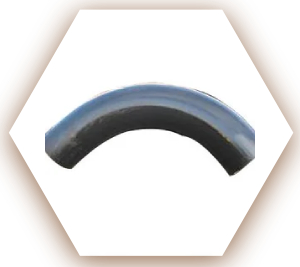

A860 WPHY 70 2D Bend

A860 WPHY 70 2D Bend

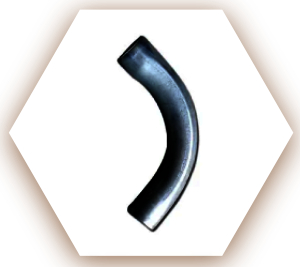

ASTM A860 Gr WPHY 70 2.5D Bend

ASTM A860 Gr WPHY 70 2.5D Bend

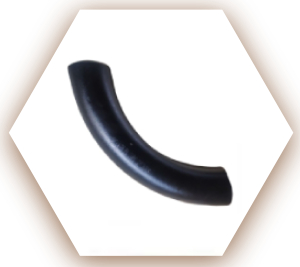

API 5L X70 3D Bend

API 5L X70 3D Bend

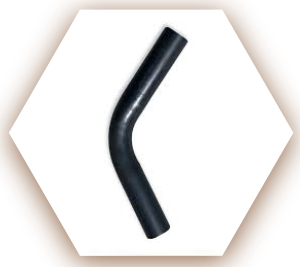

Carbon Steel X70 45 Deg Pipe Bend

Carbon Steel X70 45 Deg Pipe Bend

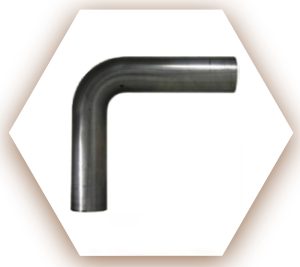

WPHY 70 MSS SP75 90 Deg Pipe Bend

WPHY 70 MSS SP75 90 Deg Pipe Bend

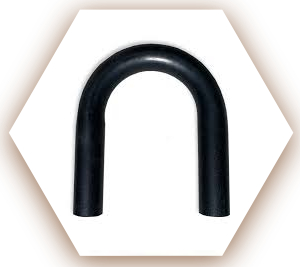

Carbon Steel 70000 PSI 180 Deg Pipe Bend

Carbon Steel 70000 PSI 180 Deg Pipe Bend

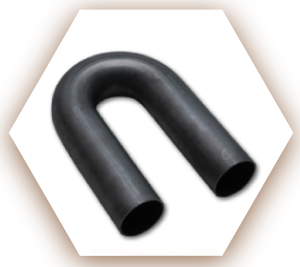

A860 WPHY 70 U Bend

A860 WPHY 70 U Bend


Types of MSS SP 75 WPHY 70 Stub End

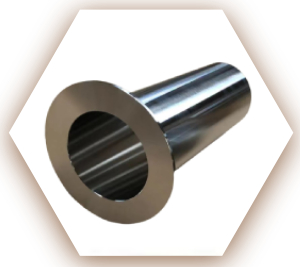

High Yield WPHY 70 Long Stub End

High Yield WPHY 70 Long Stub End

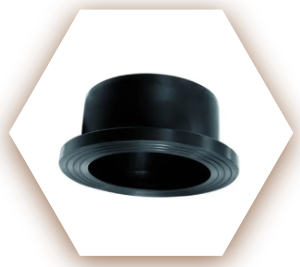

A860 Gr WPHY 70 Short Stub End

A860 Gr WPHY 70 Short Stub End

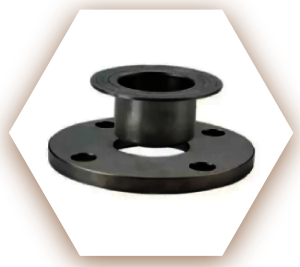

MSS SP-75 (WPHY 70) Lap Joint Stub End

MSS SP-75 (WPHY 70) Lap Joint Stub End






Material

Types

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
