Incoloy 800 Pipe Fittings

Sizes in Stock

Sizes in Stock

1/2" to 52"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 40"

UNS Designation

UNS Designation

UNS N08811

Werkstoff Number

Werkstoff Number

WNR 1.4859

Chromium Content

Chromium Content

19% - 23%

Heat Treatment

Heat Treatment

1149°C (2100°F)

Density

Density

7.94 g/cm³

Standard

Standard

ASME B16.9

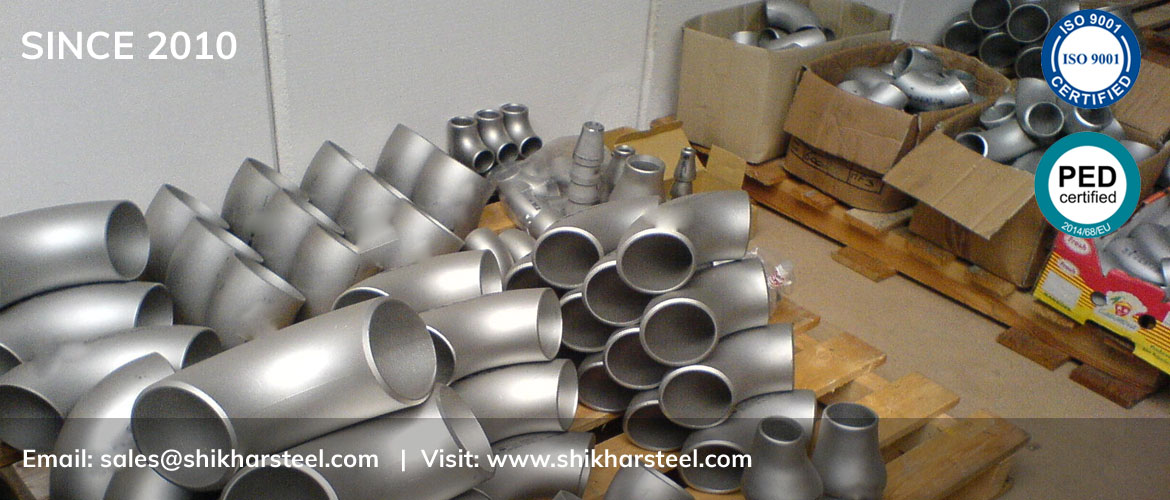

Incoloy 800 Pipe Fittings Overview

Table Of Content

Alloy 800HT Elbow Manufacturer in India Offering Custom Specification


Incoloy 800 Pipe Fittings Specification



Manufacturing Size Range

Incoloy 800 Fittings Manufacturing Sizes

  • Welded : 24" - 96"
  • Seamless : 1/2" - 24"
  • Buttweld : 1/2" - 36"
Thickness

Thickness of Alloy 800 Fittings

  • SCH 10/ 20/ 40/ 60/ 80
  • SCH 90/ 100/ 120/ 140
  • SCH 160/ 180/ SCH XXS

Advantages

Incoloy 800 Buttweld Fittings Advantages

  • Longer Services Life
  • Corrosive Resistance
  • Better Weldability
Ends Method

Ends Method of Incoloy Pipe Fittings

  • Plain Bevel
  • Bevelled
  • Compound Bevel

Application

Incoloy 800 Pipe Fittings Application

  • Power Generation
  • Oil & Gas
  • Petrochemical

Packaging

Packaging for Incoloy Butt Weld Fittings

  • Wooden Cases
  • Wooden Pallet
  • Carton Box
Logistics

Incoloy 800H Fittings Logistics

  • Azerbaijan = 30 - 46 day
  • Kuwait = 11 day
  • Turkey = 22 days

Manufacturing Process

Manufacturing Process of Incoloy 800HT Fittings

  • CNC Machined
  • Hot forging
  • Cold forging
Standard

Incoloy Fitttings Standard

  • ASME B16.28
  • ASME B16.9
  • DIN/ JIS/ EN/ ISO
Temperature Range

Temperature Range for Inconel 800H Buttweld Fittings

  • 593°C

Process

ASME SB366 N08811 Weld Fittings Process

  • Bending
  • Welding
  • Cutting
Types

Types of Incoloy Fitttings

  • End Cap/ Stub End
  • Pipe Bend/ Pipe Cross
  • Elbow/ Tee/ Reducer

Method

Incoloy 800 Fittings Method

  • Buttweld (BW)
  • Seamless (SMLS)
  • Welded (Weld)
Sour Service

Sour Service of Alloy 800 Fittings

  • NACE MR0175
  • NACE TM-0284
  • NACE MR0103
Marking

Incoloy 800 Buttweld Fittings Marking

  • Size & Schedule
  • Grade & Material
  • Manufacturers Name
  • Standard & Heat No.
Bending Methods

Bending Methods of WNR 1.4876 Pipe Bend

  • Rotary draw bending
  • Hot induction bending
  • Ram type bending

Radius

ASTM B366 UNS N08800 Elbow Radius

  • 3D/ 4D/ 5D
  • 6D/ 8D/ 10D
  • 12D/ 22D
Origin

Origin of Incoloy 800 Pipe Fittings

  • Janpanese
  • American
  • Korean
  • European
Value Added Services

Incoloy 800HT Fittings Value Added Services

  • Cutting
  • Bending
  • Welding
Machinery List

Machinery List of Inconel 800H Buttweld Fittings

  • Beveling
  • Hot and Cold Forming
  • Hydraulic Press 150 Tons Capacity

Shipping Time and Location

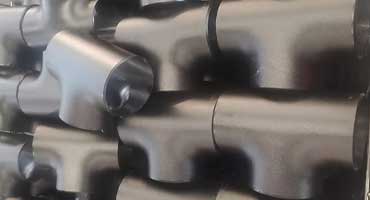

Project in Wilmington, U.S.
  • 6 Inch, SCH 60, Unequal Tee
  • DuPont
  • Wilmington, U.S.
Project in London England
  • 40", SCH 80, Long Stub End
  • Shell plc
  • London, England

Buy ASTM B366 UNS N08800 Tee ideal for Mild Acids and Salt Water Environment


Application of Incoloy 800 Fittings



Oil & Gas Industry

Oil & Gas Industry

Water Pipelines

Water Pipelines

Automobile

Automobile

Petrochemical

Petrochemical


Incoloy 800 Buttweld Fittings Annealing Temperature



Grade Annealing Temperature
Min. Max.
UNS N08800 Pipe Fittings 982°C 1121°C


Check Ready Stock of Nickel Alloy 800 Reducer in Custom Sizes and Weight Chart as per ASME B16.9

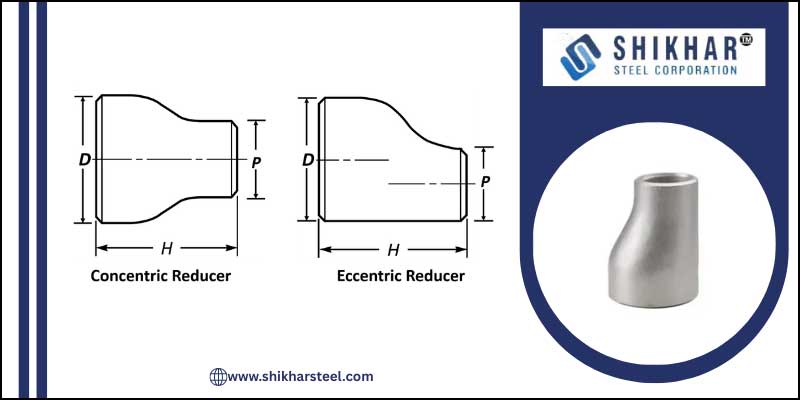

Check Available Sizes for Incoloy 800 Pipe Fittings


Check Available Sizes for Incoloy 800 Pipe Fittings

Outside Diameter Nominal Pipe Sizes (Inch) End To End
P D H
17.1 26.7 3/4 x 3/8 38
21.3 33.4 1 x 1/2 51
26.7 42.2 1 1/4 x 3/4 51
42.2 48.3 1 1/2 x 1 1/2 64
26.7 48.3 1 1/2 x 3/4 64
48.2 60.3 2 x 1 1/2 76
33.4 60.3 2 x 1 76
60.3 73 2 1/2 x 2 89
42.2 73 2 1/2 x 1 1/4 89
73 88.9 3 x 2 1/2 89
48.3 88.9 3 x 1 1/2 89
88.9 101.6 3 1/2 x 3 102
60.3 101.6 3 1/2 x 2 102
42.2 101.6 3 1/2 x 1 1/4 102
88.9 114.3 4 x 3 102
60.3 114.3 4 x 2 102
114.3 141.3 5 x 4 127
88.9 141.3 5 x 3 127
60.3 141.3 5 x 2 127
114.3 168.3 6 x 4 140
88.9 168.3 6 x 3 140
168.3 219.1 8 x 6 152
114.3 219.1 8 x 4 152
219.1 273.1 10 x 8 178
141.3 273.1 10 x 5 178
273.1 323.9 12 x 10 203
168.3 323.9 12 x 6 203
323.9 355.6 14 x 12 330
219.1 355.6 14 x 8 330
355.6 406.4 16 x 14 356
273.1 406.4 16 x 10 356
168.3 406.4 16 x 6 356
355.6 457 18 x 14 381
273.1 457 18 x 10 381
457 508 20 x 18 508
355.6 508 20 x 14 508
273.1 508 20 x 10 508
508 559 22 x 20 508
406.4 559 22 x 16 508
323.9 559 22 x 12 508
559 610 24 x 22 508
457 610 24 x 18 508
355.6 610 24 x 14 508
273.1 610 24 x 10 508


Incoloy Butt Weld Fittings Weight Chart



Outside Diameter (mm) Nominal Pipe Size Weight (kg)
SCH 40S SCH 10S SCH 5S SCH 80S
219.1 273.1 8" 10" 9.58 4.21 3.59 14.22
114.3 141.3 4" 5" 2.50 1.21 1.107 3.769
60.3 114.3 2" 4" 1.27 0.656 0.464 1.780
88.9 114.3 3" 4" 1.45 0.748 0.528 2.129
88.9 168.3 3" 6" 3.04 1.50 1.24 5.03
141.3 168.3 5" 6" 3.57 1.75 1.45 5.71
141.3 219.1 5" 8" 5.40 2.70 1.90 8.83
141.3 273.1 5" 10" 8.21 3.30 2.82 13.00
219.1 323.9 8" 12" 13.70 6.11 5.45 19.07
21.3 33.4 ½" 1" 0.105 0.089 0.060 0.163
33.4 42.2 1" 1 ¼" 0.157 0.125 0.066 0.245
26.7 48.3 ¾" 1 ½" 0.201 0.156 0.095 0.294
42.2 48.3 1 ¼" 1 ½" 0.263 0.195 0.118 0.331
33.4 60.3 1" 2" 0.322 0.237 0.143 0.458
48.3 60.3 1 ½" 2" 0.372 0.273 0.164 0.544
42.2 73.0 1 ¼" 2 ½" 0.670 0.394 0.276 0.825
60.3 73.0 2" 2 ½" 0.724 0.432 0.307 0.938
42.2 88.9 1 ¼" 3" 0.775 0.430 0.299 1.037
60.3 88.9 2" 3" 0.846 0.478 0.339 1.178
48.3 114.3 1 ½" 4" 1.241 0.630 0.435 2.730
73.0 114.3 2 ½" 4" 1.37 0.706 0.499 2.007
88.9 141.3 3" 5" 2.27 1.2 0.991 3.547
73.0 168.3 2 ½" 6" 2.74 1.35 1.12 4.51
114.3 168.3 4" 6" 3.30 1.62 1.34 5.44
114.3 219.1 4" 8" 5.10 2.56 1.80 8.43
168.3 219.1 6" 8" 5.71 2.85 2.01 9.24
168.3 273.1 6" 10" 8.78 3.87 3.30 13.50
168.3 323.9 6" 12" 12.40 5.73 4.97 18.39
273.1 323.9 10" 12" 14.70 6.55 5.83 19.48

Buy Directly From WNR 1.4876 Pipe Bend Supplier in Mumbai at Competitive Prices


Most Common Types Of Alloy 800HT Elbow



Incoloy 15 Deg Elbow

Incoloy 15 Deg Elbow

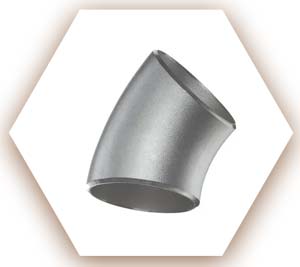

Inconel 800H 30 Deg Elbow

Inconel 800H 30 Deg Elbow

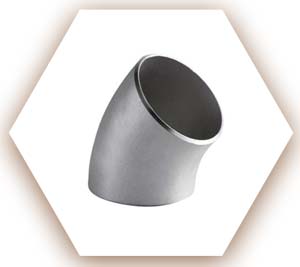

UNS N08811 45 Deg Elbow

UNS N08811 45 Deg Elbow

Incoloy 800HT 60 Deg Elbow

Incoloy 800HT 60 Deg Elbow

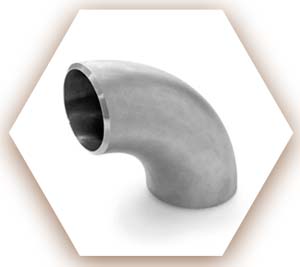

WNR 1.4859 90 Deg Elbow

WNR 1.4859 90 Deg Elbow

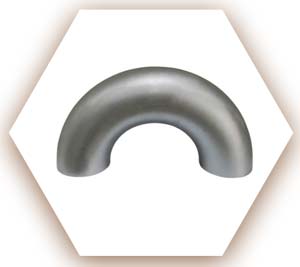

Alloy 800HT 180 Deg Elbow

Alloy 800HT 180 Deg Elbow

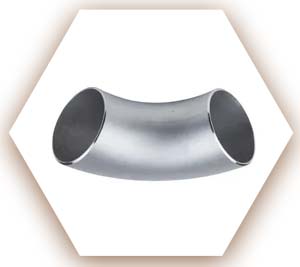

Nickel 800 Long Radius Elbow

Nickel 800 Long Radius Elbow

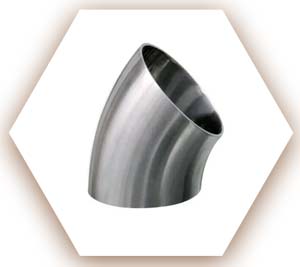

Nickel Alloy 800 Short Radius Elbow

Nickel Alloy 800 Short Radius Elbow

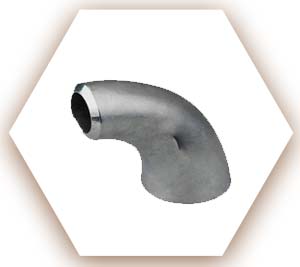

Incoloy Alloy 800 Reducing Elbow

Incoloy Alloy 800 Reducing Elbow



Popular Forms for ASTM B366 UNS N08800 Tee



Werkstoff Nr 1.4876 Equal Tee

Werkstoff Nr 1.4876 Equal Tee

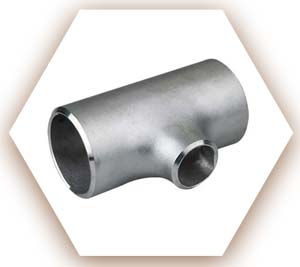

ASTM B366 N08800 Unequal Tee

ASTM B366 N08800 Unequal Tee

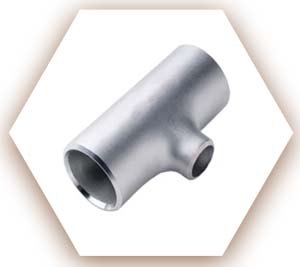

800 Nickel Alloy Reducing Tee

800 Nickel Alloy Reducing Tee

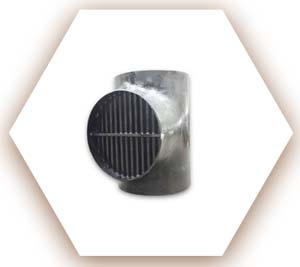

Ni 800 Barred Tee

Ni 800 Barred Tee

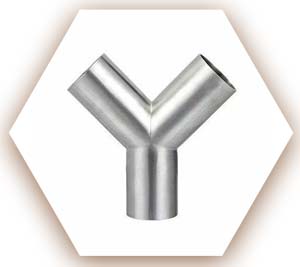

Incoloy 800H Y Type Tee

Incoloy 800H Y Type Tee

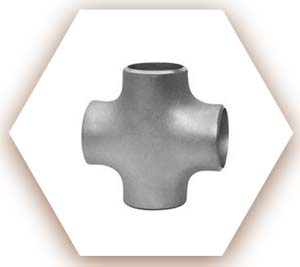

ASME SB366 N08811 Cross Tee

ASME SB366 N08811 Cross Tee


Nickel Alloy 800 Reducer Available Types

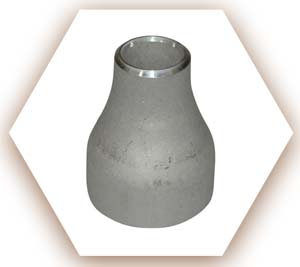

Nickel 800H Concentric Reducer

Nickel 800H Concentric Reducer

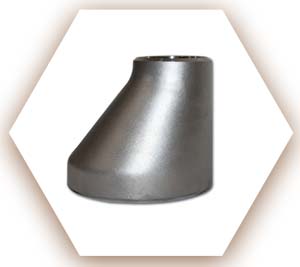

Alloy 800 Eccentric Reducer

Alloy 800 Eccentric Reducer


Custom Types Of WNR 1.4876 Pipe Bend

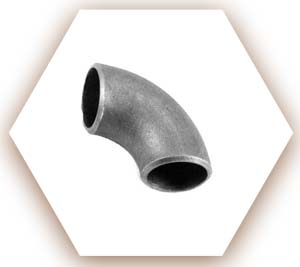

Incoloy 1D Bend

Incoloy 1D Bend

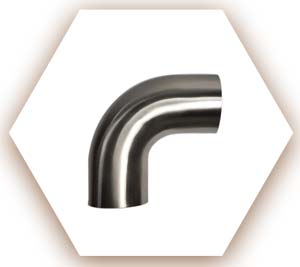

Inconel 800H 1.5D Bend

Inconel 800H 1.5D Bend

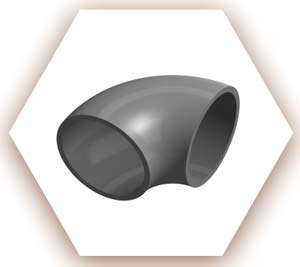

UNS N08811 2D Bend

UNS N08811 2D Bend

Incoloy 800HT 2.5D Bend

Incoloy 800HT 2.5D Bend

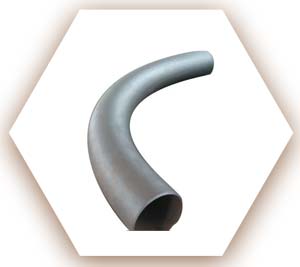

WNR 1.4859 3D Bend

WNR 1.4859 3D Bend

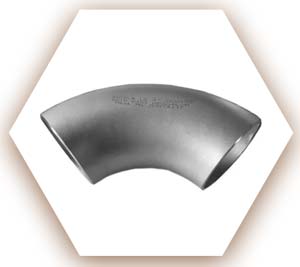

Alloy 800HT 45 Deg Pipe Bend

Alloy 800HT 45 Deg Pipe Bend

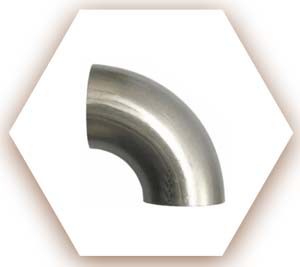

Nickel 800 90 Deg Pipe Bend

Nickel 800 90 Deg Pipe Bend

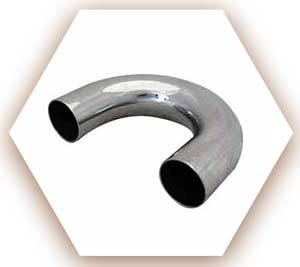

Nickel Alloy 800 180 Deg Pipe Bend

Nickel Alloy 800 180 Deg Pipe Bend

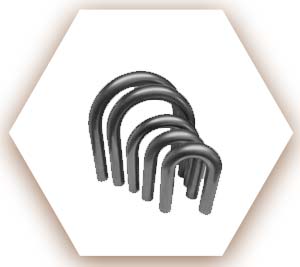

Incoloy Alloy 800 U Bend

Incoloy Alloy 800 U Bend


Inconel 800HT Stub End Types

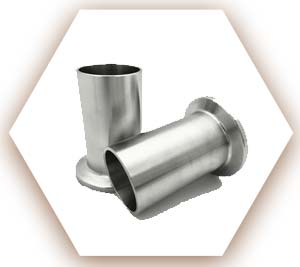

Werkstoff Nr 1.4876 Long Stub End

Werkstoff Nr 1.4876 Long Stub End

ASTM B366 N08800 Short Stub End

ASTM B366 N08800 Short Stub End

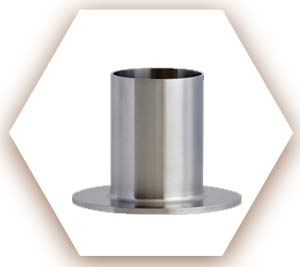

800 Nickel Alloy Lap Joint Stub End

800 Nickel Alloy Lap Joint Stub End


Advantages of Inconel 800H Buttweld Fittings



  • Non Magnetic
  • Superior Surface Finish
  • Perfect Weld
  • Highly Tolerance
  • Ductility & Strength
  • Lower Thermal Expansion

Check Online Nickel 800H End Cap Dimensions and Tensile Strength with Temperature

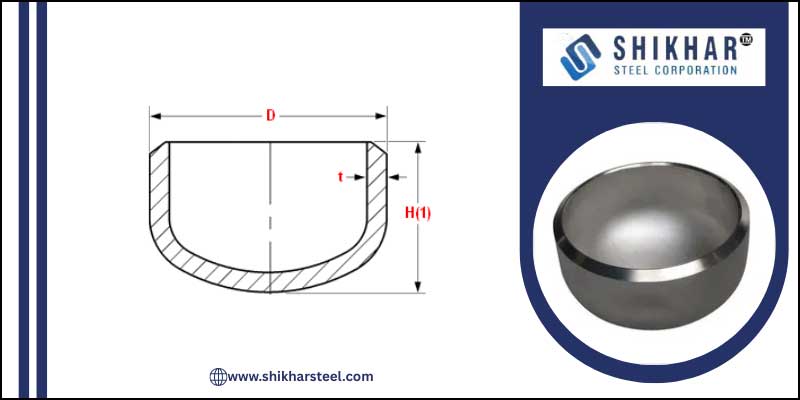

Nickel 800H End Cap Dimensions Chart


Nickel 800H End Cap Dimensions Chart

Outside Diameter (O.D.) D Nominal Pipe Sizes (Inch) Lenght H(1) Lenght (H) Wall Thck.
406.4 16 203 178 12.70
48.3 1.1/2 38 38 5.08
21.3 1/2 25 25 4.57
33.4 1 38 38 4.57
73 2.1/2 51 38 7.11
101.6 3.1/2 76 64 8.13
141.3 5 89 76 9.65
219.1 8 127 102 12.70
323.8 12 178 152 12.70
508 20 254 229 12.70
610 24 305 267 12.70
26.7 3/4 25 25 3.81
42.2 1.1/4 38 38 4.83
60.3 2 44 38 5.59
88.9 3 64 51 7.62
114.3 4 76 64 8.64
168.3 6 102 89 10.92
273 10 152 127 12.70
355.6 14 191 165 12.70
457 18 229 203 12.70
559 22 254 254 12.70

Tensile Strength with Temperature for Inconel 800H Buttweld Fittings



Temperature Tensile Strength
°F °C Ksi MPa
1000 540 62.7 432
80 27 77.8 536
1300 705 47.7 329
800 425 67.5 465
1200 650 54.8 378
1400 760 34.2 236

ASTM B366 UNS N08800 Elbow Chemical Composition



Element Grades
800H 800HT 800
Si 1.00 max 1.00 max 1.00 max
C 0.05 - 0.10 0.06 - 0.10 0.10 max
Cu 0.75 max 0.75 max 0.75 max
Ni 30.00 - 35.00 30.00 - 35.00 30.00 - 35.00
Al 0.15 - 0.60 0.15 - 0.60 0.15 - 0.60
Mn 1.50 max 1.50 max 1.50 max
S 0.015 max 0.015 max 0.015 max
Fe 39.50 min 39.50 min 39.50 min
Cr 19.00 - 23.00 19.00 - 23.00 19.00 - 23.00
Ti 0.15 - 0.60 0.15 - 0.60 0.15 - 0.60

Testing Requirements of Incoloy 800 Buttweld Fittings



Micro Test

Micro Test

Hardness Test

Hardness Test

Pitting Resistance Test

Pitting Resistance Test

Flaring Test

Flaring Test

SSC Cracking Test

SSC Cracking Test

Dye Penetrant Test

Dye Penetrant Test


ASME SB366 N08811 Weld Fittings Mechanical Properties



Element Incoloy 800 Pipe Fittings
Elongation 30%
Yield Strength (0.2%Offset) MPa - 205, Psi - 30,000
Elongation at Break 45%

Equivalent Standards for ASTM B366 UNS N08800 Elbow



Standard 800HT 800H 800
JIS 800HT NCF 800H NCF 800
WERKSTOFF NR. 1.4859 / 1.4876 1.4958 / 1.4876 1.4876
GOST ЭИ670 ЭИ670 ЭИ670
EN X8NiCrAlTi32-21 X5NiCrAlTi31-20 X10NiCrAlTi32-20
UNS N08811 N08810 N08800
BS NA 15(HT) NA 15(H) NA 15
AFNOR - Z8NC33-21 Z8NC32-21


Material

Types

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.

whatsapp chat
