WPHY 60 fittings Overview

Table Of Content

ASTM A860 WPHY 60 Elbow Manufacturer and Supplier in India


A860 WPHY 60 Specification



Manufacturing Size Range

WPHY 60 Pipe Fittings Manufacturing Sizes

  • Seamless : 1/2" - 24"
  • Welded : 24" - 96"
  • Buttweld : 1/2" - 36"
  • Contact WPHY 60 Fittings Manufacturer in India For Above 48"
Thickness

ASTM A860 WPHY 60 Fittings Thickness

  • SCH 10/ 20/ 40/ 60/ 80
  • SCH 160/ 180/ SCH XXS
  • SCH 90/ 100/ 120/ 140


Advantages

MSS SP 75 WPHY 60 Buttweld Fittings Advantages

  • Low carbon content
  • Used in corrosive environments
  • Improved anti-corrosion
Ends Method

WPHY 60 Welded Fittings Ends Method

  • Plain Bevel
  • Compound Bevel
  • Bevelled
Application

ASTM A860 Gr WPHY 60 Fittings Application

  • Pharmaceuticals
  • Chemical Equipment
  • Petrochemicals
Packaging

API 5L X60 Seamless Fittings Packaging

  • Wooden Cases
  • Carton Box
  • Wooden Pallet
Logistics

WPHY 60 MSS SP75 Butt Weld Fittings Logistics

  • Azerbaijan = 30 - 46 day
  • Turkey = 22 days
  • Kuwait = 11 day
Manufacturing Process

ASTM A860 WPHY 60 Buttweld Pipe Fittings Manufacturing Process

  • CNC Machined
  • Cold forging
  • Hot forging
Standard

WPHY 60 Elbow Standard

  • ASME B16.9
  • ASME B16.28
  • DIN/ JIS/ EN/ ISO

ASTM A860 WPHY 60 Elbow Heat Treatment

A860 WPHY 60 End Cap Heat Treatment

  • Quenching
  • Stress Relieving
  • Tempering
Process

ASTM A860 WPHY 60 Elbow Process

  • Bending
  • Cutting
  • Welding
Types

Types of A860 Garde WPHY 60 Tee

  • End Cap/ Stub End
  • Elbow/ Tee/ Reducer
  • Pipe Bend/ Pipe Cross
Method

MSS SP 75 WPHY 60 Reducer Method

  • Buttweld (BW)
  • Welded (Weld)
  • Seamless (SMLS)

Sour Service

Sour Service of A860 Gr WPHY 60 Buttweld Tee

  • NACE MR0175
  • NACE MR0103
  • NACE TM-0284
Marking

High Yield WPHY 60 End Cap Marking

  • Size & Schedule
  • Manufacturers Name
  • Grade & Material
  • Standard & Heat No.
Bending Methods

Bending Methods of API 5L X60 Seamless Pipe Bend

  • Rotary draw bending
  • Ram type bending
  • Hot induction bending
Radius

WPHY 60 Pipe Fittings Radius

  • 3D/ 4D/ 5D
  • 12D/ 22D
  • 6D/ 8D/ 10D

Origin

ASTM A860 WPHY 60 Fittings Origin

  • Janpanese
  • Korean
  • American
  • European
Value Added Services

MSS SP 75 WPHY 60 Buttweld Fittings Value Added Services

  • Cutting
  • Welding
  • Bending
Machinery List

WPHY 60 Welded Fittings Machinery List

  • Beveling
  • Hydraulic Press 150 Tons Capacity
  • Hot and Cold Forming

Supplied in February 10, 2025

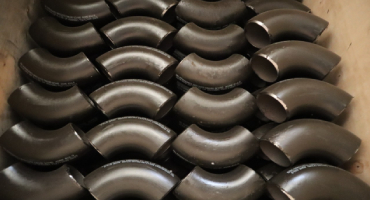

Project in Zimbabwe
  • 2 1/2", SCH 70, 60 Deg Elbow
  • Sonatrach
  • Hydra, Algiers, Algeria

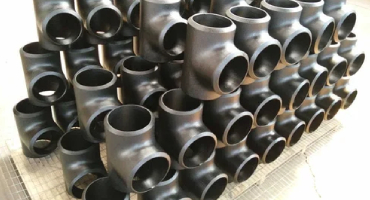

Project in Qatar
  • 3 1/2", SCH90, Equal Tee
  • Sonangol Group
  • Luanda, Angola

Buy MSS SP 75 WPHY 60 Reducer for Oil Refineries as per ASME B16.9


Applications of A860 WPHY 60 End Cap



Oil & Gas Industry

Oil & Gas Industry

Automobile

Automobile

Water Pipelines

Water Pipelines

Petrochemical

Petrochemical

Offering A860 Gr WPHY 60 Buttweld Tee Stock With No Minimum Order Quantity


Dimensions of Butt Weld 90° Elbows


Dimensions of Butt Weld 90° Elbows

NPS CTE
A		 O.D.
D		 NPS CTE
A		 O.D.
D
1 25 33.4 8 203 219.1
1.1/2 38 48.3 12 305 323.8
1.1/4 32 42.2 10 254 273
2 51 60.3 14 356 355.6
3 76 88.9 18 457 457
2.1/2 64 73 16 406 406.4
3.1/2 89 101.6 20 508 508
5 127 141.3 24 610 610
4 102 114.3 22 559 559
6 152 168.3 - - -

MSS SP 75 WPHY 60 Buttweld Fittings Alignment Tolerances



NPS Off Plane Tolerances ±
(A)		 Alignment of Ends ±
(C)		 Off Angle Tolerances ±
(B)
mm in mm in mm in
½ to 4 2 0.06 1 0.03 1 0.03
10 to 12 5 0.19 2 0.06 2 0.09
5 to 8 4 0.12 1 0.03 2 0.06
14 to 16 6 0.25 2 0.06 3 0.09
26 to 30 10 0.38 - - 5 0.19
18 to 24 10 0.38 2 0.06 4 0.12
44 to 48 19 0.75 - - 5 0.19
32 to 42 13 0.50 - - 5 0.19

Weight Chart of API 5L X60 Seamless Fittings



DN (NPS) Sch 10S Sch 80S Sch 40S
90 Deg Elbow Equal Pipe tee 45 Deg Elbow 90 Deg Elbow Equal Pipe Tee 45 Deg Elbow 90 Deg Elbow Equal Pipe tee 45 Deg Elbow
8 0.02 0.03 0.01 0.04 0.07 0.03 0.03 0.06 0.02
15 0.06 0.09 0.03 0.10 0.14 0.05 0.08 0.10 0.04
10 0.03 0.05 0.02 0.06 0.09 0.04 0.03 0.03 0.02
20 0.07 0.13 0.03 0.11 0.20 0.05 0.08 0.17 0.04
32 0.23 0.49 0.11 0.40 0.68 0.23 0.26 0.59 0.17
25 0.14 0.28 0.08 0.22 0.38 0.14 0.15 0.29 0.11
40 0.30 0.68 0.17 0.51 1.02 0.29 0.40 0.86 0.23
65 0.85 1.41 0.48 1.81 3.13 0.99 1.40 2.19 0.77
50 0.50 0.85 0.25 0.91 1.59 0.59 0.70 1.28 0.4
80 1.25 1.77 0.63 2.97 4.45 1.50 2.20 3.31 1.08
100 2.10 3.46 1.08 6.18 7.71 2.81 4.47 5.27 2.09
90 1.70 2.67 0.75 4.00 5.44 2.00 2.83 4.08 1.42
150 5.45 8.07 2.72 16.32 13.61 8.16 10.89 10.99 5.44
250 18.15 26.46 9.75 51.71 49.90 25.86 38.56 35.38 19.27
200 10.20 15.65 5.33 33.11 28.12 16.56 21.54 20.91 10.77
300 25.80 39.46 13.62 79.38 83.91 39.69 59.42 62.14 29.71

Purchase API 5L X60 Seamless Pipe Bend in Bulk from Stockists in Mumbai and Save 25-30% Cost

WPHY 60 Tee Price List



Size Price
Saudi Riyal (Saudi Arabia) US (Dollar)
DN600 SAR 4690.03 US $ 1,250.00
DN500 SAR 2402.23 US $ 640.25
DN450 SAR 1764.39 US $ 470.25
DN400 SAR 1106.85 US $ 295.00
DN350 SAR 871.14 US $ 232.18
DN300 SAR 620.47 US $ 165.37
DN250 SAR 357.42 US $ 95.26
DN200 SAR 263.69 US $ 70.28
DN150 SAR 123.82 US $ 33.00
DN125 SAR 87.35 US $ 23.28
DN100 SAR 68.44 US $ 18.24
DN80 SAR 38.98 US $ 10.39
DN65 SAR 27.69 US $ 7.38
DN50 SAR 21.76 US $ 5.80
DN40 SAR 12.57 US $ 3.35
DN32 SAR 12.57 US $ 3.35
DN25 SAR 9.38 US $2.50
DN20 SAR 9.38 US $2.50

Check High Yield WPHY 60 End Cap Mechanical and Tensile Test With Chemical Composition

ASTM A860 WPHY 60 Mechanical Properties



Tensile Strength
Tensile Strength
515-690 MPa
Tensile Strength
Yield Strength
415 MPa
Elongation
Elongation
28%


WPHY 60 Chemical Composition



Ni

Nickel

0.5%

Mn

Manganese

1.00-1.45%

Si

Silicon

0.15-0.40%

P

Phosphorus

0.03%

S

Sulfur

0.01%

C

Carbon

0.2%

Cu

Copper

0.35%

Cr

Chromium

0.3%

Ti

Titanium

0.05%

Ai

Aluminum

0.06%

V

Vanadium

0.1%

CB

Niobium

0.04%



ASTM A860 WPHY 60 Equivalent



USA

USA

  • X60/ X60M/ X60Q
DIN (Germany)

DIN (Germany)

  • StE415.7
EN (Europe)

EN (European)

  • 1.8972

Allowable Stresses in Tension of WPHY 60 Welded Fittings



Temp. °F S (ksi)
500 25.0
400 25.0
300 25.0
200 25.0
-50 - 100 25.0

A860 WPHY 60 Material Testing



Micro Test

Micro Test

Hardness Test

Hardness Test

Pitting Resistance Test

Pitting Resistance Test


WPHY 60 Meaning



W H P Y
Wrought High Pipe Yield

A860 Garde WPHY 60 Tee Hardness



Properties Values
Hardness Max. 235 HBW

Coatings of MSS SP 75 WPHY 60 Reducer



  • 3LPE Coating
  • Oil Black Paint
  • Zinc Plating
  • Fusion-Bonded Epoxy
  • Antirust Paint
  • PE/PTFE

Types of ASTM A860 WPHY 60 Elbow



ASTM A860 WPHY 60 15 Deg

ASTM A860 WPHY 60 15 Deg

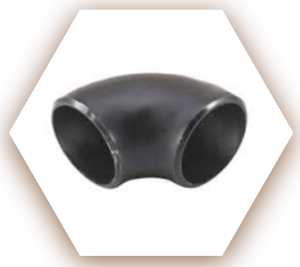

WPHY 60 30 Deg

WPHY 60 30 Deg

MSS SP 75 WPHY 60 45 Deg

MSS SP 75 WPHY 60 45 Deg

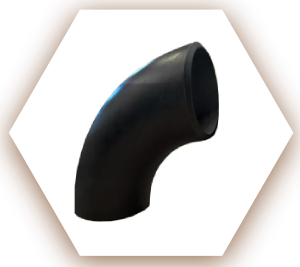

WPHY 60 Carbon Steel 60 Deg

WPHY 60 Carbon Steel 60 Deg

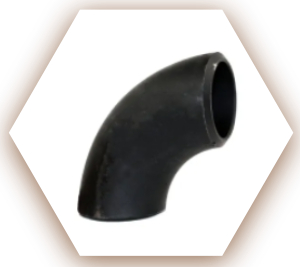

A860 WPHY 60 90 Deg

A860 WPHY 60 90 Deg

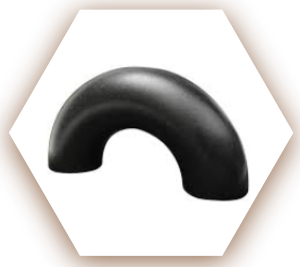

ASTM A860 Gr WPHY 60 180 Deg

ASTM A860 Gr WPHY 60 180 Deg

API 5L X60 Long Radius Elbow

API 5L X60 Long Radius Elbow

Carbon Steel X60 Short Radius Elbow

Carbon Steel X60 Short Radius Elbow

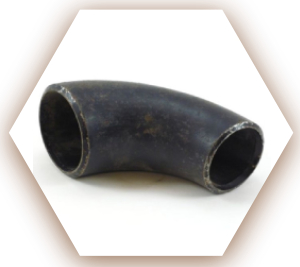

WPHY 60 MSS SP75 Reducing Elbow

WPHY 60 MSS SP75 Reducing Elbow


Types of WPHY 60 Tee

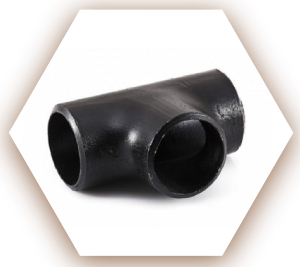

Carbon Steel 60000 PSI Equal Tee

Carbon Steel 60000 PSI Equal Tee

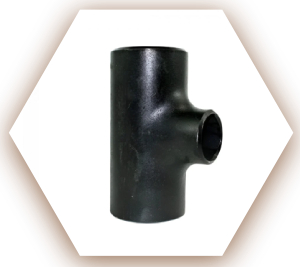

A860 WPHY 60 Unequal Tee

A860 WPHY 60 Unequal Tee

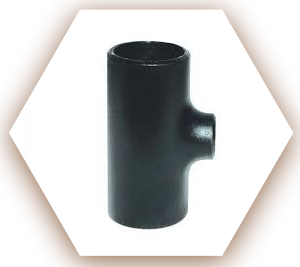

High Yield WPHY 60 Reducing Tee

High Yield WPHY 60 Reducing Tee

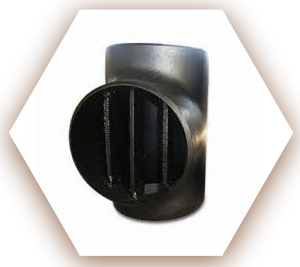

A860-WPHY 60 Barred Tee

A860-WPHY 60 Barred Tee

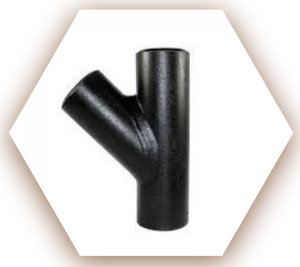

MSS SP-75 (WPHY 60) Y Type Tee

MSS SP-75 (WPHY 60) Y Type Tee

A860 Gr WPHY 60 Cross Tee

A860 Gr WPHY 60 Cross Tee


Types of A860 WPHY 60 Reducer



ASTM A860 WPHY 60 Concentric Reducer

ASTM A860 WPHY 60 Concentric Reducer

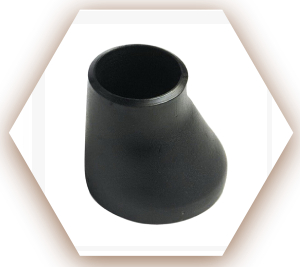

WPHY 60 Eccentric Reducer

WPHY 60 Eccentric Reducer

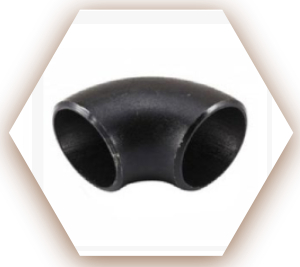

Types of MSS SP 75 WPHY 60 Bend



MSS SP 75 WPHY 60 1D Bend

MSS SP 75 WPHY 60 1D Bend

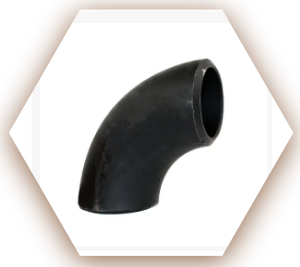

WPHY 60 Carbon Steel 1.5D Bend

WPHY 60 Carbon Steel 1.5D Bend

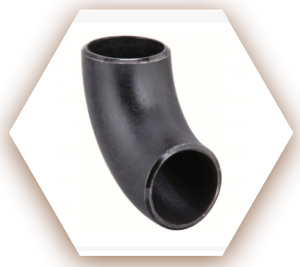

A860 WPHY 60 2D Bend

A860 WPHY 60 2D Bend

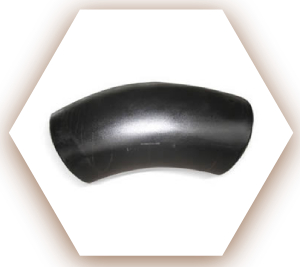

ASTM A860 Gr WPHY 60 2.5D Bend

ASTM A860 Gr WPHY 60 2.5D Bend

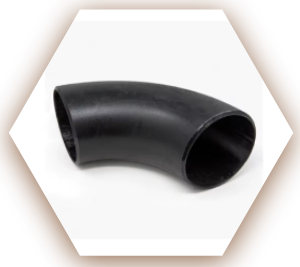

API 5L X60 3D Bend

API 5L X60 3D Bend

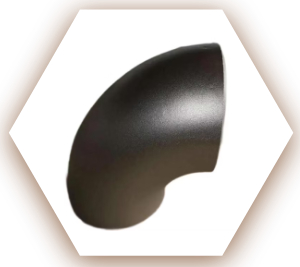

Carbon Steel X60 45 Deg Pipe Bend

Carbon Steel X60 45 Deg Pipe Bend

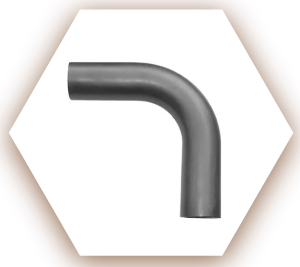

WPHY 60 MSS SP75 90 Deg Pipe Bend

WPHY 60 MSS SP75 90 Deg Pipe Bend

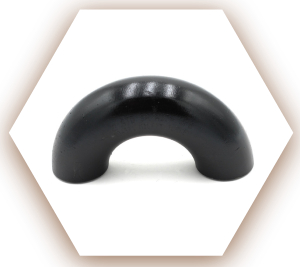

Carbon Steel 60000 PSI 180 Deg Pipe Bend

Carbon Steel 60000 PSI 180 Deg Pipe Bend

A860 WPHY 60 U Bend

A860 WPHY 60 U Bend


Types of WPHY 60 Carbon Steel Stub End

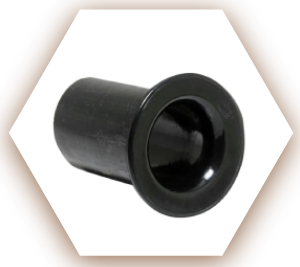

High Yield WPHY 60 Long Stub End

High Yield WPHY 60 Long Stub End

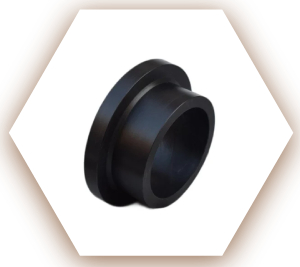

A860-WPHY 60 Short Stub End

A860-WPHY 60 Short Stub End

MSS SP-75 (WPHY 60) Lap Joint Stub End

MSS SP-75 (WPHY 60) Lap Joint Stub End





Material

Types

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
