Stainless Steel Pipe Bend

Table Of Content

Pipe Bend Manufacturer in India, that offers NDT Testing


ASME B16.9 Bend Specification



Manufacturing Size Range

45 Deg Bend Manufacturing Sizes

  • Seamless : 1/2" - 24"
  • Buttweld : 1/2" - 36"
  • Welded : 24" - 96"
  • Contact Pipe Bend Manufacturer in India For Above 58"
Thickness

Miter Bend Thickness

  • SCH 10/ 20/ 40/ 60/ 80
  • SCH 160/ 180/ SCH XXS
  • SCH 90/ 100/ 120/ 140


Advantages

Mild Steel Pipe Bends Advantages

  • Higher Strength
  • Ease of Assembly
  • Flexibility
Ends Method

SS Pipe Bend Ends Method

  • Plain Bevel
  • Compound Bevel
  • Bevelled
Application

Stainless Steel Pipe Bend Application

  • Automotive
  • Construction
  • Ship Building
Packaging

Carbon Steel Pipe Bend Packaging

  • Wooden Cases
  • Carton Box
  • Wooden Pallet
Logistics

Pipe Bend Manufacturer Logistics

  • Saudi Arabia = 7 Days
  • Qatar = 7 Days
  • USA = 40 - 60 Days

Manufacturing Process

ASME B16.9 Bend Manufacturing Process

  • CNC Machined
  • Cold Forging
  • Hot Forging
Standard

ASME B16 49 Induction Bend Standard

  • ASME B16.9
  • ASME B16.28
  • DIN/ JIS/ EN/ ISO
Process

45 Degree Bend Process

  • Bending
  • Cutting
  • Welding

Method

90 Degree Bend Method

  • Seamless (SMLS)
  • Buttweld (BW)
  • Welded (Weld)
Sour Service

Sour Service of 180 Degree Bend

  • NACE TM-0284
  • NACE MR0175
  • NACE MR0103
Marking

Long Radius Bend Marking

  • Size & Schedule
  • Manufacturers Name
  • Grade & Material
  • Standard & Heat No.
Bending Methods

Bending Methods of Short Radius Bend

  • Rotary Draw Bending
  • Hot Induction Bending
  • Ram Type Bending
Radius

Welded Pipe Bend Radius

  • 3D/ 4D/ 5D
  • 12D/ 22D
  • 6D/ 8D/ 10D

Origin

Seamless Pipe Bend Origin

  • Janpanese
  • Korean
  • European
  • American
Value Added Services

Piggable Bend Value Added Services

  • Cutting
  • Welding
  • Bending
Machinery List

U Bend Machinery List

  • Beveling
  • Hydraulic Press 150 Tons Capacity
  • Hot and Cold Forming

Shipping Location



Brunei Energy Services & Trading

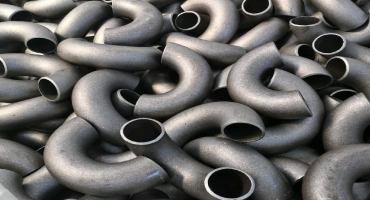

  • 5", SCH 50, U Bend
  • Brunei Energy Services & Trading
  • Brunei Darussalam
AltaGas

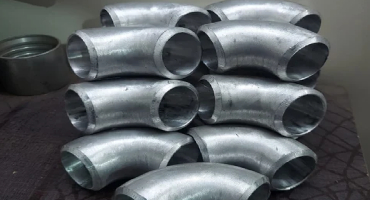

  • 4 1/2, SCH30, Short Radius Bend
  • AltaGas
  • Calgary, Alberta, Canada

Select Your Size and Radius in Our Online Inventory of 45 Deg Bend in Welded/ Seamless Method


Bend Types of Stainless Steel Pipe Bend



  • 1.5D Bend
  • 2.5D Bend
  • 3D Bend
  • 5D Bend
  • 6D Bend
  • 8D Bend
  • 10D Bend
  • 22D Bend

Buy 90 Degree Bend with Leak Proof Test Reports and All Types at Lowest Price


J Pipe Bend Testing



Hydrostatic Test

Hydrostatic Test

Radiography Test

Radiography Test

Flattening Test

Flattening Test

PMI Test

PMI Test

Chemical Analysis

Chemical Analysis

Mechanical Test

Mechanical Test


Shikhar Steel is a Leading Mild Steel Pipe Bends Supplier in Mumbai, Also Check the Common Coating

Carbon Steel Pipe Bend Coating



  • Epoxy Coatings
  • FBE Coatings
  • 3PE Coatings
  • Zinc Plating
  • Black Paint Coatings
  • PE/PTFE

Check Accurate Long and Short Radius Bend Dimensions and Weight Chart According to as per ASME B16.28

Dimensions of Short Radius Bend



Dimensions of Short Radius Bend
Nominal Size OD at Bevel Center to End
NPS A
mm.
in.		 mm.
in.
1 25
1.00		 33.4
1.32
1 1/2 38
1.50		 48.3
1.90
1 1/4 32
1.25		 42.2
1.66
2 51
2.00		 60.3
2.38
3 76
3.00		 88.9
3.50
2 1/2 64
2.50		 73.0
2.88
3 1/2 89
3.50		 101.6
4.00
5 127
5.00		 141.3
5.56
4 102
4.00		 114.3
4.50
6 152
6.00		 168.3
6.62
10 254
10.00		 273.0
10.75
8 203
8.00		 219.1
8.62
16 406
16.00		 406.4
16.00
12 305
12.00		 323.8
12.75
20 508
20.00		 508.0
20.00
14 356
14.00		 355.6
14.00
18 457
18.00		 457.0
18.00
24 610
24.00		 610.0
24.00
22 559
22.00		 559.0
22.00

Long Radius Bend Dimensions



Long Radius Bend Dimensions
Nominal Pipe Size OD at Bevel B
1/2 21.3 16
1 33.4 22
3/4 26.7 19
1 1/4 42.2 25
2 60.3 35
1 1/2 48.3 29
2 1/2 73 44
3 1/2 101.6 57
3 88.9 51
4 114.3 64
6 168.3 95
5 141.3 79
8 219.1 127
12 323.8 190
10 273 159
14 355.6 222
18 457 286
16 406.4 254
20 508 318
24 610 381
22 559 343
26 660 406
30 762 470
28 711 438
32 813 502
36 914 565
34 864 533
38 965 600
42 1067 660
40 1016 632
44 1118 695
48 1219 759
46 1168 727

Dimensions of 180 Degree Return Bend



Dimensions of 180 Degree Return Bend
Nominal Pipe Size OD at Bevel Center to Center, O Back To Face, K
1/2 21.3 76 48
1 33.4 76 56
3/4 26.7 76 51
1 1/4 42.2 95 70
2 60.3 152 106
1 1/2 48.3 114 83
2 1/2 73 190 132
3 1/2 101.6 267 184
3 88.9 229 159
5 141.3 381 262
4 114.3 305 210
6 168.3 457 313
10 273 762 518
8 219.1 610 414
12 323.8 914 619
16 406.4 1219 813
14 355.6 1067 711
18 457 1372 914
22 559 1676 1118
20 508 1524 1016
24 610 1829 1219

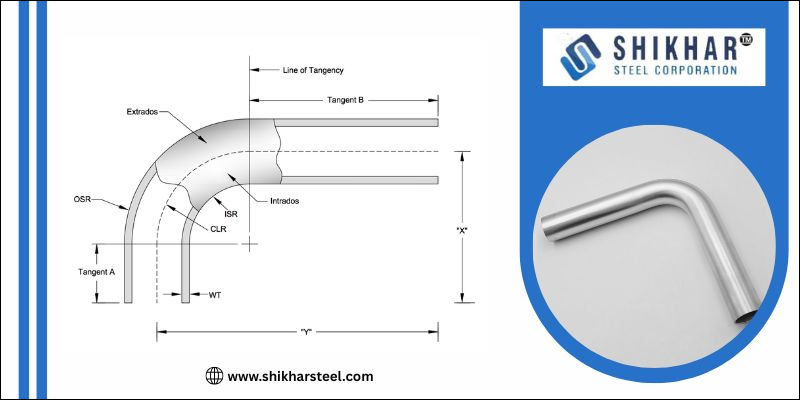

90 Degree Bend Dimensions



90 Degree Bend Dimensions
Nominal Size Wall Thickness (mm) Bend Radius
XS STD WT
50 5.54 3.91 150
80 7.62 5.49 240
60 7.01 5.16 195
90 8.08 5.74 270
125 9.53 6.55 375
100 8.56 6.02 300
150 10.97 7.11 450
250 12.70 9.27 750
200 12.70 8.18 600
300 12.70 9.53 900
400 12.70 9.53 1200
350 12.70 9.53 1050
450 12.70 9.53 1350
600 12.70 9.53 1800
500 12.70 9.53 1500

Dimensions of 3D Bend



Nominal Size Wall Thickness (mm) Bend Radius
XS STD WT
50 5.54 3.91 150
80 7.62 5.49 240
60 7.01 5.16 195
90 8.08 5.74 270
125 9.53 6.55 375
100 8.56 6.02 300
150 10.97 7.11 450
250 12.70 9.27 750
200 12.70 8.18 600
300 12.70 9.53 900
400 12.70 9.53 1200
350 12.70 9.53 1050
450 12.70 9.53 1350
600 12.70 9.53 1800
500 12.70 9.53 1500

Weight Chart of 45 Degree Bend



NPS KG LBS
1/2 0.09 0.19
1 0.14 0.31
3/4 0.09 0.19
1.1/4 0.23 0.5
2 0.54 1.19
1.1/2 0.31 0.69
2.1/2 0.97 2.13
3.1/2 2.04 4.5
3 1.59 3.5
4 2.77 6.1
6 7.94 17.5
5 4.85 10.7
8 15.88 35
12 38.1 84
10 24.04 53
14 45.36 100
18 75.75 167
16 61.23 135
20 93.44 206
24 136.08 300
22 117.93 260
26 165.56 365
36 320.24 706
30 221.35 488

90 Degree Bend Weight Chart



NPS LBS KG
1/2 0.18 0.08
1 0.4 0.18
3/4 0.19 0.09
1.1/4 0.6 0.27
2 1.6 0.73
1.1/2 0.9 0.41
2.1/2 3.25 1.47
3.1/2 6.75 3.06
3 5 2.27
4 9 4.08
6 24.5 11.11
5 15 6.8
8 50 22.68
12 125 56.7
10 88 39.92
14 160 72.57
18 260 117.93
16 206 93.44
20 320 145.15
24 460 208.65
22 394 178.72
26 550 249.48
36 1062 481.72
30 734 332.94

Radius of Stainless Steel Pipe Bend



  • 1.5D Bend
  • 2.5D Bend
  • 3D Bend
  • 5D Bend
  • 6D Bend
  • 8D Bend
  • 10D Bend
  • 22D Bend

L Pipe Bend Standards



European Standards
ASME B16.25
ASME B16.9
ASME B31.4
ASME B31.8
ASME B16.49

Weight Calculation of Hot Induction Bends



Weight Calculation
T Wall Thickness
R Radius
θ Angle
L Weight of double sides straight length
D Diameter

ASME B16 49 Induction Bend Angles



  • 15 Degree
  • 20 Degree
  • 45 Degree
  • 60 Degree
  • 90 Degree
  • 135 Degree
  • 180 Degree

Stainless Steel Pipe Bend Machines



Oil & Gas Industry

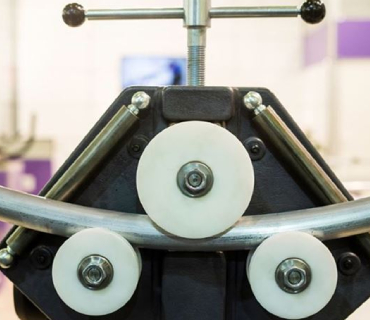

Manual

Water Pipelines

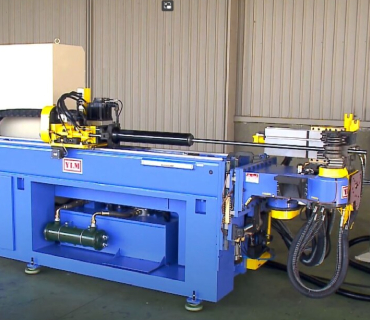

Hybrid CNC

Automobile

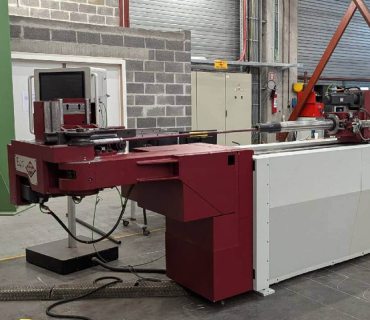

Metric Benders

Petrochemical

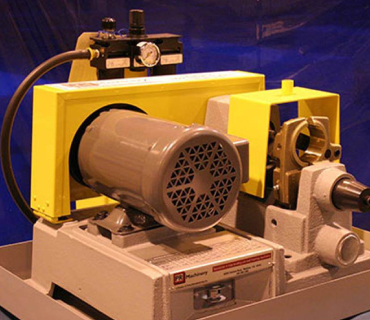

660 End Finishing Machine

Bending Methods of Carbon Steel Pipe Bend



  • Tensile Bending
  • Press Bending
  • Roll Bending
  • Heating Bending
  • Liquid Filling Bending
  • Compression Bending
  • Mandrel Bending

Types of Stainless Steel Pipe Bend

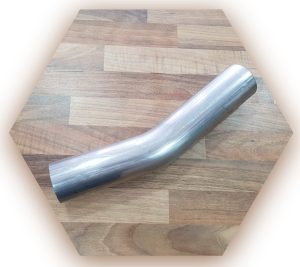

45 Degree Bend

45 Degree Bend

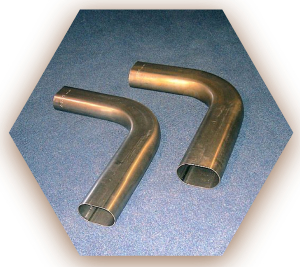

90 Degree Bend

90 Degree Bend

Hot Induction Bends

Hot Induction Bends

Long Radius Bend

Long Radius Bend

Short Radius Bend

Short Radius Bend

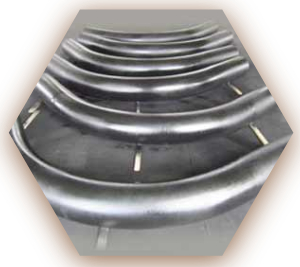

Welded Pipe Bend

Welded Pipe Bend

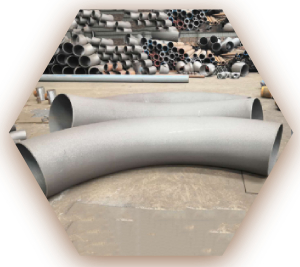

Seamless Pipe Bend

Seamless Pipe Bend

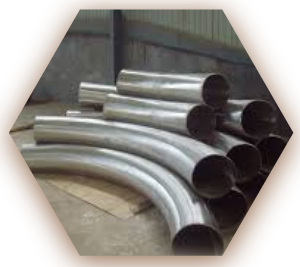

Piggable Bend

Piggable Bend

U Bend

U Bend

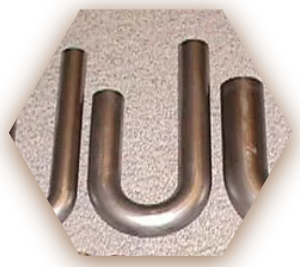

J Pipe Bend

J Pipe Bend

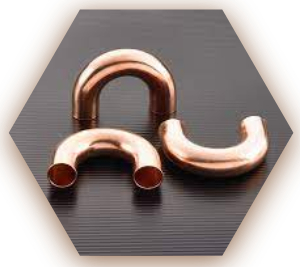

Return Bend

Return Bend

Mandrel Bend

Mandrel Bend







Types

Material

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
