Stainless Steel Stub End

Sizes in Stock

Sizes in Stock

1/2" to 48"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 60"

Mostly Use

Mostly Use

Pipeline Flanges

Feature

Feature

High Mechanical Strength

Maintenance

Maintenance

Easy

Heat Treatment

Heat Treatment

Normalizing

Production Technique

Production Technique

Machined & Forged

Standard

Standard

MSS SP-43


Stub End Overview

Table Of Content

Get Custom Sizes From Stub End Manufacturer in India


ANSI B16.9 Stub End Specification



Manufacturing Size Range

Stub End Flange Manufacturing Sizes

  • Seamless : 1/2" - 24"
  • Welded : 24" - 96"
  • Buttweld : 1/2" - 36"
  • Contact Stub End Manufacturer in India For Above 48"
Thickness

Flange With Stub End Thickness

  • SCH 10/ 20/ 40/ 60/ 80
  • SCH 90/ 100/ 120/ 140
  • SCH 160/ 180/ SCH XXS


Advantages

Type A Stub End Advantages

  • Better Support for Larger Pipes
  • Ideal for Systems With Vibration
  • Reduces Stress on Flanges
Ends Method

Stainless Steel Stub Ends Method

  • Bevelled
  • Squared
  • Flanged
Application

Carbon Steel Stub End Application

  • Petroleum
  • Chemical Processing
  • Power Plant
Packaging

Long Spigot Stub Flange Packaging

  • Wooden Cases
  • Wooden Pallet
  • Carton Box
Logistics

MSS Stub End Logistics

  • UAE = 5 Days
  • South Africa = 25 to 30 Days
  • Saudi Arabia = 7 Days

Manufacturing Process

Long Stub End Manufacturing Process

  • CNC Machined
  • Hot forging
  • Cold forging
Standard

Mss Type A Stub End Standard

  • ASME B16.28
  • ASME B16.9
  • DIN/ JIS/ EN/ ISO
Documentations

Pipe Stub End Documentations

  • Raw Material Test Reports
  • Fumigation Certificates
  • Heat Treatment Charts
Process

Stainless Stub End Process

  • Bending
  • Welding
  • Cutting
Types

Types of Stub End Fitting

  • Type A
  • Type B
  • Type C
Method

Stub End Pipe Fittings Method

  • Buttweld (BW)
  • Seamless (SMLS)
  • Welded (Weld)
Sour Service

Sour Service of Stub End Type C

  • NACE MR0175
  • NACE TM-0284
  • NACE MR0103
Marking

Stainless Steel Pipe Stub End Marking

  • Size & Schedule
  • Grade & Material
  • Manufacturers Name
  • Standard & Heat No.
Origin

Seamless Stub End Origin

  • Janpanese
  • American
  • Korean
  • European

Value Added Services

Stainless Steel Long Stub End Value Added Services

  • Cutting
  • Bending
  • Welding
Machinery List

Welded Stub End Machinery List

  • Beveling
  • Hot and Cold Forming
  • Hydraulic Press 150 Tons Capacity


Delivery Location

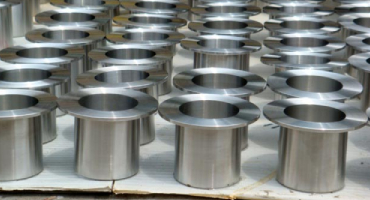

Petrobras
  • 8", SCH 50, Stub End
  • Petrobras
  • Rio de Janeiro, Brazil

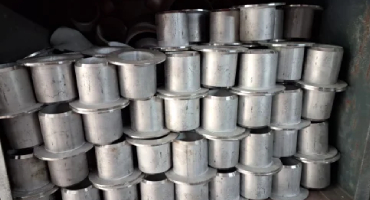

Ultrapar
  • 4", SCH 80, Stub End
  • Ultrapar
  • São Paulo, Brazil

Check Ready Stock of Long Stub End for Chemical Plants as per MSS SP-43


Applications of Type A Stub End



  • Petrochemicals
  • Power Generation
  • Chemical Equipment
  • Gas Processing
  • Construction
  • Shipbuilding

Purchase Short Stub End in Various Types and Sizes in Type A/B/C at Best Price


MSS Stub End Types



Type Value
A Lap Joint Flanges
B Slip-on Flanges
C Lap Joint or Slip-on Flanges

Price List of Long Stub End



Size In Inch Price
UAE Dirham (AED) per unit US$ (Dollar) per unit
12 107.29 US $29.21
10 77.72 US $21.16
8 59.17 US $16.11
6 43.38 US $11.81
4 28.35 US $7.72
Type: Long Stub End | SCH: XS

For Final Long Stub End Price List Please Drop an Email to sales@shikharsteel.com.


Compare The Material Quality with the Different Carbon Steel Lap Joint Stub End Supplier and Stockist in Mumbai

Short Stub End Price List



Size In Inch Price
UAE Dirham (AED) per unit US$ (Dollar) per unit
8 18.40 67.58
6 13.51 49.62
4 9.17 33.68
2 5.56 20.42
Type: Short Stub End | SCH: 40

For Final Short Stub End Price List Please Drop an Email to sales@shikharsteel.com.


Also View Long and Short Pattern Stub End Dimensions and Wall Thickness as per ASME B16.9

Short Stub End Dimensions


Short Stub End Dimensions
Size (inches) C B A
1/2 0.130 1.500 2.000
1 0.130 2.000 1.625
3/4 0.130 1.500 2.000
1 1/2 0.130 2.875 1.750
2 1/2 0.130 4.125 2.000
2 0.130 3.625 1.500
3 0.166 5.000 2.250
6 0.218 8.500 3.000
4 0.166 6.187 2.625
8 0.218 10.625 3.000

MSS Stub End Weight Chart



NPS SCH 10S SCH 5S SCH 80S SCH 40S
1/2" 0.09 0.07 0.15 0.12
1" 0.25 0.15 0.38 0.29
3/4" 0.12 0.09 0.2 0.15
1-1/4" 0.32 0.2 0.54 0.41
2" 0.69 0.42 1.32 0.96
1-1/2" 0.38 0.23 0.66 0.49
2-1/2" 0.92 0.65 1.19 1.51
3-1/2" 1.32 0.92 3.33 2.42
3" 1.15 0.81 2.74 2.02
4" 1.51 1.05 4.05 2.91
6" 3.23 2.64 9.98 6.61
5" 2.69 2.2 7.22 5.06
8" 4.68 3.46 15.53 10
12" 10.38 9.01 28.77 21.33
10" 7.93 6.45 23.8 17.23

ASME B16.9 long pattern stub ends Unit: kg.


Long Stub End Dimensions



Long Stub End Dimensions
NPS LAP DIAMETER LONG PATTERN LENGTH OUTSIDE DIAMETER RADIUS SHORT PATTERN LENGTH
Inch. A L OD Min OD Max R L
1/2 35 76 22.8 20.5 3 51
3/4 43 76 28.1 25.9 3 51
1 51 102 35 32.6 3 51
1 1/4 64 102 43.6 41.4 5 51
1 1/2 73 102 49.9 47.5 6 51
2 92 152 62.4 59.5 8 64
2 1/2 105 152 75.3 72.2 8 64
3 127 152 91.3 88.1 10 64
3 1/2 140 152 104 100.8 10 76
4 157 152 116.7 113.5 11 76
5 186 203 144.3 140.5 11 76
6 216 203 171.3 167.5 13 89
8 270 203 222.1 218.3 13 102
10 324 254 277.2 272.3 13 127
12 381 254 328 323.1 13 152
14 413 305 359.9 354.8 13 152
16 470 305 411 405.6 13 152
18 533 305 462 456 13 152
20 584 305 514 507 13 152
22 641 305 565 558 13 152
24 692 305 616 609 13 152
All Dimensions are in mm

Stub End Length



NPS (Inch) Short Pattern Length Long Pattern Length
1/2 51 76
1 51 102
3/4 51 76
1 1/4 51 102
2 64 152
1 1/2 51 102
2 1/2 64 152
3 1/2 76 152
3 64 152
4 76 152
6 89 203
5 76 203
8 102 203
12 152 254
10 127 254
14 152 305
18 152 305
16 152 305
20 152 305
24 152 305
22 152 305

Testing of Stub End Fitting



Macro Test

Macro Test

HIC Test

HIC Test

IGC Test

IGC Test


What Are the Situations Where Pipe Stub End Mostly Used?



  • Different End Connections
  • Various Sizes or Diameters
  • Many Material Types
  • Industrial Standards
  • Different Pressure Ratings

Type C Stub Ends Dimensional Tolerances



NPS 1/2 up to 2.1/2 4 3 to 3.1/2 5 to 8 20 to 24 10 to 18
OD at Welding End 0.8 0.8 0.8 + 1.6 - 0.8 + 3.05 - 0.76 + 2.29 - 0.76
Overall Length (F) 1.6 1.6 1.6 1.6 2 2
OD of Lap (G) + 0 - 0.76 + 0 - 0.76 + 0 - 0.76 + 0 - 0.76 + 0 - 1.6 + 0 - 1.6
Thickness of Lap (T) + 1.52 - 0 + 1.52 - 0 + 1.52 - 0 + 1.52 - 0 + 1.52 - 0 + 1.52 - 0
Fillet Radius of Lap (R) + 0 - 0.76 + 0 - 1.6 + 0 - 0.76 + 0 - 1.6 + 0 - 1.6 + 0 - 1.6
Wall Thickness (t) Not less than 87.5% of NWT

Stub End Manufacturing Process



Standards
  • Receiving Inspection
  • Cutting
  • Forming
  • Sizing
  • Heat Treatment
  • Shot Blasting & Cleaning
  • Bevelling
  • Coating
  • Packaging

Carbon Steel Stub End Characteristics



  • High Mechanical Strength
  • Easy Assembly
  • Flow & Turbulence
  • Wide Material Options
  • Design Types A & B
  • Cost-effectiveness

Factors to Consider When Choosing Stub End Type C



System Pressure & Temperature
Space Constraints
Pipe Diameter
Budget
Maintenance Requirements

Information Know to Order Stainless Steel Stub End Type A



  • NPS
  • Schedule
  • Length (According to ASME B16.9)
  • Specs & Material Grade
  • Ends Finish
  • Execution: Seamless / Welded

Types of Stub End

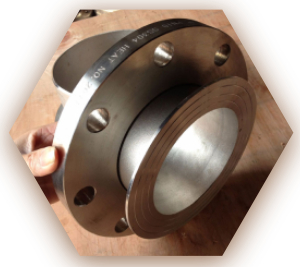

Flange With Stub End

Flange With Stub End

Type A Stub End

Type A Stub End

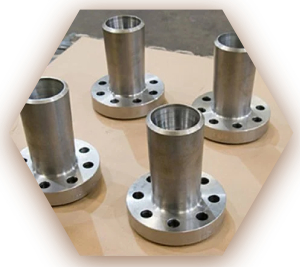

Long Stub End

Long Stub End

Type B Stub End

Type B Stub End

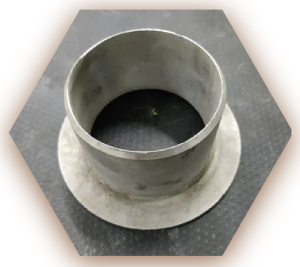

Short Stub End

Short Stub End

Type C Stub End

Type C Stub End

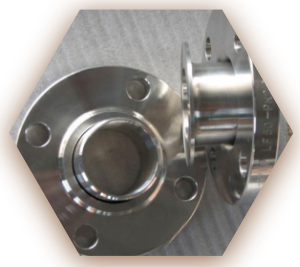

Lap Joint Stub End

Lap Joint Stub End

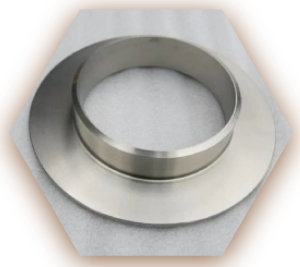

Short Neck Stub End

Short Neck Stub End

Long Neck Stub End

Long Neck Stub End

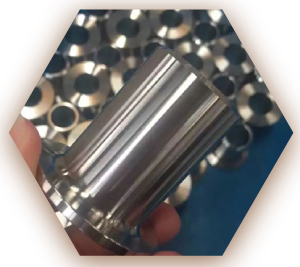

Short Pattern Stub End

Short Pattern Stub End

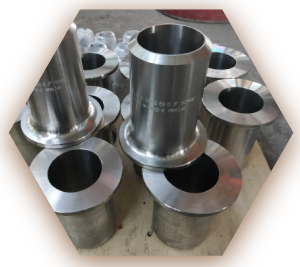

Long Pattern Stub End

Long Pattern Stub End






Types

Material
