Stainless Steel 316L Pipe Fittings

Sizes in Stock

Sizes in Stock

1/2" to 48"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 60"

UNS Designation

UNS Designation

UNS S31603

Werkstoff Number

Werkstoff Number

WNR 1.4404

Ideal For

Ideal For

Chemical Plants and Marine Environments

Quenching Temperature

Quenching Temperature

1040°C to 1120°C

Hardness

Hardness

95 (Rockwell B)

Standard

Standard

ASME B16.9

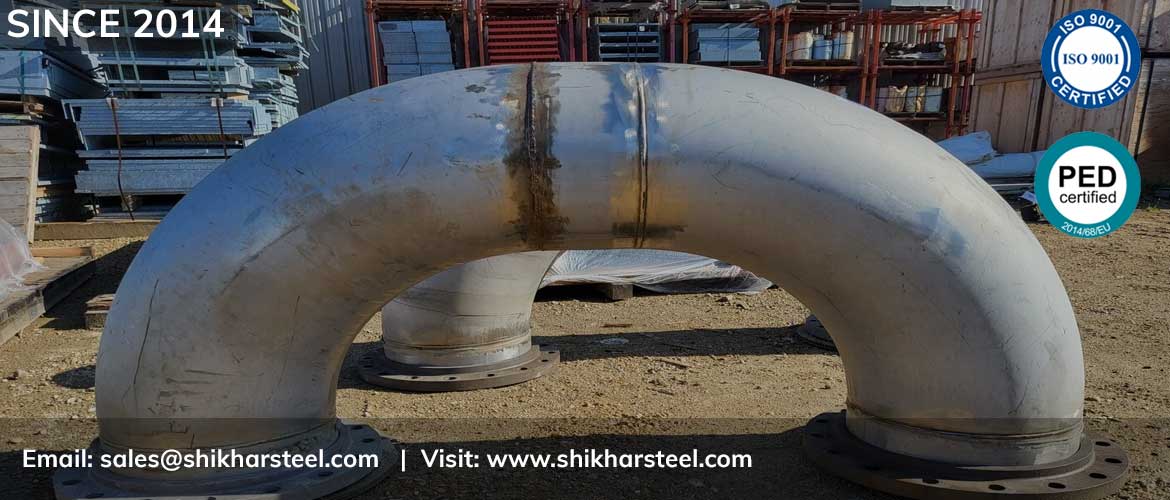

Stainless Steel 316L Pipe Fittings Product Guide

Table Of Content

ASTM A403 WP316L Elbow Manufacturer in India for Chloride Environment

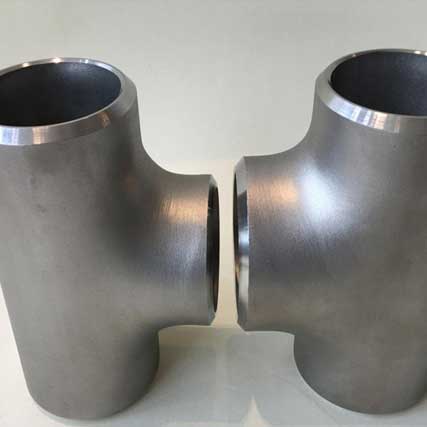

Stainless Steel 316L Tee

Stainless Steel 316L Tee

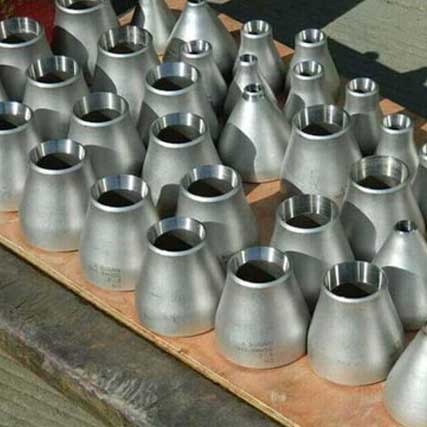

A403 Grade WP316L Reducer

A403 Grade WP316L Reducer

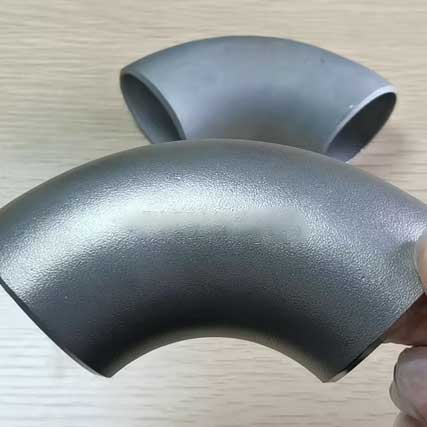

SS 316L Elbow

SS 316L Elbow

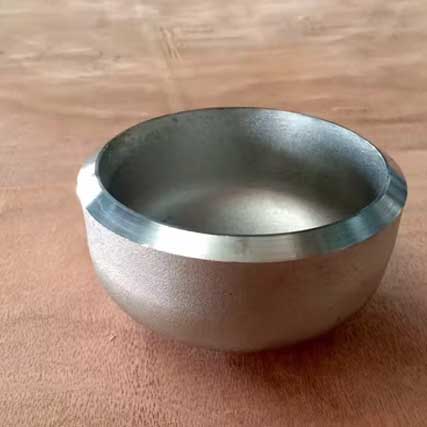

UNS S31603 End Cap

UNS S31603 End Cap

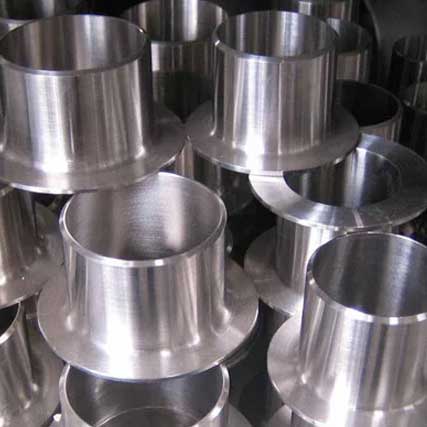

WNR 1.4404 Stub End

WNR 1.4404 Stub End

Stainless Steel 316L Pipe Fittings Specification



Manufacturing Size Range

Stainless Steel 316L Elbow Manufacturing Sizes

  • Seamless : 1/2" - 24"
  • Welded : 24" - 96"
  • Buttweld : 1/2" - 36"
  • Contact Stainless Stainless Steel 316L Pipe Fittings Manufacturer in India For Above 48"
Thickness

A403 WP316L Pipe Elbow Thickness

  • SCH 10/ 20/ 40/ 60/ 80
  • SCH 90/ 100/ 120/ 140
  • SCH 160/ 180/ SCH XXS



Advantages

SS 316L End Cap Advantages

  • Low carbon content
  • Improved anti-corrosion
  • Used in corrosive environments
Ends Method

SS 316L Buttweld Tee Ends Method

  • Plain Bevel
  • Bevelled
  • Compound Bevel
Application

UNS S31603 Seamless Reducer Application

  • Pharmaceuticals
  • Petrochemicals
  • Chemical Equipment
Packaging

ASTM A403 UNS S31603 Cross Tee Packaging

  • Wooden Cases
  • Wooden Pallet
  • Carton Box
Logistics

316L Stainless Steel 45 Deg Elbow Logistics

  • Azerbaijan = 30 - 46 day
  • Kuwait = 11 day
  • Turkey = 22 days
Manufacturing Process

316L SS 60 Deg Elbow Manufacturing Process

  • CNC Machined
  • Hot forging
  • Cold forging
Standard

DIN 1.4404 Reducing Elbow Standard

  • ASME B16.28
  • ASME B16.9
  • DIN/ JIS/ EN/ ISO
Temperature Range

SUS 316L Concentric Reducer Temperature Range

  • 440°C - 855°C

Process

ASTM A 403 WP 316L Equal Tee Process

  • Bending
  • Welding
  • Cutting
Types

Types of ASTM A403 WP316 Long Stub End

  • End Cap/ Stub End
  • Pipe Bend/ Pipe Cross
  • Elbow/ Tee/ Reducer
Method

A403 316L Eccentric Reducer Method

  • Buttweld (BW)
  • Seamless (SMLS)
  • Welded (Weld)

Sour Service

Sour Service of ASTM A403 WP316L 3D Bend

  • NACE MR0175
  • NACE TM-0284
  • NACE MR0103
Marking

ASTM A403 WP316L Short Stub End Marking

  • Size & Schedule
  • Grade & Material
  • Manufacturers Name
  • Standard & Heat No.
Bending Methods

Bending Methods of ASTM A403 Gr WP316L 2D Bend

  • Rotary draw bending
  • Hot induction bending
  • Ram type bending

Radius

316L Stainless Steel 45 Deg Elbow Radius

  • 3D/ 4D/ 5D
  • 6D/ 8D/ 10D
  • 12D/ 22D
Origin

316L Stainless Steel End Cap Origin

  • Janpanese
  • American
  • Korean
  • European
Value Added Services

WNR 1.4404 Welded Pipe Bend Value Added Services

  • Cutting
  • Bending
  • Welding
Machinery List

SA 403 WP316L Pipe Bend Machinery List

  • Beveling
  • Hot and Cold Forming
  • Hydraulic Press 150 Tons Capacity

Shipping Time and Location

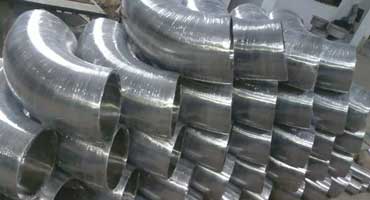

YPF
  • 2 1/2", SCH 80, Elbow
  • YPF
  • Buenos Aires, Argentina
APA Group
  • 5 1/2", SCH 40, End Caps
  • APA Group
  • Sydney, Australia

Check Ex-Stock of SS 316L Buttweld Tee in WX/W//WU/S Classes and SCH 5 to SCH 160 at Updated Price


ASTM A 403 WP 316L Equal Tee Price Per Piece



UNS S31603 Equal Tee Price Per Piece

DN15

$5.96US $4.54 each
UNS S31603 Equal Tee Price Per Piece

DN20 (Full Thread)

$6.16US $4.34 each
UNS S31603 Equal Tee Price Per Piece

DN25

$12.70US $9.27 each
UNS S31603 Equal Tee Price Per Piece

DN32

$15.82US $11.82 each
UNS S31603 Equal Tee Price Per Piece

DN40

$17.00US $15.10 each
UNS S31603 Equal Tee Price Per Piece

DN50

$20.83US $18.82 each

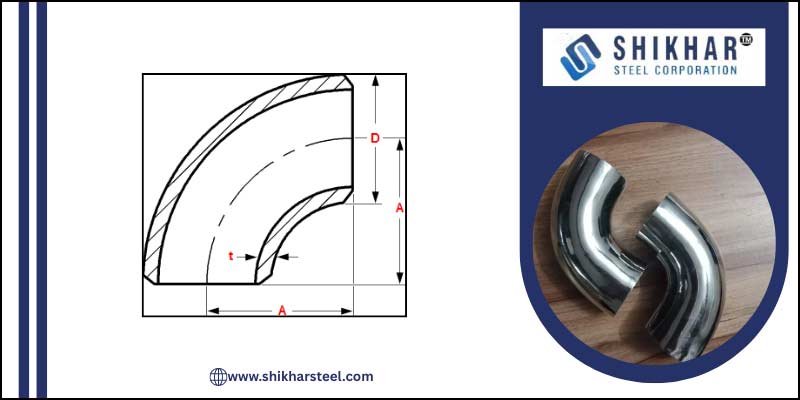

Stainless Steel 316L Pipe Fittings Dimensions



Stainless Steel 316L Pipe Fittings Dimensions

NPS 90° LR (A) O.D. (D)
1.1/4 48 42.2
18 686 457
1 38 33.4
2.1/2 95 73
3 114 88.9
3.1/2 133 101.6
4 152 114.3
1.1/2 57 48.3
36 1372 914
2 76 60.3
5 190 141.3
1/2 38 21.3
3/4 38 26.7
42 1600 1067
44 1676 1118
6 229 168.3
8 305 219.1
34 1295 864
48 1829 1219
20 762 508
14 533 355.6
28 1067 711
30 1143 762
32 1219 813
16 610 406.4
38 1448 965
40 1524 1016
46 1753 1168
24 914 610
26 991 660
22 838 559
10 381 273
12 457 323.8

Weight Chart of SS 316L End Cap



Weight (kg) Size Quantity
10.36 3 2
0.71 ¾ 75
0.20 ¼ 160
1.08 1 40
1.68 1 ¼ 25
3.55 2 10
0.57 ½ 100
6.22 2 ½ 4
23.91 4 1
2.38 1 ½ 18

Welding Methods of Stainless Steel 316L Elbow



Welding Methods SMAW GMAW FCAW TIG
Full Form Shielded metal arc Gas metal arc Flux cored arc Tungsten inert gas

Produce UNS S31603 Seamless Reducer for Marine Engineering with MTC EN 10204 3.1 in Mumbai


Top 6 Documentation Provide with UNS S31603 Barred Tee



  • Quality Assurance Plan (QAP)
  • Material Traceability Records
  • MTC (EN 10204 3.1)
  • Fumigation Certificates
  • Fumigation Certificates
  • Raw Material Test Reports

Temperature Range of 316L Stainless Steel End Cap



Temperature Range in °C Temperature Range in °F
1038 - 1149°C 1900 - 2100°F

SS 316L Buttweld Tee Tolerance on Length



NPS OVL2 OVL1
- inch (mm) inch (mm)
3-3-1/2 ±0.12 [±3] ±0.06 [±2]
4 ±0.12 [±3] ±0.06 [±2]
26-30 ±0.38 [±10] ±0.19 [±5]
5-8 ±0.25 [±6] ±0.06 [±2]
20-24 ±0.25 [±6] ±0.09 [±2]
32-48 ±0.38 [±10] ±0.19 [±5]
1/2-2-1/2 ±0.12 [±3] ±0.06 [±2]
10-18 ±0.25 [±6] ±0.09 [±2]

HSN Code of ASTM A403 316L Fittings



Grade HSN Code
SS 316L 72192112

Hardness of Stainless Steel 316L Butt Weld Fittings



Hardness (HB) Hardness (HR B)
95 217

Buy 316L Stainless Steel End Cap With Excellent Chemical and Mechanical Properties

A403 WP316L Chemical Composition



Ni

Nickel

10.0 - 14.0%

Fe

Iron

Balance

P

Phosphorus

0.045%

Mo

Molybdenum

2.00 - 3.00%

C

Carbon

0.030%

Mn

Manganese

2.00%

Cr

Chromium

16.0 - 18.0%

Si

Silicon

0.30% max


ASTM A403 WP316L Mechanical Properties



Tensile Strength
Tensile Strength
485 MPa
Yield Strength
Yield Strength
170 MPa
Elongation
Elongation
40%
Hardness
Hardness (HR B)
95

ASTM A403 WP316L 3D Bend Classes



Types Classes
Welded WX
Welded WU
Seamless S
Welded W

WNR 1.4404 Welded Pipe Bend Corrosion Resistance Environment



Environment Acidic Environments Seawater Phosphoric Acid
Temperature Range 0°C - 89°C 15°C - 80°C 10°C -89°C

Applications of SA 403 WP316L Pipe Bend

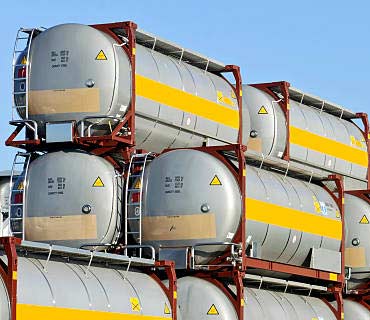

Cargo tanks

Cargo tanks

Biofuels plant

Biofuels plant

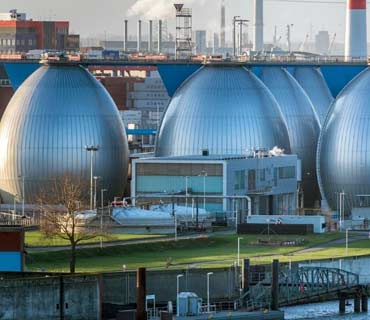

Desalination

Desalination

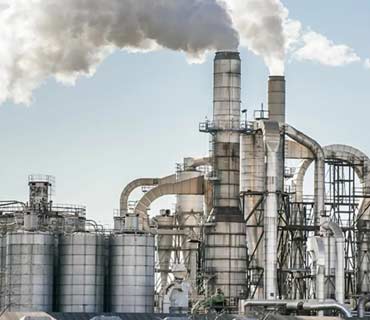

Chemical Industries

Chemical Industries

ASTM A 403 WP 316L Tee Testing



Macro Test

Macro Test

IGC Test

IGC Test

HIC Test

HIC Test


Supplier of WNR 1.4404 Welded Pipe Bend and Stub End in Cold and Hot Forging Technique as per ASME B16.9

SA 403 WP 316L 45 Deg Pipe Bend Forging Technique



  • Pushing
  • Welding
  • Casting
  • Butt Weld
  • Heat Treated
  • Forged

Bending Radius of INOX 316L Elbow



Bend Angle Bend Radius
15° 3 D
180° 5 D
90° 10 D
135° 4 D
60° 8 D
45° 6 D

Stainless Steel 316L Pipe Fittings Equivalent Material



North American

UNS (North American)

  • S31603
JIS (Japan)

JIS (Japan)

  • SUS 316L
Russia

WNR (Russia)

  • 1.4404
Europe

EN (Europe)

  • X2CrNiMo18-14-3
BS (England)

BS (England)

  • 316S11/316S13
UNI (Russia)

GOST (Russia)

  • 03Ch17N14M3

Types of ASTM A 403 WP 316L Elbow

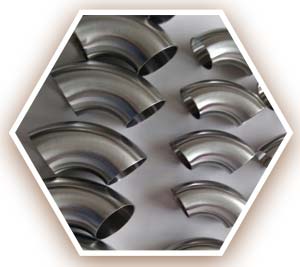

Stainless Steel 316L 15 Deg Elbow

Stainless Steel 316L 15 Deg Elbow

SS 316L 30 Deg Elbow

SS 316L 30 Deg Elbow

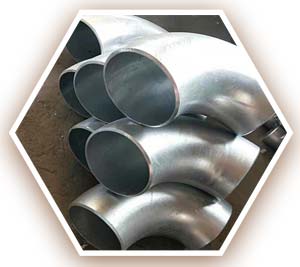

316L Stainless Steel 45 Deg Elbow

316L Stainless Steel 45 Deg Elbow

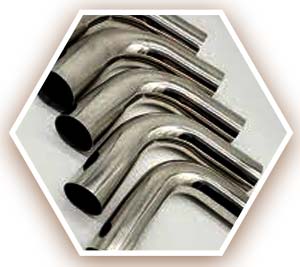

316L SS 60 Deg Elbow

316L SS 60 Deg Elbow

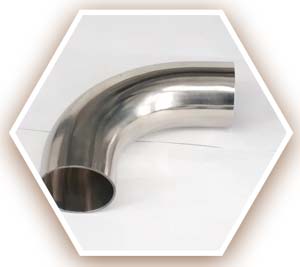

ASTM A403 Gr 316L 90 Deg Elbow

ASTM A403 Gr 316L 90 Deg Elbow

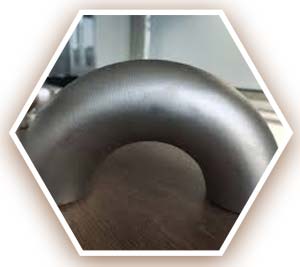

Inox 316L 180 Deg Elbow

Inox 316L 180 Deg Elbow

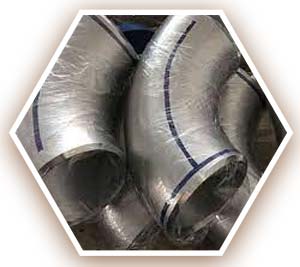

SA 403 WP 316L Long Radius Elbow

SA 403 WP 316L Long Radius Elbow

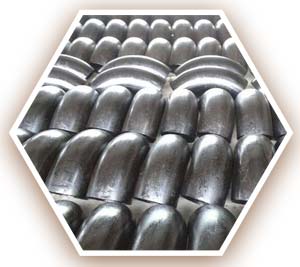

EN 1.4404 Stainless Steel Short Radius Elbow

EN 1.4404 Stainless Steel Short Radius Elbow

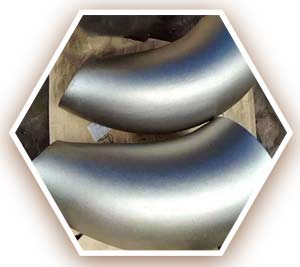

DIN 1.4404 Reducing Elbow

DIN 1.4404 Reducing Elbow

Types of A403 Grade WP316L Tee

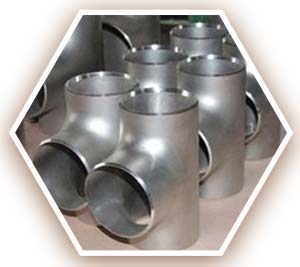

ASTM A 403 WP 316L Equal Tee

ASTM A 403 WP 316L Equal Tee

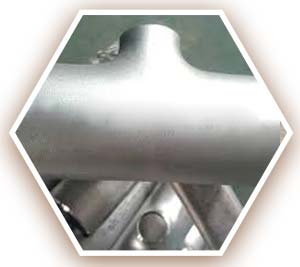

A403 Grade WP316L Unequal Tee

A403 Grade WP316L Unequal Tee

A403 Gr WP316L Reducing Tee

A403 Gr WP316L Reducing Tee

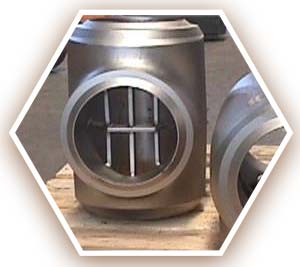

UNS S31603 Barred Tee

UNS S31603 Barred Tee

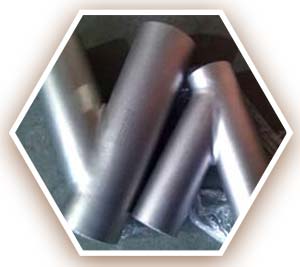

WNR 1.4404 Y Type Tee

WNR 1.4404 Y Type Tee

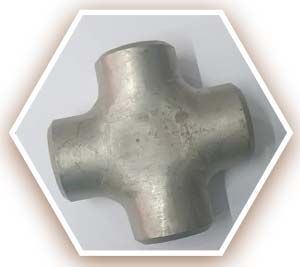

ASTM A403 UNS S31603 Cross Tee

ASTM A403 UNS S31603 Cross Tee

Types of A403 Gr WP316L Reducer



SUS 316L Concentric Reducer

SUS 316L Concentric Reducer

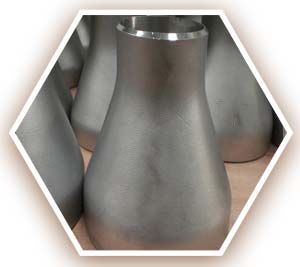

A403 316L Eccentric Reducer

A403 316L Eccentric Reducer

Types of UNS S31603 Pipe Bend

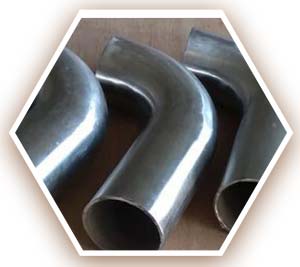

A403 WP316L 1D Bend

A403 WP316L 1D Bend

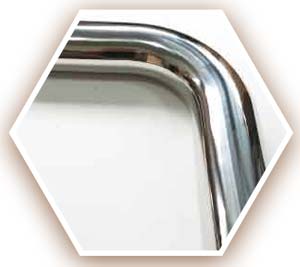

ASTM A 403 WP 316L 1.5D Bend

ASTM A 403 WP 316L 1.5D Bend

ASTM A403 Gr WP316L 2D Bend

ASTM A403 Gr WP316L 2D Bend

ASTM A403 WP316 2.5D Bend

ASTM A403 WP316 2.5D Bend

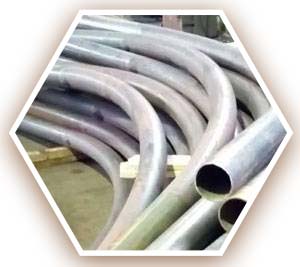

ASTM A403 WP316L 3D Bend

ASTM A403 WP316L 3D Bend

SA 403 WP 316L 45 Deg Pipe Bend

SA 403 WP 316L 45 Deg Pipe Bend

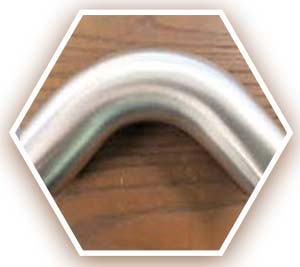

WP316L 90 Deg Pipe Bend

WP316L 90 Deg Pipe Bend

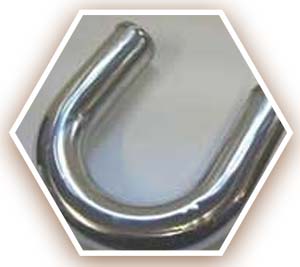

A403 WP316l WX 180 Deg Pipe Bend

A403 WP316l WX 180 Deg Pipe Bend

ASTM A403 WP316l W U Bend

ASTM A403 WP316l W U Bend

Types of A403 WP316l WX Stub End

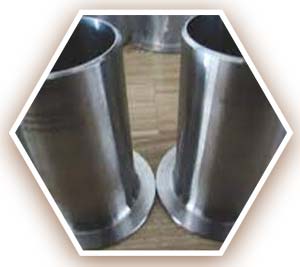

ASTM A403 WP316 Long Stub End

ASTM A403 WP316 Long Stub End

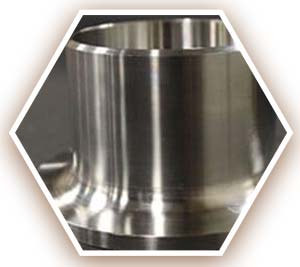

ASTM A403 WP316L Short Stub End

ASTM A403 WP316L Short Stub End

SA 403 WP 316L Lap Joint Stub End

SA 403 WP 316L Lap Joint Stub End





Material

Types

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
