Stainless Steel Globe Valve

Sizes in Stock

Sizes in Stock

1/4 NPS to 42 NPS

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 72 Inch

Pressure Class

Pressure Class

Class 150 - 2500

Globe Valve HSN Code

Globe Valve HSN Code

84818030

Applications

Applications

Cooling Water Systems

Inspection & Testing

Inspection & Testing

API 598

Primary Purpose

Primary Purpose

Start, and Regulate Liquid & Gas
Flow In Pipes

End Connections

End Connections

Flanged, Buttweld, Socket Weld


lug type butterfly valve

Table Of Content

Custom Sizes Cast Iron Globe Valve Manufacturer in India


Globe Valve Specifications


Manufacturing Size Range

Sizes

  • 2" to 42"
  • DN50 to DN1600
Design

Design

  • ASME B16.34, API 602, API 623
  • Contact stainless steel globe valve manufacturer in India For Above 72"
Globe Valve Parts

Globe Valve Parts

  • Bonnet, Cage
  • Stem, Disk, Seat
Brand

Brand Name

  • SACCAP, Bonney Forge
  • L&T, OMB, Valvosider
  • Velan, AMPO
  • Smith Valves, Cameron
Manufacturing Process

Manufacturing Process

  • Casting
  • CNC Machining
  • Forging
Pressure Ratings

Pressure Ratings

  • Class 150, Class 300, Class 600.
  • Class 900, Class 1500, Class 2500

Body Material

Body Material

  • ASTM A351
  • ASTM A216 Gr WCB
  • Stainless Steel
End Connections

End Connections

  • Butt Weld
  • Flanged
  • Socket Weld
Suitable Environment

Environment

  • Seawater
  • Sulfuric Acid
  • Phosphoric Acid
Testing & Inspection

Testing & Inspection

  • Micro Test
  • Hydrostatic Test
  • Radiography Test
Logistics

Logistics

  • By Sea & Air
  • Norway = 45 day
  • Mexico = 45 day
  • Jamaica = 50 day
Origin

Origin

  • Russian
  • American
  • Janpanese
  • Korean & European

Buy 100% Tested Globe Control Valve for HVAC Systems Applications as per BS 1873


Applications of Stainless Steel Globe Valve


  • Cooling water systems
  • Fuel oil systems
  • Chemical feed systems

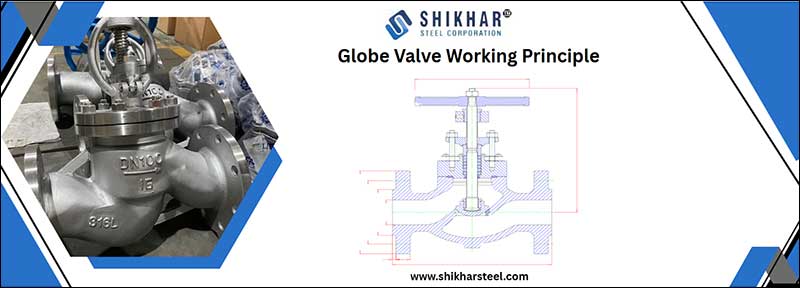

Globe Valve Working Principle


Globe Valve Working Principle

Advantages of Globe Control Valve


  • Significant Head Loss
  • Increased Operating Force
  • Slower Operation
  • Small Working Stroke
  • Quite Good Throttling Capability
  • Good Sealing

Stainless Steel Globe Valve Symbol


Stainless Steel Globe Valve Symbol

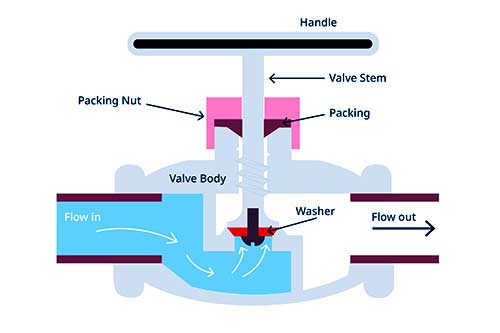

Globe Valve Components


Globe Valve Components
  • Handle
  • Packing Nut
  • Valve Stem
  • Packing
  • Valve Body
  • Washer
  • Flow Out

Selection Process of Steam Globe Valve



Pressure & Temperature


Operating Conditions


Steam Quality


Seating and Trim Material


Flow Path


How Do SS Globe Valve Work?


  • Flow Control Mechanism
  • Sealing Capabilities
  • Directional Flow

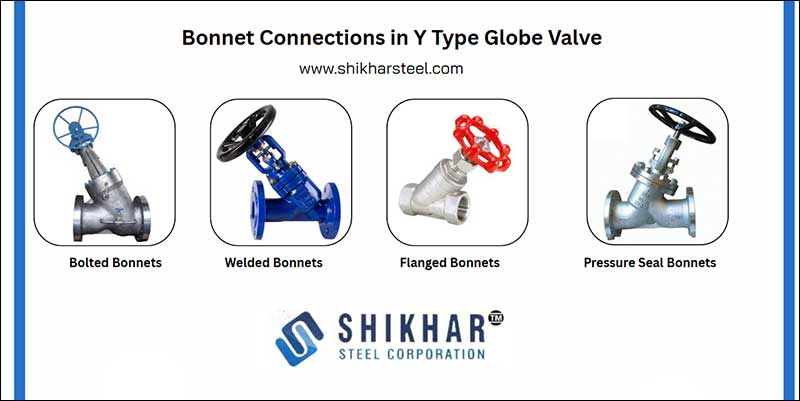

Bonnet Connections in Y Type Globe Valve


Bonnet Connections in Y Type Globe Valve

Materials for 3 Way Globe Valve


  • Stainless steel Globe Valve
  • Cast iron Globe Valve
  • Alloy Steel Globe Valve
  • Brass Globe Valve
  • Copper Globe Valve
  • Bronze Globe Valve

High Pressure Globe Valve Designs


High Pressure Globe Valve Designs

Industrial Globe Valves Pressure Rating


Size Pressure Rating Class
2"-6" 425.5 bar 2500
2"-12" 255.3 bar 1500
2"-12" 153.2 bar 900
2"-24" 102.1 bar 600
2"-24" 51.1 bar 300
2"-24" 19.6 bar 150

Stainless Steel Globe Valve Dimensions


Stainless Steel Globe Valve Dimensions
no
NPS ØW H L ØI ØD n Øk Øg b Thrust Torque Kv ØID
inch mm mm mm mm mm mm mm mm kN Nm m3/h mm
24 1000 1330 1295 35 815 20 749 692 46.1 556 3727 5500 539
20 900 1288 978 32 700 20 635 584 41.3 380 2551 4500 444
18 900 1120 978 32 635 16 578 533 38.1 306 1770 3800 396
16 700 1480 914 29 595 16 540 470 35 240 1243 2800 349
14 605 1250 787 29 535 12 476 413 33.4 183 835 2100 303
12 605 930 698 25 485 12 432 381 30.2 152 556 1650 275
10 455 897 622 25 405 12 362 324 28.6 104 380 1100 224
8 410 640 495 22 345 8 299 270 27 72 220 680 182
6 360 530 406 22 280 8 241 216 23.9 44 134 360 135
4 310 435 292 19 230 8 190 157 22.3 25 60 150 90
3 265 425 241 19 190 4 152 127 17.5 17 42 75 69
2 210 350 203 19 150 4 121 92 14.3 10 21 30 42

Globe Valve Weight Chart in KG


NPS Weight
- kg
24 2240
20 1680
18 1150
16 630
14 471
12 380
10 255
8 174
6 96
4 50
3 37
2 19

Types of Stainless Steel Globe Valve


Tee Globe Valve

Tee Globe Valve

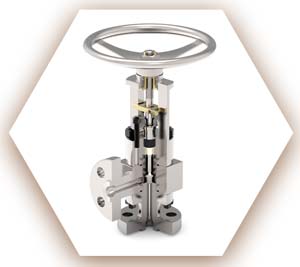

Angles Globe Valves

Angles Globe Valves

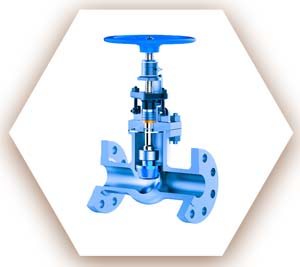

Wye Globe Valves

Wye Globe Valves

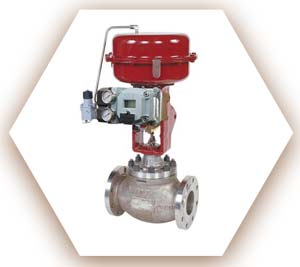

Globe Control Valve

Globe Control Valve

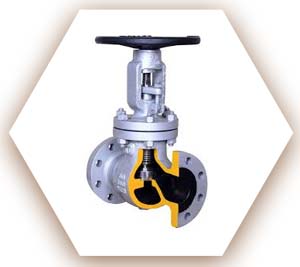

Bellow Seal Globe Valve

Bellow Seal Globe Valve

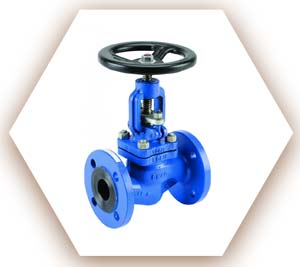

Steam Globe Valve

Steam Globe Valve

Y Type Globe Valve

Y Type Globe Valve

3 Way Globe Valve

3 Way Globe Valve

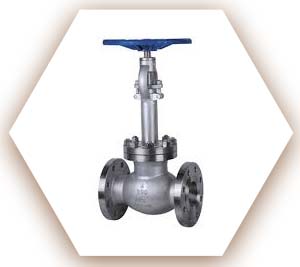

Cryogenic Globe Valve

Cryogenic Globe Valve




Types

Material
