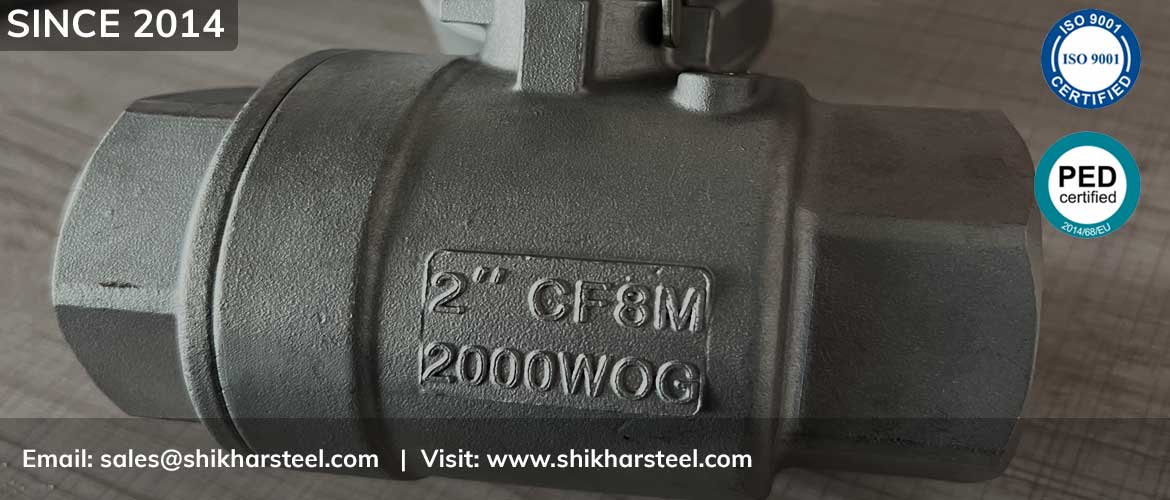

Stainless Steel 304 Valve

Sizes in Stock

Sizes in Stock

1/8" to 48"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 72 Inch

Temperature Range

Temperature Range

-40°F to 200°F

Maximum Pressure Rating

Maximum Pressure Rating

600 PSI CWP

Available Connection

Available Connection

Buttweld, NPT, Flanged, Welded

Test Standard

Test Standard

API 598

Threaded Type

Threaded Type

DIN 2999, IS0 228, BSP, ANSI B 1.20.1

Suitable Medium

Suitable Medium

Water, Food, Gas, Oils, Seawater


Stainless Steel 304 Valve

Table Of Content

Custom Size ASTM A351 CF8 Ball Valve Manufacturer in India


Stainless Steel 304 Valve Specification


Manufacturing Size Range

Sizes of Stainless Steel 304 Valve

  • DN15 to DN1200
  • ½" to 16"
  • Contact SS 304 valve manufacturer in India For Above 72"
Pressure Class

Pressure Class of ASTM A351 CF8 Valve

  • Class 150
  • Class 300, Class 400
  • Class 600, Class 900
  • Class 1500, Class 2500
Standard

ASTM A182 F304 Valve Standard

  • ASME B 16.10
  • ASME B16.34
Brand

Brand Name of Stainless Steel 304L Valve

  • SACCAP, Bonney Forge
  • Smith Valves, Cameron
  • Velan, AMPO
  • L&T, OMB, Valvosider
Manufacturing Process

Manufacturing Process of SS 304L Valve

  • Forging
  • CNC Machining
  • and Casting
Bore Types

Bore Types of Stainless Steel 304 Ball Valve

  • Full
  • Reduced

Flow Pattern

Pattern of Stainless Steel 304 Butterfly Valve

  • Cross Patterns
  • Straight
  • Stamping Angle
Function

304 Stainless Steel Float Valve Function

  • Isolation
  • Regulation
Components

304 Stainless Steel Angle Valve Components

  • Stem
  • Body & Handle
  • Bonnet & Seat
Functoin Types

304 Stainless Steel Ball Valve Functoin Types

  • 2 WAY
  • 3 WAY
  • 4 & 5 WAY Valve

Connection

End Connection of 304 Stainless Steel Gate Valve

  • Screwed & Flanged
  • Socket Welded
  • Female and Male NPT
Seal Material

SS 304 Ball Valve Seal Material

  • PTFE
  • Soft Seal
  • Graphit
Suitable Environment

Environment of SS 304 Butterfly Valve

  • Seawater
  • Phosphoric Acid
  • Sulfuric Acid
Testing

SS 304 Float Valve Testing

  • Hydrostatic Testing
  • Pressure Testing
  • Proof Test
Logistics

SS 304 Needle Valve Logistics

  • By Sea & Air
  • Netherland = 30 day
  • Belgium = 40 day
  • Finland = 45 to 60 day
Origin

Origin of ASTM A351 CF8 Valve

  • American
  • Russian
  • Janpanese
  • Korean & European

Stockists and Supplier of SS 304L Butterfly Valve in DN25 to DN200 in Mumbai

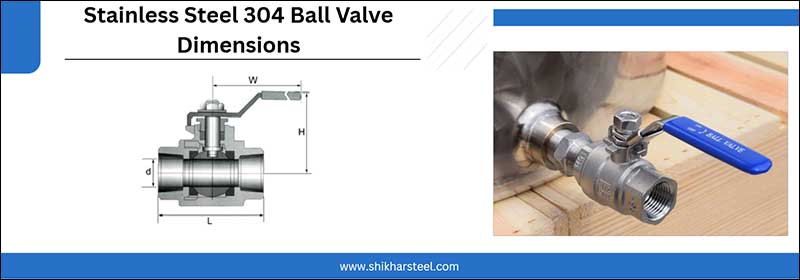

Stainless Steel 304 Ball Valve Dimensions


Stainless Steel 304 Ball Valve Dimensions
Size W H L d
3" 250 149 192 76
2 1/2" 250 136 167 65
2" 190 92 124 50.8
1 1/2" 190 83 110 38
1 1/4" 145 73 103 32
1" 145 69 88 25.4
3/4" 125 57 75 20
1/2" 103 50 63.5 15
3/8" 103 48 55 12.7
1/4" 103 48 55 11.6

SS 304 Needle Valve Construction


  • Set Screw
    SS 304
  • Handle
    SS 304
  • Stem
    SS 316
  • Gland Nut
    SS 316
  • Packing
    Teflon
  • Bonnet & Body
    ASTM A351 CF3M

Stainless Steel 304L Valve Features


Stainless Steel 304L Valve Features

Applications for ASTM A351 CF8 Valve

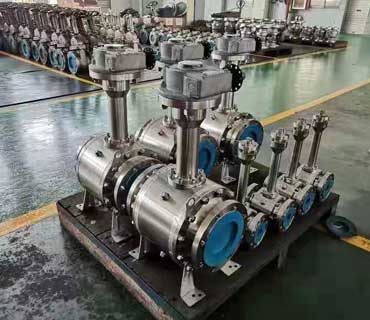

Water Treatment Plants

Water Treatment Plants

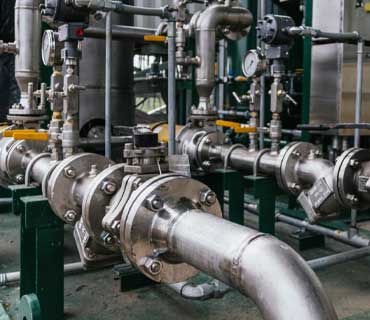

Chemical Processing

Chemical Processing

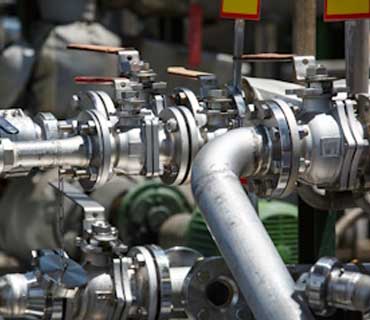

Seawater Environments

Seawater Environments

Pharma Industry

Pharma Industry


304 Stainless Steel Gate Valve Parts & Materials


  • Body
    A351 CF8M
  • Disc
    A351 CF8M
  • Stem
    A276 316
  • Bonnet
    A351 CF8M
  • Body Gasket
    PTFE
  • Snap Ring
    A276 316
  • Washer
    A276 316
  • Packing
    PTFE
  • Packing Sleeve
    A276 304
  • Packing Gland
    A351 CF8M
  • Hand Wheel
    Aluminium
  • Nut & Plain Washer
    A194 B8M & A276 304

SS 304 Valve Pressure Rating


Sizes Media Temperature Pressure Range
DN50 0 to 180°C 0 to 13 bar
DN40 0 to 180°C 0 to 13 bar
DN32 0 to 180°C 0 to 13 bar
DN25 0 to 180°C 0 to 13 bar
DN20 0 to 180°C 0 to 13 bar
DN15 0 to 180°C 0 to 13 bar

Stadards for ASTM A182 F304 Valve


Design Ends Testing
API 602 ANSI B 2.1 BS 5146 & API 598

Testing Requirements for SS 304 Butterfly Valve


  • Ultrasonic Testing
  • Hydrostatic Testing
  • Chemical Analysis
  • Proof Test
  • Tensile Testing
  • Mechanical Testings
  • Positive Material Identification
  • Hydrogen-Induced Cracking Test
  • Intergranular Corrosion Test

Stainless Steel 304 Valve Equivalent


UNS

UNS

  • S30400
JIS (Japan)

JIS (Japan)

  • SUS 304
EN (Europe)

EN (Europe)

  • X5CrNi18-10
AFNOR (France)

AFNOR (France)

  • Z7CN18-09
BS (England)

BS (England)

  • 304S31
WNR (Russia)

WNR (Russia)

  • 1.4301

SS 304 Valve Chemical Composition


Ni

Nickel

8.0 - 11.0%

S

Sulfur

0.030%

C

Carbon

0.08% max

P

Phosphorus

0.045% min

N

Nitrogen

0.10%

Mn

Manganese

2.00% max

Cr

Chromium

18.0-20.0%

Si

Silicon

1.00% max



A182 F304 Valve Mechanical Properties


Tensile Strength
Tensile Strength
515 MPa
Yield Strength
Yield Strength
205 MPa
Elongation
Elongation
30%
Hardness
Hardness (Brinell)
210 HB

Types of Stainless Steel 304 Valve

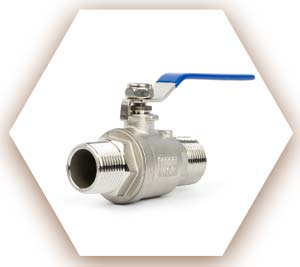

ASTM A182 F304 Ball Valve

ASTM A182 F304 Ball Valve

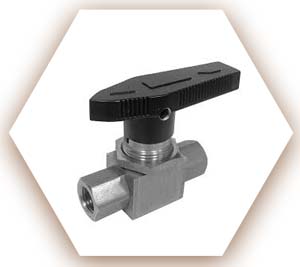

SUS 304 Instrumentation Ball Valve

SUS 304 Instrumentation Ball Valve

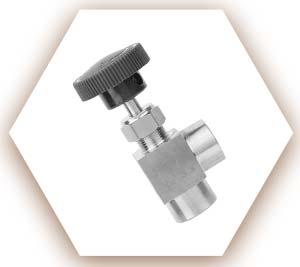

F304 Stainless Steel Angle Valve

F304 Stainless Steel Angle Valve

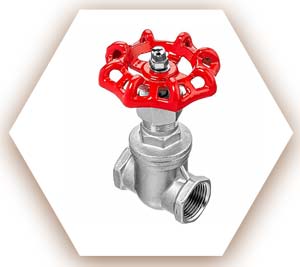

SA182 F304 Gate Valve

SA182 F304 Gate Valve

ASTM A351 CF8 Globe Valve

ASTM A351 CF8 Globe Valve

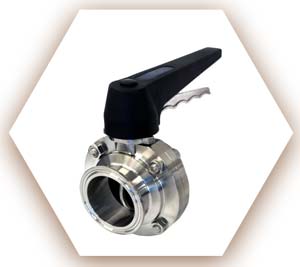

SS 304L Butterfly Valve

SS 304L Butterfly Valve

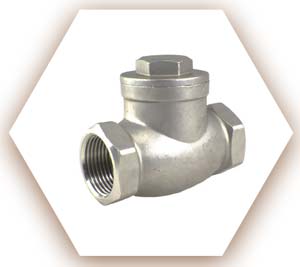

A182 Grade F304 Check Valve

A182 Grade F304 Check Valve

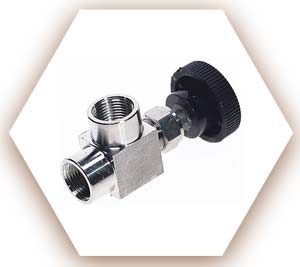

Inox 304 Needle Valve

Inox 304 Needle Valve

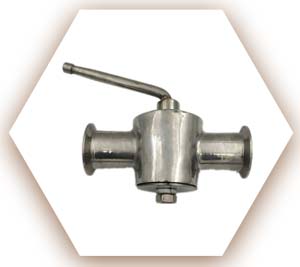

UNS S30400 Plug Valve

UNS S30400 Plug Valve

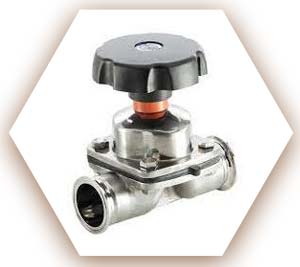

SS 304L Diaphragm Valve

SS 304L Diaphragm Valve

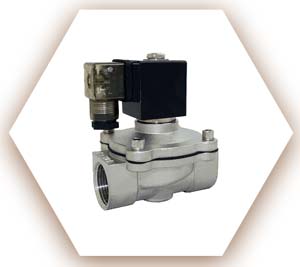

Stainless Steel F304L Solenoid Valve

Stainless Steel F304L Solenoid Valve

UNS S30403 Manifold Valve

UNS S30403 Manifold Valve
