Alloy Steel Valve Manufacturer in India

Sizes in Stock

Sizes in Stock

1/8" to 48"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 72 Inch

Working Pressure

Working Pressure

Up to 6000 PSIG

Grades

Grades

ASTM A182 F5, F11, F22, or F91

Application

Application

Oil and Gas Refining

ANSI Class

ANSI Class

150, 300, 600, 800, and 1500

Tested & Design By

Tested & Design By

API 598 and API 602

End Method

End Method

Socket Weld, Threaded and
Buttweld

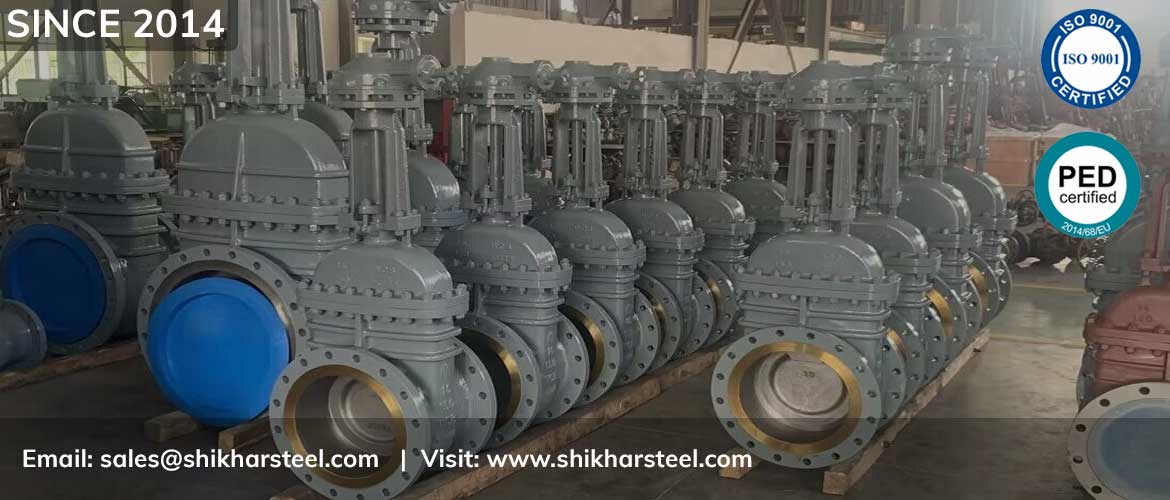

Alloy Steel Valves

Table Of Content

ASTM A182 F5 Gate Valve Supplier in India With Custom Specification


Alloy Steel Valves Specification


Manufacturing Size Range

Alloy Steel Valves Sizes

  • DN15 to DN1200
  • ½" to 16"
  • Contact alloy steel valve manufacturer in India For Above 72"
Pressure Class

Pressure Class of High Alloy Steel Valves

  • Class 150
  • Class 300, Class 400
  • Class 600, Class 900
  • Class 1500, Class 2500
ASME Standard

ASME Standard of Alloy Steel Gate Valve

  • ASME B16.34
  • ASME B 16.10
Brand

Brand Name of Alloy Steel Ball Valve

  • Velan, AMPO
  • SACCAP, Bonney Forge
  • Smith Valves, Cameron
  • L&T, OMB, Valvosider
Manufacturing Process

Manufacturing Process of Alloy Steel Globe Valve

  • Casting
  • CNC Machining
  • and Forging
Bore Types

Bore Types of Alloy Steel F5 Forged Valves

  • Full
  • Reduced

Flow Pattern

P91 Alloy Steel Valve Pattern

  • Straight
  • Stamping Angle
  • Cross Patterns
Function

Function of A182 F11 Butterfly Valve

  • Isolation
  • Regulation
Components

Low Alloy Steel Control Valve Components

  • Bonnet & Seat
  • Stem
  • Body & Handle
Functoin Types

Functoin Types of Alloy Steel Valves

  • 2 WAY
  • 3 WAY
  • 4 & 5 WAY Valve

Connection

End Connection of Low Alloy Steel Valves

  • Female and Male NPT
  • Screwed & Flanged
  • Socket Welded
Seal Material

Seal Material of Alloy Steel Gate Valve

  • Graphit
  • PTFE
  • Soft Seal
Suitable Environment

Alloy Steel Ball Valve Environment

  • Sulfuric Acid
  • Seawater
  • Phosphoric Acid
Testing

Common Alloy Steel Globe Valve Testing

  • Flaring Test
  • Flattening Test
  • Hydrostatic Test
Logistics

Alloy Steel Globe Valve Logistics

  • By Sea & Air
  • Singapore = 8 day
  • Nigeria = 30 day
  • Germany = 20 day
Origin

Origin of Alloy Steel Needle Valve

  • Janpanese
  • Korean & European
  • American
  • Russian

Purchase ASME SA182 F11 Ball and Butterfly Valve For Harsh Environments in India


High Alloy Steel Valves Forging Grade


  • ASTM A182 F5 Valves
  • ASTM A182 F9 Valves
  • ASTM A182 F11 Valves
  • ASTM A182 F22 Valves
  • ASTM A182 F91 Valves
  • ASTM A182 F92 Valves

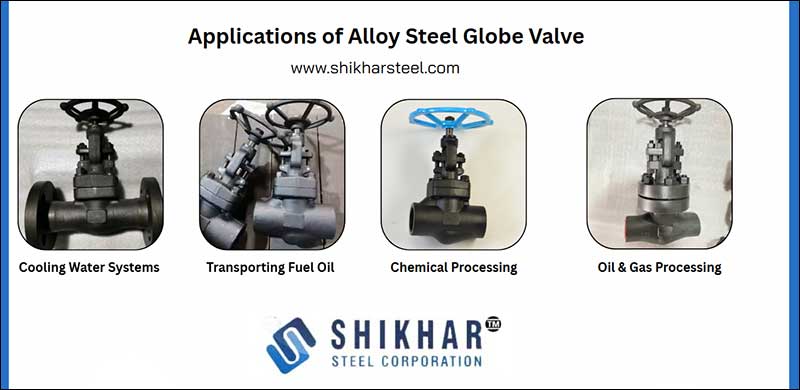

Applications of Alloy Steel Globe Valve


Applications of Alloy Steel Globe Valve

Design Features of A182 F11 Butterfly Valve


Design Features of A182 F11 Butterfly Valve

Alloy Steel Gate Valve Standrds


  • API 600
  • API 6D
  • JIS 2071
  • DIN 1984
  • ASME B16.34
  • API 602

Alloy Steel Ball Valve Standrds



BS 5351


API 608


API 6D


JIS B2071


DIN 1983


ANSI B16.34


Low Alloy Steel Control Valve Casting Grade


  • ASTM A352 LC3
  • ASTM A217 C5
  • ASTM A217 C12
  • ASTM A217 WC6
  • ASTM A217 WC9
  • ASTM A217 C12A


Alloy Steel Valve Chemical Composition


Grade F91 Valve F22 Valve F11 Valve F5 Valve F9 Valve
C (max.) 0.08-0.12 0.15 0.15 0.15 0.15
Mn 0.30-0.60 0.30-0.60 0.30-0.80 0.30-0.60 0.30-0.60
P (max.) 0.02 0.035 0.035 0.035 0.035
S (max.) 0.01 0.03 0.03 0.03 0.03
Si 0.20-0.50 0.50 max. 0.50-1.00 0.50-1.00 0.20-1.00
Cr 8.00-9.50 1.90-2.60 1.00-1.50 4.00-6.00 8.00-10.00
Mo 0.85-1.05 0.90-1.10 0.44-0.65 0.44-0.65 0.90-1.10

Alloy Valve Mechanical Properties


Grade A182 F91 Valve A182 F22 Valve A182 F11 Valve A182 F5 Valve A182 F9 Valve
Tensile Strength (min.) 620MPa (90ksi) 415MPa (60ksi) 485MPa (70ksi) 485MPa (70ksi) 585MPa (85ksi)
Yield Strength (0.2% Offset, min.) 415MPa (60ksi) 205MPa (30ksi) 275MPa (40ksi) 275MPa (40ksi) 380MPa (55ksi)
Elongation (min.) 20% 20% 20% 20% 20%
Hardness (max.) 238HBW 207HBW 207HBW 207HBW 207HBW

Low Alloy Steel Valves UNS Designation


Grade ASTM A182 F91 Valve ASTM A182 F22 Valve ASTM A182 F5 Valve ASTM A182 F9 Valve ASTM A182 F11 Valve
UNS UNS K90901 UNS K21590 UNS K41545 UNS K90941 UNS K11572

Types of Alloy Steel Valve

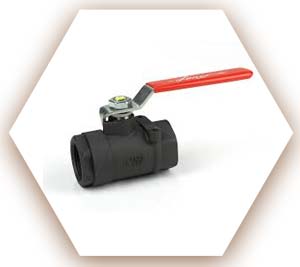

Alloy Steel Ball Valve

Alloy Steel Ball Valve

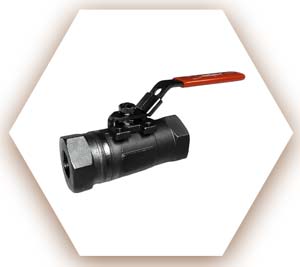

Low Alloy Steel Instrumentation Ball Valve

Low Alloy Steel Instrumentation Ball Valve

High Alloy Steel Angle Valve

High Alloy Steel Angle Valve

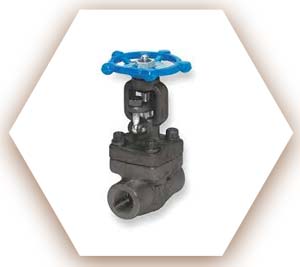

Alloy Gate Valve

Alloy Gate Valve

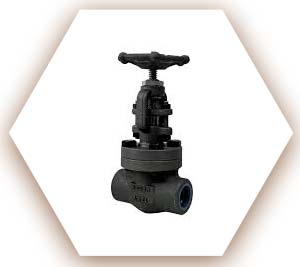

Chrome Moly Globe Valve

Chrome Moly Globe Valve

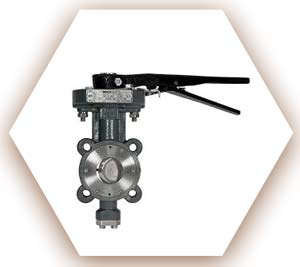

A182 F11 Butterfly Valve

A182 F11 Butterfly Valve

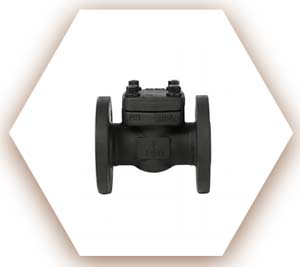

Alloy Steel F5 Check Valve

Alloy Steel F5 Check Valve

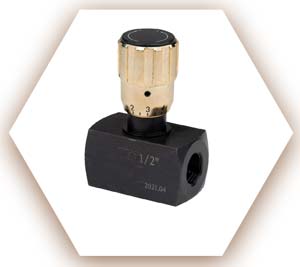

ASTM A182 F5 Needle Valve

ASTM A182 F5 Needle Valve

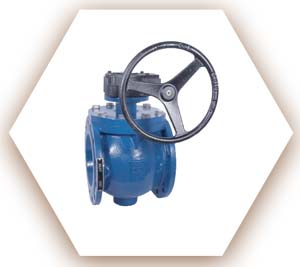

ASTM A182 Alloy Steel Plug Valve

ASTM A182 Alloy Steel Plug Valve

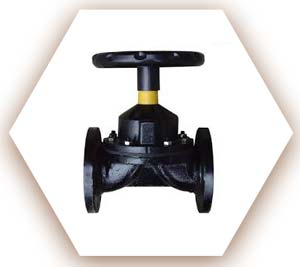

ASME SA182 F22 Diaphragm Valve

ASME SA182 F22 Diaphragm Valve

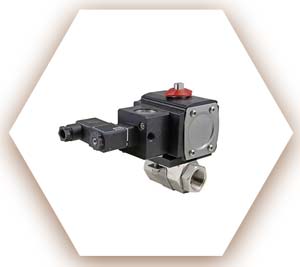

A182 F9 Solenoid Valve

A182 F9 Solenoid Valve

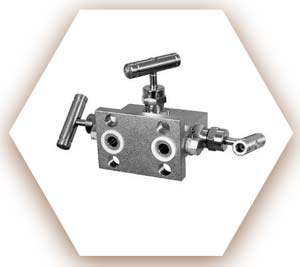

SA 182 F91 Manifold Valve

SA 182 F91 Manifold Valve
