Super Duplex Valve Manufacturer in India

Sizes in Stock

Sizes in Stock

1/8" to 48"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 72 Inch

Grades

Grades

Alloy 2507, F53, and F55

Steel Types

Steel Types

Ferritic & Austenitic

ASTM Specification

ASTM Specification

ASTM A351 CE3MN and CD3MWCuN

Suitable For

Suitable For

Seawater and Nitric Acid

Process

Process

CNC Machining

Strength

Strength

2x Stronger Yield than SS 316

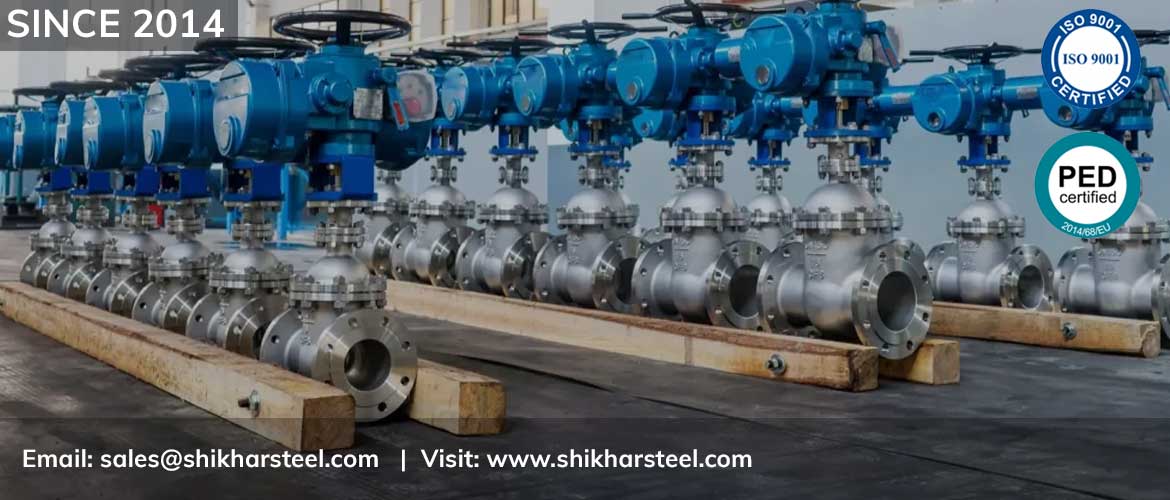

super duplex valve

Table Of Content

Super Duplex Valve Specification


Manufacturing Size Range

Super Duplex Valve Sizes

  • DN15 to DN1200
  • ½" to 16"
  • Contact super duplex valve manufacturer in India For Above 72"
Pressure Class

Pressure Class of Super Duplex 2507 Valve

  • 125#, 150#
  • 300#, 400#
  • 600#, 900#
  • 1500#, 2500#
ASME Standard of Super Duplex 2507 Ball Valve

ASME Standard of Super Duplex 2507 Ball Valve

  • ASME B 16.10
  • ASME B16.34
Brand

Brand Name of Super Duplex Ball Valves

  • SACCAP, Bonney Forge
  • Velan, AMPO
  • Smith Valves, Cameron
  • L&T, OMB, Valvosider
Manufacturing Process

Manufacturing Process of Super Duplex Butterfly Valves

  • Forging
  • CNC Machining
  • and Casting
Bore Types

Bore Types of Super Duplex Gate Valve

  • Full
  • Reduced

Flow Pattern

Flow Pattern of Super Duplex Check Valve

  • Cross Patterns
  • Straight
  • Stamping Angle
Function

Function of Super Duplex Needle Valve

  • Isolation
  • Regulation
Components

Super Duplex Globe Valve Components

  • Stem
  • Body & Handle
  • Bonnet & Seat
Functoin Types

Super Duplex Plug Valve Functoin Types

  • 2 WAY
  • 3 WAY
  • 4 & 5 WAY Valve

Connection

End Connection of Super Duplex Stainless Steel Valves

  • Screwed & Flanged
  • Socket Welded
  • Female and Male NPT
Seal Material

Super Duplex 2507 Valve Seal Material

  • Soft Seal
  • PTFE
  • Graphit
Suitable Environment

Super Duplex Valve Environment

  • Seawater
  • Sulfuric Acid
  • Phosphoric Acid
Testing

Super Duplex Ball Valves Testing & Method

  • Hydrostatic Test
  • Impact Test
  • Bend Test
Logistics

Super Duplex Butterfly Valves Logistics

  • By Sea & Air
  • Thailand = 7 day
  • Hungary = 45 day
  • Germany = 21 day
Origin

Super Duplex Gate Valve Origin

  • Korean & European
  • American
  • Janpanese
  • Russian

Super Duplex Stainless Steel Valves Grades


  • ASTM A182 F53 Valve
  • ASTM A182 F55 Valve

Supplier of Alloy 2507 Ball Valves Suitable for Food Processing in Mumbai


Applications of Super Duplex Butterfly Valves


Applications of Super Duplex Butterfly Valves

Check Ready Stock of UNS S32750 Gate Valve and Check Valve With Third Party Inspection


Testing Requirements for Super Duplex Gate Valve


Proof Test

Proof Test

Impact Test

Impact Test

Hydrostatic Test

Hydrostatic Test

Hardness Test

Hardness Test

Magnetic Particle Test

Magnetic Particle Test

Ultrasonic Testing

Ultrasonic Testing


Dimensions of Super Duplex Ball Valve


DN Torque (NM) ~H (open) ~W FNPT L
2″ 190 128 221 2″ 145
1 1/2″ 130 118 221 1 1/2″ 125
1 1/4″ 100 105 176 1 1/4″ 112
1″ 68 95 176 1″ 90
3/4″ 45 90 136 3/4″ 85
1/2″ 25 85 136 1/2″ 75
3/8″ 25 85 136 3/8″ 75
1/4″ 25 85 136 1/4″ 75

Super Duplex Check Valve Forgings & Castings Grades


Grades Forgings Castings Bars
UNS S32760 Super Duplex ASTM A182 F55 A890 6A/A995 6A/CD3MWCuN ASTM A276 S32760
UNS S32750 Super Duplex ASTM A182 F53 ASTM A890 5A/
ASTM A995 5A/CE3MN		 ASTM A276 S32750

Materials Use in Super Duplex Ball Valves


Body ASTM A890 Super Duplex (5A)
Ball ASTM A182 F53
Connectors ASTM A890 5A
Hardware SS 316
Seats RPTFE & PTFE
Handle ASTM A351 CF8M

Design Features of Super Duplex 2507 Ball Valve


  • Forging Or Casting Body
  • Reduced Port Or Full Port
  • Floating Ball Design
  • API 607/ API 6FA Fire Safe Design
  • Anti-static To BS 5351
  • Optional Locking Device

Advantages of Super Duplex Needle Valve


  • Resistant To Corrosion
  • High Strength
  • Wide Temperature Range
  • Reduced Risk Of Leaks
  • High Flow Capacity
  • Suitable for Broad Range Of Fluids

Operations of Super Duplex Globe Valve


Operations of Super Duplex Globe Valve

End Connection of Super Duplex Plug Valve


  • Socket Welded & Wafer
  • Buttweld & Threaded
  • Flanged & Lug

Super Duplex Steel Valve Equivalent


UNS (North America)

UNS (North America)

  • A182 F53 = UNS S32750
  • A182 F55 = UNS S32760
WNR (Russia)

WNR (Russia)

  • ASTM A182 F53 = 1.4410
  • ASTM A182 F55 = 1.4410

Super Duplex Stainless Steel Valves Chemical Composition


C

Carbon

F53 = 0.030

F55 = 0.05

Cr

Chromium

F53 = 24.00 to 26.00

F55 = 24.00 to 26.00

P

Phosphorous

F53 = 0.035

F55 = 0.030

S

Sulphur

F53 = 0.020

F55 = 0.010

Ni

Nickel

F53 = 6.00 to 8.00

F55 = 6.00 to 8.00

N

Nitrogen

F53 = 0.24 to 0.32

F55 = 0.20 to 0.30

Mo

Molybdenum

F53 = 3.00 to 5.00

F55 = 3.00 to 4.00

Si

Silicon

F53 = 0.80

F55 = 1.00

Fe

Iron

F53 = 58.095

F55 = 57.61

Mn

Manganese

F53 = 1.20

F55 = 1.00



Super Duplex 2507 Valve Mechanical Properties


  • Yield Strength :
  • F53 = 80 KSI
  • F55 = 80 KSI
  • Density :
  • F53 = 7.8g/cm 3
  • F55 = 0.281lb/in 3
  • Melting Point :
  • F53 = 1350°C
  • F55 = 2460°F
  • Melting Point
    2460°F
  • Density
    7.8 g/cm 3

Types of Super Duplex Valve Suitable For Suitable For Seawater

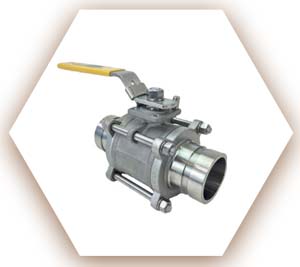

Super Duplex Ball Valve

Super Duplex Ball Valve

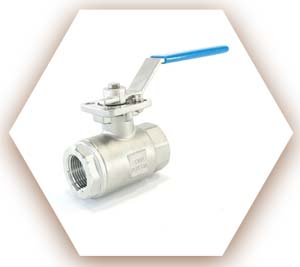

Alloy 2507 Instrumentation Ball Valve

Alloy 2507 Instrumentation Ball Valve

Super Duplex 2507 Angle Valve

Super Duplex 2507 Angle Valve

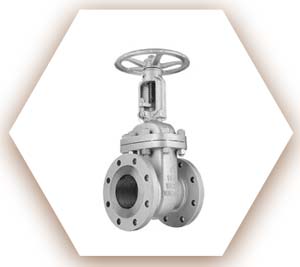

2507 Super Duplex Gate Valve

2507 Super Duplex Gate Valve

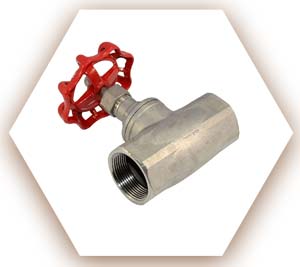

SDDS Globe Valve

SDDS Globe Valve

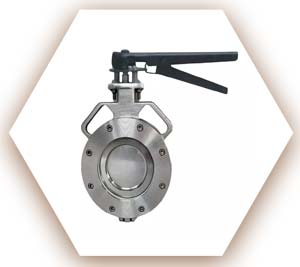

SAF 2507 Butterfly Valve

SAF 2507 Butterfly Valve

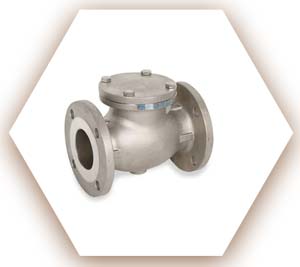

Super Duplex SS Check Valve

Super Duplex SS Check Valve

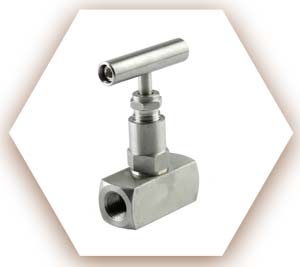

ASTM A182 F53 Needle Valve

ASTM A182 F53 Needle Valve

ASTM A182 F55 Plug Valve

ASTM A182 F55 Plug Valve

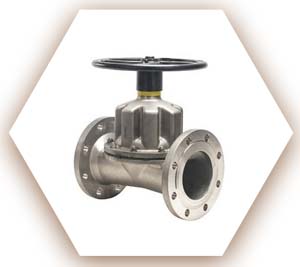

UNS S32750 Diaphragm Valve

UNS S32750 Diaphragm Valve

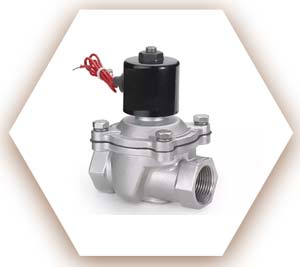

UNS S32760 Solenoid Valve

UNS S32760 Solenoid Valve

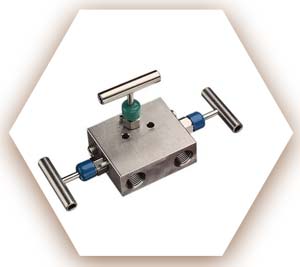

Super Duplex Manifold Valve

Super Duplex Manifold Valve
