Inconel Valve Manufacturer in India

Sizes in Stock

Sizes in Stock

1/8" to 48"

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 72 Inch

Grades

Grades

Inconel 600, 601, 625, 686,
718, 725, X750

UNS Designation

UNS Designation

UNS N06600, UNS N06601,
UNS N06625, UNS N07718

Designed for

Designed for

High Pressure Environments

Connection

Connection

Welded, Socket, Flanged, Threaded, Clamped

Media

Media

Oil, Gas & Water

Known for

Known for

High Temperature Stability

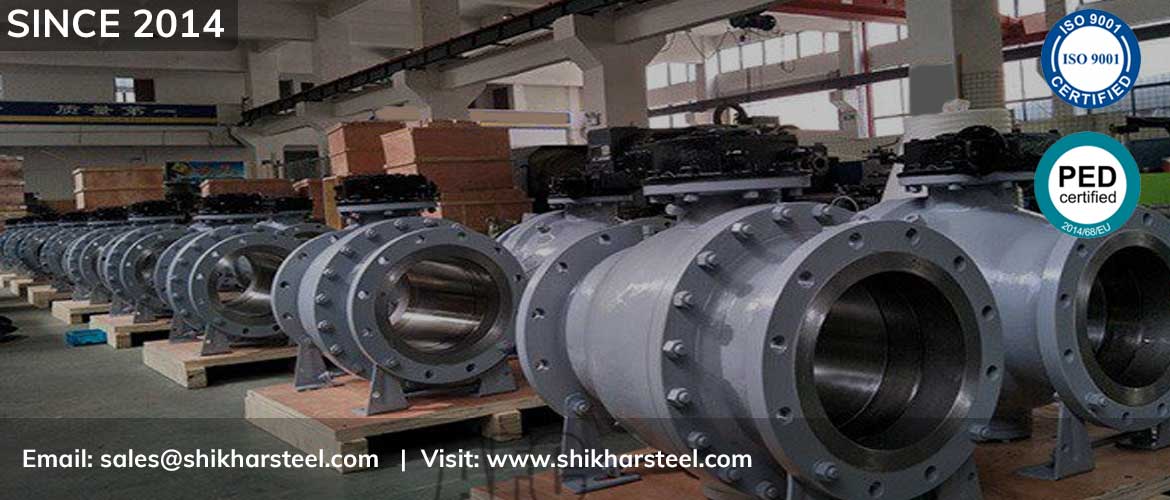

Inconel valve

Table Of Content

Inconel 625 Ball Valve Supplier in Mumbai for Aerospace


Inconel Valve Specification


Manufacturing Size Range

Inconel Valve Sizes

  • DN15 to DN1200
  • ½" to 16"
  • Contact Inconel Valve manufacturer in India For Above 72"
Pressure Class

Pressure Class of Inconel 600 Valve

  • Class 125, Class 150
  • Class 300, Class 400
  • Class 600, Class 900
  • Class 1500, Class 2500
American Standard

American Standard for Inconel 718 Valve

  • ASME B 16.10
  • ASME B16.34
Brand

Alloy 625 Valve Brand

  • SACCAP, Bonney Forge
  • Velan, AMPO
  • Smith Valves, Cameron
  • L&T, OMB, Valvosider
Manufacturing Process

Manufacturing Process of Inconel Instrumentation Valve

  • CNC Machining
  • and Casting
  • Forging
Bore Types

Bore Types of Inconel Exhaust Valve

  • Full
  • Reduced

Flow Pattern

Flow Pattern of Inconel Check Valve

  • Stamping Angle
  • Cross Patterns
  • Straight
Function

Inconel 625 Valve Function

  • Isolation
  • Regulation
Components

Components of Inconel Needle Valve

  • Body & Handle
  • Stem
  • Bonnet & Seat
Functoin Types

Inconel Butterfly Valve Functoin Types

  • 2 WAY
  • 3 WAY
  • 4 & 5 WAY Valve

Connection

End Connection of Inconel 625 Gate Valve

  • Socket Welded
  • Screwed & Flanged
  • Female and Male NPT
Seal Material

Inconel Gate Valve Seal Material

  • Graphit
  • Soft Seal
  • PTFE
Suitable Environment

Environment of Inconel Valve

  • Phosphoric Acid
  • Seawater
  • Sulfuric Acid
Testing

Inconel 600 Valve Testing

  • Magnetic Particle Test
  • Liquid Penetrant Test
  • Tensile Testing
Logistics

Inconel 718 Valve Logistics

  • By Sea & Air
  • South Africa = 25 to 30 day
  • France = 30 day
  • Oman = 5 day
Origin

Inconel 625 Valve Origin

  • Janpanese
  • American
  • Korean & European
  • Russian

Stockist of Alloy 600 Gate Valve in India With Custom Sizes at Lowest Price as per ANSI B16.34


Grades Of Inconel Valve


  • Inconel 600 Valve
  • Inconel 601 Valve
  • Inconel 625 Valve
  • Inconel 686 Valve
  • Inconel 718 Valve
  • Inconel 725 Valve

Ideal Applications for Inconel 625 Valve


ideal applications for inconel 625 valve


Operation of Inconel 600 Valve


  • Manual
  • Pneumatic
  • Electric

Suitable Medium for Inconel Exhaust Valve


  • Water
  • Sewage
  • Seawater
  • Gas
  • Food
  • Oils

Inconel 625 Valve Standards


Inconel 625 Valve Standards
  • ASME B16.34
  • ASME B16.25
  • API 602
  • ASME B1.20.1
  • ASME B16.11
  • ASME B16.10
  • BS 5352
  • DIN 3352


Inconel Instrumentation Valve Sizes


Size DN25 to DN200
Thread NPT, PT, BSPP
Connection Socket, Welded, Flanged, Threaded, Clamped
Pressure Class PN10 & PN16

Advantages of Inconel Check Valve



Unparalleled Corrosion Resistance


High Temperature Stability


Superior Mechanical Properties


Good Mechanical Properties


Best Corrosive Environments


Outstanding Corrosion Resistance


Inconel Valves Limitations



Costly Investment


Fabrication Challenges


Limited Availability


Inconel Check Valve Weight


Size & NPT Types Weight Cracking Pressure
3" 21 lbs 5.0 psi
3" 21 lbs 0.25 psi
2" 8.5 lbs 5.0 psi
2" 8.5 lbs 0.25 psi
1 1/2" 5.3 lbs 5.0 psi
1 1/2" 5.3 lbs 5.0 psi
1 1/2" 5.3 lbs 0.25 psi
1 1/4" 3.5 lbs 5.0 psi
1 1/2" 5.3 lbs 0.25 psi
1" 2.3 lbs 5.0 psi
1" 2.3 lbs 0.25 psi
3/4" 1.5 lbs 5.0 psi
3/4" 1.5 lbs 0.25 psi
1/2" 1.0 lbs 5.0 psi
1/2" 1.0 lbs 0.25 psi

Inconel Ball Valve Pressure Ranges



3000 Psi


6000 Psi


10000 Psi


15000 Psi


20000 Psi


Inconel Valve Equivalent


UNS (North America)

UNS (North America)

  • Inconel 600 = N06600
  • Inconel 601 = N06601
  • Inconel 625 = N06625
  • Inconel 718 = N07718
JIS (Japan)

JIS (Japan)

  • Inconel 600 = NCF 600
  • Inconel 601 =NCF 601
  • Inconel 625 = NCF 625
EN (Europe)

EN (Europe)

  • Inconel 600 = NiCr15Fe
  • Inconel 601 = NiCr23Fe
  • Inconel 625 = NiCr22Mo9Nb
AFNOR (France)

AFNOR (France)

  • Inconel 600 = NC15FE11M
  • Inconel 601 = NC23FeA
  • Inconel 625 = NC22DNB4M

BS (England)

BS (England)

  • Inconel 600 = NA 13
  • Inconel 601 = NA 49
  • Inconel 625 = NA 21

WNR (Russia)

WNR (Russia)

  • Inconel 600 = 2.4816
  • Inconel 601 = 2.4851
  • Inconel 625 = 2.4856
  • Inconel 718 = 2.4668

Inconel Alloy Valve Chemical Composition


C

Carbon

600 = 0.15

601 = 0.10

625 = 0.10

718 = 0.08

S

Sulphur

600 = 0.015

601 = 0.015

625 = 0.015

718 = 0.015

Ni

Nickel

600 = 72.0

601 = 58.0 to 63.0

625 = 58.0

718 = 50 to 55

Si

Silicon

600 = 0.50

601 = 0.50

625 = 0.50

718 = 0.35

Mn

Manganese

600 = 1.0

601 = 1.0

625 = 0.50

718 = 0.35

Cu

Copper

600 = 0.5

601 = 1.0

718 = 0.3

Fe

Iron

600 = 6.0 to 10.0

601 = Balance

625 = 5.0

Cr

Chromium

600 = 14.0 - 17.0

601 = 21.0 – 25.0

625 = 20.0 - 23.0

718 = 17 - 21

Mo

Molybdenum

601 = 8.0-10.0

718 = 2.8 - 3.3

Al

Aluminum

601 = 1.0 – 1.7

Co

Cobalt

718 = 1.0 max



Inconel Steel Valve Mechanical Properties



Density

  • Inconel 600 = 8.47 g/cm3
  • Inconel 601 = 8.1 g/cm3
  • Inconel 625 = 8.4 g/cm3
  • Inconel 718 = 8.2 g/cm3

Melting Point

  • Alloy 600 = 2580°F
  • Alloy 601 = 2571°F
  • Alloy 625 = 2460°F
  • Alloy 718 = 2460°F

Elongation

  • B564 UNS N06600 = 40%
  • B564 UNS N06601 = 30%
  • B564 UNS N06625 = 42.5%
  • B564 UNS N07718 = 45%

Types of Inconel Valve Suitable for High Flow Applications

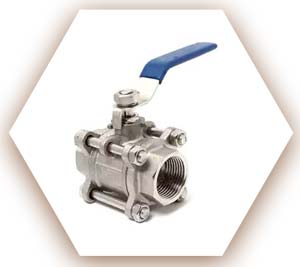

Inconel Ball Valve

Inconel Ball Valve

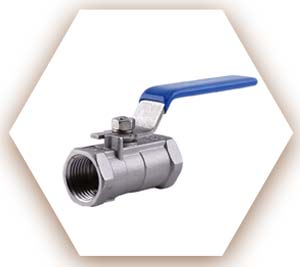

Inconel Instrumentation Ball Valve

Inconel Instrumentation Ball Valve

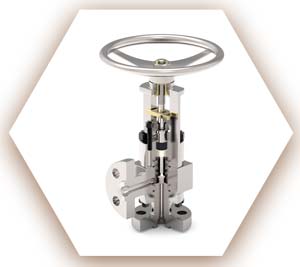

Inconel Alloy 600 Angle Valve

Inconel Alloy 600 Angle Valve

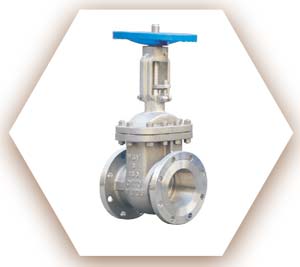

Inconel 601 Gate Valve

Inconel 601 Gate Valve

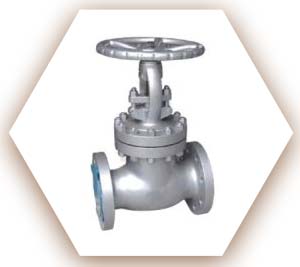

Alloy 625 Globe Valve

Alloy 625 Globe Valve

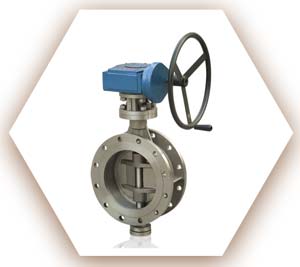

Nickel Alloy 600 Butterfly Valve

Nickel Alloy 600 Butterfly Valve

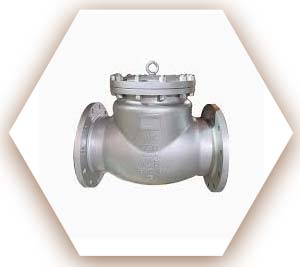

UNS N06600 Check Valve

UNS N06600 Check Valve

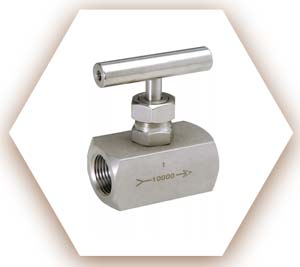

Nickel 718 Needle Valve

Nickel 718 Needle Valve

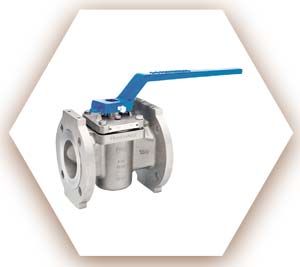

WNR 2.4856 Plug Valve

WNR 2.4856 Plug Valve

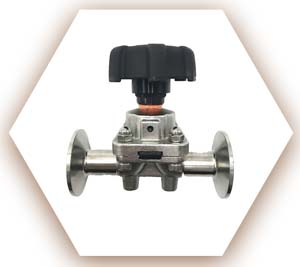

UNS N06625 Diaphragm Valve

UNS N06625 Diaphragm Valve

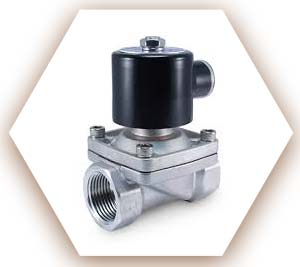

Nickel 600 Solenoid Valve

Nickel 600 Solenoid Valve

Inconel Manifold Valve

Inconel Manifold Valve
