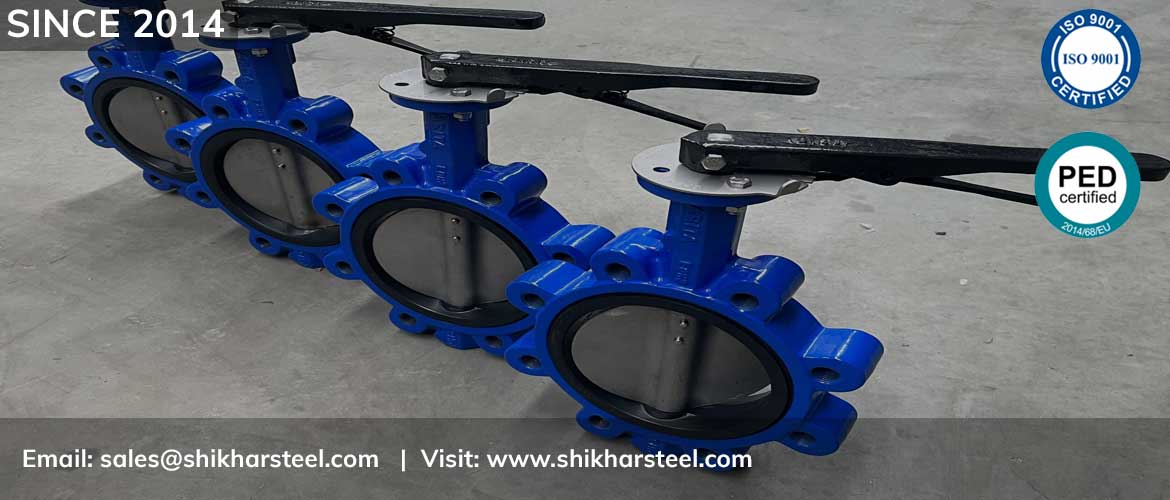

SS Fully Lugged Butterfly Valve Manufacturer in India for Dead End Service


Lug Type Butterfly Valve Specification


Manufacturing Size Range

Sizes

  • 40 MM To 600 MM
  • DN50 to DN600
Sealing Structure

Sealing Structure

  • EPDM, NBR Rubber, PTFE
  • Contact lug type butterfly valve manufacturer in India For Above 72"
Operate

Operate

  • Manual, Worm Gear
  • Pneumatic, Electric Motorized
Brand

Brand Name

  • Velan, AMPO
  • Smith Valves, Cameron
  • SACCAP, Bonney Forge
  • L&T, OMB, Valvosider
Manufacturing Process

Manufacturing Process

  • Casting
  • CNC Machining
  • and Forging
Applicable Media

Applicable Media

  • Water, Air
  • Weakly Corrosive Liquids

Pressure Drop

Pressure Drop

  • Handle High Pressure Drop
Design Standard

Design Standard

  • API / EN / BS as applicable
Suitable Environment

Environment

  • Phosphoric Acid
  • Sulfuric Acid
  • Seawater
Testing & Inspection

Testing & Inspection

  • Hydrostatic Test
  • Liquid Penetrant Test
  • Magnetic Particle Test
Logistics

Logistics

  • By Sea & Air
  • UAE = 6 day
  • South Africa = 25 to 30 day
  • Saudi Arabia = 7 day
Origin

Origin

  • Korean & European
  • American
  • Russian
  • Janpanese

Supplier of European Origin Threaded Lug Type Butterfly Valve Produce Using Hot Forming Method.

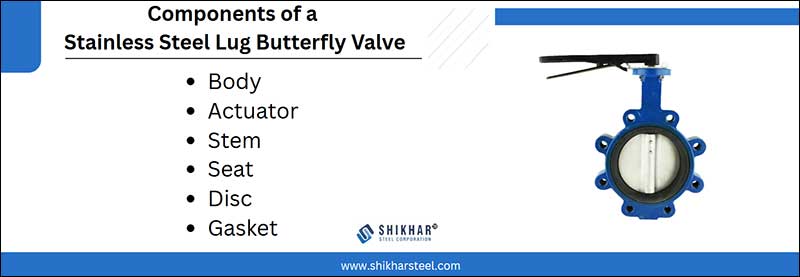

Components of a Stainless Steel Lug Butterfly Valve


Components of a Stainless Steel Lug Butterfly Valve

Key Features of Threaded Lug Type Butterfly Valve



ISO Mounting Pad


Stem Bushing


Shaft Seal


Cast Iron Body


Square Shaft


Available in EPDM and PTFE


Lug Butterfly Valve Application


Lug Butterfly Valve Application

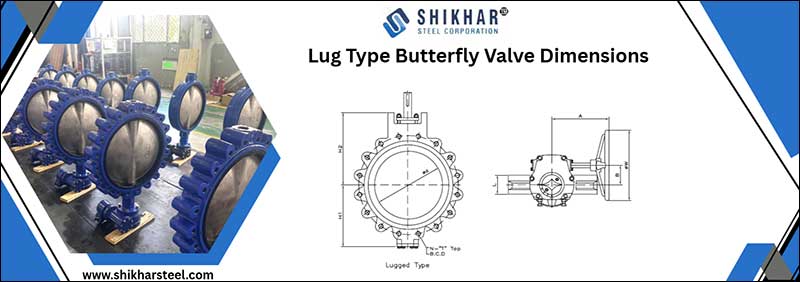

Lug Type Butterfly Valve Dimensions


Lug Type Butterfly Valve Dimensions
NPS BCD B A Ød H2 H1
24 749.3 137 360 567 535 460
20 635.0 106 310 469 460 400
18 577.9 106 310 419 420 360
16 539.8 106 310 369 395 335
14 476.3 106 310 328 360 282
12 431.8 71 230 278 320 252
10 362.0 71 230 228 285 222
8 298.5 71 230 178 250 185
6 241.3 49 176 128 210 155
4 190.5 49 176 78 180 125
3 152.4 49 176 58 160 110

Lug Type Butterfly Valve Weight


Size Lug Butterfly Valve Weight
1 3.0 lbs
11/2 4.5 lbs
2 7.0 lbs
21/2 9.0 lbs
3 9.5 lbs
4 16.0 lbs
5 22.0 lbs
6 25.0 lbs
8 45.0 lbs
10 66.0 lbs
12 102.0 lbs

Lug Style Butterfly Valves Bolting


Size L D TPI
24 4-3/4″ 1-1/4″ 7
20 3-1/2″ 1-1/8″ 7
18 3-1/2″ 1-1/8″ 7
16 3-1/4″ 1″ 8
14 3″ 1″ 8
12 2-3/4″ 7/8″ 9
10 2-1/2″ 7/8″ 9
8 2-1/4″ 7/8″ 9
6 2″ 3/4″ 10
5 2″ 3/4″ 10
4 1-3/4″ 5/8″ 11
2-1/2 1-3/4″ 5/8″ 11
2 1-1/2″ 5/8″ 11

Material Options for Tapped Lug Butterfly Valve


  • Ductile Iron Lug Butterfly Valve
  • Stainless Steel Lug Butterfly Valve
  • Cast Iron Lug Butterfly Valve

Types of Lug Butterfly Valves


Lug Style Bare StemLug Style Bare Stem

Lug Style Bare Stem

Lug Style with HandleLug Style with Handle

Lug Style with Handle

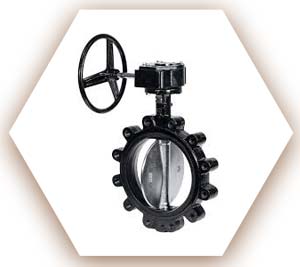

Lug Style with Gearbox

Lug Style with Gearbox

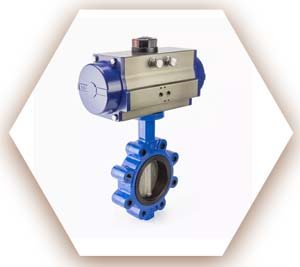

Lug Style with Pneumatic Actuator

Lug Style with Pneumatic Actuator

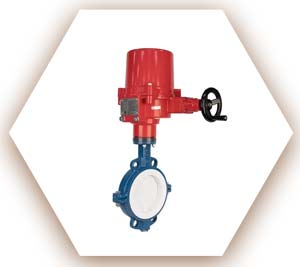

Lug Style with Electric Actuator

Lug Style with Electric Actuator

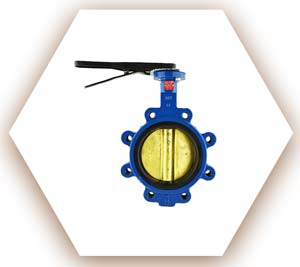

4 Lug Style Butterfly Valve

4 Lug Style Butterfly Valve

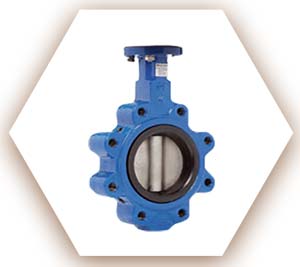

6 Lug Butterfly Valve

6 Lug Butterfly Valve

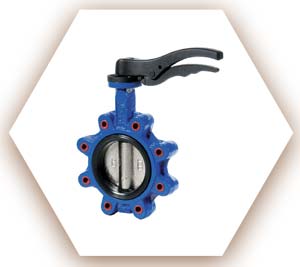

Fully Lugged Butterfly Valve

Fully Lugged Butterfly Valve

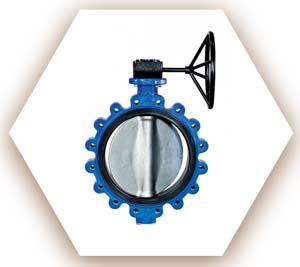

Threaded Lug Type Butterfly Valve

Threaded Lug Type Butterfly Valve
