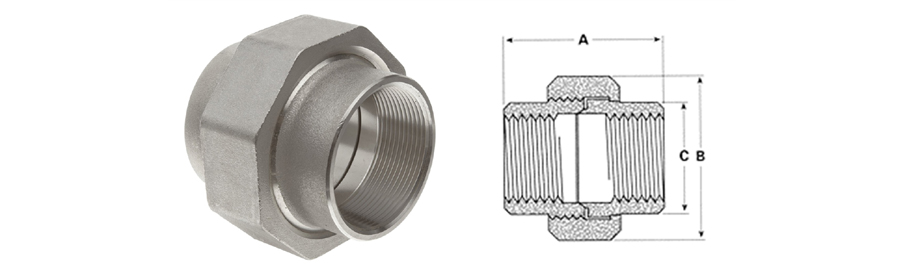

Stainless Steel Threaded Union

Sizes in Stock

Sizes in Stock

DN8 to DN100

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 12"

Threads Types

Threads Types

SAE, NPTF, BSP

Surface

Surface

PE Coated, Galvanize

Pressure Level

Pressure Level

2000#, 3000#, 6000#, 9000#

Manufacturing Way

Manufacturing Way

Forging & CNC Machined

Connection Types

Connection Types

Threaded

Standard

Standard

ASME B16.11

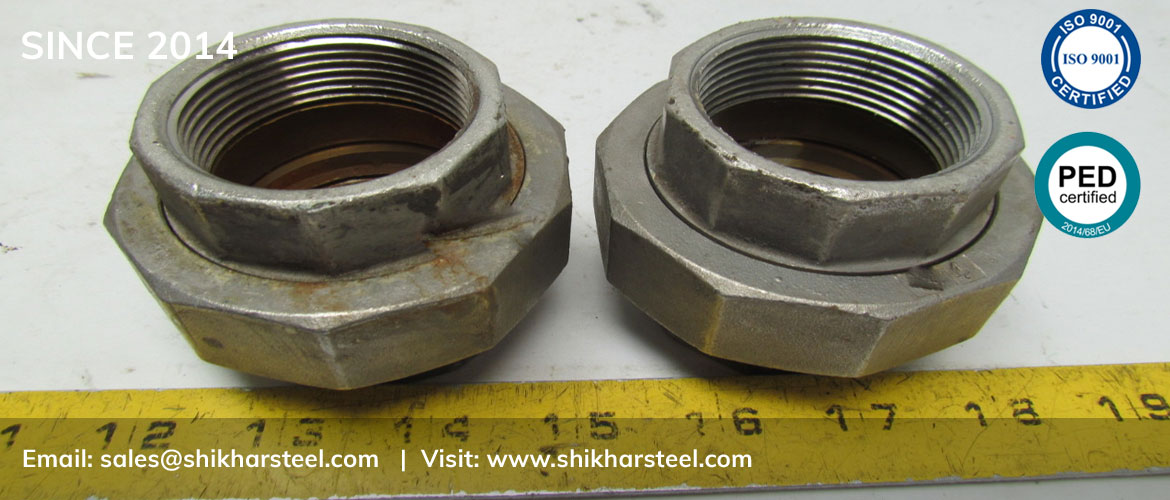

Threaded Union

Table Of Content

DN8 and DN80 Socket Weld Union Manufacturer in India


Threaded Union Specification


Manufacturing Size Range

Most Selling Size

  • 1/2" To 4"
  • 8mm to 100mm
  • Contact Shikar Steel Threaded Union Manufacturer in India For Above 6"
Pressure Level

Socket Weld Union Pressure Level

  • Class 2000
  • Class 3000
  • Class 6000
  • Class 9000
Thickness

Thickness of Threaded Union Fitting

  • Schedule 80
  • Schedule 160
  • Schedule XS
  • Schedule XXS
Standard

NPT Union Standard

  • ASME B16.11
  • MSS SP 79
  • MSS SP 83
  • MSS SP 97
Manufacturing Process

Manufacturing Process for Threaded Pipe Union

  • CNC Machined
  • Forging
Connection

BSPP Union Connection

  • Threaded
  • Socket Welding

Certification

Certification of BSPT Union

  • EN 10204 3.1
  • EN 10204 3.2
  • MTC Reports
Threads

Female Threaded Union Threads

  • NPT, BSPP, NPTF
  • UNF, UN, BSPT
  • Metric Parallel & Tapered
Forging Method

Forging Method for Union Male And Female

  • Open Die Forging
  • Closed Die Forging
Welding Technique

NPT Threaded Union Welding Technique

  • FCAW & SMAW Welding
  • GMAW & TIG Welding
Application

Application of Socket Weld Pipe Union

  • Petrochemical
  • Mining Slurry
  • Oil and Gas
Packaging

Screwed Union Pipe Fittings Packaging

  • Carton Box
  • Wooden Case
  • Plastic Bag (Or Custom)
Advantage

Advantage for Screw Union

  • Easier to Dis-Engaged
  • Can Join Two Pipe Together
  • Easy Installation

Testing

Stainless Steel Threaded Union Testing

  • Visual inspection
  • Tensile Test
  • Hardness Test
NPT Tapered

NPT Tapered of Union Threaded Fittings

  • Male Thread
  • Female Thread
Applicable Fluids

Stainless Steel Threaded Union Applicable Fluids

  • Oil & Gas
  • Air, Steam & Water
Logistics

Logistics for Galvanized Threaded Union

  • By Sea & Air
  • UAE = 7 day
  • Saudi Arabia = 8 day
  • Qatar = 7 day
Origin

Carbon Steel Threaded Union Origin

  • American
  • Korean
  • Janpanese
  • European

Value Added Services

Value Added Services of High Temperature Threaded Union

  • Metal Stampings & Cutting
  • MTR’s Available
  • Polishing & Coating
Marking

Threaded Union Class 3000 Marking

  • Standard & Size
  • Pressure Class & Material
  • Heat Number & Origin Country


Shipping Location


Project in Nigeria
  • 24 Inch, Threaded Pipe Union
  • NNPC
  • FCT, Nigeria

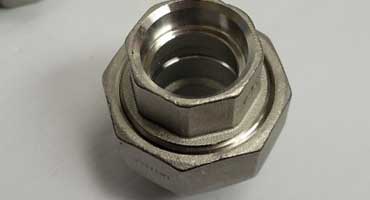

Project in Texas
  • 16 Inch, Socket Weld Union
  • Chevron Corporation
  • Texas, US

Keep Ex Stock of Class 3000 and 6000 Threaded Union At Best Price in Mumbai


Stainless Steel Threaded Union Price


Nominal Sizes (Inch) Price in USD
3/4" US $ 0.58
1/8" US $ 0.45
2 1/2" US $ 2.12
1/4" US $ 0.60
1 1/2" US $ 1.40
3 1/2" US $ 3

Carbon Steel Threaded Union Testing Requirements


Micro Test

Micro Test

Hardness Test

Hardness Test

Pitting Resistance Test

Pitting Resistance Test

Macro Test

Macro Test

IGC Test

IGC Test

HIC Test

HIC Test


Supplier Of Carbon Steel Threaded Union With Male and Female Connection as per MSS SP 83


Stainless Steel Threaded Union Weight Chart


Weight (Lbs) Nominal Sizes (Inch)
0.77 3/8
0.55 1/8
1.34 3/4
2.97 1 1/4
6.28 2
15.65 3
0.66 1/4
1.01 1/2
1.87 1
4.23 1 1/2
10.80 2 1/2

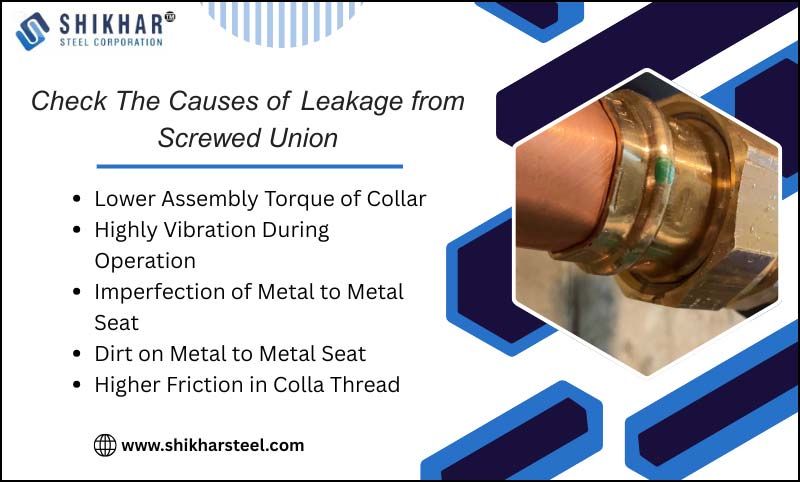

Check The Causes of Leakage from Screwed Union


Check The Causes of Leakage from Screwed Union


Supply NPT and BSPP Threads Screwed Union Pipe Fittings With Custom Size and Types

Threaded Union Dimensions Chart


Threaded Union Dimensions Chart

Diameter Nominal Outside Diameter (O.D.) Wall Thickness Length Assem Nominal Water Way Bore
A (Min.) J (Min.) L D
80 102.4 7.7 109 77.27
50 70.1 5.6 86.1 52.12
40 57.2 5.1 76.5 41.2
32 50.5 4.9 71.1 35.36
20 33.5 4 56.9 21.39
15 27.7 3.8 49 17.07
10 22.9 3.2 46 13.51
6 14.7 2.5 41.4 6.43

Most Common Types Of Threaded Union

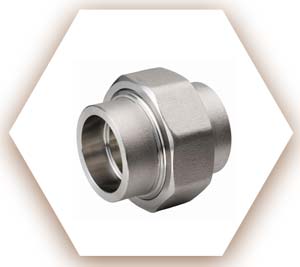

Socket Weld Union

Socket Weld Union

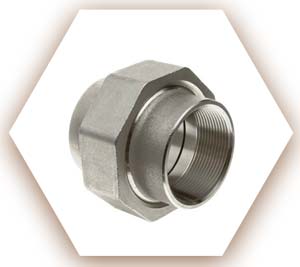

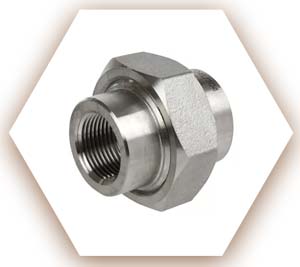

Stainless Steel Threaded Union

Stainless Steel Threaded Union

Male X Female Threaded Union

Male X Female Threaded Union

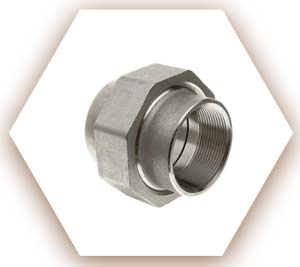

Screwed Union

Screwed Union

NPT Union Fitting

NPT Union Fitting

BSPP Union

BSPP Union

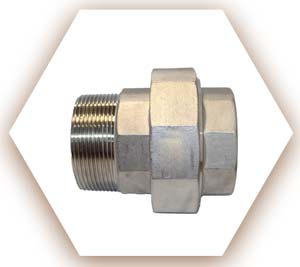

Threaded Barrel Union

Threaded Barrel Union

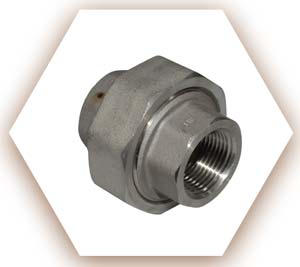

Threaded Union Fitting

Threaded Union Fitting

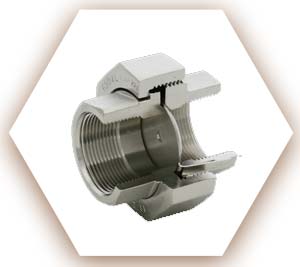

Threaded Orifice Union

Threaded Orifice Union


304 Stainless Steel Threaded Union

304 Stainless Steel Threaded Union

Ss Threaded Union

Ss Threaded Union

Male Thread Union

Male Thread Union


Find Source Of American and German Origin ASME B16.11 Union With Custom Dimensions

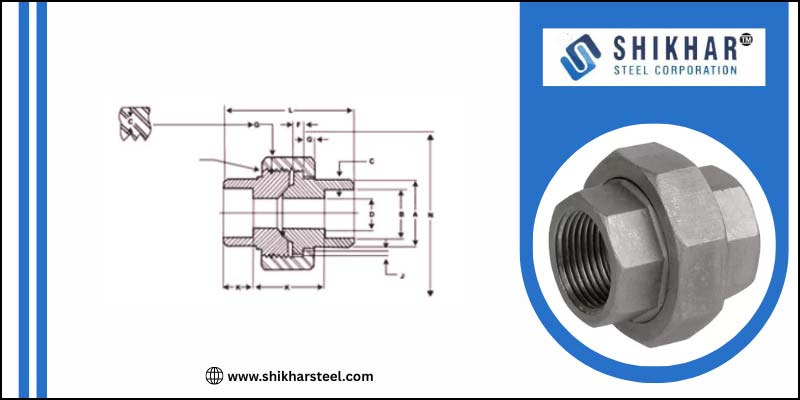

Socket Weld Union Dimensions


Socket Weld Union Dimensions

Nominal Sizes (Inch) Socket Wall (min.) Nut (min.). Pipe End (min.) Male Flange (min.) Socket Depth (min.) Length Of Laying Dia. Of Socket Bore Water Way Bore
C G A F K E B D
¾ 4.27 4.06 37.1 4.06 12.7 31.8
25.4		 27.18
26.92		 21.79
21.39
1/8 3.17 3.17 21.8 3.17 9.6 22.4
19.0		 10.92
10.67		 6.83
6.43
3/8 3.48 3.43 25.9 3.43 9.6 26.9
20.6		 17.78
17.53		 13.92
13.51
11/4 5.28 5.21 54.9 5.33 12.7 40.6
32.5		 42.67
42.42		 35.76
35.36
2 6.05 6.35 75.2 6.60 15.8 45.3
37.3		 61.47
61.21		 52.53
52.12
3 8.31 8.00 109.2 8.25 15.8 63.8
53.6		 90.17
89.66		 77.67
77.27
¼ 3.30 3.17 21.8 3.17 9.6 22.4
19.0		 14.22
13.97		 9.85
9.45
½ 4.06 3.68 31.2 3.68 9.6 26.9
20.6		 21.84
21.59		 17.47
17.07
1 4.95 4.44 45.5 4.57 12.7 34.3
26.2		 34.04
33.78		 28.14
27.74
11/2 5.54 5.59 61.5 5.84 12.7 42.2
34.0		 48.77
48.51		 41.61
41.20
2 1/2 7.65 7.11 91.7 7.49 15.8 61.7
52.1		 74.17
73.66		 64.72
64.31

Applications of Screwed Union Pipe Fittings


  • HVAC & Steam System
  • Chemical Process
  • Oil and Gas
  • Higher Pressure System
  • Plumbing
  • Water Treatment & Cooling

Socket Weld Union Weight


Class 3000 Weight (Lbs) Diameter Nominal
3.96 80
3.52 65
2.20 50
1.14 40
1.34 32
0.61 25
0.44 20
0.14 15
0.17 10
0.13 8
0.13 6

Heat Treatment for Stainless Steel Threaded Union


  • Solution
  • Normalizing
  • Tempering
  • Quenching

Threaded Union Standard


  • BS 3799
  • MSS SP 83
  • ASME B16.11







Types

Material

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
