Water Pipeline
- sales@shikharsteel.com
Sizes in Stock
DN8 to DN100
Sizes Can Be
Manufacture
Up to 12"
End Type
TBE, TOE, PBE, BOE
Surface
PE Coated
Pressure Level
2000#, 3000#, 6000#, 9000#
Application
Oil and Gas
Connection Types
Socket Welding & Threaded
Standard
DIN EN 10242
Table Of Content
Stainless Steel Threaded Nipple Specification
Most Selling Size
ASME B16.11 Pipe Nipple Pressure Level
BSP Hex Nipple Thickness
Hexagon Nipple Standard
BSP Reducing Nipple Manufacturing Process
Close Nipple Connection
Full Thread Nipple Certification
Stainless Nipple Threads
Threaded Nipple Fitting Forging Method
BSP Nipple Welding Technique
NPT Pipe Nipple Application
Closed Nipple Pipe Packaging
BSPP Pipe Nipple Advantage
Stainless Steel Threaded Nipple Testing
NPT Tapered of Barrel Nipple
Applicable Fluids of BSP Threaded Pipe Nipple
BSPT Nipple Logistics
Double Threaded Nipple Origin
Female Nipple Pipe Value Added Services
Marking On Fully Threaded Nipple
Price List of BSP Hex Nipple
| Size | Price | |
|---|---|---|
| US (Dollar) Per Piece | UAE (Dirham) Per Piece | |
| 1/4" x 6" | US $2.35 | AED 8.63 |
| 3/8" x 2" | US $1.16 | AED 4.26 |
| 1/2" x 4" | US $2.46 | AED 9.04 |
| 3/4" x 3" | US $2.45 | AED 9.00 |
| 1/2" x 5" | US $4.49 | AED 16.49 |
| 1/2" x 2" | US $1.49 | AED 5.47 |
| 3/4" x 8" | US $6.02 | AED 22.11 |
| 3/4" x 4" | US $3.15 | AED 11.57 |
| 2" X 8" | US $14.95 | AED 54.91 |
| 3/4" x 6" | US $4.55 | AED 16.71 |
CS Nipple Price List
| Size | Price in UAE (Dirham) | Price in US (Dollar) |
|---|---|---|
| 1/2 x 12" | AED 42.17 | US $11.48 |
| 3/4 x 6" | AED 19.87 | US $5.41 |
| 3/4 x 3" | AED 90.36 | US $24.60 |
| 1 x 12" | AED 101.71 | US $27.69 |
| 1/2" | AED 7.71 | US $2.10 |
| 1 x 2" | AED 13.77 | US $3.75 |
| 1 x 3" | AED 117.79 | US $32.07 |
| 3/4 x 2" | AED 42.46 | US $11.56 |
| 3/4" | AED 12.97 | US $3.53 |
| 2 x 10" | AED 177.74 | US $48.39 |
| 1/2 x 6" | AED 111.48 | US $30.35 |
| 2 x 3" | AED 193.42 | US $52.66 |
| 1/2 x 2" | AED 8.85 | US $2.41 |
Threads of Full Thread Nipple
Stainless Steel Threaded Nipple Applications
Water Pipeline

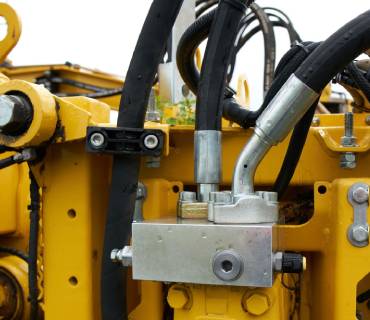

Hydraulic Systems

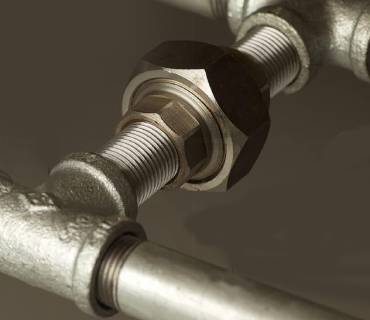

Constructions

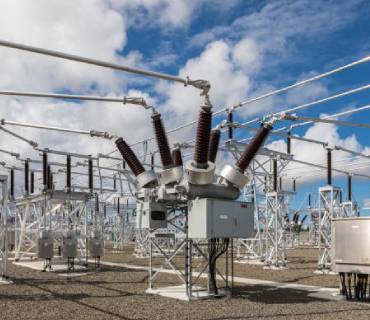

Power Plants
Ends Connection of Galvanized Threaded Nipple
| Ends | Full Name |
|---|---|
| BPE | Beveled Pipe End |
| BPE | Bevelled Both Ends |
| FBE | Female Both Ends |
| PBE | Plain Both Ends |
| TOE | Threaded One End |
| TBE | Threaded Both Ends |
How To Protect CS Nipple for Rust?
Half Inch Hex Nipple Weight Chart
| NPS | Weight (kg/m) | ||
|---|---|---|---|
| Sch80/XS | XXS | Sch160 | |
| 1/8" | 0.47 | - | - |
| 3/8" | 1.1 | - | - |
| 1/4" | 0.8 | - | - |
| 1/2" | 1.62 | 2.55 | 1.95 |
| 1-1/2" | 5.41 | 9.55 | 7.25 |
| 1-1/4" | 4.47 | 7.77 | 5.61 |
| 2" | 7.48 | 13.44 | 11.11 |
| 1" | 3.24 | 5.45 | 4.24 |
| 3/4" | 2.2 | 3.64 | 2.9 |
| 2-1/2" | 11.41 | 20.39 | 14.92 |
| 3" | 15.27 | 27.68 | 21.35 |
| 5" | 30.97 | 57.43 | 49.12 |
| 6" | 42.56 | 79.22 | 67.57 |
| 3-1/2" | 18.64 | - | - |
| 4" | 22.32 | 41.03 | 33.54 |

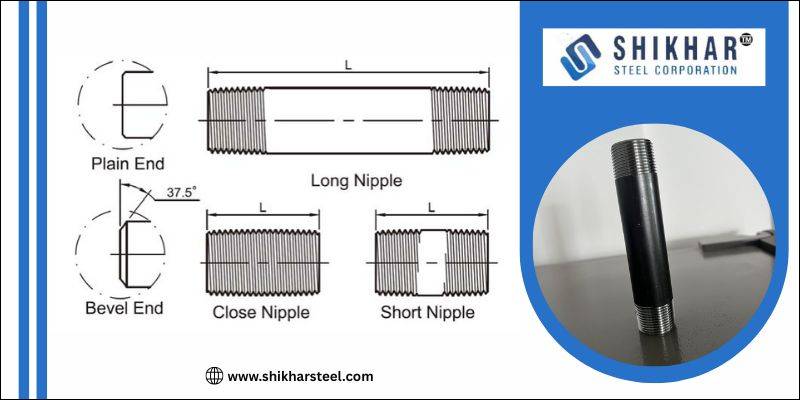

Dimensions of Long Nipple Fitting
| NPS | Close Nipple | Long Nipple | Short Nipple |
|---|---|---|---|
| 1/8" | 3/4" | 2"~12" | 1-1/2" |
| 3/8" | 1" | 2"~12" | 1-1/2" |
| 1/4" | 7/8" | 2"~12" | 1-1/2" |
| 1/2" | 1-1/8" | 2"~12" | 1-1/2" |
| 1" | 1-1/2" | 2-1/2"~12" | 2" |
| 3/4" | 1-3/8" | 2-1/2"~12" | 2" |
| 1-1/4" | 1-5/8" | 3"~12" | 2-1/2" |
| 2" | 2" | 3"~12" | 2-1/2" |
| 1-1/2" | 1-3/4" | 3"~12" | 2-1/2" |
| 2-1/2" | 2-1/2" | 3-1/2"~12" | 3" |
| 3-1/2" | 2-3/4" | 4-1/2"~12" | 4" |
| 3" | 2-5/8" | 3-1/2"~12" | 3" |
| 5" | 3" | 5"~12" | 4-1/2" |
| 4" | 2-7/8" | 4-1/2"~12" | 4" |
| 6" | 3-1/8" | 5"~12" | 4-1/2" |

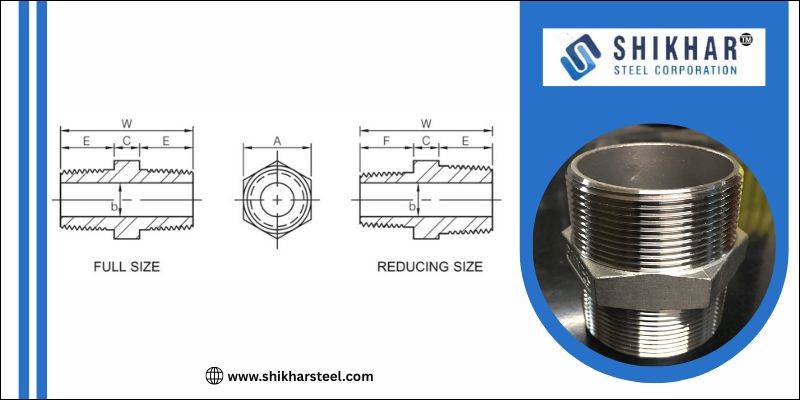

Hexagon Nipple Dimensions
| Nominal Size | A | E | W | b | F | C | ||
|---|---|---|---|---|---|---|---|---|
| Inch | DN | (Min) | (Min) | (Min) | 3000Lb | 6000Lb | (Min) | (Min) |
| 1/8" | 6 | 11 | 10 | 26 | 5 | 2 | - | 6 |
| 1/4"x1/8" | 8x6 | 15 | 15 | 31 | 5 | 2 | 10 | 6 |
| 1/4" | 8 | 15 | 15 | 36 | 8 | 6 | - | 6 |
| 3/8" | 10 | 18 | 16 | 40 | 11 | 8 | - | 8 |
| 1/2" | 15 | 22 | 20 | 48 | 14 | 11 | - | 8 |
| 3/8"x1/4" | 10x8 | 18 | 16 | 39 | 8 | 6 | 15 | 8 |
| 1/2"x3/8" | 15x10 | 22 | 20 | 44 | 11 | 8 | 16 | 8 |
| 3/4" | 20 | 27 | 21 | 52 | 19 | 13 | - | 10 |
| 1/2"x1/4" | 15x8 | 22 | 20 | 43 | 8 | 6 | 15 | 8 |
| 3/4"x1/2" | 20x15 | 27 | 21 | 50 | 14 | 11 | 20 | 9 |
| 1" | 25 | 35 | 25 | 60 | 24 | 17 | - | 10 |
| 3/4"x3/8" | 20x10 | 27 | 21 | 46 | 11 | 8 | 16 | 9 |
| 1"x3/4" | 25x20 | 35 | 25 | 56 | 19 | 13 | 21 | 10 |
| 1-1/2" | 40 | 50 | 26 | 68 | 38 | 30 | - | 16 |
| 1"x1/2" | 25x15 | 35 | 25 | 55 | 14 | 11 | 20 | 10 |
| 1-1/2"x1/2" | 40x15 | 50 | 26 | 62 | 14 | 11 | 20 | 16 |
| 1-1/2"x1" | 40x25 | 50 | 26 | 67 | 24 | 17 | 25 | 16 |
| 2" | 50 | 62 | 27 | 71 | 49 | 39 | - | 17 |
| 1-1/2"x3/4" | 40x20 | 50 | 26 | 63 | 19 | 13 | 21 | 16 |
| 2"x1-1/2" | 50x40 | 62 | 27 | 70 | 38 | 30 | 26 | 17 |
| 2"x3/4" | 50x20 | 62 | 27 | 65 | 19 | 13 | 21 | 17 |
| 2"x1" | 50x25 | 62 | 27 | 70 | 24 | 17 | 25 | 18 |
| 2"x1/2" | 50x15 | 62 | 27 | 65 | 14 | 11 | 20 | 18 |

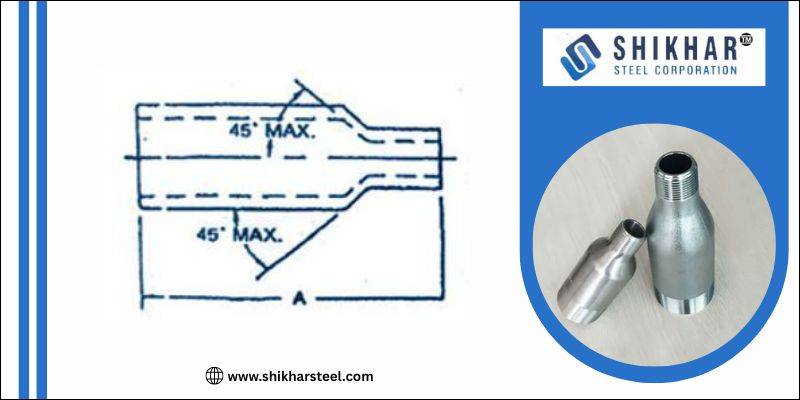

Dimensions of Threaded Swage Nipples
| NPS | O.D. | End To End (A) | |
|---|---|---|---|
| Inches | |||
| Inches | Small End | Large End | Inches |
| 1/4 X 1/8 | 0.405 | 0.540 | 2.25 |
| 1 X 3/4 | 1.050 | 1.315 | 3.50 |
| 3/8 X 1/4 | 0.540 | 0.675 | 2.50 |
| 1-1/4 X 1/8 | 0.405 | 1.660 | 4.00 |
| 2 X 1/4 | 0.540 | 2.375 | 6.50 |
| 2 X 1/8 | 0.405 | 2.375 | 6.50 |
| 2 X 1/2 | 0.840 | 2.375 | 6.50 |
| 2 X 1-1/4 | 1.660 | 2.375 | 6.50 |
| 2 X 1 | 1.315 | 2.375 | 6.50 |
| 2-1/2 X 1 | 1.315 | 2.875 | 7.00 |
| 3 X 3/8 | 0.675 | 3.500 | 8.00 |
| 3 X 1/4 | 0.540 | 3.500 | 8.00 |
| 3 X 1/2 | 0.840 | 3.500 | 8.00 |
| 3-1/2 X 1-1/4 | 1.660 | 4.000 | 8.00 |
| 3-1/2 X 1 | 1.315 | 4.000 | 8.00 |
| 4 X 3 | 3.500 | 4.500 | 9.00 |
| 4 X 1-1/4 | 1.660 | 4.500 | 9.00 |
| 4 X 3-1/2 | 4.000 | 4.500 | 9.00 |
Why Stainless Steel Threaded Nipple Material is Best For Pipe Nipples?
Short Nipple Pipe Testing
PMI Test
IGC Test
Chemical Analysis
Macro Test
Mechanical Test
HIC Test

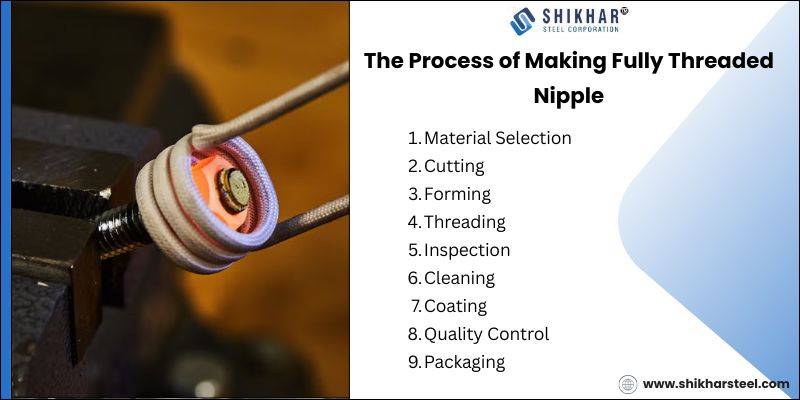

The Process of Making Fully Threaded Nipple
What Are Factors to Known Before Buy SS Threaded Nipple?
Types Of Stainless Steel Threaded Nipple

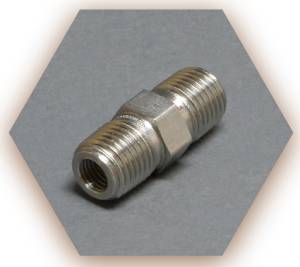

Hex Nipple

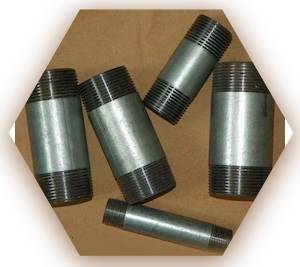

Barrel Nipple

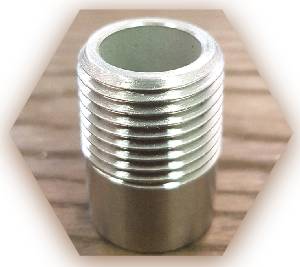

TOE Pipe Nipple

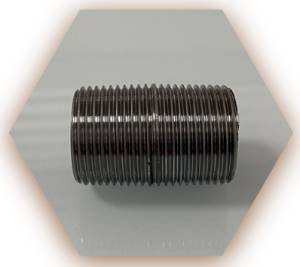

Close Nipple

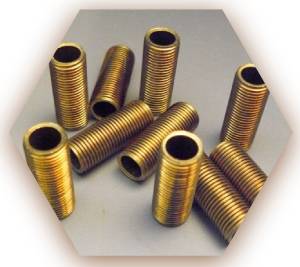

Running Nipple

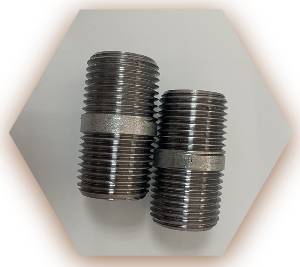

Shoulder Nipple

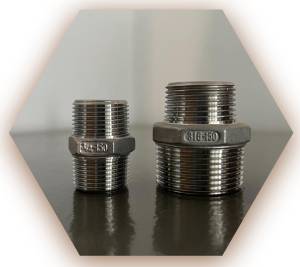

Hexagonal Nipple

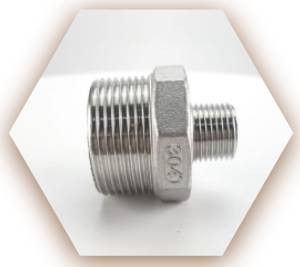

Reducing Nipple

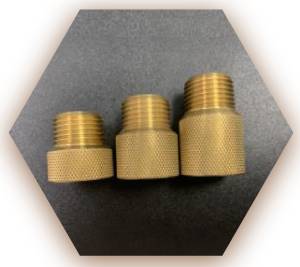

Hose Nipple

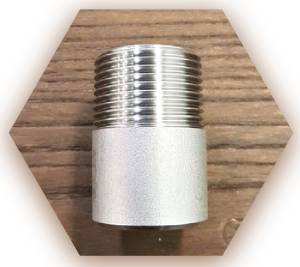

Welding Nipple

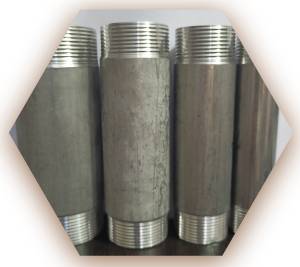

Threaded Nipple with Thread on End

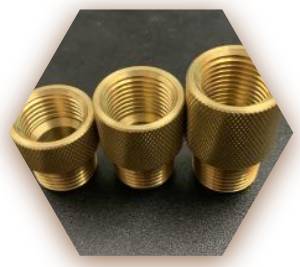

Extension Nipple
