Monel Forged Fittings

Table Of Content

Alloy 400 Coupling Manufacturer in India At Fair Price


Monel Forged Fittings Specification



Manufacturing Size Range

Most Selling Size

  • 1/2" To 4"
  • 8mm to 100mm
  • Contact Monel Forged Fittings Manufacturer in India For Above 6"
Pressure Level

Monel Forged Fittings Pressure Level

  • Class 2000
  • Class 3000
  • Class 6000
  • Class 9000
Thickness

Monel Socket Weld Fittings Thickness

  • Schedule 80
  • Schedule 160
  • Schedule XS
  • Schedule XXS
Standard

Monel Threaded Fittings Standard

  • ASME B16.11
  • MSS SP 79
  • MSS SP 97
  • MSS SP 83
Manufacturing Process

Monel 400 Forged Fittings Manufacturing Process

  • Forging
  • CNC Machined
Connection

Monel K500 Threaded Tee Connection

  • Socket Welding
  • Threaded
Certification

Nickel Alloy 400 Threaded Elbow Certification

  • EN 10204 3.2
  • EN 10204 3.1
  • MTC Reports
Threads

Nickel 400 Bushing Threads

  • NPT, BSPP, NPTF
  • Metric Parallel & Tapered
  • UNF, UN, BSPT
Forging Method

Alloy 400 Coupling Forging Method

  • Closed Die Forging
  • Open Die Forging
Welding Technique

UNS N04400 Union Welding Technique

  • GMAW & TIG Welding
  • FCAW & SMAW Welding
Application

Monel Alloy Threaded Plug Application

  • Chemical Equipment
  • Heat Exchangers
  • Musical Instruments
Packaging

WNR 2.4360 Pipe Nipple Packaging

  • Wooden Case
  • Carton Box
  • Plastic Bag (Or Custom)
Advantage

Monel Threaded Boss Advantage

  • Excellent Corrosion Resistance
  • Higher Durability Features
  • Robust Structure
Testing

Alloy 400 Socket Weld Bushings Testing

  • Visual inspection
  • Hardness Test
  • Tensile Test
NPT Tapered

NPT Tapered of Monel Socket Weld Elbow

  • Female Thread
  • Male Thread
Applicable Fluids

Applicable Fluids of Nickel Alloy 400 Socket Weld Union

  • Air, Steam & Water
  • Oil & Gas
Logistics

Monel 400 Socket Weld Tee Logistics

  • By Sea & Air
  • Angola = 45 day
  • Sudan = 30 day
  • Equatorial Guinea = 45 - 60 day
Origin

Nickel 400 Socket Weld Reducer Origin

  • American
  • Korean
  • Janpanese
  • European
Aaaaaaaaaa Value Added Services

Monel K500 Socket Weld Coupling Value Added Services

  • Metal Stampings & Cutting
  • MTR's Available
  • Polishing & Coating
Marking

Marking On WNR 2.4360 Socket Weld Cross

  • Standard & Size
  • Pressure Class & Material
  • Heat Number & Origin Country

IBR Approved Monel K500 Socket Weld Tee Supplier in Mumbai With Size DN8 to DN100 or Custom


Dimensions of UNS N04400 Socket Weld Tees



NPS Socket Bore Bore dia Depth Socket
B D J
1/2 21.95
21.70		 16.6
15		 10
1 34.05
33.80		 27.4
25.9		 13
3/4 27.30
27.05		 21.7
20.2		 13
1.1/4 42.80
42.55		 35.8
34.3		 13
2 61.35
61.10		 53.5
51.7		 16
1.1/2 48.90
48.65		 41.7
40.1		 13
2.1/2 74.20
73.80		 64.2
61.2		 16
4 115.80
115.45		 103.8
100.7		 19
3 90.15
89.80		 79.5
46.4		 16
NPS Socket
WT		 Center to bottom of socket Body
WT
C A G
1/2 4.65
4.10		 15.5 3.75
1 5.70
5.00		 22 4.55
3/4 4.90
4.25		 19.5 3.90
1.1/4 6.05
5.30		 27 4.85
2 6.95
6.05		 38 5.55
1.1/2 6.35
5.55		 32 5.10
2.1/2 8.75
7.65		 41.5 7.00
4 10.70
9.35		 66.5 8.55
3 9.50
8.30		 57.5 7.60

Check Advantages of Using Nickel Alloy 400 Threaded Elbow in Low and High Pressure Applications


Nickel 400 Bushing Applications



Nickel 400 Bushing Applications

Advantages of Monel K500 Threaded Tee



  • Higher Strength
  • Toughness
  • Excellent Weldability
  • Corrosion Resistance
  • Leak Resistance
  • Higher Durability

WNR 2.4360 Equal Tee Weight Chart



Nominal Pipe Size Weight (kg)
DN Inch SCH 10S SCH 5S SCH 80S SCH 40S
15 ½’’ 0.090 0.090 0.204 0.181
25 1’’ 0.223 0.223 0.399 0.256
20 ¾’’ 0.129 0.129 0.294 0.258
32 1 ¼’’ 0.356 0.356 0.725 0.463
50 2’’ 0.681 0.681 1.81 0.893
40 1 ½’’ 0.497 0.497 1.02 0.648
65 2 ½’’ 1.20 1.20 3.17 1.98
100 4’’ 2.46 2.46 7.11 4.76
80 3’’ 1.57 1.57 3.85 2.61
125 5’’ 4.04 4.04 11.78 7.84
200 8’’ 11.07 11.07 33.98 19.56
150 6’’ 5.50 5.50 18.12 9.54
250 10’’ 19.87 19.87 47.57 32.61
350 14’’ 35.98 28.74 91.78 71.21
300 12’’ 27.86 27.86 72.48 56.65
400 16’’ 44.69 35.69 114.23 88.56
500 20’’ 83.69 69.97 179.66 138.99
450 18’’ 56.62 45.21 144.98 112.33
600 24’’ 132.24 113.23 243.13 192.66
550 22’’ 101.35 84.72 217.46 170.07

Select Your Size and Types in Online Inventory of Nickel 400 Bushing in BSPT, BSPP, NPT Threads

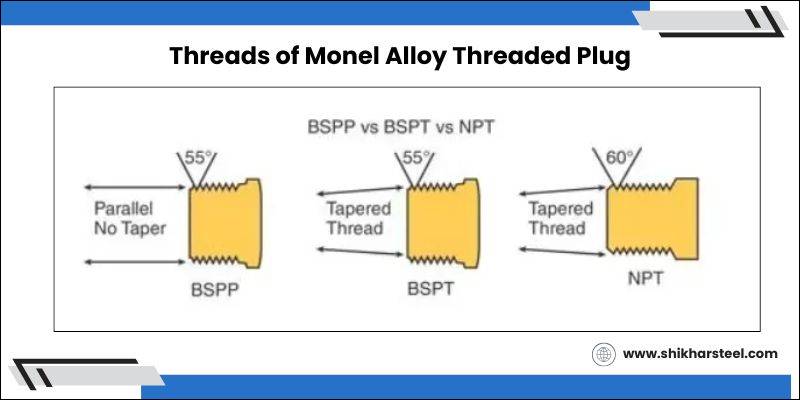

Threads of Monel Alloy Threaded Plug



Threads of Monel Alloy Threaded Plug

Explore Monel Alloy Threaded Plug Temperature Range and Welding Method as per ASME B16.11

Alloy 400 Coupling Temperature Tolerance Range



Monel Grade Temperature Tolerance Range
Monel 400 -93°C - 538°C
Monel K-500 -101°C - 538°C

Welding Methods of UNS N04400 Union



  • Gas Tungsten Arc Welding (GTAW/TIG)
  • Shielded Metal Arc Welding (SMAW)
  • Gas Metal Arc Welding (GMAW/MIG)


Monel Forged Fittings Equivalent Material



STANDARD UNS WERKSTOFF NR. JIS GOST EN AFNOR
Monel K500 N05500 2.4375 - - - -
Monel 400 N04400 2.4360 NW 4400 МНЖМц 28-2,5-1,5 NiCu30Fe NU-30M

Chemical Composition of Nickel Alloy 400 Threaded Elbow



Grade Mn C Si Cu S Ni Fe
Monel 400 2.00 max 0.30 max 0.50 max 28.00 - 34.00 0.024 max 63.00 min 2.50 max
Monel K500 1.5 max 0.25 max 0.5 max 27.00 - 33.00 0.010 max 63.00 min 0.5 - 2

Monel Threaded Fittings Testing



Macro Test

Macro Test

HIC Test

HIC Test

IGC Test

IGC Test


Mechanical Properties of Monel 400 Forged Fittings



Element Tensile Strength Elongation Yield Strength (0.2%Offset)
Monel 400 Psi - 80,000 , MPa - 550 40 % Psi - 35,000 , MPa - 240
Monel K500 Psi - 160000 , MPa - 1100 20 % Psi - 115000 , MPa - 790

Monel Socket Weld Fittings Physical Properties



Element Density Melting Point
Monel K500 8.44 g/cm3 1350 °C (2460 °F)
Monel 400 8.8 g/cm3 1350 °C (2460 °F)

Types Of Monel Socket Weld Fittings

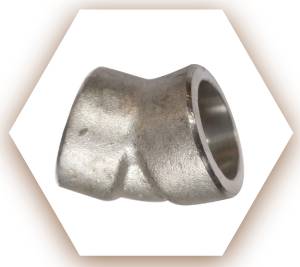

Monel Socket Weld Elbow

Monel Socket Weld Elbow

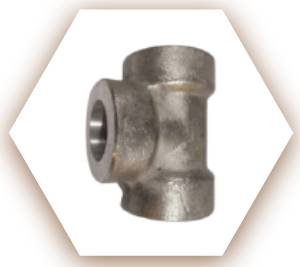

Monel 400 Socket Weld Tee

Monel 400 Socket Weld Tee

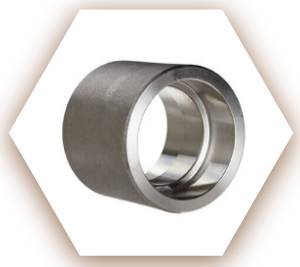

Monel K500 Socket Weld Coupling

Monel K500 Socket Weld Coupling

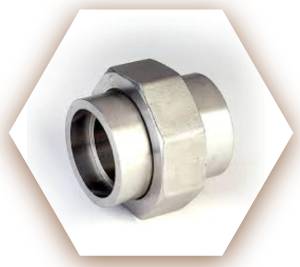

Nickel Alloy 400 Socket Weld Union

Nickel Alloy 400 Socket Weld Union

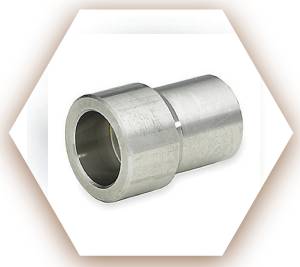

Nickel 400 Socket Weld Reducer

Nickel 400 Socket Weld Reducer

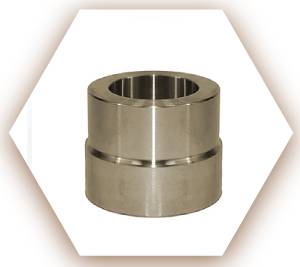

Alloy 400 Socket Weld Bushings

Alloy 400 Socket Weld Bushings

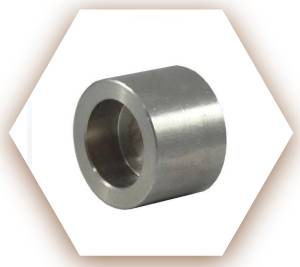

UNS N04400 Socket Weld Plug

UNS N04400 Socket Weld Plug

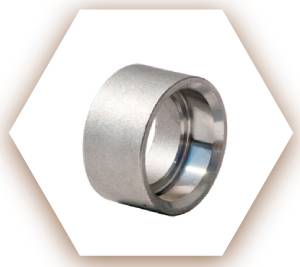

Monel Alloy Socket Weld Half Coupling

Monel Alloy Socket Weld Half Coupling

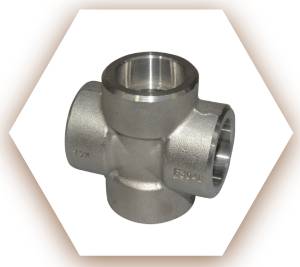

WNR 2.4360 Socket Weld Cross

WNR 2.4360 Socket Weld Cross


Types Of UNS N04400 Threaded Fittings

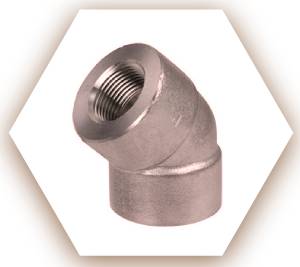

Monel Threaded Elbow

Monel Threaded Elbow

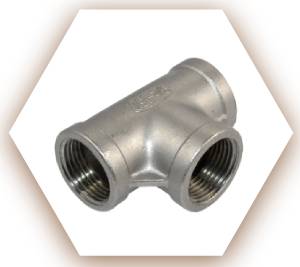

Monel 400 Threaded Tee

Monel 400 Threaded Tee

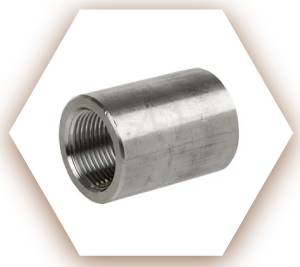

Monel K500 Threaded Coupling

Monel K500 Threaded Coupling

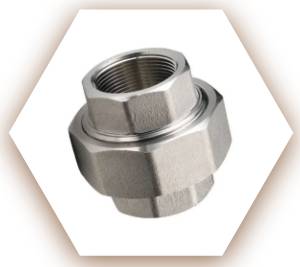

Nickel Alloy 400 Threaded Union

Nickel Alloy 400 Threaded Union

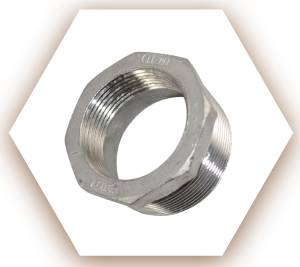

Nickel 400 Threaded Reducer

Nickel 400 Threaded Reducer

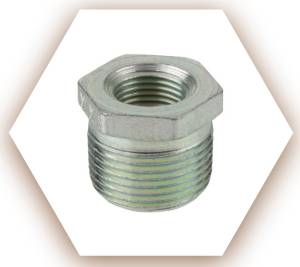

Alloy 400 Threaded Bushings

Alloy 400 Threaded Bushings

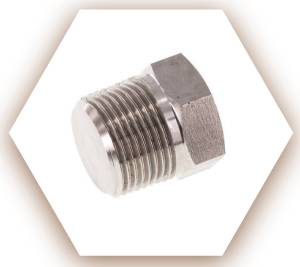

UNS N04400 Threaded Plug

UNS N04400 Threaded Plug

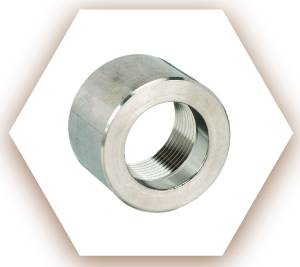

Monel Alloy Threaded Half Coupling

Monel Alloy Threaded Half Coupling

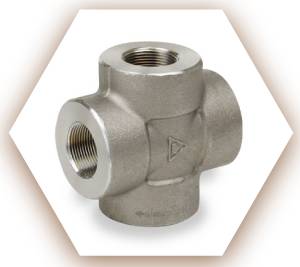

WNR 2.4360 Threaded Cross

WNR 2.4360 Threaded Cross






Material

Types

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
