Incoloy Forged Fittings

Sizes in Stock

Sizes in Stock

DN8 to DN100

Sizes Can Be Manufacture

Sizes Can Be
Manufacture

Up to 12"

Melting Point

Melting Point

1385°C

Threads

Threads

NPT / BSP

Pressure Level

Pressure Level

2000#, 3000#, 6000#, 9000#

Manufacturing Way

Manufacturing Way

Forging & CNC Machined

Connection Types

Connection Types

Socket Welding & Threaded

Standard

Standard

ASME B16.11

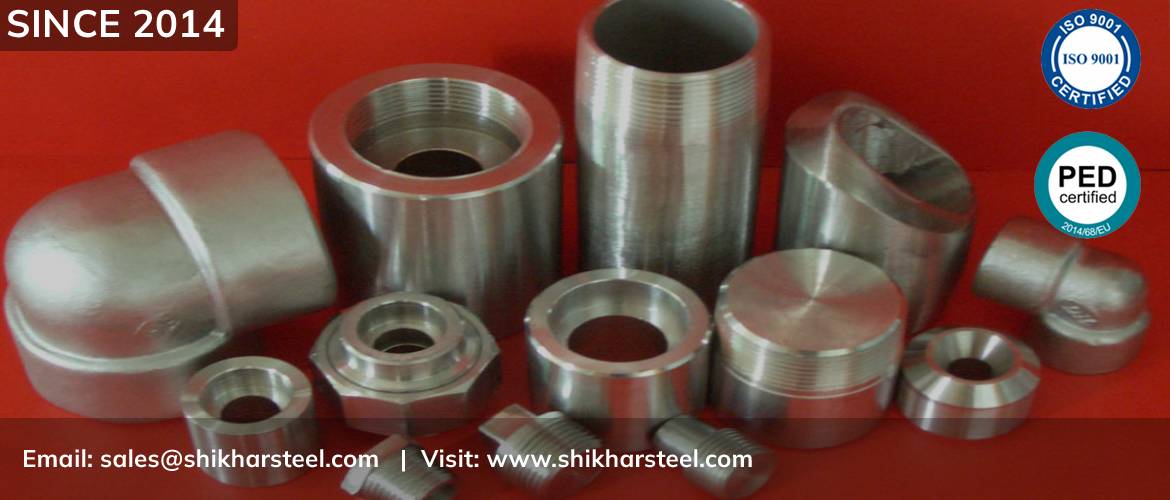

Forged Fittings Demo Overview

Shikhar steel is a reputable company that specializes in incoloy forged fittings manufacturer in India.Our skilled technicians use advanced machinery to provide various sizes with quality standards also provide testing to ensure its integrity & durability.

Incoloy Socket Weld Fittings

  • Maximum Size
  • Thickness
  • Material Origin
  • Used for
  • Testing
  • Custom Sizes
  • Custom Packaging
  • MTC Report
  • 12 Inch
  • SCH 20 to SCH 60
  • Indian & European
  • High-temperature
  • Chemical Analysis
  • Yes
  • Yes
  • Yes

Table Of Content

Custom Size Alloy 825 Threaded Elbow Manufacturer in India


We manufacture best quality incoloy forged fittings manufacturer in India.It is used to connect equipment for maximum efficiency and flow,it is most commonly made of nickel alloys such as incoloy and nickel is of low-corrosion, high strength, malleable & ductile.

Incoloy Forged Fittings Specification



Manufacturing Size Range

Most Selling Size

  • 1/2" To 4"
  • 8mm to 100mm
  • Contact Incoloy Forged Fittings Manufacturer in India For Above 8"

Pressure Level

Incoloy Socket Weld Fittings Pressure Level

  • Class 2000
  • Class 3000
  • Class 6000
  • Class 9000
Thickness

Incoloy Threaded Fittings Thickness

  • Schedule 80
  • Schedule 160
  • Schedule XS
  • Schedule XXS
Standard

Incoloy 825 Forged Fittings Standard

  • ASME B16.11
  • MSS SP 79
  • MSS SP 83
  • MSS SP 97
Certification

UNS N08825 Bushing Certification

  • EN 10204 3.1
  • EN 10204 3.2
  • MTC Reports
Threads

Nickel Alloy 800H Coupling Threads

  • NPT, BSPP, NPTF
  • Metric Parallel & Tapered
  • UNF, UN, BSPT
Manufacturing Process

Alloy 800 Threaded Tee Manufacturing Process

  • Forging
  • CNC Machined
Connection

Incoloy 800H Threaded Elbow Connection

  • Socket Welding
  • Threaded
Forging Method

WNR 2.4858 Union Forging Method

  • Closed Die Forging
  • Open Die Forging
Welding Technique

Incoloy 800H Threaded Plug Welding Technique

  • GMAW & TIG Welding
  • FCAW & SMAW Welding
Advantage

Incoloy Socket Weld Elbow Advantage

  • High-Temperature Performance
  • Corrosion Resistance
  • Strength & Durability
Testing

Alloy 800 Socket Weld Tee Testing

  • Visual inspection
  • Hardness Test
  • Tensile Test
Application

Incoloy Pipe Nipple Application

  • Power Plant Industry
  • Pulp & Paper Indusry
  • Pharmaceuticals Industry
Packaging

Alloy 825 Threaded Boss Packaging

  • Carton Box
  • Plastic Bag (Or Custom)
  • Wooden Case
NPT Tapered

NPT Tapered of Incoloy 825 Socket Weld Coupling

  • Female Thread
  • Male Thread
Applicable Fluids

Applicable Fluids of UNS N08825 Socket Weld Union

  • Air, Steam & Water
  • Oil & Gas
Aaaaaaaaaa Value Added Services

WNR 2.4858 Socket Weld Plug Value Added Services

  • Metal Stampings & Cutting
  • Polishing & Coating
  • MTR’s Available
Marking

Marking On Alloy 825 Socket Weld Half Coupling

  • Standard & Size
  • Heat Number & Origin Country
  • Pressure Class & Material
Logistics

Incoloy 800H Socket Weld Reducer Logistics

  • By Sea & Air
  • Australia = 21 day
  • Kenya = 19 day
  • Sri Lanka = 6 day
Origin

Nickel Alloy 800H Socket Weld Bushings Origin

  • Korean
  • American
  • Janpanese
  • European

Offer German Origin Nickel Alloy 800H Coupling With Various Sizes and Service like Casting, Forging


We are the leading and trustworthy incoloy forged fittings manufacturer in India.Incoloy pipe nipple extremely high resistance to corrosion, these fittings are very commonly used by refineries, petrochemical plants & chemical.we provide highest quality products with best price.

Dimensions of Incoloy Threaded Coupling



Dimensions of Incoloy Threaded Coupling
NPS Length Outside Dia Min Thread Length
D A J B
1/2 28 48 13.6 10.9
1 44 60 17.3 14.7
3/4 35 51 13.9 12.7
1.1/4 57 67 18 17
2 76 86 19.2 19
1.1/2 64 79 18.4 17.8
2.1/2 92 92 28.9 23.6
4 140 121 33 27.7
3 108 108 30.5 25.9

PED Approved UNS N08825 Hex Bushing Supplier in Mumbai With Pressure Class 3000, 6000 and 9000


Alloy 800 Threaded Tee Pressure Classes



  • 2000 LBS
  • 3000 LBS
  • 6000 LBS
  • 9000 LBS

Get Incoloy 800 Threaded Plug With Different Types and Threads like NPT, BSSP, BSPT etc

Thread Types of Incoloy 800H Threaded Plug



Thread Types
NPT National Pipe Taper
BSSP British Standard Pipe Parallel
BSPT British Standard Pipe Taper

UNS N08825 Bushing Threaded Hex Bushing Weight Chart



NPS Approx. Weight (in Pounds)
1-1/2" X 1/4" 0.688
1-1/2" X 1/2" 0.688
1-1/2" X 3/8" 0.688
1-1/2" X 3/4" 0.688
1-1/2" X 1-1/4" 0.688
1-1/2" X 1" 0.688
2" X 3/8" 1.62
2" X 3/4" 1.62
2" X 1/2" 1.62
2" X 1" 1.62
2" X 1-1/2" 1.62
2" X 1-1/4" 1.62
2-1/2" X 1" 2.37
2-1/2" X 1/2" 2.37
2-1/2" X 1-1/2" 2.37
2-1/2" X 2" 2.37
2-1/2" X 3/4" 2.37
2-1/2" X 1-1/4" 2.37

Find Nickel 800HT Threaded Boss Advantages and Chemical Composition as per ASME B16.11

Alloy 800 Threaded Tee Advantages



Alloy 800 Threaded Tee Advantages

Chemical Composition of Incoloy Socket Weld Fittings



Grade C Si Mn S Fe Cu Ni Al Cr Ti
800 0.10 max 1.00 max 1.50 max 0.015 max 39.50 min 0.75 max 30.00 - 35.00 0.15 - 0.60 19.00 - 23.00 0.15 - 0.60
800HT 0.06 - 0.10 1.00 max 1.50 max 0.015 max 39.50 min 0.75 max 30.00 - 35.00 0.15 - 0.60ᴬ 19.00 - 23.00 0.15 - 0.60ᴬ
800H 0.05 - 0.10 1.00 max 1.50 max 0.015 max 39.50 min 0.75 max 30.00 - 35.00 0.15 - 0.60 19.00 - 23.00 0.15 - 0.60
825 0.05 max 0.5 max 1.00 max 0.03 max 22.00 min 1.50 - 3.00 38.00 - 46.00 0.02 max 19.50 - 23.50 0.06 - 1.20

Nickel Alloy 800H Coupling Mechanical Properties



Element Tensile Strength Elongation Yield Strength (0.2%Offset)
800 / 800H / 800HT Psi - 75,000 , MPa - 520 30 % Psi - 30,000 , MPa - 205
825 Psi - 80,000 , MPa - 550 30 % Psi - 32,000 , MPa - 220

Incoloy Forged Fittings Equivalent Material



STANDARD UNS WERKSTOFF NR. JIS GOST BS AFNOR OR EN
Incoloy 800 N08800 1.4876 NCF 800 ЭИ670 NA 15 Z8NC32-21 Xh22T X10NiCrAlTi32-20
Incoloy 800H N08810 1.4958 / 1.4876 NCF 800H ЭИ670 NA 15(H) Z8NC33-21 Xh22T X5NiCrAlTi31-20
Incoloy 800HT N08811 1.4859 / 1.4876 NCF 800HT ЭИ670 NA 15(HT) - Xh22T X8NiCrAlTi32-21
Incoloy 825 N08825 2.4858 NCF 825 ЭП703 NA 16 NFE30C20DUM Xh28BT NiCr21Mo

Physical Properties of WNR 2.4858 Union



Element Melting Point Density
800, 800H, 800HT 2525 °F 7.94 g/cm3
825 2550 °F 8.14 g/cm3

Incoloy Threaded Fittings Testing



Macro Test

Macro Test

HIC Test

HIC Test

IGC Test

IGC Test


Applications of Alloy 825 Threaded Boss



  • Refining Industry
  • Petrochemical Industry
  • Oil and Gas Industry
  • Power Plant Industry

  • Pulp & Paper Indusry

  • Pharmaceuticals Industry
  • Aerospace Industry
  • Energy Industry
  • Chemical Industry

Types Of Incoloy Socket Weld Fittings



Incoloy Socket Weld Elbow

Incoloy Socket Weld Elbow

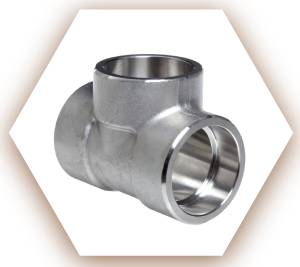

Alloy 800 Socket Weld Tee

Alloy 800 Socket Weld Tee

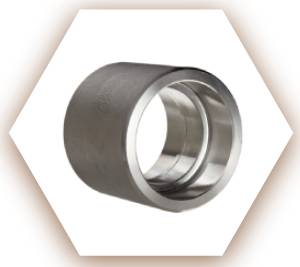

Incoloy 825 Socket Weld Coupling

Incoloy 825 Socket Weld Coupling

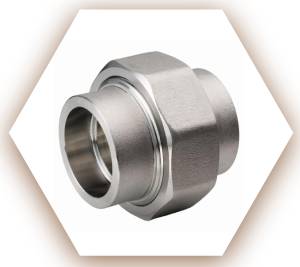

UNS N08825 Socket Weld Union

UNS N08825 Socket Weld Union

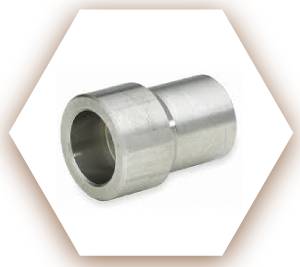

Incoloy 800H Socket Weld Reducer

Incoloy 800H Socket Weld Reducer

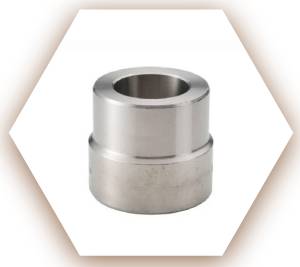

Nickel Alloy 800H Socket Weld Bushings

Nickel Alloy 800H Socket Weld Bushings

WNR 2.4858 Socket Weld Plug

WNR 2.4858 Socket Weld Plug

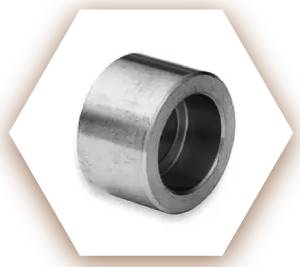

Alloy 825 Socket Weld Half Coupling

Alloy 825 Socket Weld Half Coupling

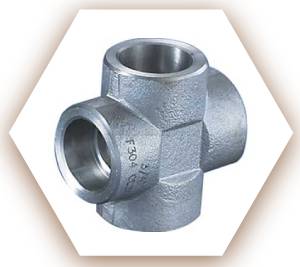

Incoloy Socket Weld Cross

Incoloy Socket Weld Cross


Types Of Incoloy Threaded Fittings

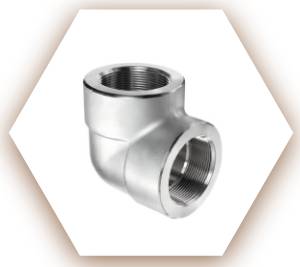

Alloy 800 Threaded Elbow

Alloy 800 Threaded Elbow

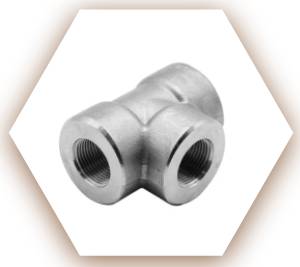

Incoloy 825 Threaded Tee

Incoloy 825 Threaded Tee

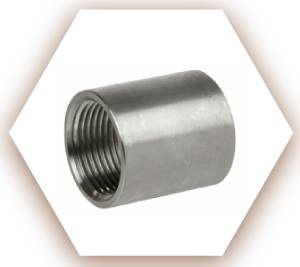

UNS N08825 Threaded Coupling

UNS N08825 Threaded Coupling

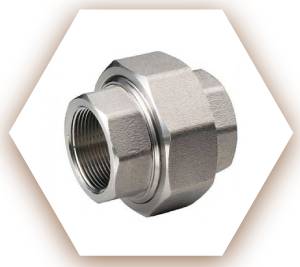

Incoloy 800H Threaded Union

Incoloy 800H Threaded Union

Nickel Alloy 800H Threaded Reducer

Nickel Alloy 800H Threaded Reducer

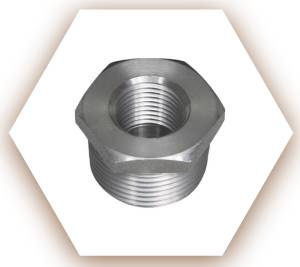

WNR 2.4858 Threaded Bushings

WNR 2.4858 Threaded Bushings

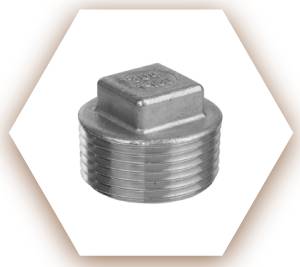

Alloy 825 Threaded Plug

Alloy 825 Threaded Plug

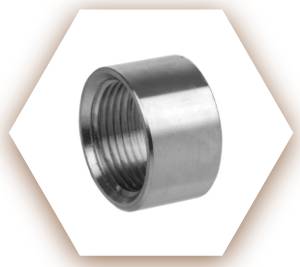

Incoloy Threaded Half Coupling

Incoloy Threaded Half Coupling

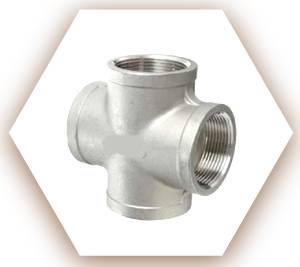

Alloy 800 Threaded Cross

Alloy 800 Threaded Cross








Material

Types

Top 12 Advantages to Choose Shikhar Steel

Top 12 Advantages to Choose Shikhar Steel

  • NACE Certified Metal Forging Company in India Having Factory of 5,850 Square Feet in Mumbai.

  • Since 2014, PED Approved Fittings Manufacturer as per ANSI B16.9.

  • Indian Oil Approved High Temperature Pipe Fittings Supplier in UAE, Russia, Qatar, Brazil, Oman and Spain.

  • Custom Size Weld Fittings Comes with MTC 10204 Type 3.1/3.2 Suitable for Chemical and Marine Environments.

  • Over 250 Traders and Fabricators in Middle East and European Countries Import Prime Quality BLRF, SORF, WNRF and SWRF Flange Because Our Material is Accepted in ADNOC and Saudi Armco.

  • Stockholder of Ferrous and Non Ferrous Metals As Per ASTM, ASME, DIN, EN, API, JIS and BS Standard and With NDT Testing.

  • Supplying Large Diameter Elbow, Tee and Reducer to Wholesalers and Stockists in Al Jubail, Dubai, Seoul and Johannesburg at Resale Price.

  • Also Keep Custom Specification and Sizes Ex Stock With Stockholders in Bahrain, Belgium and Europe for Urgent Requirements Replacement Situations.

  • Importers in South Africa and West Africa of Premier Nickel Alloy Forging in Various Forms like Fittings & Flanges, Pipe & Tube, Plate & Sheet, Fasteners for Petrochemical and Oil Refineries.

  • Since 12+ Years, Shikhar Steel Rank in Top 4 Exporter of Stainless Steel Forgings at Competitive Price, Compare Price in India, UK, China and Germany.

  • Ask for Free Sample and Price list of High Quality CNC Components.

  • Contact Now If You Need Piping Accessories in Singapore, South Korea, Japan, Taiwan and Kenya.
