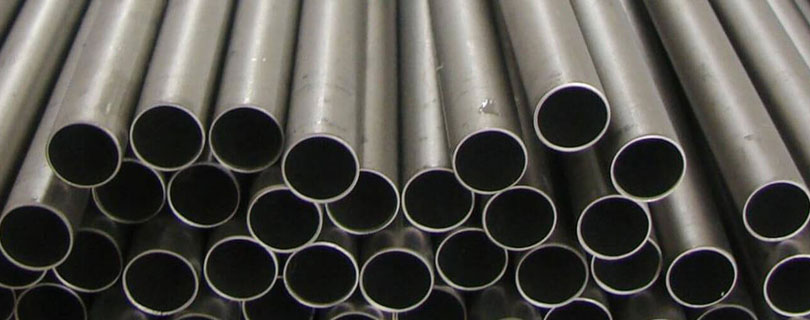

ASME SA213 T9 Tube

T9 Alloy Steel Seamless Tube & Alloy Steel T9 Welded Tubing Supplier

ASME SA213 T9 Tube

ASME SA213 T9 Tube

PED approved Manufacturer of AS T9 Chrome Moly Welded Tube, Leading T9 Alloy Steel ERW Tube Supplier

Specification of ASTM A213 T9 Tube

Dimension of Alloy Steel T9 Seamless Tube

Chemical Composition of AS T9 Chrome Moly Welded Tube

Mechanical Properties of T9 Alloy Steel ERW Tube

Specification of ASTM A213 T9 Tube

Standard

ASTM, AISI, GB, JIS, customers' requests available

Size

Round Tube: OD: 16-119mm or customized

Thickness

0.25mm-3.0mm

Length

6m or according to customers' request

Sample

Free sample is available, but freight should be paid by you

Tolerance

Outer diameter: ±0.2mm

Thickness: ±0.05mm

Length: ±0.5mm

Ends

In plain end or bevelled ends or as your requirements

Welding Line Type

ERW (Electrical Resistance Weld)

Finishing

A. Sanded

B. Gloss #400,Mirror #600 - #1000

C. Brushed

D. Wood Grain

E. Embossed, Threaded

Application

Decorations, constructions, food industry, etc.

Certification

ISO, SGS

Round Pipe Size

16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm

Square Pipe Size

17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm

Rectangle Pipe Size

10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm

Thickness

exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm

Length

6m or according to customer’s request

Outer diameter

6.35-219mm

Tolerance

Outer diameter :±0.2mm

Thickness :±0.02mm

Length :±0.5mm

Process method

Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished

Test

Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector

Dimension of Alloy Steel T9 Seamless Tube
OD inches Ave. Wall inches D/t Ratio ID inches Tube Cross Sectional Area (in2) Internal Area (in2)
0.250 0.020 12.50 0.210 0.0145 0.0346
0.250 0.028 8.93 0.194 0.0195 0.0296
0.250 0.035 7.14 0.180 0.0236 0.0254
0.250 0.049 5.10 0.152 0.0309 0.0181
0.250 0.065 3.85 0.120 0.0378 0.0113
0.375 0.020 18.75 0.335 0.0223 0.0881
0.375 0.028 13.39 0.319 0.0305 0.0799
0.375 0.035 10.71 0.305 0.0374 0.0731
0.375 0.049 7.65 0.277 0.0502 0.0603
0.375 0.065 5.77 0.245 0.0633 0.0471
0.500 0.020 25.00 0.460 0.0302 0.1662
0.500 0.028 17.86 0.444 0.0415 0.1548
0.500 0.035 14.29 0.430 0.0511 0.1452
0.500 0.049 10.20 0.402 0.0694 0.1269
0.500 0.065 7.69 0.370 0.0888 0.1075
0.500 0.083 6.02 0.334 0.1087 0.0876
0.625 0.020 31.25 0.585 0.0380 0.2688
0.625 0.028 22.32 0.569 0.0525 0.2543
0.625 0.035 17.86 0.555 0.0649 0.2419
0.625 0.049 12.76 0.527 0.0887 0.2181
0.625 0.065 9.62 0.495 0.1144 0.1924
0.625 0.083 7.53 0.459 0.1413 0.1655
0.625 0.095 6.58 0.435 0.1582 0.1486
0.625 0.109 5.73 0.407 0.1767 0.1301
0.750 0.028 26.79 0.694 0.0635 0.3783
0.750 0.035 21.43 0.680 0.0786 0.3632
0.750 0.049 15.31 0.652 0.1079 0.3339
0.750 0.065 11.54 0.620 0.1399 0.3019
0.750 0.083 9.04 0.584 0.1739 0.2679
0.750 0.095 7.89 0.560 0.1955 0.2463
0.750 0.109 6.88 0.532 0.2195 0.2223
0.750 0.120 6.25 0.510 0.2375 0.2043
0.875 0.020 43.75 0.835 0.0537 0.5476
0.875 0.028 31.25 0.819 0.0745 0.5268
0.875 0.035 25.00 0.805 0.0924 0.5090
0.875 0.049 17.86 0.777 0.1272 0.4742
0.875 0.065 13.46 0.745 0.1654 0.4359
0.875 0.083 10.54 0.709 0.2065 0.3948
0.875 0.095 9.21 0.685 0.2328 0.3685
0.875 0.109 8.03 0.657 0.2623 0.3390
0.875 0.120 7.29 0.635 0.2846 0.3167
1.000 0.028 35.71 0.944 0.0855 0.6999
1.000 0.035 28.57 0.930 0.1061 0.6793
1.000 0.049 20.41 0.902 0.1464 0.6390
1.000 0.065 15.38 0.870 0.1909 0.5945
1.000 0.083 12.05 0.834 0.2391 0.5463
1.000 0.095 10.53 0.810 0.2701 0.5153
1.000 0.109 9.17 0.782 0.3051 0.4803
1.000 0.120 8.33 0.760 0.3318 0.4536
1.000 0.134 7.46 0.732 0.3646 0.4208
1.250 0.035 35.71 1.180 0.1336 1.0936
1.250 0.049 25.51 1.152 0.1849 1.0423
1.250 0.065 19.23 1.120 0.2420 0.9852
1.250 0.083 15.06 1.084 0.3043 0.9229
1.250 0.095 13.16 1.060 0.3447 0.8825
1.250 0.109 11.47 1.032 0.3907 0.8365
1.250 0.120 10.42 1.010 0.4260 0.8012
1.250 0.134 9.33 0.982 0.4698 0.7574
1.500 0.035 42.86 1.430 0.1611 1.6061
1.500 0.049 30.61 1.402 0.2234 1.5438
1.500 0.065 23.08 1.370 0.2930 1.4741
1.500 0.083 18.07 1.334 0.3695 1.3977
1.500 0.095 15.79 1.310 0.4193 1.3478
1.500 0.109 13.76 1.282 0.4763 1.2908
1.500 0.120 12.50 1.260 0.5202 1.2469
1.500 0.134 11.19 1.232 0.5750 1.1921
1.500 0.148 10.14 1.204 0.6286 1.1385
1.750 0.035 50.00 1.680 0.1886 2.2167
1.750 0.049 40.82 1.902 0.3003 2.8413
1.750 0.065 26.92 1.620 0.3441 2.0612
1.750 0.083 21.08 1.584 0.4347 1.9706
1.750 0.095 18.42 1.560 0.4939 1.9113
1.750 0.109 16.06 1.532 0.5619 1.8433
1.750 0.120 14.58 1.510 0.6145 1.7908
1.750 0.134 13.06 1.482 0.6803 1.7250
1.750 0.148 11.82 1.454 0.7449 1.6604
1.750 0.165 10.61 1.420 0.8216 1.5837
2.000 0.035 57.14 1.930 0.2161 2.9255
2.000 0.049 40.82 1.902 0.3003 2.8413
2.000 0.065 30.77 1.870 0.3951 2.7465
2.000 0.083 24.10 1.834 0.4999 2.6417
2.000 0.095 21.05 1.810 0.5685 2.5730
2.000 0.109 18.35 1.782 0.6475 2.4941
2.000 0.120 16.67 1.760 0.7087 2.4328
2.000 0.134 14.93 1.732 0.7855 2.3561
2.000 0.148 13.51 1.704 0.8611 2.2805
2.000 0.165 12.12 1.670 0.9512 2.1904

Chemical Composition of AS T9 Chrome Moly Welded Tube
Grade
C≤
Mn
P≤
S≤
Si≤
Mo
T9
0.15 max
0.30~0.60
0.025
0.025
0.25-1.0
0.90~1.10

Mechanical Properties of T9 Alloy Steel ERW Tube
Grade Tensile Strength, MPa Yield Strength, MPa Elongation, % Hardness, HB
T9 415 min 205 min 30 min 179 max
