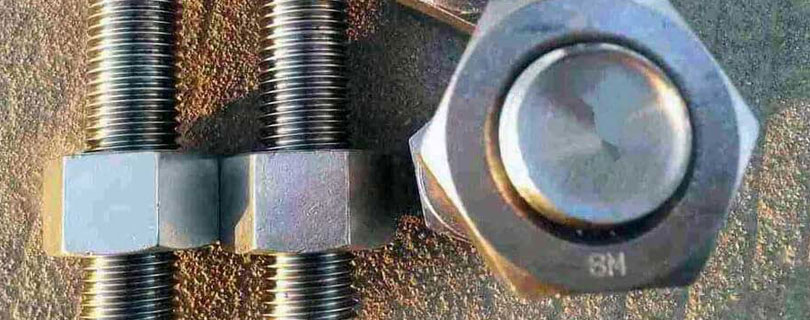

ASTM A193 Grade B16 Bolts
| Fasteners Specifications | ASTM A193 / A193, ASME SA193 / SA194 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3 mm to 200 mm |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Size | M1.6 - M12 |
| Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Fasteners Type | Bolts, Nuts, Sockets, Screws, Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Pan Head Screw, Allen Cap screw, Socket Head Cap Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut, Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts, Wing Screw, T-Head Bolts, Foundation Bolts, Eye Bolt,Structural Bolts. |
|
Nut Size
(mm) |
Diameter*
(mm) |
Height
(mm) |
||
|---|---|---|---|---|
|
Hex Nut
|
Jam Nut
|
Nylock Nut
|
||
|
2
|
4
|
1.6
|
1.2
|
-
|
|
2.5
|
5
|
2
|
1.6
|
-
|
|
3
|
5.5
|
2.4
|
1.8
|
4
|
|
4
|
7
|
3.2
|
2.2
|
5
|
|
5
|
8
|
4
|
2.7
|
5
|
|
6
|
10
|
5
|
3.2
|
6
|
|
7
|
11
|
5.5
|
3.5
|
-
|
|
8
|
13
|
6.5
|
4
|
8
|
|
10
|
17
|
8
|
5
|
10
|
|
12
|
19
|
10
|
6
|
12
|
|
14
|
22
|
11
|
7
|
14
|
|
16
|
24
|
13
|
8
|
16
|
|
18
|
27
|
15
|
9
|
18.5
|
|
20
|
30
|
16
|
10
|
20
|
|
* This is the diameter across the flats. It is also the size of wrench to use.
|
||||
| Alloy Steel B16 | C | Mn | P | S | Si | Ni | Cr |
| 0.15 max | 1.00 max | 0.040 | 0.030 | 1.00 max | – | 11.50-13.50 |
| Grade | Size | Tensile ksi, min | Yield, ksi, min | Elong, %, min | RA % min |
|---|---|---|---|---|---|
| B16 | Up to 2-1/2 | 125 | 105 | 18 | 50 |
| 2-5/8 – 4 | 110 | 95 | 17 | 45 | |
| 4-1/8 – 7 | 100 | 85 | 16 | 45 |
| Dia | Minimum Temperature ° F (°C) |
Tensile Strength min, ksi ( MPa) |
Yield Strength. min, 0.2% offset, Ksi ( MPa) |
Elongation in 4D min % |
Reduction of Area min % |
Hardness max |
|---|---|---|---|---|---|---|
| 2 1/2″ and under | 1200(650) | 125(860) | 105(725) | 18 | 50 | 321HB or 35 HRC |
| over 21/2″ to 4″ |
1200(650) | 110(760) | 95(655) | 17 | 45 | 302HB or 33 HRC |
| over 4″ to 7″ |
1200(650 ) | 100(690) | 85(586) | 16 | 45 | 227HB or 29 HRC |
